IFM SI0558 Manuel utilisateur

Operating instructions

Flow monitor

SI0558

SI0564

11441063 / 0003 / 2022

SI0558 SI0564 Flow monitor

Contents

1 Preliminary note ............................................................. 3

1.1 Symbols used.......................................................... 3

1.2 Warnings used ......................................................... 3

2 Safety instructions............................................................ 4

3 Intended use................................................................ 5

4 Installation.................................................................. 6

4.1 Installation position...................................................... 6

4.1.1 Immersion depth.................................................... 6

4.1.2 Recommended mounting position....................................... 6

4.1.3 Conditionally possible installation position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4.1.4 Impermissible installation position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4.2 Interference............................................................ 7

4.3 Process connection...................................................... 7

5 Electrical connection.......................................................... 9

6 Operating and display elements................................................. 10

7 Set-up..................................................................... 11

8 Settings.................................................................... 12

8.1 Switch point setting...................................................... 12

8.2 Teaching the switch point................................................. 12

8.3 Restoring factory settings (reset)............................................ 12

8.4 Lock / unlock........................................................... 12

9 Operation .................................................................. 14

10 Troubleshooting ............................................................. 15

11 Maintenance, repair and disposal................................................ 16

Flow monitor SI0558 SI0564

1 Preliminary note

You will find instructions, technical data, approvals and further information using the QR code on the

unit / packaging or at www.ifm.com.

1.1 Symbols used

Requirement

Instructions

Reaction, result

[...] Designation of keys, buttons or indications

Cross-reference

Important note

Non-compliance may result in malfunction or interference.

Information

Supplementary note

1.2 Warnings used

CAUTION

Warning of personal injury

wSlight reversible injuries may result.

SI0558 SI0564 Flow monitor

2 Safety instructions

• The unit described is a subcomponent for integration into a system.

– The system architect is responsible for the safety of the system.

– The system architect undertakes to perform a risk assessment and to create documentation in

accordance with legal and normative requirements to be provided to the operator and user of

the system. This documentation must contain all necessary information and safety instructions

for the operator, the user and, if applicable, for any service personnel authorised by the

architect of the system.

• Read this document before setting up the product and keep it during the entire service life.

• The product must be suitable for the corresponding applications and environmental conditions

without any restrictions.

• Only use the product for its intended purpose (Ò Intended use).

• Only use the product for permissible media.

• If the operating instructions or the technical data are not adhered to, personal injury and/or damage

to property may occur.

• The manufacturer assumes no liability or warranty for any consequences caused by tampering with

the product or incorrect use by the operator.

• Installation, electrical connection, set-up, operation and maintenance of the product must be

carried out by qualified personnel authorised by the machine operator.

• Protect units and cables against damage.

Flow monitor SI0558 SI0564

3 Intended use

The device monitors liquids and gases.

The device detects flow based on the calorimetric measuring principle and switches the output.

The switch point is adjustable.

The typical response time of the device is 1 ... 10 s. It can be influenced by the setting of the switch

point:

• Low switch point = quick reaction with rising flow.

• High switch point = quick reaction with falling flow.

SI0558 SI0564 Flow monitor

4 Installation

CAUTION

During installation or in case of mechanical failure, high pressure or hot media can leak

from the system.

wRisk of injury caused by pressure or burns.

uEnsure that the system is free of pressure during installation.

uEnsure that no media can leak at the mounting location during installation.

4.1 Installation position

4.1.1 Immersion depth

≥12 mm

Fig.1: Immersion depth

• The sensor tip must be completely surrounded by the medium.

• Recommended immersion depths: minimum 12 mm.

4.1.2 Recommended mounting position

Fig.2: Recommended mounting position

• For horizontal pipes: mounting from the side.

• For vertical pipes: mounting in the rising pipe.

4.1.3 Conditionally possible installation position

Fig.3: Conditionally possible installation position

• For horizontal pipes, if the pipe is free from build-up: mounting from below.

• For horizontal pipes, if the pipe is completely filled with medium: mounting from the top.

Flow monitor SI0558 SI0564

4.1.4 Impermissible installation position

Fig.4: Impermissible installation position

• The sensor tip must not be in contact with the pipe wall.

• Do not mount in downpipes that are open at the bottom.

4.2 Interference

Structures in the pipe, bends, valves, reducing pieces and the like affect the function of the unit.

uAdhere to the distances between sensor and interference.

5...10 x D

3...5 x D

Fig.5: Inlet and outlet pipe lengths

D: Outside diameter of the pipe

S: Interference

4.3 Process connection

Using process adapters the unit can be adapted to different process connections.

A correct fit of the unit and ingress resistance of the connection are only ensured using ifm adapters.

For small flow rates, ifm adapter blocks are available.

The device is supplied without accessories.

Information about available accessories at documentation.ifm.com.

The optimum function is not ensured when using components from other manufacturers.

2 4

Fig.6: Connect the device to the process using the adapter

1: Process connection 2: Adapter

3: Sensor tip 4: Coupling nut

uGrease the threads of the process connection, adapter and sensor. Use a lubricating paste which

is suitable and approved for the application.

Ensure no grease is applied to the sensor tip.

uScrew the suitable adapter into the process connection.

SI0558 SI0564 Flow monitor

uPlace the flow monitor onto the adapter and tighten the nut. Tightening torque 25 Nm. Ensure that

the unit is correctly oriented.

Flow monitor SI0558 SI0564

5 Electrical connection

The unit must be connected by a qualified electrician.

uObserve the national and international regulations for the installation of electrical equipment.

uFor the output circuit take the same protective measures as for the supply circuit.

uInsert a miniature fuse according to IEC 60127-2 Sheet 1 ( ≤ 5 A fast acting).

uDisconnect power.

uConnect the unit as follows:

1 BN

2 BK

4 WH

3 BU

L1 / L+

N / L

2 1

Fig.7: Wiring diagram (colours to DINEN60947-5-2)

BK: Black BN: Brown

Cap-

tion:

Blue WH: White

uDo not connect pin 5.

SI0558 SI0564 Flow monitor

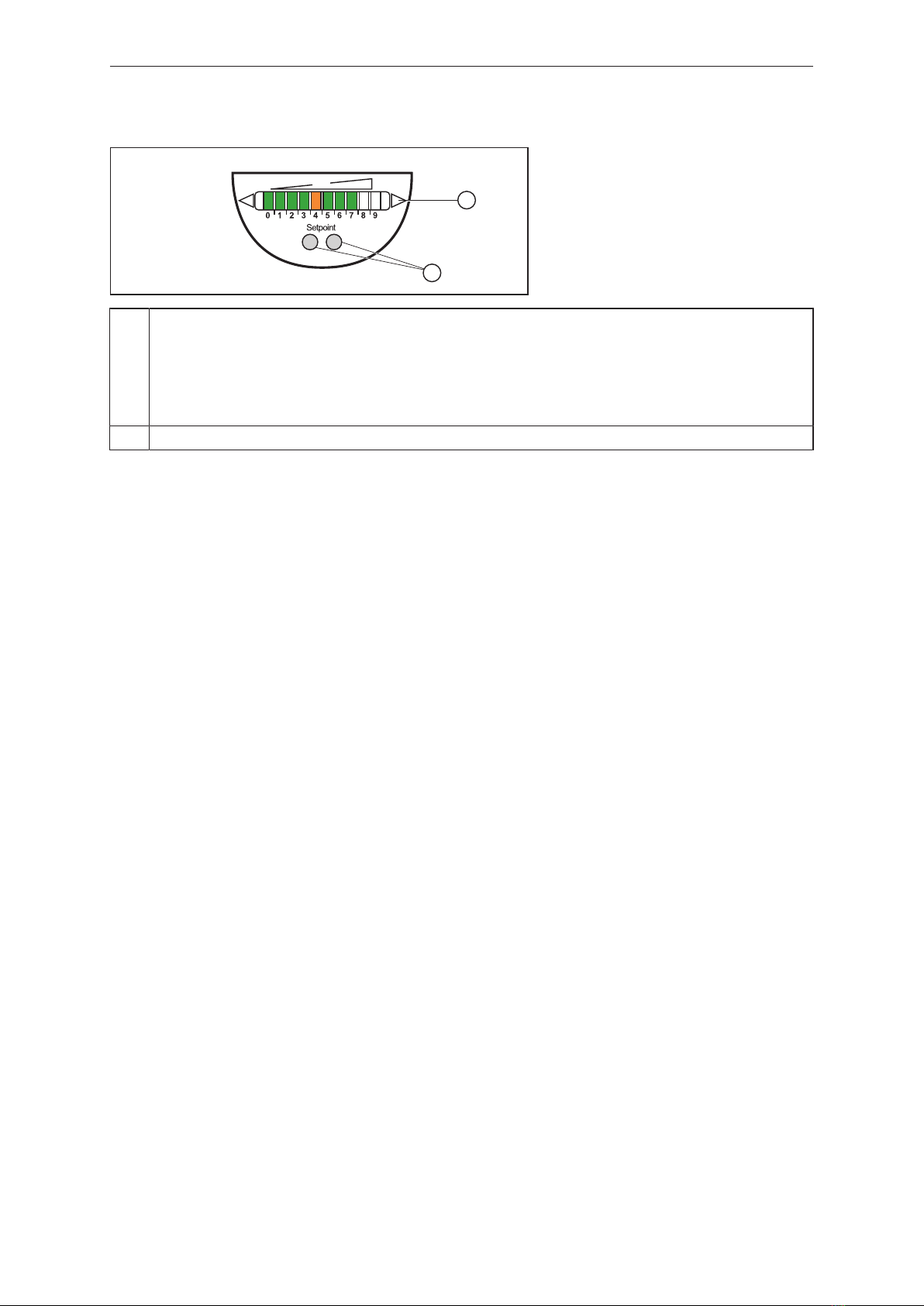

6 Operating and display elements

1: Operation indication

• The LEDs 0...9 represent the range of the monitored flow.

• The green LEDs show the current flow.

• An illuminated LED shows the position of the switching point:

– Orange = output closed

– Red = output open

2: Setting buttons for adjustment and configuration
