IFM UIT509 Manuel utilisateur

Operating instructions

Ultrasonic diffuse-reflection sensor

without IO-Link

UIT509

UIT512

UIT515

11487721 / 00 08 / 2018

UKUK

1 Preliminary note

1.1 Symbols used

►Instructions

> Reaction, result

[…] Designation of keys, buttons or indications

→Cross-reference

Important note

Non-compliance may result in malfunction or interference.

Information

Supplementary note.

2 Safety instructions

• Read this document before setting up the product and keep it during the entire

service life.

• The product must be suitable for the corresponding applications and

environmental conditions without any restrictions.

• Only use the product for its intended purpose (→ 3 Functions and features).

• If the operating instructions or the technical data are not adhered to, personal

injury and/or damage to property may occur.

• The manufacturer assumes no liability or warranty for any consequences

caused by tampering with the product or incorrect use by the operator.

• Installation, electrical connection, set-up, operation and maintenance of the

product must be carried out by qualified personnel authorised by the machine

operator.

• Protect units and cables against damage.

3 Functions and features

Ultrasonic sensor for monitoring levels and detecting objects.

4 Installation

►Secure the unit to a bracket.

1/2: status LEDs 1/2 (yellow),

setting aid and output indication

3: echo LED (green), is on when object or

background is detected

4: teach button

Sound-absorbing surfaces have a negative effect on a reliable function.

►Consider the dead zone (→ Technical data sheet):

No object detection in the dead zone.

For units with metal housing (according to UL 508):

►Observe a minimum distance of 12.7 mm between the sensor and non-

insulated live parts.

For further information please refer to www.ifm.com

→ General information about installation and operation.

5 Electrical connection

►Disconnect power.

► Connect unit (depending on the type selected):

BK: black

BN: brown

BU: blue

WH: white

2OUT2

L+

OUT1

• OUT1: switching output

• OUT2: switching output

colours to DIN EN 60947-5-2

6 Settings

The unit and the parameters are set via the teach button (→ 6.1).

6.1 teach button

6.1.1 Start programming mode

►Press the teach button for 2 s...6 s.

> Yellow status LEDs 1/2 flash (1 Hz), the unit is in the programming mode.

If programming has not been completed successfully, the unit returns to the

previous setting.

6.1.2 Set output response

►Start programming mode (→ 6.1.1).

► Position the object in P1 (Fig. 1 or 2).

►Press the teach button for 1 s.

> Yellow status LEDs 1/2 flash (2.5 Hz), P1 setting is completed.

► Position the object in P2 (Fig. 1 or 2).

►Press the teach button for 1 s.

> Yellow status LEDs 1/2 flash briefly (4 Hz), P2 setting is completed.

6.1.3 Invert output response

►Press the teach button for > 6 s.

> Yellow status LEDs 1/2 flash (> 10 Hz).

> Yellow status LEDs 1/2 flash briefly (> 4 Hz).

> Output function is inverted.

6.1.4 Restore factory setting

►Align the unit so that no echo is received.

> Green echo LED off.

►Start programming mode (→ 6.1.1).

►Press the teach button for 1 s.

> Yellow status LEDs 1/2 flash briefly (4 Hz), factory setting is restored.

In case of object recognition, the following output signals are provided:

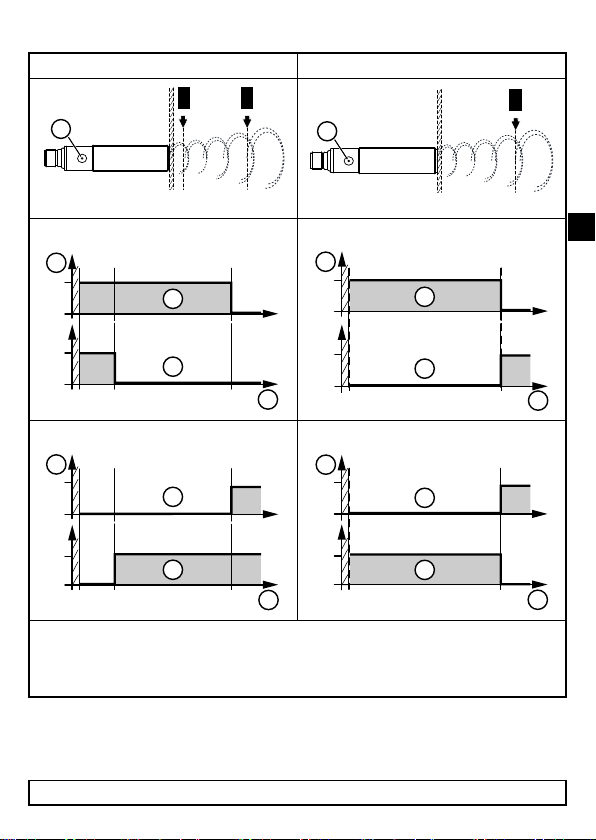

Fig. 1: Window function P1 > P2 Fig. 2: Hysteresis function P1 = P2

B P2 P1

B P1/P2

Switching outputs Complementary switching outputs

B P2 P1

B P1/P2

Inverted switching outputs Inverted switching outputs

B P2 P1

B P1/P2

1: output response

2: distance to the object

3: OUT1 (switching output)

4: OUT2 (switching output)

B: blind zone

P: taught position

T: teach button

Technical data and further information at www.ifm.com
