IFM O1D100 series Manuel utilisateur

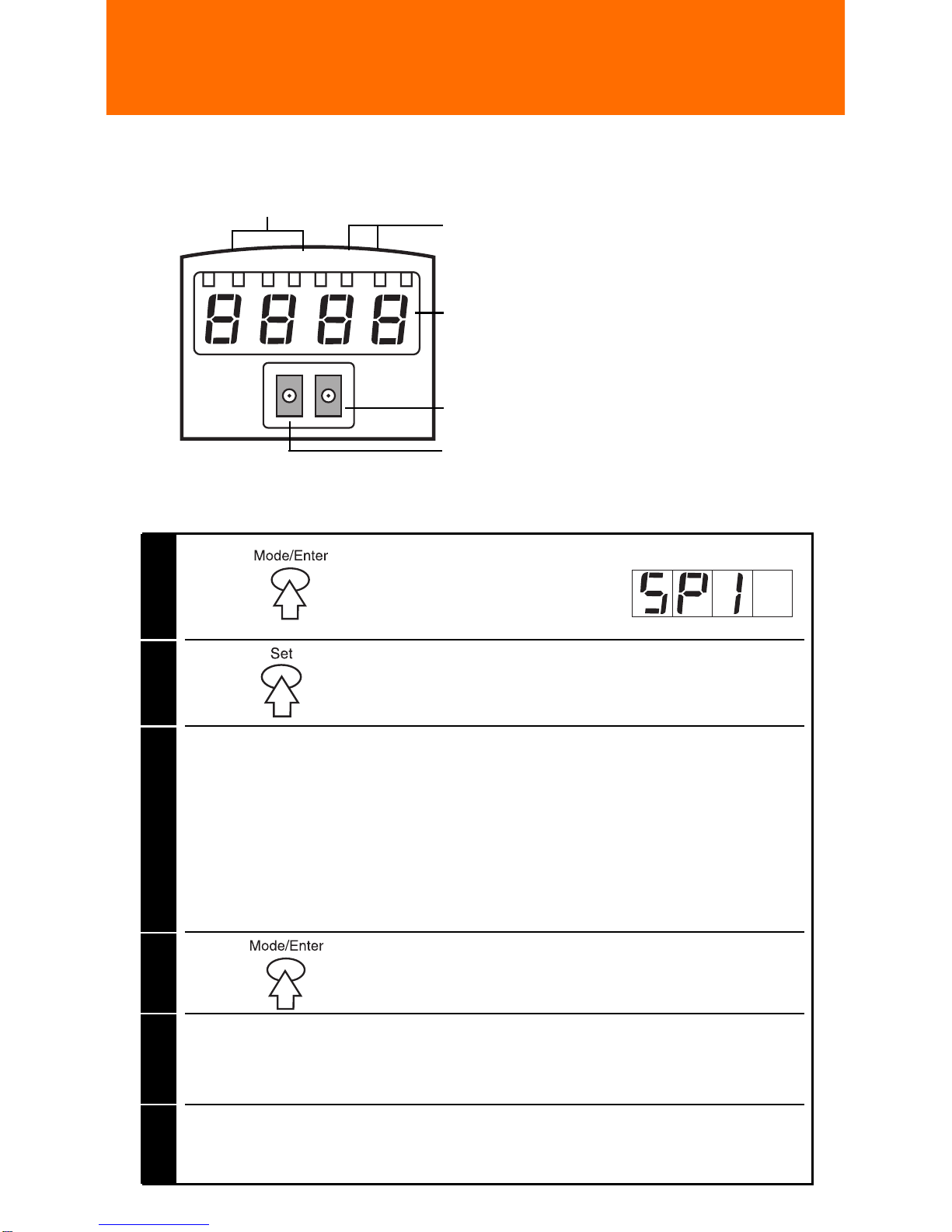

Mode/

Enter Set

PWR mm m inch OUT1 OUT2

Output LED’s

Setting of the parameters

Mode: Selecting the mode

Enter: Acknowledging the setting

4 digit numeric display

Programming Mode

Press until desired menu item is

displayed. (See distance

sensor menu items)

Press to display the current setting.

To change the setting, press and hold the set button

for 5 seconds until the flashing value is continuously

incremented. After this time, the value may be increased

continuously (by holding down the set button) or incre-

mented (by pressing and releasing the button repeatedly)

until the desired value is reached.

Press once to enter desired value.

The desired value is set. If no button is pressed for 15

seconds, the sensor returns to the operating mode.

Repeat these steps to set other values as required.

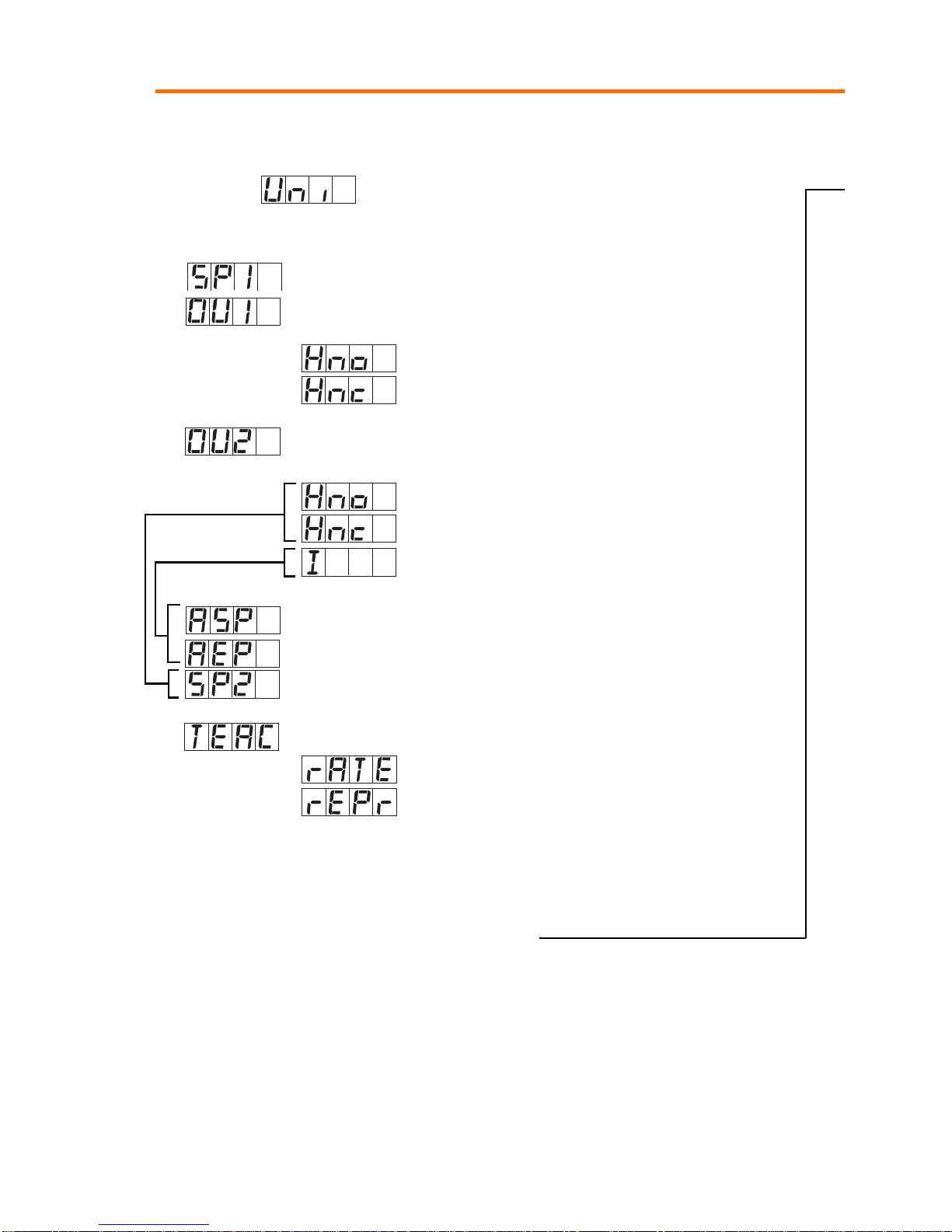

Display

O1D100 Series

Distance Sensor

Display Unit LED’s

Setpoint 1

Output 1

Hysteresis mode: normally open

Hysteresis mode: normally closed

Output 2

Hysteresis mode: normally open

Hysteresis mode: normally closed

4 - 20 mA analog output

Analog start point

Analog end point

Setpoint 2

Sampling rate

Repeatability

Program (Display units) first to avoid

programming errors.

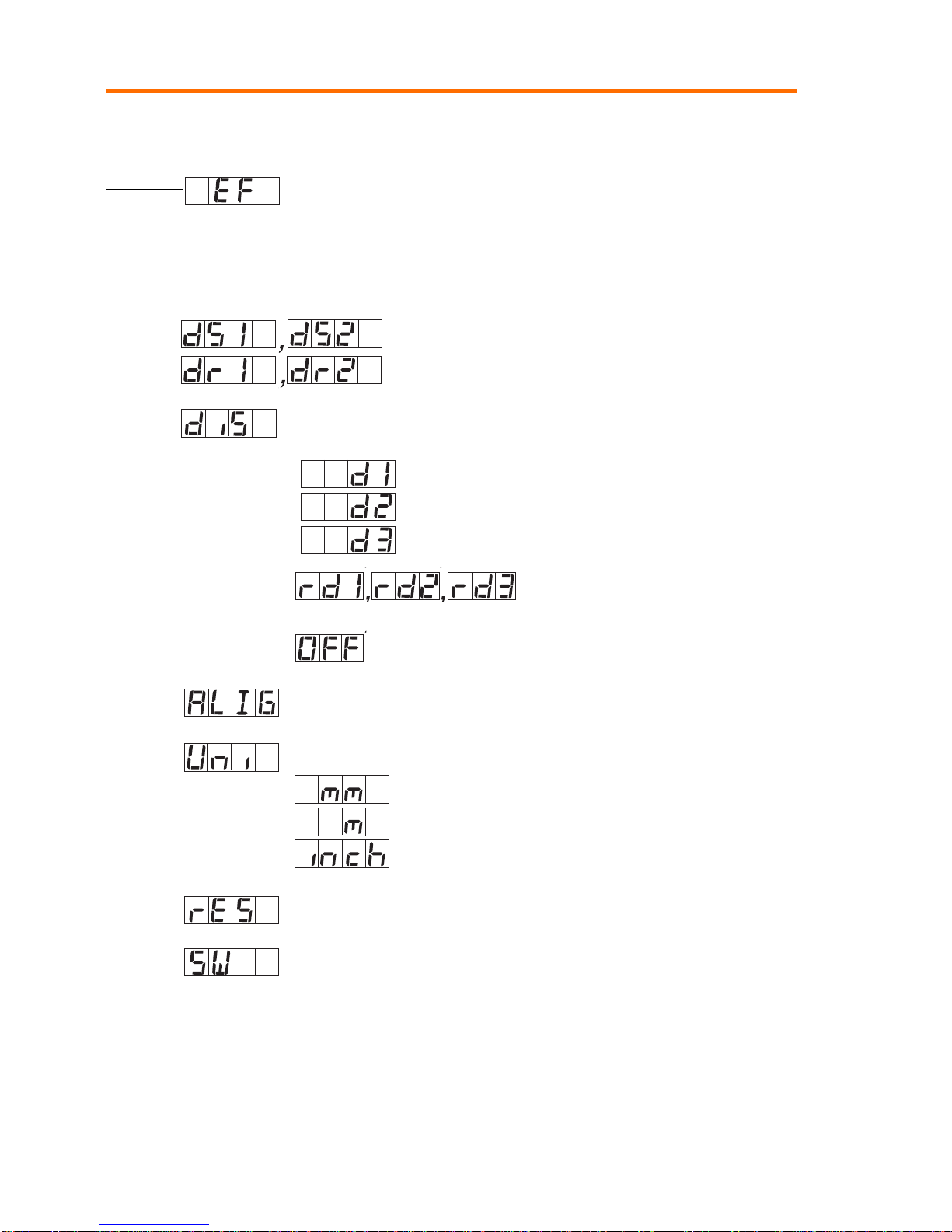

Distance Sensor Menu Items

(continued)

Enhanced functions - Press Set, then Mode/ Enter

button to scroll through the Enhanced Function

options.

On delay for switching output

Off delay for switching output

Display options

Display updated every 50 mS

Display updated every 200 mS

Display updated every 600 mS

Same as above with

display rotated 180º

Display deactivated

Indication of signal strength in %

Select display units (m, mm, inch)

Millimeter

Meter

Inch

Return to factory default

Software revision

TEL: 800-441-8246 • FAX: 800-329-0436

www.ifmefector.com

10/05

Lit. No. B41005

Measuring

range

[mm]

Repeatability* [mm] Accuracy* [mm]

white (90%

remission)

grey (18%

remission)

white (90%

remission)

grey (18%

remission)

200...1000 10 (±5) 15 (±7.5) ±15 ±18

1000...2000 11 (±5.5) 20 (±10) ±15 ±20

2000...4000 35 (±17.5) 45 (±22.5) ±25 ±32

4000...6000 55 (±27.5) 80 (±40) ±35 ±50

6000...10,000 120 (±60) –±70–

* The values specified for repeatability and accuracy refer to a sampling

frequency of 50 Hz. At a lower sampling frequency, which is adjustable

on the unit, these values will be lower. View the calculation tool at

www.ifmefector.com/ifmus/web/pmd_5.htm

Distance to target

(shown on sensor display)

[mm]

200...1000

1,000...2000

2,000...4000

4,000...6000

6,000...10,000

Minimum distance from

target to background

[mm]

113

200

300

For background suppression applications

The following chart shows the minimum distance required

between target and background
