Operating instructions

Compressed air meter

SD8001

704842 /00 07 / 2010

Contents

1 Preliminary note��4

1�1 Symbols used ��4

2 Safety instructions ��4

3 Functions and features ��5

4 Function��5

4�1 Processing of the measured signals��5

4�2 Volumetric flow monitoring��5

4�3 Consumed quantity monitoring (totalizer function) ��5

4�3�1 Consumed quantity monitoring with pulse output��6

4�3�2 Consumed quantity monitoring with preset meter ��6

4�4 Monitoring of temperatures��6

4�5 Volumetric flow monitoring / switching function ��6

4�6 Volumetric flow monitoring / analogue function ��7

5 Installation��8

5�1 Installation location ��8

5�2 Installation conditions ��8

5�3 Mounting position ��9

5�4 Installation in pipes ��10

6 Electrical connection��10

7 Operating and display elements �� 11

8 Menu��12

8�1 Menu structure��12

8�2 Explanation of the menu��13

9 Parameter setting ��14

9�1 General parameter setting��14

9�2 Settings for volumetric flow monitoring��15

9�2�1 Settings for limit value monitoring with OUT1��15

9�2�2 Settings for limit value monitoring with OUT2��16

9�2�3 Scaling of the analogue value for volumetric flow ��16

9�3 Settings for monitoring of consumed quantities��16

9�3�1 Settings for quantity monitoring by pulse output��16

9�3�2 Settings for quantity monitoring using the preset meter ��16

9�3�3 Settings for meter reset controlled by the program ��16

9�3�4 Switch off the meter reset��17

9�4 User settings (optional)��17

9�4�1 Determine the standard unit of measurement for volumetric flow ��17

9�4�2 Configuration of the standard display ��17

9�4�3 Setting the damping of the measured values ��17

9�4�4 Setting the error behaviour of OUT1 / OUT2��17

9�5 Service-Funktionen��18

9�5�1 Reading the min�/max� values for volumetric flow ��18

9�5�2 Reset all parameters to the factory setting ��18

9�6 Setting of the preset meter / pulse value (ImPS)��19

10 Operation��21

10�1 Read the set parameters ��21

10�2 Changing the display unit in the Run mode��21

10�3 Error indication ��21

10�4 General operating conditions��22

11 Scale drawing ��22

12 Technical data��23

12�1 Setting ranges ��24

13 Factory setting ��24

1 Preliminary note

1.1 Symbols used

►Instruction

> Reaction, result

[…] Designation of buttons, switches or indications

→Cross-reference

Important note

Non-compliance can result in malfunctions or interference�

2 Safety instructions

• Please read this document prior to installing the unit� Ensure that the product is

suitable for your application without any restrictions�

• Work on compressed air equipment as well as mounting, setting for operation

and set-up of the unit must be carried out by suitably qualified personnel� When

doing so, state of the art, safety and accident prevention regulations must be

adhered to�

• Ensure that the installation is at a standstill and no pressure is applied before

mounting components into or removing them from compressed air equipment�

• Improper or non-intended use may lead to malfunctions of the unit or to

unwanted effects in your application� That is why installation, electrical con-

nection, set-up, operation and maintenance of the unit must be carried out by

qualified personnel authorised by the plant operator�

• Inallapplicationstestthecompatibilityoftheproductmaterials(→12Techni-

cal data) with the media to be measured�

For the scope of validity cULus: The device shall be supplied from an isolating

transformer having a secondary Listed fuse rated as noted in the following table�

Overcurrent protection

Control-circuit wire size Maximum protective device rating

Ampere

AWG (mm2)

26 (0�13) 1

24 (0�20) 2

22 (0�32) 3

20 (0�52) 5

18 (0�82) 7

16 (1�3) 10

3 Functions and features

The unit monitors the standard volume flow of operating compressed air�

It detects the 3 process categories volumetric flow, consumed quantity, medium

temperature�

Applications: compressed air equipment�

All data refer to standard volume flow according to DIN ISO 2533, i�e� volume flow

at 1013 hPa, 15°C and 0% relative air humidity�

The general operating conditions of compressed air equipment apply�

4 Function

4.1 Processing of the measured signals

• The unit displays the current process values�

• It generates 2 output signals according to the parameter setting�

OUT1: 3 selection options �� parameter setting

switching signal for volumetric flow limit values ��(→9.2.1)

or pulse sequence for totalising meter ��(→9.3.1)

or switching signal for preset counter ��(→9.3.2)

OUT2: 2 selection options

switching signal for volumetric flow limit value ��(→9.2.2)

or analogue signal for volumetric flow ��(→9.2.3)

4.2 Volumetric flow monitoring

The flow rate is monitored by a calorimetric measuring system, the measured

signals by the electronics�

• 2 switching signals for volumetric flow limit values can be provided (output 1

andoutput2).Fortheswitchingfunctions→4.5.

• An analogue signal proportional to the volumetric flow (4��20 mA) can be

providedonoutput2.Fortheanaloguefunctions→4.6.

4.3 Consumed quantity monitoring (totalizer function)

The unit has an internal quantity meter which continuously totals the volumetric

flow� The sum corresponds to the current consumed quantity since the last reset�

• The current meter count can be indicated�

• In addition the value before the last reset is stored� This value can also be

indicated�

The meter saves the totalled consumed quantity every 10 minutes� After a power failure

this value is available as the current meter count� If a time-controlled reset is set, the

elapsed time of the set reset interval is also stored� So the possible data loss can be

maximum 10 minutes�

The meter can be reset as follows:

• Manualreset(→9.3.3).

• Time-controlledautomaticreset(→9.3.3).

4.3.1 Consumed quantity monitoring with pulse output

Output1providesacountingpulseifthevaluesetin[ImPS]isreached(→9.3.1).

4.3.2 Consumed quantity monitoring with preset meter

2 types of monitoring are possible:

• Time-dependent quantity monitoring

- Settings: [ImPS] = quantity x, [ImPR] = [no], [rTo] = time t�

- If the quantity x is reached during the time t, output 1 switches and remains

switched until the meter is reset�

- If the quantity x has not been reached after the time t, the meter is automati-

cally reset and counting starts again; output 1 does not switch�

• Quantity monitoring not time-dependent

- Settings: [ImPS] = quantity x, [ImPR] = [no], [rTo] = [OFF]�

- If the quantity x is reached, output 1 switches and remains switched until the

meter is reset�

4.4 Monitoring of temperatures

• The unit detects the current system temperature and shows it on the display

(→chapter10.2ChangingthedisplayunitintheRunmode).

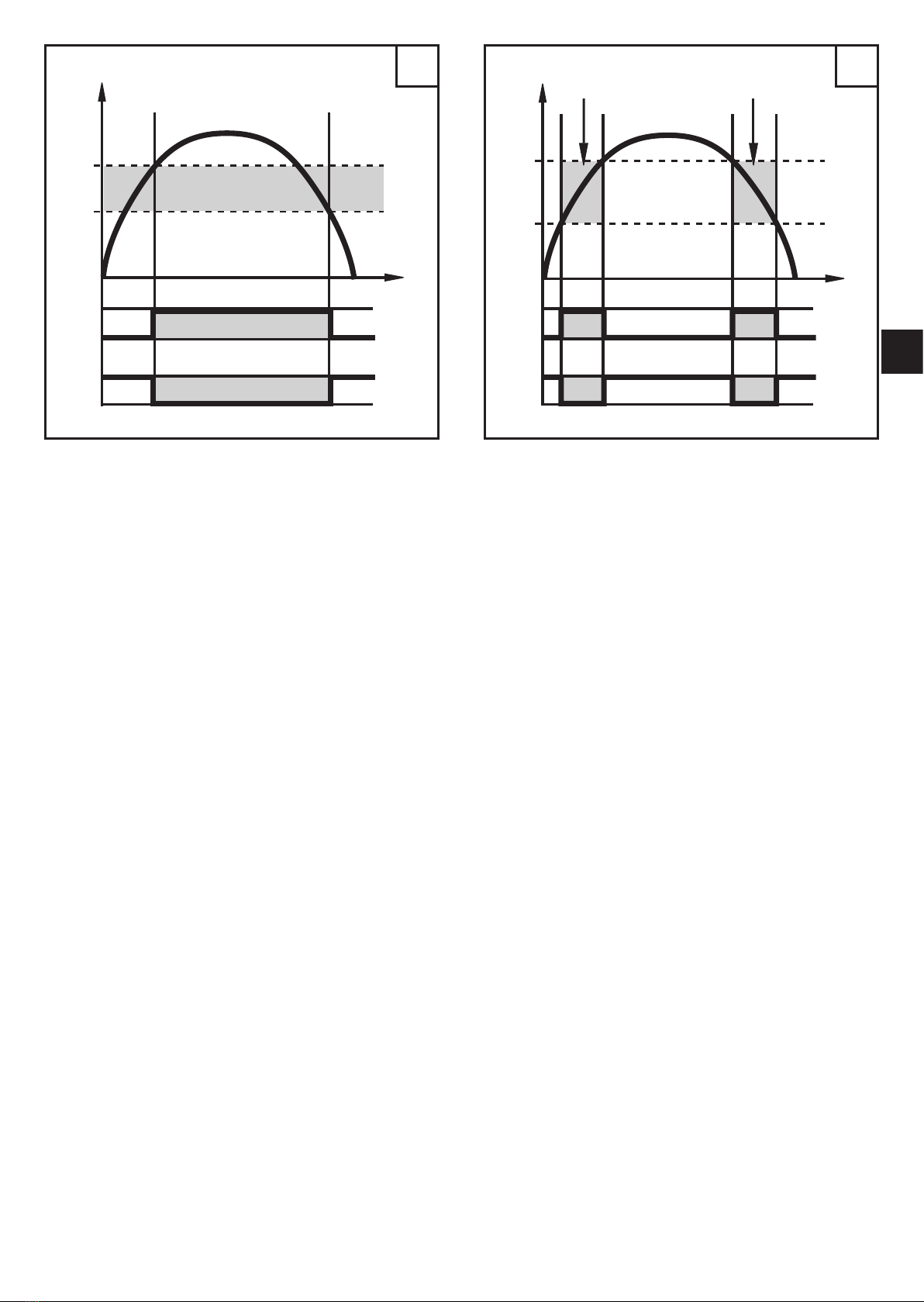

4.5 Volumetric flow monitoring / switching function

OUTx changes its switching state if it is above or below the set switching limits

(SPx, rPx)� The following switching functions can be selected:

• Hysteresis function / normally open (fig� 1): [OUx] = [Hno]�

• Hysteresis function / normally closed (fig� 1): [OUx] = [Hnc]�

First the set point (SPx) is set, then the reset point (rPx) at the requested

distance�

• Window function / normally open (fig� 2): [OUx] = [Fno]�

• Window function / normally closed (fig� 2): [OUx] = [Fnc]�

The width of the window can be set by means of the distance between SPx and

rPx� SPx = maximum value, rPx = minimum value�







































 





1 2

HY = hysteresis; FE = window

When set to the window function the set and reset points have a fixed hysteresis of 0�25 %

of the final value of the measuring range� This keeps the switching state of the output stable

if the volumetric flow varies slightly�

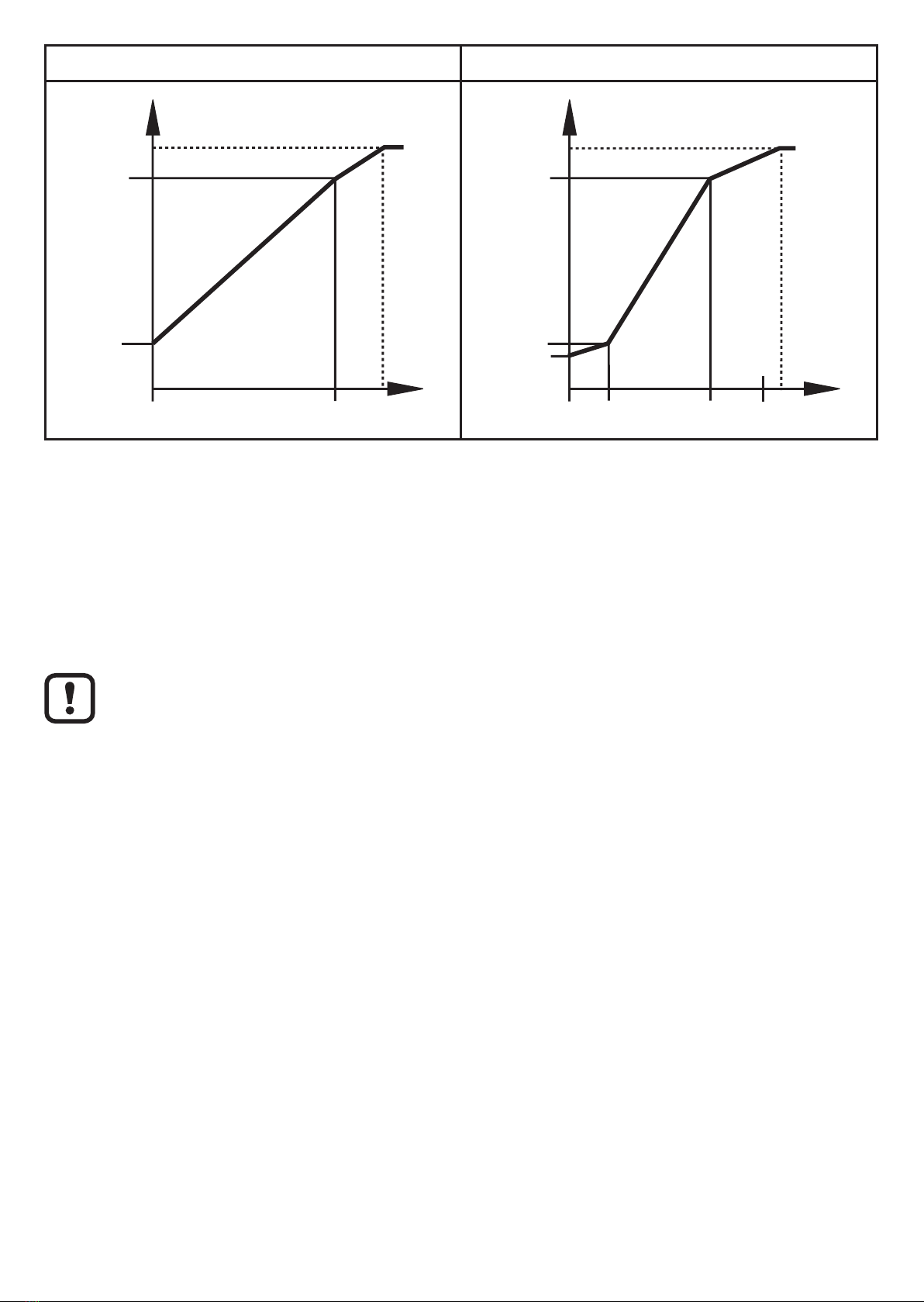

4.6 Volumetric flow monitoring / analogue function

• The analogue start point [ASP] determines at which measured value the output

signal is 4 mA�

• The analogue end point [AEP] determines at which measured value the output

signal is 20 mA�

Minimum distance between [ASP] and [AEP] = 25 % of the final value of the

measuring range�

Factory setting Measuring range scaled





























MEW = final value of the measuring range

In the set measuring range the output signal is between 4 and 20 mA�

It is also indicated:

•Volumetric flow above the measuring range: output signal > 20 mA�

•Flow rate below the measuring range: output signal between 3�6 and 4 mA�

5 Installation

The rules and regulations for the installation and operation of compressed

air equipment must be observed�

5.1 Installation location

• Behind the cold dryer / near the load�

• If compressed air is fed into the main pipe through parallel pipes, the unit

should be mounted in the main pipe�

• Installation after the maintenance unit is also possible� If oil is used for the

loads, the unit must be mounted before the oiler�

5.2 Installation conditions

To achieve the specified measurement accuracy, the following mounting condi-

tions must be adhered to: defined inflow / outflow pipe lengths, defined flow cross-

sectional area, fixed installation depth and correct positioning of the measuring

elements�

The unit is delivered mounted on a pipe section meeting these conditions�

In case of turbulances at the inflow side additional baffled pipes (B) are recom-

mended:

changes to the pipe diameter B = 5 x pipe diameter

90° elbow B = 5 x pipe diameter

two 90° elbows, one plane B = 10 x pipe diameter

two 90° elbows, two planes B = 15 x pipe diameter

valve, slide B = 35 x pipe diameter

5.3 Mounting position

• Permitted mounting positions: pipe length vertical, any position (fig� 1, 2), pipe

length horizontal, unit vertical (fig� 3, 4), unit on side, pipe length left (fig� 5)�

• Avoid the mounting position shown in fig� 6 (unit on side, pipe length right)� If

the flow rate is low, the specified measurement accuracy cannot be adhered to�

1 2 3 4

5 6

5.4 Installation in pipes

Integrate the pipe length so that the direction of flow (1) and the marking arrow (2)

show in the same direction�





6 Electrical connection

The unit must be connected by a qualified electrician�

The national and international regulations for the installation of electrical

equipment must be adhered to�

Voltage supply to EN50178, SELV, PELV�

►Disconnect power�

►Connect the unit as follows:

2 switching outputs 1 switching output / 1 analog output

L+

2: OUT2

4: OUT1 L

L+

2: OUT2

4: OUT1

OUT1: switching signal or pulse sequence pnp

OUT2: switching signal pnp or analogue signal (I)

Core colours of ifm sockets:

1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black)�

Table des matières

Autres manuels IFM Electronic Instrument de mesure

IFM Electronic

IFM Electronic efector300 SD6000 Manuel utilisateur

IFM Electronic

IFM Electronic efector300 SD2000 Manuel utilisateur

IFM Electronic

IFM Electronic SD6050 Manuel utilisateur

IFM Electronic

IFM Electronic Efector 300 SI5002 Manuel utilisateur

IFM Electronic

IFM Electronic efector300 SD6000 Manuel utilisateur

IFM Electronic

IFM Electronic ecomot200 FR-2 Manuel utilisateur

IFM Electronic

IFM Electronic efector300 SD5000 Manuel utilisateur

IFM Electronic

IFM Electronic PK5520 Manuel utilisateur

IFM Electronic

IFM Electronic SI5006 Manuel utilisateur

IFM Electronic

IFM Electronic SD0550 Manuel utilisateur

IFM Electronic

IFM Electronic Efector 300 SI0556 Manuel utilisateur

IFM Electronic

IFM Electronic efector 300 SD6101 Manuel utilisateur

IFM Electronic

IFM Electronic efector 300 SI0519 Manuel utilisateur

IFM Electronic

IFM Electronic efector 300 SD9000 Manuel utilisateur

IFM Electronic

IFM Electronic Efector 160 LK1222 Manuel utilisateur

IFM Electronic

IFM Electronic Efector 300 SA3010 Manuel utilisateur

IFM Electronic

IFM Electronic efector 200 OJ50 Series Manuel utilisateur

IFM Electronic

IFM Electronic efector 300 SD9000 Manuel utilisateur

IFM Electronic

IFM Electronic Efector 500 Manuel utilisateur

IFM Electronic

IFM Electronic SD8000 Manuel utilisateur

IFM Electronic

IFM Electronic PG24 Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 300 SI1007 Manuel utilisateur

IFM Electronic

IFM Electronic Efector 300 SD8000 Manuel utilisateur

IFM Electronic

IFM Electronic efector 300 SD2000 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur

IFM Electronic efector300 SD8001 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques
