IEI Technology WSB-G41A Manuel utilisateur

Full-size PICMG 1.0with Intel® G41 supports socket

LGA775 Intel® Core™2 QuadCPU card with VGA, Dual PCIe

GbE, SATAII, COM, USB 2.0 and Audio, RoHS

WSB-G41A

Quick Installation Guide

Version 1.0

Apr. 07, 2010

Package Contents

WSB-G41A package includes the following items:

l1 x WSB-G41A Single Board Computer

l1 x Mini Jumper Pack

l4 x SATA Cable

l1 x Dual RS-232 Cable

l1 x USB Cable

l1 x IO-KIT-001-R20 ( DVI Model Only )

l1 x Utility CD

l1 x QIG (Quick Installation Guide)

Specifications

lCPU: LGA775 45nm Intel® Core™ 2 Extreme/Quad/Duo,

Celeron processors with 1333/1066/800MHz FSB supports

lSystem Chipset: Intel®G41+ICH7

lBIOS: AMI BIOS

lSystem Memory: 2x 240-pin dual-channel DDR3

800/1066MHz SDRAM up to 4GB

lEthernet: Dual PCIe Intel® 82583V GbE Controller (PCIe x1

Interface)

lI/O Interface:

2x RS-232

7x USB2.0 (1on bracket, 6on board by 2x4-pin pin header)

4x SATA II

1xIDE

1x FDD

1x LPT

1 x 6-pin pin header for PS/2 KB/MS

1 x PS/2 KB/MS

lSuper I/O: ITE IT8718F

lDigital I/O: 8-bit Digital I/O, 4-bit input / 4-bit output

lInfrared Interface: 1 x 5-pin pin header

lGraphic:

Intel® Graphics Media Accelerator X4500 (Intel® GMA X4500)

lDisplay:

VGA Intgrated in Intel® G41

DVI by Silicon Image SIL1362 (WSB-G41A-DVI only)

lAudio:

10-pin on board header connects to the IEI Audio kit

(AC-KIT-883HD-RD / AC-KIT08R-R10)

lWatchdog timer: Software programmable 1-255 sec. by

Super I/O:ITE IT8718F

lPower supply: ATXPower Support

lPower Consumption:

5V@7.13,12V@0.27A, 5V@0.11A, Vcore_12V@3.02A

(Running 3D Mark20001SE with Intel® Core™2 Duo E8500

3.16GHz 1333MHz FSB CPU with 2*2GB DDR3SDRAM)

lOperation Temperature: 0 ~ 60°C( 32°F ~ 140°F)

lOperation Humidity: 5% ~ 95%,non-condensing

lDimensions: 338mm X 122mm

lWeight: 1.1Kg

Ordering Information

WSB-G41A-R10:

Full-size PICMG 1.0with Intel® G41 supports socket LGA775 Intel®

Core™2 Quad CPU card with VGA, Dual PCIe GbE, SATAII, COM,USB

2.0 and Audio, RoHS

WSB-G41A-DVI-R10:

Full-size PICMG 1.0with Intel® G41 supports socket LGA775 Intel®

Core™2 Quad CPU card with VGA / DVI, Dual PCIe GbE, SATAII, COM,

USB 2.0 and Audio, RoHS

AC-KIT883HD-R10:

7.1Channel HD Audio kit with Realtek ALC883 support dual audio streams

AC-KIT08R-R10:

5.1Channel AC’97 audio kit with Realtek ALC655

CF-775A-RS:

High performance CPU cooler (92mm x92mm x73mm , 130W)

CF-520-RS-R11:

High performance CPU cooler (115mm x115mm x67mm , 115W)

CB-USB14-RS:4 ports USB cable

32102-000100-100-RS/32102-000100-200-RS/32102-000100-300-RS:

SATA power cable

19800-000049-RS: LPT cable

32200-000052-RS: ATA66 IDE flat cable

Jumpers setting and Connectors

LABEL FUNCTION

J_CMOS1 Clear CMOS setting Jumper

VGA1 External VGA 15-pin Female Connector

USB_C1 External USB Port Connectors

LAN1、LAN2External RJ45 LAN Connectors

KB1/MS1 Internal PS/2 KEYBOARD/MOUSE Connector

COM1

COM2 Internal Serial Port Connectors

USB1Internal USB Connector

J_AUDIO1 External Audio Module Connector

SATA1

SATA2

SATA3

SATA4

Serial ATA Connectors

IR1 Infrared Interface Connector

PIDE Internal IDE Connector

FDD1 Internal FDD Connector

LPT1 Internal LPT Connector

CPU_FAN1 CPU Fan Connector

DIO1 Digital Input / Output Connector

F_PANEL1 PWR、RST Buttons、Speaker and Indicators

CPU12V1 ATX-12V CPU Power Input Connector

J_CMOS1: Clear CMOS setting Jumper

J_CMOS1

DESCRIPTION

1-2

(Default) Normal

2-3Clear CMOS Data

VGA1 : 15-pin Female Connector

PIN NO.

DESCRIPTION PIN NO.

DESCRIPTION

1RED 2GREEN

3BLUE 4NC

5GND 6GND

7GND 8GND

9VCC 10 GND

11 NC 12 DDCDAT

13 HSYNC 14 VSYNC

15 DDCCLK

LAN1、LAN2: RJ45 LAN Connector

PIN NO.

DESCRIPTION PIN NO.

DESCRIPTION

1MDIA3-5MDIA1+

2MDIA3+ 6MDIA2+-

3. MDIA2-7MDIA0-

4. MDIA1-8MDIA0+

USB1:Internal USB Connector

DESCRIPTION

1VCC (+5V) 2GND

3DATA-4DATA+

5DATA+ 6DATA-

7GND 8VCC (+5V)

USB_C1:USB Connector

PIN NO.

DESCRIPTION

1VCC

2DATA-

3DATA+

4GROUND

SATA1~SATA4 : Serial ATA Connector

PIN NO.

DESCRIPTION PIN NO.

DESCRIPTION

1GND 5RX-

2TX+ 6RX+

3TX-7GND

4GND 8N/C

J_AUDIO1 : External Audio Module Connector

DESCRIPTION PIN

DESCRIPTION

1ACZ_SYNC 2ACZ_BITCLK

3ACZ_SDOUT 4ACZ_PCBEEP

5ACZ_SDIN 6ACZ_RST#

7ACZ_VCC(+5V)

8ACZ_GND

9ACZ_12V 10 ACZ_GND

MS/KB1:

Internal 6

Keyboard

Connector

PIN NO. DESCRIPTION

1VCC(+5V)

2Mouse Data

3Mouse Clock

4Keyboard Data

5Keyboard Clock

6Ground

COM1,COM2: Internal Serial Port Connector

DESCRIPTION

1DCD#2DSR#

3RXD 4RTS#

5TXD 6CTS#

7DTR#8RI#

9GND 10

PIDE1: IDE Interface Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1RESET# 2GND

3DATA 7 4DATA 8

5DATA 6 6DATA 9

7DATA 5 8DATA 10

9DATA 4 10 DATA 11

11 DATA 3 12 DATA 12

13 DATA 2 14 DATA 13

15 DATA 1 16 DATA 14

17 DATA 0 18 DATA 15

19 GND 20 N/C

21 IDE DRQ 22 GND

23 IOW# 24 GND

25 IOR# 26 GND

27 IDE CHRDY 28 BALE –DEFAULT

29 IDE DACK 30 GND

31 INTERRUPT 32 N/C

33 SA1 34 PDIAG#

35 SA0 36 SA2

37 HDC CS0# 38 HDC CS1#

39 HDD ACTIVE# 40 GND

IR1:IrDA Connector

DESCRIPTION

1VCC (+5V)

2NC

3IR-RX

4GND

5IR-TX

CPU_FAN1 :

CPU Fan Connector

PIN NO.

DESCRIPTION

1Ground

2+12V

3Rotation Signal

4Control

DIO1 : Digital Input / Output Connector

DESCRIPTION PIN

DESCRIPTION

1Ground 2VCC (+5V)

3Output 3 4Output 2

5Output 1 6Output 0

7Input 3 8Input 2

9Input 1 10 Input 0

FDD1: FDC Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1GND 2REDUCE WRITE

3GND 4N/C

5N/C 6N/C

7GND 8INDEX#

9GND 10 MOTOR ENABLE A#

11 GND 12 DRIVE SELECT B#

13 GND 14 DRIVE SELECT A#

15 GND 16 MOTOR ENABLE B#

17 GND 18 DIRECTION#

19 GND 20 STEP#

21 GND 22 WRITE DATA#

23 GND 24 WRITE GATE#

25 GND 26 TRACK 0#

27 GND 28 WRITE PROTECT#

29 GND 30 READ DATA#

31 GND 32 SIDE 1 SELECT#

33 GND 34 DISK CHANGE#

LPT1: Parallel Port Connector

PIN NO.

DESCRIPTION PIN NO.

DESCRIPTION

1STROBE# 14 AUTO FORM FEED #

2DATA0 15 ERROR#

3DATA1 16 INITIALIZE#

4DATA2 17 PRINTER SELECT LN#

5DATA3 18 GND

6DATA4 19 GND

7DATA5 20 GND

8DATA6 21 GND

9DATA7 22 GND

10 ACKNOWLEDGE#23 GND

11 BUSY 24 GND

12 PAPER EMPTY 25 GND

13 PRINTER SELECT

F_PANEL1 : PWR、RST Buttons、Speaker and Indicators

Function

DESCRIPTION

Function

1+5V 2+5V

3N/C 4N/C

Power LED

5GROUND 6N/C

7PWRBTN+ 8Speaker

Speaker

PWRBTN

9PWRBTN-10

N/C

+5V 12

Reset-

HDDLED

HDLED-14

GND RESET

CPU12V1: ATX

12V CPU Power Input connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1GND 2GND

3+12V 4+12V

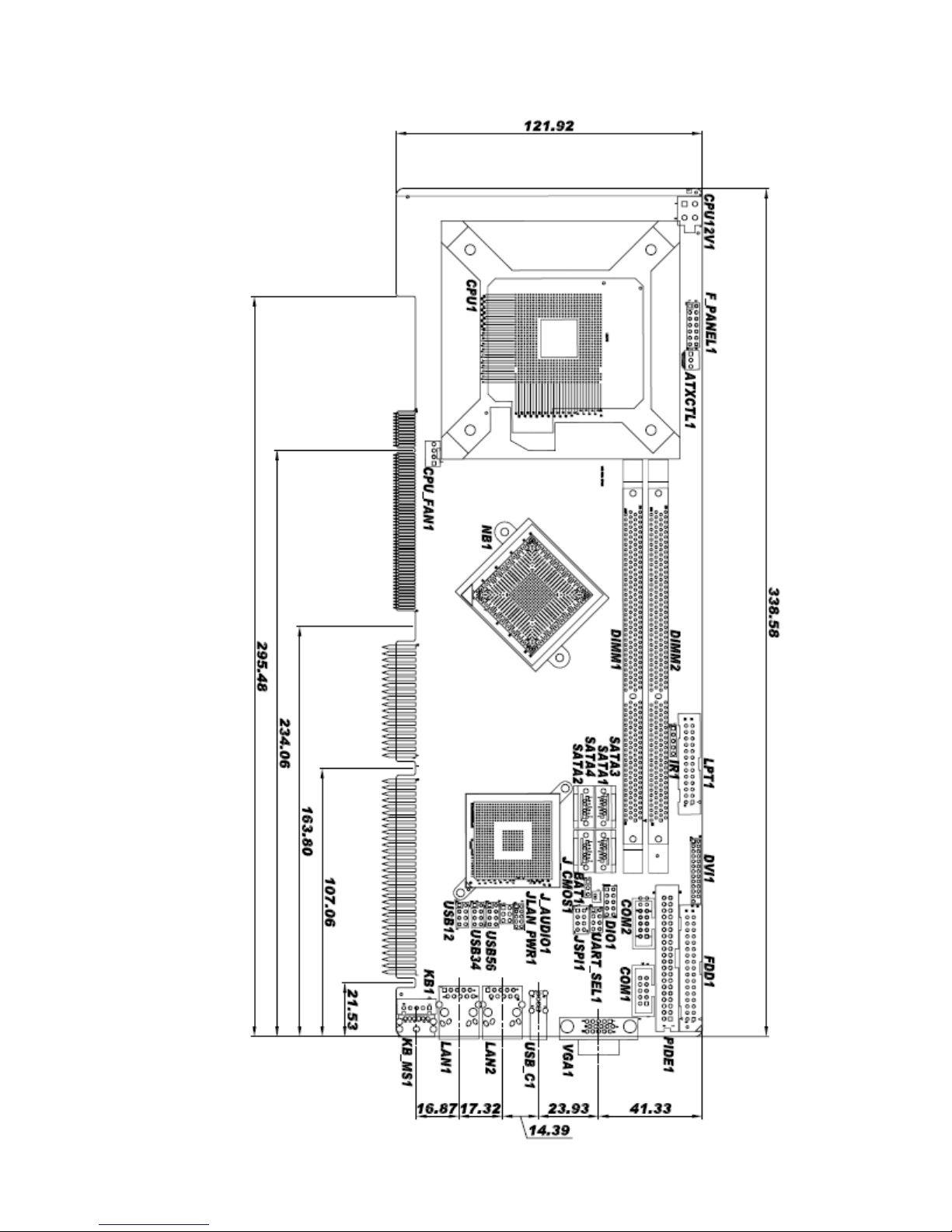

Board Layout: Jumper and Connector Locations
