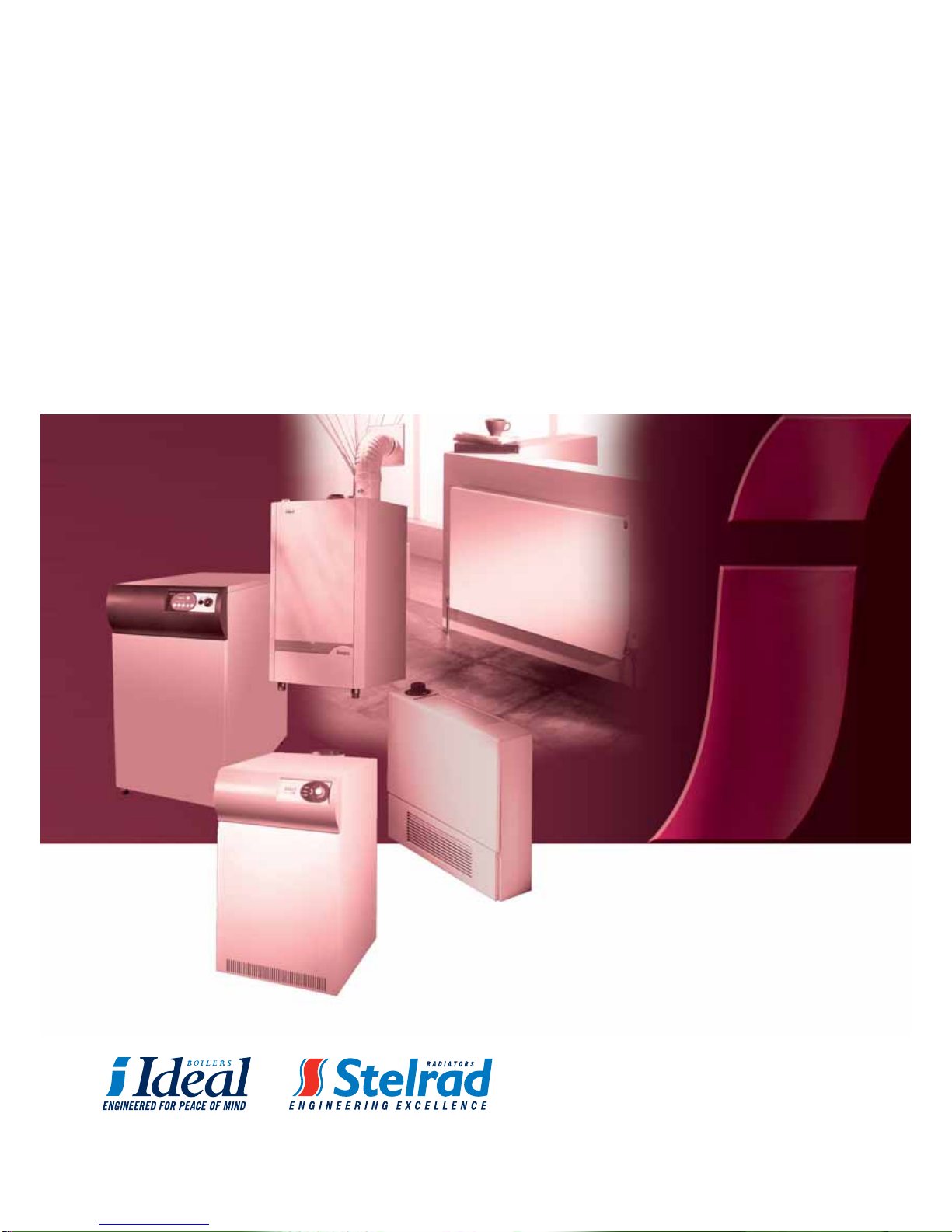

IDEAL 36 Manuel utilisateur

rangeguide

Commercial & Industrial Boilers

& Radiators

www.idealcommercialboilers.com

Boilers

Condensing

icos HE 4

plus II 6

xtra 7

Concord CXC 8

GT Condenser 9

Gas Atmospheric

Concord CXA/H S/H 10

Concord Modular 11

Concord CXSi/H 12

Concord ES/H 13

High Efficiency

Super Series 4 14

Super Plus 15

Pressure Jet

Buccaneer GTE 16

Falcon GTS 17

Harrier GTE 18

Viceroy GT 19

Viscount GTE 20

Vanguard L 21

Radiators

Stelrad Radiators

Traditional

Elite 24

Compact 25

Low Surface Temperature

LST Standard 26

LST Plus 27

Specifier Range

Style 28

Planar 29

Concord 30

Radiator Options

contents

Ideal Boilers

Ideal Boilers is one of the most respected names in the UK Commercial and

Domestic heating industry. We design and develop ranges to suit the ever

changing UK marketplace. With the market’s continued move towards

condensing products, Ideal launched the condensing range.

The recent addition of the xtra maintains Ideal’s position as the

market leading supplier in the Commercial and Industrial boiler sector.

The Commercial Heating Team

As industry leaders Ideal Boilers and Stelrad Radiators are committed to

ensuring that all products are engineered to the highest standards.

To support our products we have a comprehensive service department who

can supply you with in-depth product knowledge and system advice which

will ensure that your heating will run efficiently and will increase the

lifespan of our products.

Contact Numbers

Sales

Tel: 01482 498690

Fax: 01482 498621

Technical

Tel: 01482 498376

Fax: 01482 498621

Training

Tel: 01482 498432

Fax: 01482 498605

email: [email protected]

Website

Our newly designed website contains useful information including details of

training courses, product information and literature, merchant stockists,

a background to Part L2, contact information and many more features.

You will find the website located at:

www.idealcommercialboilers.com

condensing

icos HE 30 + 36kW

•Wall mounted

•Robust cast aluminium heat exchanger

•Compact

•Easy to install and service

•Modulating output down to 10.4kW

•Wide range of flue options

•Optional remotely mountable user controls

Model 30 36

Boiler Output (condensing) 50/30˚C 11.4 - 32.8 11.4 - 39.8

Boiler Output (non-condensing) 80/60˚C 10.4 - 30.1 10.4 - 37.0

Height 645

Width 450

Depth 410

Flow/Return Connections (mm) 28

Gas Inlet (BSP) RC1/2”

Flue Size (mm) Concentric 60/100 60/100

Twin Pipe 80/80 80/80

Maximum Working Pressure (bar) 3

Water Content (L)

4.7 4.7

Approx Dry Weight (kg) 52.6 52.6

Top (mm) 165

Below (mm) 150

Left (mm) 15

Right (mm) 15

Front (mm) 450

Condensate Drain (mm) 21.5

General Data icos HE (30 + 36)

Boiler

Clearances

Option Kits

Boiler icos HE 30 + 36

Remote user control kit ✓

Stand off kit ✓

Syphon kit ✓

Condensate pump kit ✓

•Natural gas and propane

•Single unit or modular configuration,

wall or frame mounted

•Robust cast aluminium heat exchanger

•Easy to install and service

•Simple UK voltage system controls wiring

•Modulating output down to 13kW

•Wide range of flue options

Model W45 W45P W60 W60P W80 W80P

Boiler output (condensing) 13.9 - 46.9 13.7 - 45.9 13.9 - 62.3 13.6 - 60.6 21.3 - 82.7 20.7 - 80.0

50/30˚C

Boiler output (non-condensing) 12.6 - 43.7 12.6 - 58.9 19.5 - 78.2

80/60˚C

Height 900

Width 540 540 540 540 650 650

Depth 500

Flow/Return Connections (BSP) R11/4

Gas Inlet (mm) 22

Flue Size (mm) 80/125 & 100/150 80/125 & 100/150 100/150

Maximum Working Pressure (bar) 4

Water Content (L)

88881010

Approx Dry Weight (kg) 87 87 88 88 101 101

Top (mm) dependant on flue

Below (mm) 300

Left (mm) 50

Right (mm) 50

General Data W(45 - 80)

Boiler

Clearances

W45 - 80kW

Option Kits

Boiler W

Modulating sequencer kit ✓

Programmable room thermostat kit ✓

Control interface kit ✓

Outside sensor kit ✓

Tank sensor kit ✓

Remote indication kit ✓

Hours run meter(s) *

BMS (0-10V) kit ✓

Pump kit ✓

Multi boiler frame and header kits ✓

*Provided as standard

condensing

•Range of six models

•Compact size - small footprint

•High modulation - Close load matching (all models down to 11.6kW)

•108.4% Net efficiency (fully condensing) at 30% part load

•Boilers consist of several modules giving built-in standby capability

•Robust cast aluminium heat exchanger

•Integral commissioning and fault diagnostics

•Optional flue and system connections for fast installations

•Meets Building Regulations 2006 (Part L2)

plus II 90 - 310kW

General Data plus II (90 - 310)

Model F90 F140 F180 F220 F270 F310

Boiler output (condensing) 12.5 - 92.6 12.5 - 136.8 12.5 - 179.3 12.5 - 228.6 12.5 - 280.7 12.5 - 321.5

50/30˚C

Boiler output (non-condensing) 11.2 - 89.5 11.2 - 132.2 11.2 - 173.4 11.2 - 221.0 11.2 - 271.3 11.2 - 311.0

80/60˚C

Height 1053

Width 695 695 832 968 1102 1236

Depth 695

Flow/Return Connections (BSP) R2

Gas Inlet (BSP) R11/2

Flue Size (mm) 150 150 150 200 200 200

Maximum Working Pressure (bar) 6

Water Content (L) 10.1 14.2 18.3 22.4 26.5 30.6

Approx Dry Weight (kg) 153 182 223 261 301 345

Front (mm) 600

Back (mm) 450* 450* 450 450 450 450

Side (mm) 50 (1 side) & 450 (other side), increase to 600 for side flues.

Boiler

Clearances

Option Kits

Boiler plus II

Outside sensor kit *

Tank sensor kit ✓

Remote indication kit *

Hours run meter(s) *

BMS (0-10V) kit *

*Provided as standard

*F90 & F140 300 if no rear flue.

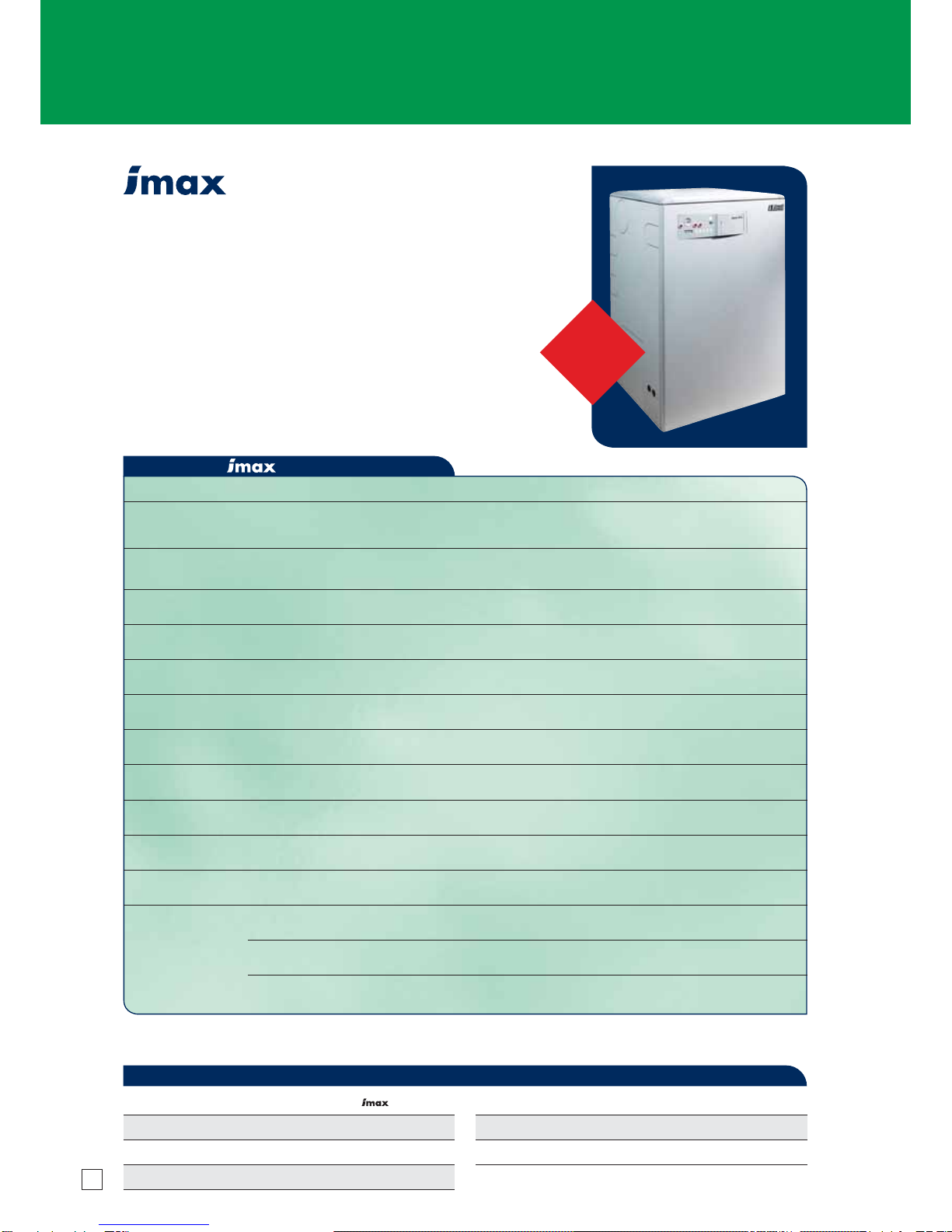

New

Model

•Robust cast aluminium heat exchanger

•In-built commissioning and fault diagnostics

•Low NOx emissions

•Volt free contacts supplied as standard

•Meets Building Regulations 2006 (Part L2)

•Compact size - small footprint

•Fully modulating operation down to 20% of output

•Up to 107.5% nett efficiency (fully condensing)

•Fits through standard doorways

xtra 80 - 560kW

General Data xtra (80 - 560)

Model 80 120 160 200 240 280 320 400 480 560

Boiler output (condensing) 25.6 - 25.6 - 32.0 - 47.1 - 51.4 - 55.6 - 75.3 - 107.5 - 116.1 - 118.3 -

50/30˚C 82.2 123.4 164.5 207.8 249.4 290.9 329.0 415.6 498.8 581.8

Boiler output (non-condensing) 23.3 - 23.2 - 29.0 - 43.1 - 47.0 - 51.0 - 67.8 - 97.7 - 105.5 - 107.7 -

80/60˚C 77.4 116.0 154.8 195.4 234.5 273.6 311.6 390.8 469.0 547.2

Height 1150

Width 600 600 600 600 600 600 1200 1200 1200 1200

Depth 1024 1024 1024 1327 1327 1327 1004 1326 1326 1326

Flow connection (BSP) R2” R2” R2” R2” R2” R2” 80* 80* 80* 80*

Return connection (BSP) R2” R2” R2” R2” R2” R2” 80* 80* 80* 80*

Gas inlet connection (BSP) R1” R1” R1” R1” R1” R1” R2* R2* R2* R2*

Nominal flue size / concentric (mm) 150 150 150 200 200 200 200 250 250 250

Maximum working pressure (bar) 6

Water content (L) 11.0 14.3 17.5 18.4 24.0 27.2 35.0 36.8 48.0 54.4

Weight (kg) 132 150 168 198 215 233 336 396 430 466

Front (mm) 600

Back (mm) 700 700 700 700 700 700 1000 1000 1000 1000

Side (mm) 450 150 450 150 450 150 450 150 450 150 450 150 450 450 450 450

(LH)(RH) (LH)(RH) (LH)(RH) (LH)(RH) (LH)(RH) (LH)(RH)

*DN flange. Flow, return and gas connection sizes shown are for the optional header kit.

If header kit not used: Flow & Return connections are 2 x R2. Gas connection is 2 x R1.

Extended

Output

Range

Option Kits

Boiler xtra

80 - 280 320 - 560

Modulating sequence control for ✓✓

controlling multiple boiler installations

Programmable room thermostat ✓✓

Tank sensor kit ✓n/a

BMS control kit (0-10V) ✓Standard

Boiler xtra

80 - 280 320 - 560

Outside sensor kit ✓✓

Room sensor kit ✓✓

Sequencer DHW sensor kit ✓✓

Control interface kit ✓Standard

Boiler

Clearances

condensing

•Natural gas fired condensing boiler

•Meets Building Regulations 2006 (Part L2)

•Fully condensing high efficiency 85%

at 80˚C, 93% at 60˚C flow

•Compact space saving design

•Full automatic ignition

•Advanced electronic controls

Model 48 70 94 116

Boiler output (condensing) 48.83 69.84 93.65 116.25

50/30˚C

Boiler output (non-condensing) 44.63 63.84 83.60 106.30

80/60˚C

Height 1438

Width 600

Depth 723 846 969 1092

Flow/Return Connections (BSP) RC2

Gas Inlet (BSP) RC3/4RC3/4RC3/4RC1

Flue Size (mm) 150

Maximum Working Pressure (bar) 4.5

Water Content (L) 28 36 43 51

Approx Dry Weight (kg) 298 350 442 494

Front (mm) 750

Back (mm) 200

Side (mm) 50 50 50 100

General Data Concord CXC (48 - 116)

Option Kits

Boiler

Remote indication board

Outside sensor

Concord CXC

✓

Concord CXC 48 - 116kW

Boiler

Clearances

•Up to 16% extra heat

•Compact space saving design

•Adjustable flue and system connections

•Low flue and system resistances

•High insulation levels

•Fanned or standard versions

•Suitable for Harrier, Viceroy and Viscount boilers

Model RCI 300 RCI 300V RCI 400 RCI 400V RCI 500 RCI 500V

Output (kW) 180 - 450 230 - 670 390 - 986

Height (mm) 1687 1777 1883

Width (mm) 610 698 830

Depth (mm) (over optional fan) 1156 1250 1376

Flue Size (mm) 300 350 400

General Data GT Condenser (199 - 1096)

Option Kits

Boiler GT Condenser

Fan version RCI 300V

RCI 400V

RCI 500V

GT Condenser 199 - 1096kW

The addition of a GT Condenser to the boiler can

provide up to 16% more heat by cooling the flue gases

to gain both sensible and latent heat from condensation.

The lower the system return temperature being fed into

the Condenser the more the gain. It all provides benefits

in lower emissions and lower fuel bills.

This GT Condenser range is suitable for gas fired

boilers only but can be fitted to dual fuel boilers with

suitable flue design. Six models are available to suit

Harrier, Viceroy and Viscount boilers with a boiler output

range suitability from 180kW (614,000 Btu/h) to

986kW (3,364,000Btu/h). Three output models cover

this range and to ensure easy flue installation, each is

available with or without a fan to overcome the flue

pressure loss of the GT Condenser if necessary. A 6 bar

working pressure capability ensures system application

is straight forward.

•Ultra reliable gas atmospheric boilers

•High, full and part load efficiencies -

meets Building Regulations 2006 (Part L2)

•Auto ignition

•Remote indication kit options

•CXA/H natural gas or propane CXA P/H (40-100kW)

•CXA/H is On/Off and CXS/H is High/Low operation

Model 40/H 50/H 60/H 70/H 80/H 90/H 100/H 110/H 120/H

Sections 3 4 4 5 5 6 6 7 7

Output (kW) 40 50 60 70 80 90 100 110 120

Height 1000

Width 600

Depth 750 882 882 1042 1042 1212 1212 1385 1385

Flow/Return Connections (BSP)

RC2

Gas Inlet (BSP) RC3/4RC3/4RC3/4RC3/4RC3/4RC1 RC1 RC1 RC1

Flue Size (mm) 150 150 175 175 200 200 200 250 250

Maximum Working Pressure (bar)

Water Content (L) 22 30 30 37 37 45 45 53 53

Approx Dry Weight (kg) 210 265 265 330 330 395 395 490 490

Front (mm) 750

Back (mm) 0 0 0 150 150 300 300 300 300

Sides (mm) 50 50 50 50 50 100 100 100 100

General Data Concord CXA/H S/H (40 - 120)

Option Kits

Boiler CXA/H CXS/H

Volt free contacts, boiler run,

overheat & lockout ✓✓

Down draft thermostat kit ✓✓

Header kits (available from merchants) ✓✓

Propane models ✓

Boiler

Clearances

Concord CXA/H S/H 40 - 120kW

gas atmospheric

Ce manuel convient aux modèles suivants

127

Table des matières

Autres manuels IDEAL Chaudière

IDEAL

IDEAL Vogue S15 Manuel utilisateur

IDEAL

IDEAL Concord CXSD 40 Manuel utilisateur

IDEAL

IDEAL Mexico Super RS440 Manuel utilisateur

IDEAL

IDEAL Exalt FSB 110 Guide de l'utilisateur

IDEAL

IDEAL Concord CXAP 40 Manuel utilisateur

IDEAL

IDEAL independent 15 Manuel utilisateur

IDEAL

IDEAL MINI C24 Manuel utilisateur

IDEAL

IDEAL he15 Manuel utilisateur

IDEAL

IDEAL LOGIC+ Combi 30 Manuel utilisateur

IDEAL

IDEAL VOGUE MAX COMBI 26 Manuel utilisateur

IDEAL

IDEAL Classic Slimline FF 230 Guide de l'utilisateur

IDEAL

IDEAL Independent + Combi C24 Manuel utilisateur

IDEAL

IDEAL ES26 Manuel utilisateur

IDEAL

IDEAL Concord ESi 140 Manuel utilisateur

IDEAL

IDEAL classic FF 250 Manuel utilisateur

IDEAL

IDEAL IMAX XTRA EL 320 Manuel utilisateur

IDEAL

IDEAL Falcon GTS 4 Manuel utilisateur

IDEAL

IDEAL Europa 224 Manuel utilisateur

IDEAL

IDEAL mini HE C32 Manuel utilisateur

IDEAL

IDEAL ES24 Manuel utilisateur

IDEAL

IDEAL Classic M3050 Manuel utilisateur

IDEAL

IDEAL LOGIC 15 Manuel utilisateur

IDEAL

IDEAL Logic HEAT 12 Manuel utilisateur

IDEAL

IDEAL HE 260 Manuel utilisateur

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur
