Icy Box IB-RD3640SU3E2/SU3 Manuel utilisateur

Manual IB-3640 Series

Version 1.1

IB-RD3640SU3E2/SU3

IB-3640SU3

Manual IB-3640 Series

Version 1.1

CONTENT

1. Introduction.....................................................................................................................................................................3

1.1 General Information .............................................................................................................................................3

2. Hardware IB-3640 Series...........................................................................................................................................4

2.1 Front View LED Indication.................................................................................................................................4

2.2 Rear View ..................................................................................................................................................................6

2.3 Side View ...................................................................................................................................................................6

3. HDD Installation........................................................................................................................................................7

4. Setting/Changing the RAID mode......................................................................................................................8

5. Disk Initialisation ..................................................................................................................................................11

5.1 Windows 2000 / XP (32/64 bit)..............................................................................................................11

5.2 Windows Vista (32/64 bit) ........................................................................................................................12

5.3 Windows 7 (32/64 bit)................................................................................................................................13

5.4 Macintosh O.S. 10.X .......................................................................................................................................15

6. References ................................................................................................................................................................17

Manual IB-3640 Series

Version 1.1

1. INTRODUCTION

1.1 GENERAL INFORMATION

1.1.1 Usage cautions

User should not modify this device. The environmental temperature should be within +5℃~

+35℃.

Note: Port multiplier at host computer needed, if connected via eSATA

1.1.2 Power

Power voltage: DC 12 V.

When using this device, please connect the supplied AC adapter or AC adapter cable to the

power jack of device. When placing the adapter cable, make sure it cannot get damaged or be

subject to pressure. To reduce the risk of electric shock, unplug the adapter first before cleaning

it. Never connect the adapter to the device in a humid or dusty area. Do not replace the adapter

or cable’s wire or connector.

1.1.3 Radio interference/compatibility

- If not properly shielded, almost all electronic devices will get radio interference. Under some

conditions, your player might get interference.

- The design of this device has followed the FCC/CE standard, and has followed the following

rules:

(1) This device may not cause harmful interference;

(2) This device could accept some interference received including interference that may cause

undesired operation.

1.1.4 Repair

If the device has a problem, you should take it to an appointed repair center and let the

specialists do the repair, never repair the player yourself, you might damage the device or

endanger yourself or your data.

1.1.5 Disposing of the player

When you dispose of the device, be sure to dispose it appropriately. Some countries may

regulate disposal of electrical device, please consult with your local authority.

1.1.6 Others

When using this device, please do not let the device come into contact with water or other liquid,

if water is accidentally spilled on the device, please use a dry cloth to absorb the spillage.

Do not let the device come into contact with water or other liquid.

Do not disassemble the device; repair the device or change the design of the device, any damage

done will not be included in the repair policy.

Manual IB-3640 Series

Version 1.1

Avoid hitting the device with hard object, avoid shaking the player, and stay away from magnetic

fields.

During electrostatic discharge and the strong electromagnetic field, the product will

malfunction, and then unplug the power cable and the product will return to normal

performance next time it is powered on.

Note: All the information contained in this manual was correct at the time of publication.

However, as our engineers are always updating and improving the product, your device’s

software may have a slightly different appearance or modified functionality than presented in

this manual.

2. HARDWARE IB-3640 SERIES

2.1 FRONT VIEW LED INDICATION

IB-3640SU3

1. Blue Power on

Orange Sleep mode

2. USB in use / access

3. eSATA in use / access

4. Power button It needs to be pressed and held for 3 seconds to power off.

Remark! This design prevents accidental power off.

5. Interface button Function: Off

Function: LED blue – power off with PC

LED yellow – power off & power on with PC

7. Fan button Controls auto & manual modes and fan speed from level 1 to level 3.

8. eSATA link interface option

9. USB 3.0 link interface option

10. Smart Fan automatic mode

11. Smart Fan manual mode

12. Fan speed level 1 below 45 °C 1,200rpm ~ 1,800rpm

13. Fan speed level 2 45 °c · 54 °c 1,800rpm — 2,500rpm

Manual IB-3640 Series

Version 1.1

14. Fan speed level 3 higher man ss rc 2,500rpm ~ 3,500rpm

16.-19. HDD1 / HDD2 / HDD3 / HDD4

blue active

purple access

IB-RD3640SU3E2 /SU3

1. Blue Power on

Orange Sleep mode

2. Power button It needs to be pressed and held for 3 seconds to power off.

Remark! This design prevents accidental power off.

3. Mode RAID mode button needs to be pressed and held for 3 seconds to switch the

device's raid mode.

Remark! This design will prevent accidental execution of this function.

4. Fan button Controls auto & manual modes and fan speed from level 1 to level 3.

5. SingIe mode

6. RAID 0 Spanning Mode / BIG

7. RAID 0 Striping Mode

8. RAID 1

9. RAID 3

10. RAID 5

11. RAID 10

12. Rebuild

13. USB in use / access

14. eSATA in use / access

15. FireWire in use / access (SU3E2 version only)

16. Smart Fan automatic mode

17. Smart Fan manual mode

18. Fan speed level 1 below 45 °C 1,200rpm ~ 1,800rpm

19. Fan speed level 2 45 °c · 54 °c 1,800rpm — 2,500rpm

20. Fan speed level 3 higher man ss rc 2,500rpm ~ 3,500rpm

Manual IB-3640 Series

Version 1.1

21. HDD error When any of HDD1 to HDD4 has an error, HDD error is on.

Remark! LED doesn't function in Single mode.

22.-25. HDD1 /HDD2 / HDD3 / HDD4

Blue active

Purple access

Red rebuild

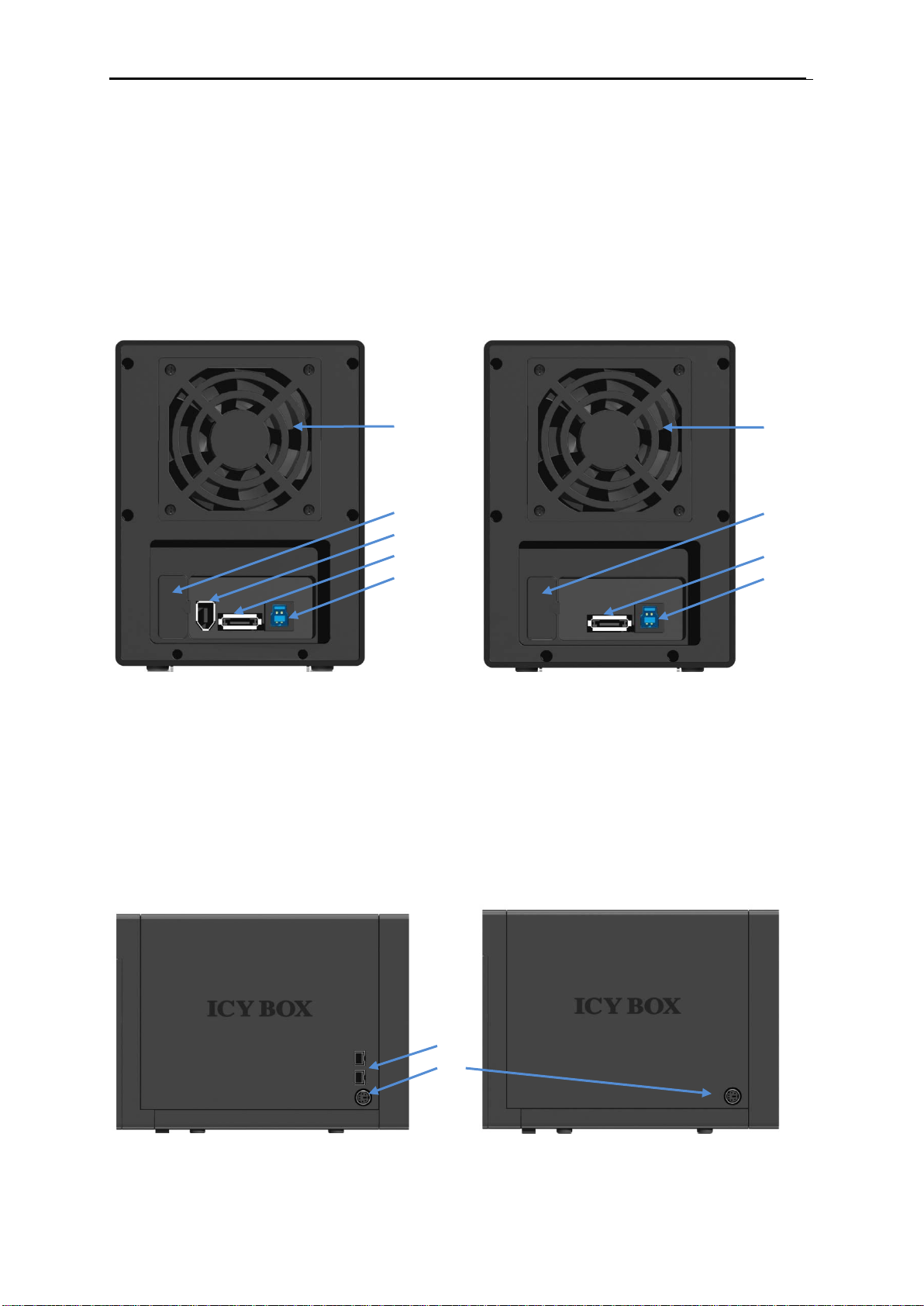

2.2 REAR VIEW

IB-RD3640SU3E2 IB-RD3640SU3 / IB-3640SU3

1. Fan

2. RAID Mode confirmation button (behind the plastic cover)

3. FireWire a port

4. eSATA port

Note: Port multiplier at host computer needed, if connected via eSATA

5. USB 3.0 port

2.3SIDE VIEW

IB-RD3640SU3E2 IB-RD3640SU3 / IB-3640SU3

1. 2x FireWire b port

2. DC Power jack

Manual IB-3640 Series

Version 1.1

3. HDD INSTALLATION

- Please use the provided screws to secure the handles to the 4 HDDs.

- Open the front door.

- Press down the tabs (1) of metal frame to unlock and remove it.

- Take the transport paper board out of the device.

- Slide the 4 HDDs into the guide rails and push them downwards until it locks into the connector in

order from up to down.

- Reinstall the metal frame that was removed in step 3. Please make sure the bottom of the frame

stays inside the track (2) before closing the front door.

- Connect the power adapter and choose one cable to connect to your computer (depends on

version) and power on the device.

- When connected and powered on, the System LED will turn blue; the HDD LED lights will turn blue.

If there are HDDs, the HDD LED will stay blue. If the HDDs are accessed the corresponding HDD LEDs

will flash blue.

IB-3640SU3

- Power on the product and complete the setting inside Disk management of your computer system.

Manual IB-3640 Series

Version 1.1

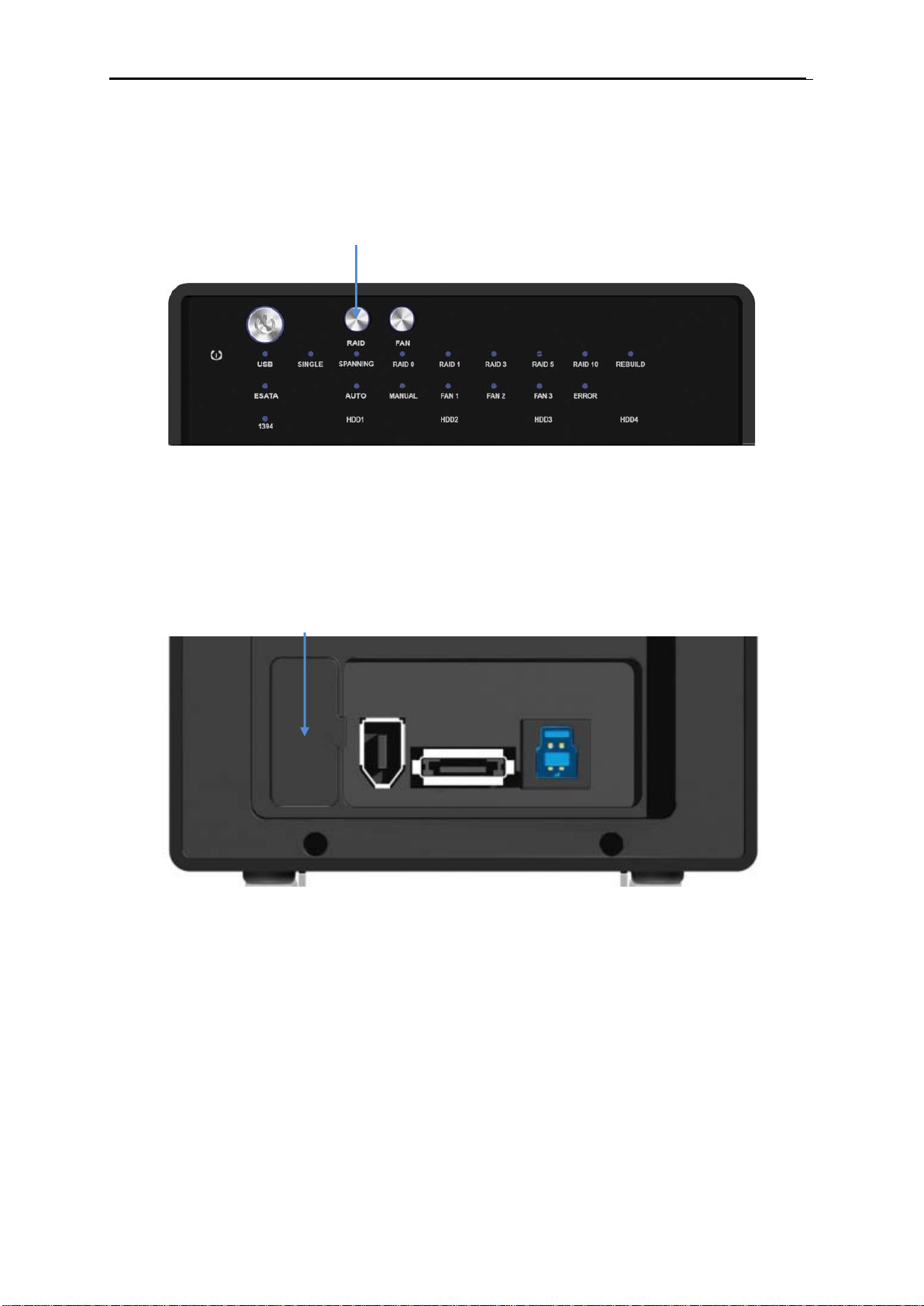

4. SETTING/CHANGING THE RAID MODE

IB-RD3640SU3E2 /SU3

REMARK: Default setting is RAID 5 mode.

- For RAID mode setup, users need to press and HOLD the RAID button (1) at the front for 3 seconds

until the LEDs are flashing.

Press again for changing the RAID mode.

- After selecting the RAID mode you want, press and hold the confirmation button at the rear panel

(behind the plastic cover) (2) until the device shuts down.

- Power on the product again and complete the setting inside Disk management of your computer

system.

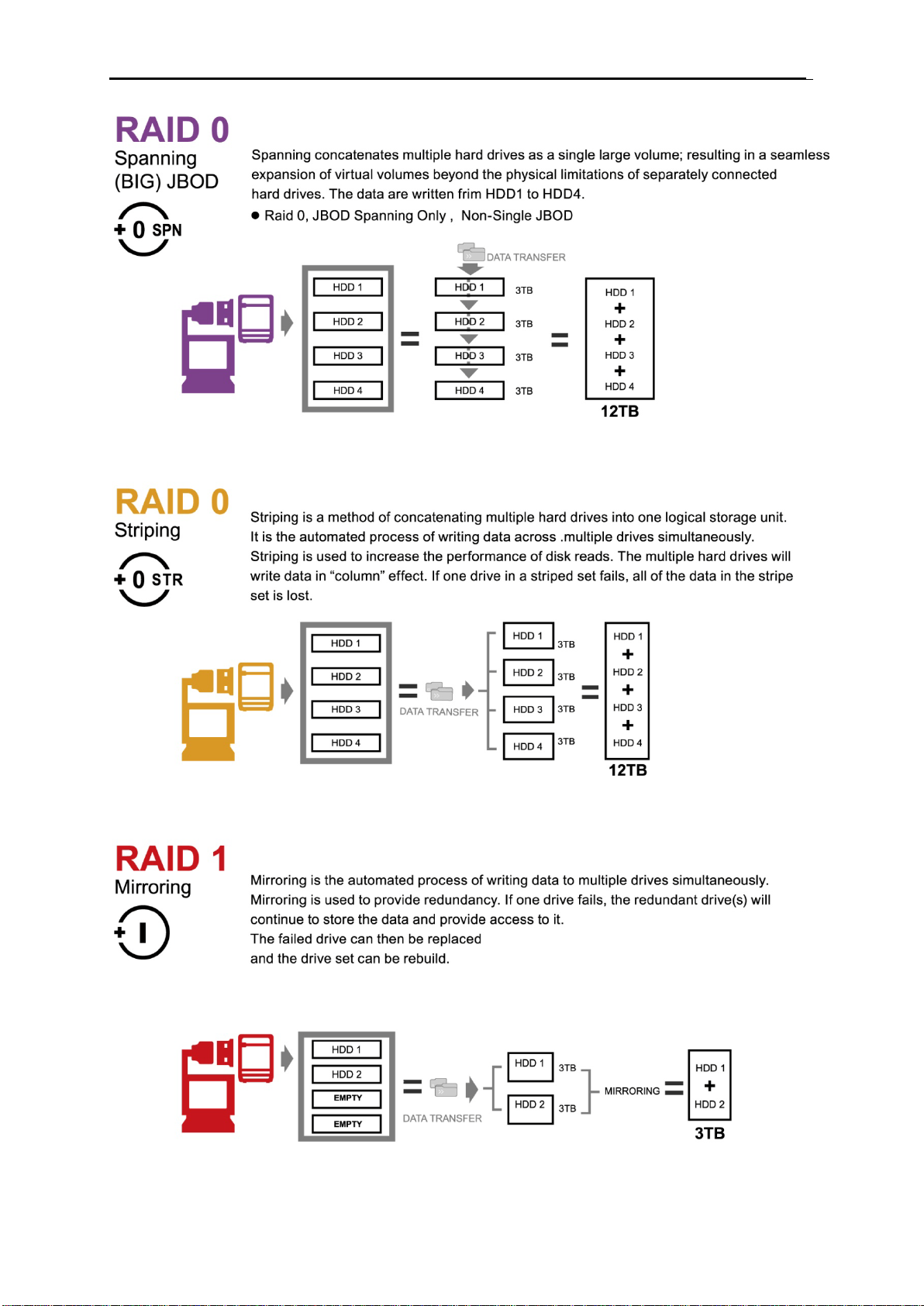

Manual IB-3640 Series

Version 1.1

Manual IB-3640 Series

Version 1.1
