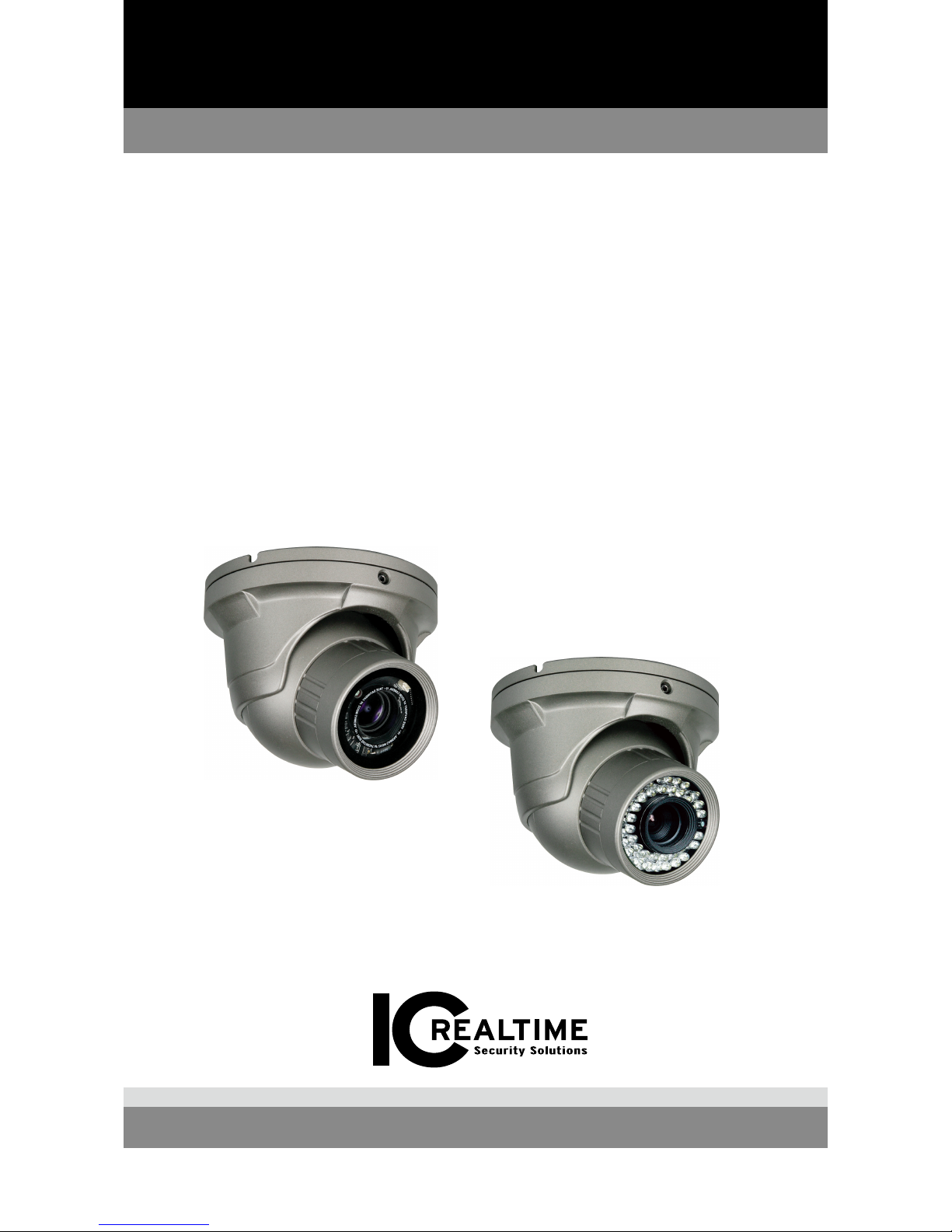

ICRealtime EL-790 Manuel utilisateur

Operating Manual

USER'S INSTRUCTIONS

PAN Focus Dome DNR Day/Night

Weatherproof Camera User Manual

Products : EL-790, EL-790W, EL-790IR, EL-790IR-W

USER’S MANUAL

Contents

◑General Features

◑Installing & Adjusting

◑ Dimension & Speciﬁcation

◑OSD Control Button

◑Camera Menu Set Up

1. Menu Set Up

2. Lens Setting

3. Exposure Setting

4. White Balance Setting

5. SSDR Setting

6. Backlight Setting

7. DNR3 Setting

8. Day/Night Setting

9. Special Setting

10. Exit Setting

◑Trouble Shooting

USER’S MANUAL

General Features

◑ Ultra High Sensitivity

The built-in high sensitivity COLOR CCD produces a clear image even in 0Lux(B/W,

IR-LED ON)

or lower illumination.

◑ 600TV Lines

By adopting a diagonal 6mm(1/3") 410,000 (NTSC) pixel, 470,000(PAL) pixel SONY CCD,

the camera produces clear picture quality with a horizontal resolution of 600 TV lines for

color and a horizontal resolution of 700TV lines for BW mode.

◑ DNR3

- dnaesionniagthgil-wolsevomerylevitceffepihcPSDV-Wecnamrofrep-hgihehT

ghosting to

provide clear images even in dark environments.

◑ Day & Night

This camera has a function that automatically selects the mode that is appropriate for

daytime or night-time conditions. The COLOR mode operates in daytime conditions to

provide optimum colors, and BW mode operates in night-time conditions to enhance the

definition of the image.

◑ SSDR

For images with high contrast between bright and dark Areas from difficult lighting

conditions

such as backlighting, this camera selectively illuminates darker Areas while retaining the same

light level for brighter Areas to even out the overall brightness.

◑ Miscellaneous Functions

HLC(High Light Compensation), SENS-UP, FLIP(H/V-REV), D-ZOOM, SHARPNESS, MOTION

DETECTION and PRIVACY functions are provided.

◑ Disk Saving Effects

Up-most and advanced DNR technology camera picture quality has a disk saving effects due

Image sizes are smaller than standard CCTV camera image.

◑ Controlled by OSD Menu

.neercsrotinomehtnodeyalpsidtxetunemehtgnitcelesybdellortnocebnacaremacehT-

◑ IP66 Approved / Vandal Proof / RoHS Compliance

- To prevent from external strong impact. It has a high strength and durable exterior material of die

cast aluminum body. It also has designed to prevent from shock, dust and rain resistant. The

turret camera has designed to install anywhere even at exterior places.

USER’S MANUAL

INSTALLING & ADJUSTING

1. Installation

- Place the mounting plate on a ﬂat installation surface

and mount with the provided screws.

Feed the cable through the center of the mounting

plate.

- Place the camera body in the mounting plate socket

and hold.

- Then place the outer plate over the camera body &

mounting plate and tighten side screws to lock the

camera into place.

- Loosen side screws to adjust camera angle as

needed,

then tighten the side screws to lock into place.

Pan Focus Lens

IR LEDs

2. Adjusting

3. Accessories

Camera 1ea IR Remote

Control 1ea

Mounting

Screw 3ea

Operating Manual

USER'S INSTRUCTIONS

PAN Focus Dome DNR Day/Night

Weatherproof Camera User Manual

Products : EL-790, EL-790W, EL-790IR, EL-790IR-W

User Manual

USER’S MANUAL

DIMENSION & SPECIFICATION

noitcennoC&noisnemiD.1

2. Speciﬁcation

Dimension Connection

Image Pick-Up Device

TV System

Total Pixels

Scanning Frequency

Scanning System

Synchronization

Resolution

Minimum Illumination

S/N Ratio

Video Output

Electronic Shutter Speed

OSD

SSDR

BLC

Day & Night

Gain Control

White Balance

SENS-UP

Motion Detection

Privacy Masking

DNR3 (Digital Noise Reduction)

Digital Zoom

DIS (Digital Image Stabilizadion)

Sharpness

Filp / Mirror

Power Supply

Power Consumption

Lens

Operational Temp.

Storage Temp.

Dimension

Weight

1/3” Sony Super HAD CCD

NTSC

811(H) * 508(V)

768(H) * 494(V)

15.734KHz(H) & 59.94Hz(V )

2:1 Interlace

Internal

600TV Lines

IR LEDOFF: 0.15 Lux, IR LED ON: 0.00002 Lux

More than 52dB

CVBS: 1.0Vp-p / 75Ω

NTSC=(1/60sec~1/120,000sec)/ PAL=(1/50sec~1/120,000sec)

Available

On / OLevel adjustable)

BLC / HLC / OFF

Color / BW / AUTO

Low / High /

ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~11,000°K)

Auto / OSelectable x2 ~ x512)

On / OProgrammable Zones)

On / OLevel adjustable)

On / Ox1 ~ x16)

On /

On / O Level adjustable)

On /

DC 12V/ AC 24V Dual Voltage

IR LED OFF 200mA(DC), IRLED OFF 70mA(AC) / IR LED ON 670mA(DC), IR LED ON 240mA(AC)

Pan Focus Lens(2.8mm-10mm)

-10 ~ +50 Deg C. RH95% MAX.

-20 ~ +60 Deg C. RH95% MAX.

140mm(W ) * 111mm(H) * 180mm(D)

1800g

140mm

Pan Focus Lens

IR LED

USER’S MANUAL

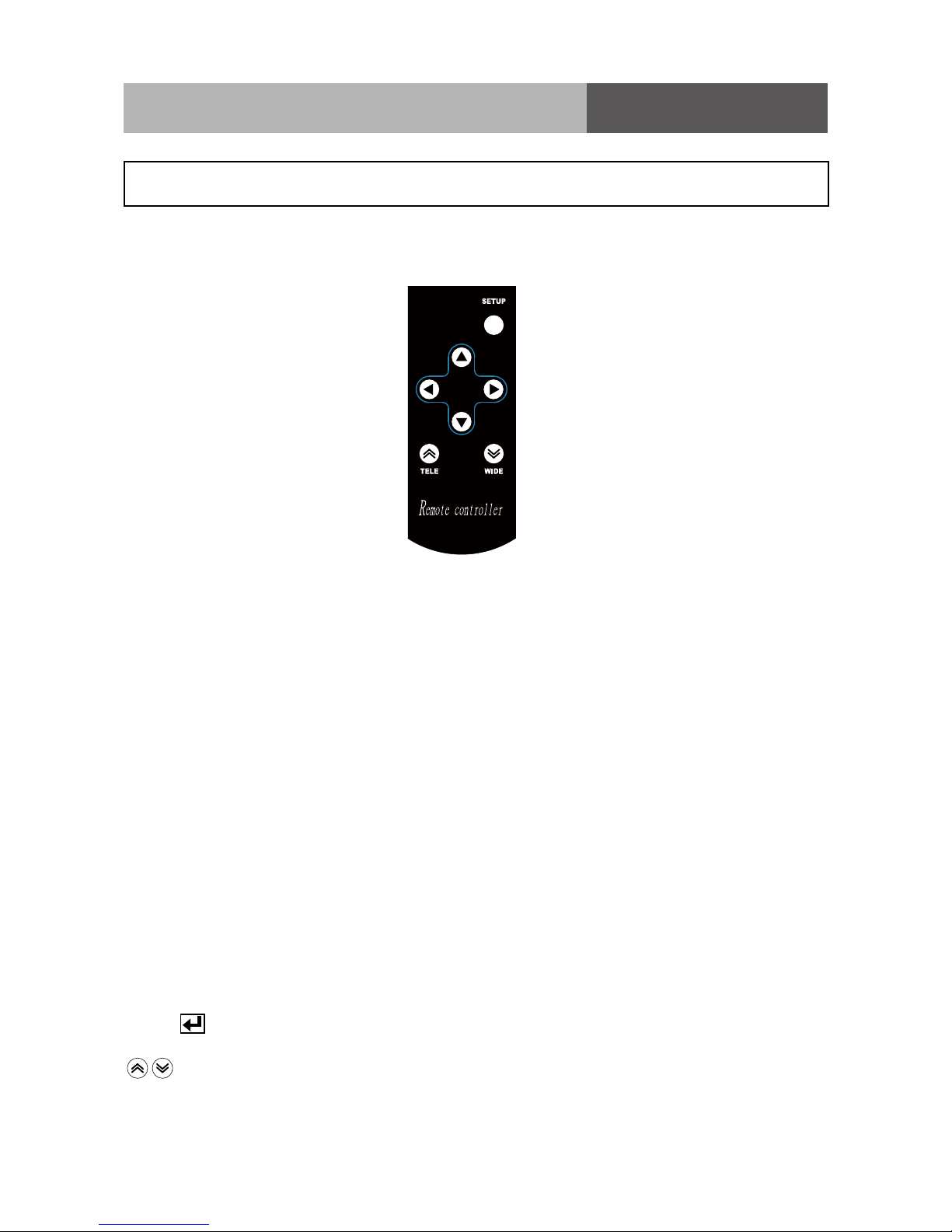

OSD Control Button

1. IR Remote Control could be used when it needs to OSD control.

▲Up button: Moves the cursor upwards. Use this button to select an item

or adjust the parameters.

▼Down button: Moves the cursor downwards. Use this button to select an

item or adjust the parameters.

◀Left button: Moves the cursor to the left. Use this button to select or

adjust the parameters of the selected item. The parameter changes

each time this button is pressed.

▶Right button: Moves the cursor to the right. Use this button to select or

adjust the parameters of the selected item. The parameter changes each

time this button is pressed.

◎Set button: Executes selections and displays a submenu for an item with

the mark.

Tele / Wide button : This button for Zoom and Focus control.

USER’S MANUAL

●

Menu Setup

●

Lens Setting

1. Press the Function Setup switch.

- Main setup menu is displayed on the monitor screen.

3. THE Lens mode has sub menu items as listed below.

- BRIGHTNESS : Adjusts the video brightness.

Using this function, you can control the screen brightness.

1. When the SETUP menu screen is displayed, select 'LENS' by using

the Function Setup switch so that the arrow indicates 'LENS'.

2. DC : You can adjust the minimum shutter and maximum value of ESC

shutter mode.

2. Select a desired function using the Function Setup switch.

- Place the cursor over a desired item.

3. Set up a selected item by using the Function Setup switch.

To ﬁnish the setting, select 'EXIT' and press the Function Setup switch.

MAIN SETUP

1.LENS

2.EXPOSURE

3.WHITE BAL

4.SSDR

5.BACKLIGHT

6.DNR3

7.DAY/NIGHT

8.SPECIAL

9.EXIT

1.LENS

2.EXPOSURE

3.WHITE BAL

ATW

OFF

AUTO

SAVE

ATW

☞NOTE

■

An item with the

◀

icon also has sub menus. To select a sub menu, select an item

with the icon and press the Function Setup switch.

■

An item with the - - - icon is unavailable due to function settings.

USER’S MANUAL

FOCUS ADJ : To adjust the DC lens focus correctly, you must activate the Focus Settings

mode under each lens menu. Activate the Focus Settings mode, adjust the lens focus, and

then deactivate the settings mode.

☞NOTE

■ If color rolling occurs when using a DC lens, set Shutter to Fixed (---).

☞NOTE

■ When the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP will be disabled.

●

Exposure Setting

1. When the SETUP menu screen is displayed, select 'EXPOSURE' by using the

Function Setup Switch.

2. Select a desired mode using the Function Setup switch.

◆ SHUTTER : You can select either auto or manual shutter.

* --- : Shutter speed is fixed at 1/60sec(1/50sec)

* ESC : Select this to control the shutter speed automatically. If ESC is selected, the shutter

speed is automatically controlled depending on the ambient illumination of the subject.

* MANUAL : You can control shutter speed manually.

(NTSC MODEL : 1/60~1/120,000, PAL MODEL : 1/50~1/120,000)

* A.FLK : Select this when you see picture flicker, this can happen when the frequency of the

local lighting clashes with the camera.

MAIN SETUP

1.LENS

2.EXPOSURE

3.WHITE BAL

ATW

EXPOSURE SETUP

1.BRIGHTNESS

2.SHUTTER

3.AGC

4.SENS-UP

5.RETURN

- - -

HIGH

OFF

USER’S MANUAL

◆

AGC(AUTO GAIN CONTROL) :

The higher the gain level, the brighter the screen

but the higher the noise.

* OFF : Deactivates the AGC function.

* LOW : Allows automatic gain control from 5.3dB to 32dB.

* HIGH : Allows automatic gain control from 5.3dB to 37dB.

◆

SENS-UP :

When it is night or dark, the camera automatically detects the

light

level and maintains a clear picture if this mode is activated.

* OFF : Deactivates the SENS-UP function.

* AUTO : Activates the SENS-UP function.

◆

RETURN : Select this to save the changes in the EXPOSURE menu and

return to the SETUP menu.

☞NOTE

■ If you press the Function Setup switch to ‘AUTO’ mode, you can adjust brightness by

increasing or decreasing the shutter speed. (x2 ~ x512)

■ Note that the higher the zoom level, the brighter the screen, but the more likely there

will be a ghosting effect.

■ It is normal for Noise, Spots and Whitish symptoms to appear in SENS-UP mode when

the D-ZOOM level is increased.

●

White Balance (White Bal) Setting

Use the White Balance function to adjust the screen color.

1. When the SETUP menu screen is displayed, select 'White Bal' by using the Function

Setup switch so that the arrow indicates 'White Bal'.

2. Select a desired mode using the Function Setup switch.

MAIN SETUP

1.LENS

2.EXPOSURE

3.WHITE BAL

ATW
