ICP DAS USA GTM-200M Manuel utilisateur

Modem to USB/RS-232 Converter

GTM-200M

User Manual

Version 1.0.1 Sep 2022

保固說明

GTM-200M User’s Manual v1.0.1

Warranty

All products manufactured by ICP DAS are under warranty regarding

defective materials for a period of one year, beginning from the date

of delivery to the original purchaser.

Warning

ICP DAS assumes no liability for any damage resulting from the use of

this product. ICP DAS reserves the right to change this manual at any

time without notice. The information furnished by ICP DAS is believed

to be accurate and reliable. However, no responsibility is assumed by

ICP DAS for its use, not for any infringements of patents or other

rights of third parties resulting from its use.

Trademark

The names used for identification only may be registered trademarks

of their respective companies.

If you have any problem, please feel free to contact us. You can count on us for

quick response.

Email: [email protected]

GTM-200M User’s Manual v1.0.1

Symbol description

RoHS

Manufacture of this product strictly abide by the rules

of lead-free and does not contain any harmful

substances.

WEEE

This symbol means this product must be collected at

the time of discarding in the EU.

HOT SURFACE DO NOT TOUCH

This symbol means this product’s enclosure may be

with high temperature, do not touch before cooling or

else will be burned.

USB

This product support USB 2.0 interface.

GTM-200M User’s Manual v1.0.1
I
Table of Contents
Introduction ............................................................................... 1
Hardware Specifications........................................................... 2
1 Hardware Specifications........................................................................2
2 Accessories Specifications....................................................................3
3 Assembly process ................................................................................. 4
Hardware Appearance............................................................... 6
1 View of the GTM-200M Panel ...............................................................6
2 Pin Assignments.................................................................................... 6
3 LED Indicators....................................................................................... 7
Hardware Wire Connection....................................................... 8
1 Reset Wire Connection .........................................................................8
2 Installation.............................................................................................9
3 Quick Test ........................................................................................... 10
3.1 Hardware installation................................................................. 10
3.2 Software installation (Hyper terminal) ........................................11
GPRS Connection.................................................................... 16
1 XPAC-8000 (Microsoft Windows XP) .................................................. 16
1.1 GTM-200M Hardware Requirement.......................................... 16
1.2 Create a New Modem............................................................... 17
1.3 Create a New Dial-up and Networking Connection................... 23
USB Driver Installation............................................................ 31
1 Microsoft Windows 10 OS...................................................................31
Appendix.................................................................................. 34
1 Communication Module Reference Contact........................................ 34
Revision History...................................................................... 34



GTM-200M User’s Manual v1.0.1

- 1/35 -

1. Introduction

GTM-200M is an industrial modem converter with RS-232 and USB interfaces.

Customers can choose to match different communication modules according to the needs

of the field, which can support different frequency bands.

The GTM-200M also provides an integrated Library, allowing customers to focus on and

speed up the development of applications without having to deal with the command

problems of different communication modules. The standard interface can be easily

matched with various PLCs and PCs, and SMS transmission and 3G/4G connection can be

quickly implemented through the Library.

GTM-200M User’s Manual v1.0.1

- 2/35 -

2. Hardware Specifications

2.1 Hardware Specifications

Item

GTM-200M

Comm. Interface

COM Port

RxD, TxD, GND

COM Port Baud Rate

9600 bps ~ 115200 bps (default：115200 bps)

USB

USB 2.0 (high speed)

USB Driver Support

Windows 10

LED Indicators

Power

Red

3G/GSM

Green

Power

Protection

Power reverse polarity protection

Frame Ground Protection

ESD, Surge, EFT, Hi-Pot

Required Supply Voltage

+10 VDC ~ +30 VDC

Rated Current

30 ~ 15 mA / 10 ~ 30 VDC

Reset Input

Input Type

Isolated, 3750 Vrms

On Voltage Level

+3.5 VDC ~ +30VDC

Off Voltage Level

+1 VDC max.

Input Impedance

3 kΩ, 0.25W

Mechanical

Casing

Metal

Dimensions (W x L x H)

28 mm x 78.5 mm x 100 mm

Installation

DIN-Rail

Environment

Operation Temperature

-25℃to 70℃

Storage Temperature

-40℃to 80℃

Humidity

5~90% RH, non-condensing

GTM-200M User’s Manual v1.0.1

- 3/35 -

2.2 Accessories Specifications

Module (Optional)

EC25-E

EC20-CE

LE910C4-WWX

category

LTE CAT.4

Frequency band

FDD LTE:

B1/B3/B5/B7/B8/B20

TDD LTE:

B38/B40/B41

FDD LTE: B1/B3/B8/

TDD LTE:

B38/B39/B40/B41

B1/B2/B3/B4/B5/B7/B8/B

12/B13/B14/B19/B20/B26

/B28

WCDMA: B1/B5/B8

WCDMA:B1/B8

TD-SCDMA:B34/B39

CDMA2000:BC0

B1/B2/B4/B5/B8/B19

GSM

B3/B8

900/1800MHz

B2/B3/B5/B8

Scope of use

Area

Taiwan, Europe, Middle

East, Africa, Korea,

Thailand, India

China, Europe, Middle

East, Africa, Korea,

Thailand

Europe, North America,

Africa, Asia Pacific

Certification

Regulatory:

GCF/

CE/KC/NCC/RCM/NBT

C/FAC/ICASA

Regulatory:

GCF/

CE/KC/NCC/DoC/CCC/

SRRC/NAL/ICASA

Regulatory:

GCF/FCC/CE

Environmental

Temperature range

-40°C ~+85°C

Dimensions (W x L x H)

51.0mm x 30.0mm x 4.9mm

GTM-200M User’s Manual v1.0.1

- 4/35 -

2.3 Assembly process

When the communication module is purchased, please refer to the following installation

method for installation :

※Please refer to the order information at the bottom of the GTM-200M order page for optional

communication modules.

Step 1 : Remove the side panel , there are 6 black screws.

Step 2: Insert the communication module into the PCIE slot position and lock the 2 silver

screws.

GTM-200M User’s Manual v1.0.1

- 5/35 -

Step 3 : Connect the 4G IPEX plug to the communication module (Main) position

※Note: The main position of different modules is different, and the main contact of communication

module can be referred to Appendix 7.1

Step 4 : Adjust the mode according to the optional module and make sure the Switch is in

the correct position, please refer to the following diagram

Step 5: Install the side panel and lock back a total of 6 screws.

Optional Module Switching Mode

EC20-CE、EC25-E

Turns numbers 4, 5 and 6 to ON

Turns numbers 1,2 and 3 to OFF

LE910C4-WWX

Turns numbers 1,2 and 3 to ON

Turns numbers 4, 5 and 6 to OFF

GTM-200M User’s Manual v1.0.1

- 6/35 -

3. Hardware Appearance

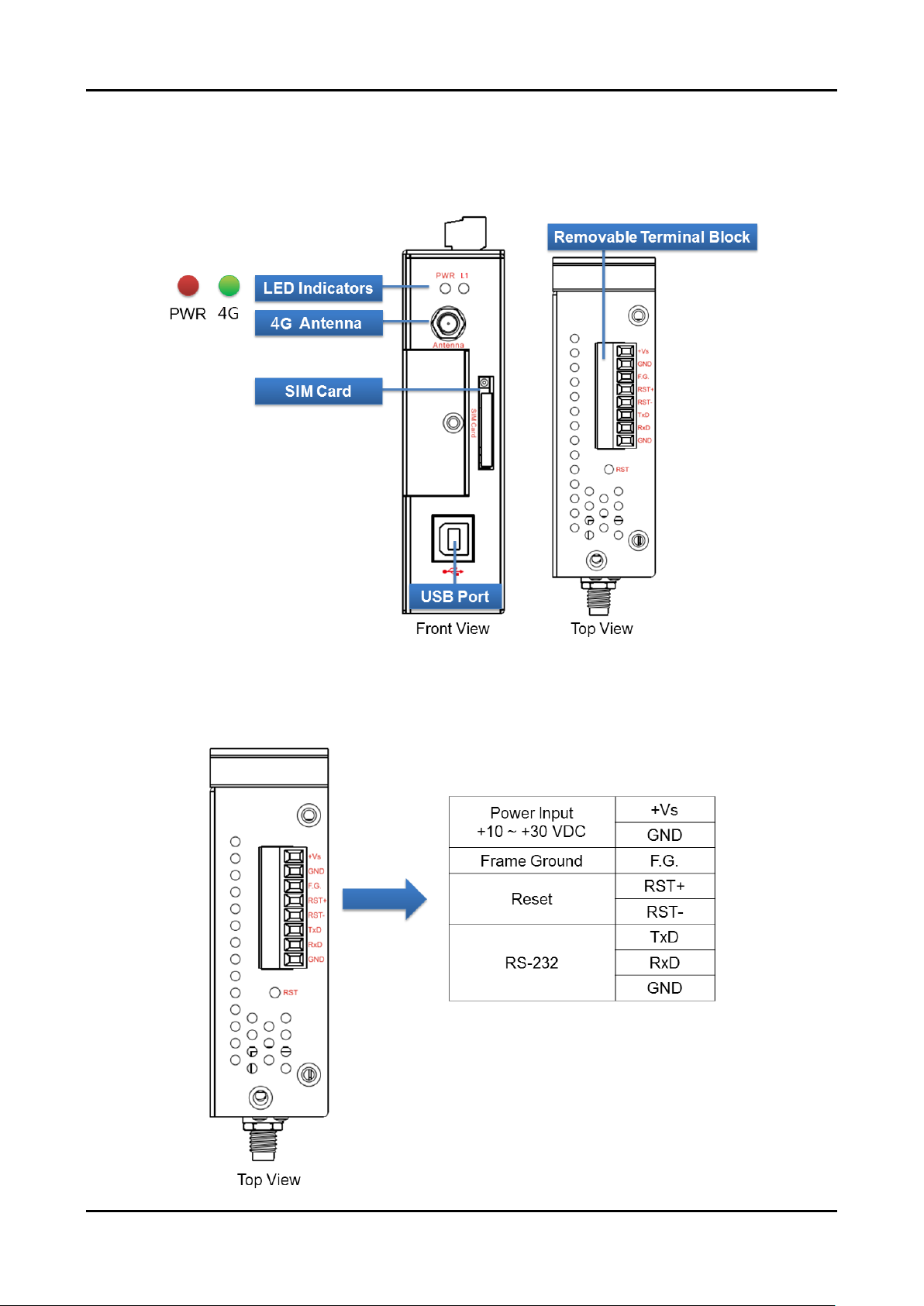

3.1 View of the GTM-200M Panel

3.2 Pin Assignments
