ICON XDJ Manuel utilisateur

User manual

USB MIDI DJ Controller with OptiSenTM optical scratch wheels

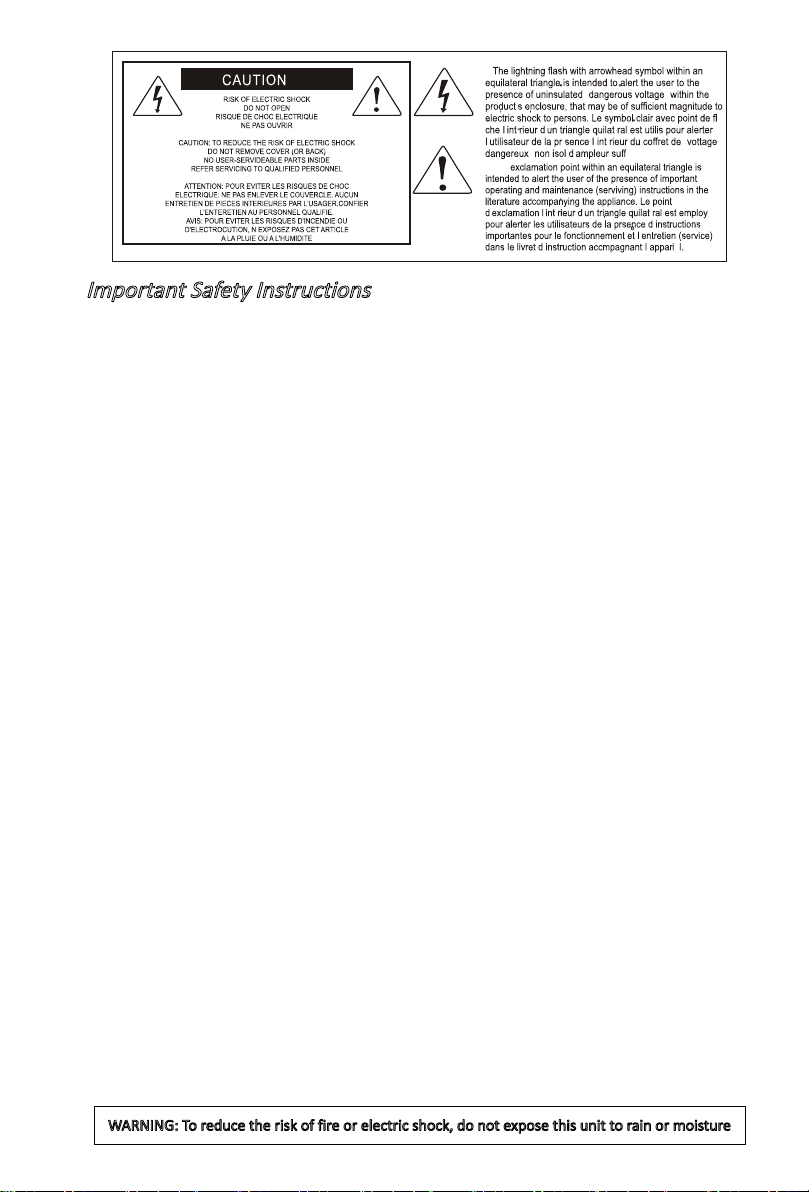

Important Safety Instructions

1. Read this manual thoroughly before using this unit.

2. Keep this manual for future reference.

3. Take notice of and comply with all warnings included in the user's manual or indicated on the

appliance.

4. Follow all instructions included in this manual.

5. Do not expose this unit to rain or moisture. Avoid having water or other liquids spilled on this

unit.

6. When cleaning the cabinet or other parts of this appliance, use only a dry or slightly damp soft

cloth.

7. Do not block any ventilation openings or interfere with the proper ventilation of this unit. Install

in accordance with the manufacturer's instructions.

8. Do not use or store near any heat sources such as radiators, heat registers, stoves, or other heat-

producing appliances.

9. Do not interfere with the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding-type plug has two blades and a third

grounding prong. These are designated for your safety. If the provided plug does not fit into your

outlet, consult an electrician.

10. Protect the power cord from being walked on or otherwise damaged by items placed on or

against them. Particular attention should be given to the plugs, receptacles, and the point where

the cord exits the appliance.

11. To avoid the risk of electrical shock, do not touch any exposed wiring while the unit is in

operation.

12. Only use attachments/accessories specified by the manufacturer.

13. Unplug this unit and all connected electrical equipment during lightning storms or when left

unused a long period of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the appliance has

been damaged in any way or fails to operate normally.

WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture

Introductions.............................................................................................4

What's in the package? ............................................................................4

Features ...................................................................................................6

Front Panel Layout ...................................................................................7

Side Panel Layout ..................................................................................10

Getting Started ....................................................................................... 11

Connecting your XDJ controller.............................................................. 11

For Deckadance (with Template)............................................................12

For Traktor (with Template).....................................................................13

Firmware upgrade ..................................................................................14

Specications .........................................................................................15

Contents

Introductions

What's in the package?

●Contrôleur MIDI XDJ USB x 1

●Quick Start Guide

●USB2.0 Cable

Thank you for purchasing the ICON ProAudio XDJ USB MIDI DJ controlle. We

sincerely trust this product will provide years of satisfactory service, but if anything is

not to your complete satisfaction, we will endeavor to make things right.

In these pages, you'll nd a detailed description of the features of the XDJ digital

audio interface, as well as a guided tour through its front and rear panels, step-by-

step instructions for their setup and use, and full specications.

Please register the product on our website at the below link

www. iconproaudio.com/registration:

Please follow the step by step procedures. Start by inputing the device’s serial

number as well as your personal information, etc. By registering your product online,

you will be entitled to service and after-sales support at our Help Center by visiting

our website at www.iconproaudio.com. Also, all the registered products under your

account will be listed on your personal product page where you will nd updated

information such as rmware/driver upgrades, software bundles, user manual

downloads, etc. for your device.

As with most electronic devices, we strongly recommend you retain the original

packaging. In the unlikely event the product must be returned for servicing, the

original packaging (or reasonable equivalent) is required.

With proper care and adequate air circulation, your XDJ digital audio interface will

operate without any trouble for many years. We recommend that you record your

serial number in the space provided below for future reference.

personal account

1. Check serial number of your device

Please go to http:// iconproaudio.com/registration or scan the QR code

below.



Input your device’s serial number and the other information on the screen. Click

“Submit”.



A message will pop up showing your device information such as model name

and its serial number - Click “Register this device to my account” or if you see

any other message, please contact our after-sales service team



2. Log in to your personal account page for existing user or

Existing user: Please log into your personal user page by inputing your

user name and password.



New user: Please click “Sign Up” and ll in all the information.



3. Download all useful materials

All your registered devices under your account will show on the page. Each

product will be listed along with all its available les such as drivers, rmware,

user manual in different languages and bundled software etc. for download.

Please make sure you have download the necessary les such as driver before

you begin device installation.

Features

●Touch-sensitive scratch wheels with high resolution pulse sensor

Touch sensor scratch wheel platters give high resolution to experiencing an

analog feel when scratching and mixing

●Vertical volume control faders

●Vertical tempo control faders

●Horizontal cross fader control

●2x5-band EQ control knobs - Hi, Mid, Low, FX3 and Filter

●Gain control knobs

●Cue volume control knobs

●Cue Mix control knobs

●Large encoder knobs controlling “Move & Size” functions of the Loop

●Song selection encoder knob

●All buttons are backlit

●All controls including faders, knobs & buttons are assignable on some DJ software

(except Mode & Shift buttons)

●Bundled with Deckadance 2 LE ICON edition

●Perfectly match with MacBook ProTM

●Compatible with Windows XP, Vista, Windows 7, Windows 8 (32-bit/64-bit), and

Mac OS X (Intel)

●USB bus-powered

●Traktor and Deckadance PVC overlay and template are included

●Rugged aluminum construction

Front Panel Layout

Note: The following descriptions on different controls are based on Deckadance

2 software. Different DJ software may need user’s self setup or software

compatibility support, and controls may work differently in other software.



1. Touch-sensitive scratch wheel with high resolution pulse

sensor

The scratch wheel is constructed with high resolution pulse sensor with touch-

sensitive and non-sensitive elements. These together enable user control

functions such as “search”, “pitch bend”, “stop & go”, and “scratch” etc. with high

accuracy and effectively.

2. Tempo fader

Adjust the tempo (playback speed) of each deck at your software.

3. Volume fader

Adjust the volume of each deck at your software.

4. Crossfader

This slider controls the crossfader at your software. Slide to control the transition

between songs. The crossfader curve setting is adjustable. Please refer to the

“Adjust the cross fader curve” below for details.

1 6 7 8

2 3

Adjust the crossfader curve

Activate the “Shift” button and press down the “Song Selection” encoder (i.e. the

centre encoder), and the two buttons “A” & “B” should stay light. Then slide the

crossfader to your preferred cross point. This would be your “A” cross point and

“B” cross point will be mirror symmetric. The section between your cross points

“A” & “B” is the center value. Press down the encoder again to complete the

adjustment.



Tip: In general, a gentle curve is more suitable for long mixes (larger distance

between A/B as diagram A shown) and a sharp curve is more suitable for

scratching (i.e. less distance between A/B as diagram B shown).

Note: Even if you have activated the cross fader adjustment function accidentally

(i.e. buttons “A” & “B” have been lit), without actually moving the cross fader, its

previous set cross point will not be affected even though the fader now is located

at a different cross point.

5. Effect control knobs (FX3, Filter, Hi, Mid, Low & Gain)

These adjust the channel lter amount, gain, the high-frequency, mid-range, low-

frequency EQ settings of each deck at your software.

6. Cue Volume knob

Adjust the cue volume.

7. Cue Mix knob

Adjust the Cue Mix value.

8. Song selection encoder knob

Rotate this knob to scroll through the song list and press button “A” or “B” to set

the selected song to Deck A or B.

9. Loop control encoder knob

Rotate to adjust a set loop at Deck A or B.

Rotate encoder Adjust the size of the loop

Rotate encoder

(“Shift” button activated) Move the loop forward or backward.

A B AB

(Centre) (Centre)

Center

Diagram A Diagram B

10. Control buttons

Please refer to the following table for the button functions.

Button Function

IN Loop (when you end looping playback resumes

from end of loop)

IN + Shift Gross Beat Slot 1

OUT Leap (when you end looping playback resumes

from where it would have been without looping)

OUT + Shift Gross Beat Slot 2

Sync Activate Sync function in Deckadance

Sync + Shift Activate Master Sync function in Deckadance

Cue Activate Cue function in Deckadance

Cue + Shift Activate Stutter Cue function in Deckadance

►/II Activate Play function in Deckadance

►/II + Shift Rewind

Tap Key Lock

Tap + Shift No function

Hot Cue 1-3 Set hot cue point 1-3

Hot Cue 1-3 + Shift Delete hot cue point 1-3

Mode on Jog wheel scratching

Mode off Jog wheel pitch bending

FX3 FX3 On/Off

Hi Hi EQ On/Off

Mid Mid EQ On/Off

Low Low EQ On/Off

A Load selected song to Deck A

B Load selected song to Deck B

Snap/quantize on/off

FX1-2 Activate FX 1 and 2 in Deckadance for each deck

PFL Activate 'PFL' headphone monitoring for each deck.

Side Panel Layout

1. USB port (B-Type)

Functions as a MIDI port to your notebook (or computer) and compatible

software. Also provides power to your XDJ.
