ICON QconProX Guide de démarrage rapide

Firmware upgrade note

Model: QconProX

Release date: 30th August, 2017

Version: V1.15

Who need to upgrade: All users

Upgrade fix/Feature added:

a) Improved the “Solo” functionality on Reaper.

b) Added “User A” & “User B” functions on Studio One.

Update footprint

Version Release date Feature added or bug fix

V1.00 18th Aug., 2016 First release.

V1.06 22nd June, 2016 Fixed the jog wheel function on ProTools.

V1.07 13rd Sep., 2016 Added and fixed several functions on Logic Pro and

Studio One

Upgrade fix/Feature added:

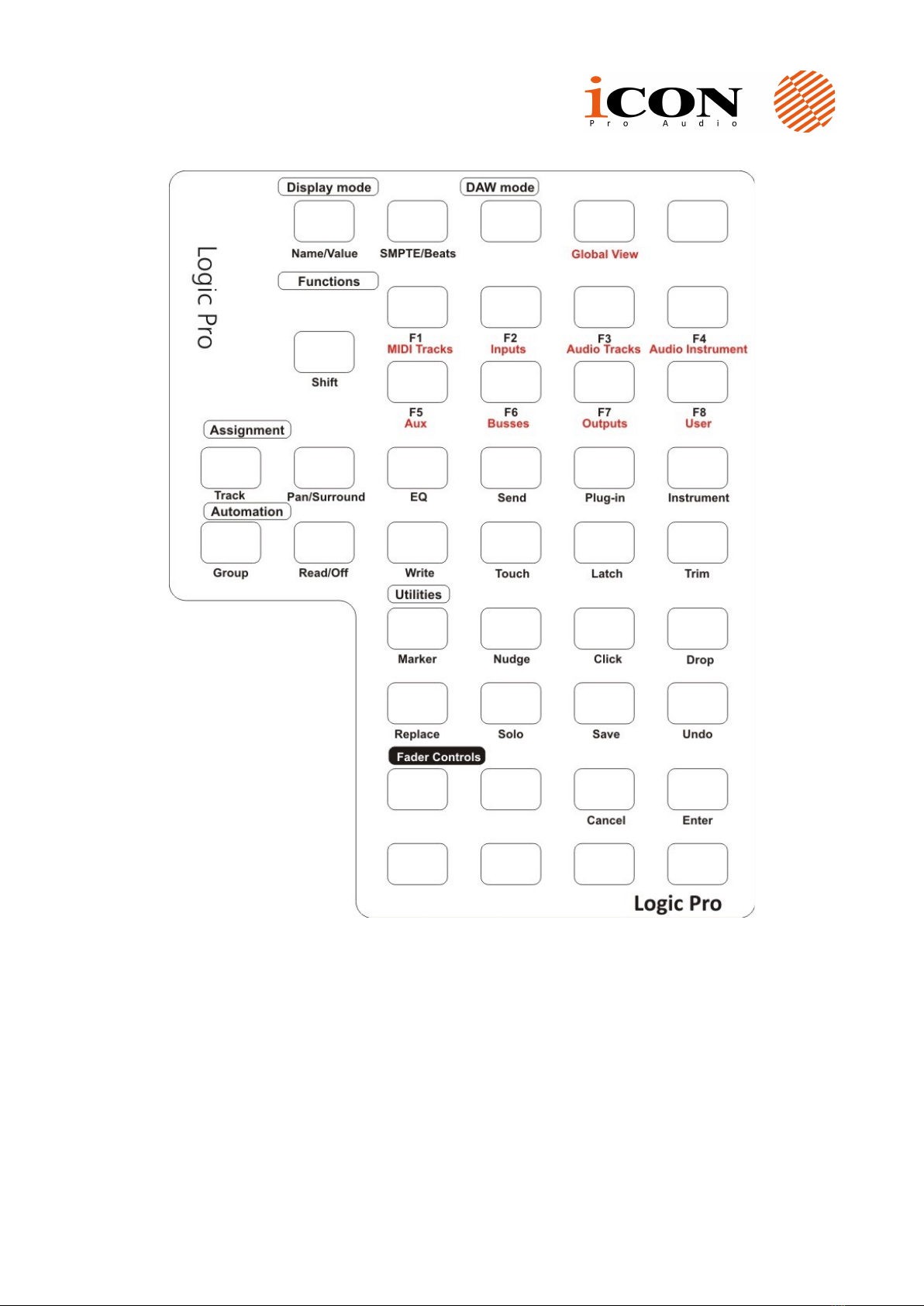

1. Added: Added 8 x “Global View” features on Logic Pro mode

-MIDITracks

-Inputs

-AudioTracks

-AudioInstruments

- Aux

-Busses

-Outputs

-User

(Note: Please refer to the attached image for the control buttons)

2. Fixed: Level metering issue on Studio One

V1.08 26th Nov., 2017 Added feature functions on Cubase and StudioOne

Upgrade fix/Feature added:

a)Added: Added a number of control functions on Studio One

(Note: Please refer to the attached image for the control buttons)

b)Fixed: Cubase compatibility issue for Cubase 8.0 or above

c) Fixed: Samplitude SMPTE time display issue

V1.09 a) Added fader calibration function

(Note: Please refer to the attached procedure for the process)

b)Fixed button LED issue with some DAW

c) Fixed latency issue on ProTools

d) Fixed level metering and Pan LED issue on Samplitude ProX

V1.12 Upgrade fix/Feature added:

a)Fixed “Solo” button LED on Reaper

b) Added “Save” procedure on the fader calibration process.

V1.13 Improved functionality on Bitwig including Master Level metering and the

lower LCD display etc. Please install the new scripts into Bitwig according to

next page instruction shown.

V1.14 30th August, 2017

Upgrade fix/Feature added:

a) Improved some more functionality on Bitwig including function buttons LED etc.

b) Widen the individual fader speed value adjustment range.

Fader calibration process procedure

1. Press and hold channel 2’s “Rec” button and switch on the power to enter into the

fader calibration mode. The upper LCD should display values for each channel fader

value.

2. Rotate corresopdance channel knob clockwise to increase or anti-clockwise to

decreased the fader power.

3. To increase the master fader power press the 7th channel’s “Sel” button and the 8th

channel’s “Sel” button to decrease it.

(Please refer to the “Fader Calibration procedures” for details)

4. After the settings, press knob 8 to save all the setting values and the calibration

mode will exit automatically. (No need to turn off and on the device)

Remark:

Control method

1. Press “Global View” button to enter to the global view control mode

2. Press one of the eight global view’s function button to activate the desired

function

3. Press “Global View” button again to exit the control mode

Import Bitwig script fix file for QconProX

1．Unzip the “DrivenByMoss” file and place the file named

“DrivenByMoss.bwextension” into the folder as below:

2．Launch Bitwig

3．QconProX setup procedures

Win: C:\Users\Administrator\Documents\Bitwig Studio\Extensions\

Mac: ~/Documents/Bitwig Studio/Extensions/
