ICON Cube 2nano Manuel utilisateur

User manual

1 Mic-In / 1 Instrument-In, 2 Out professional recording USB interface with

smart phone connectivity for live streaming application

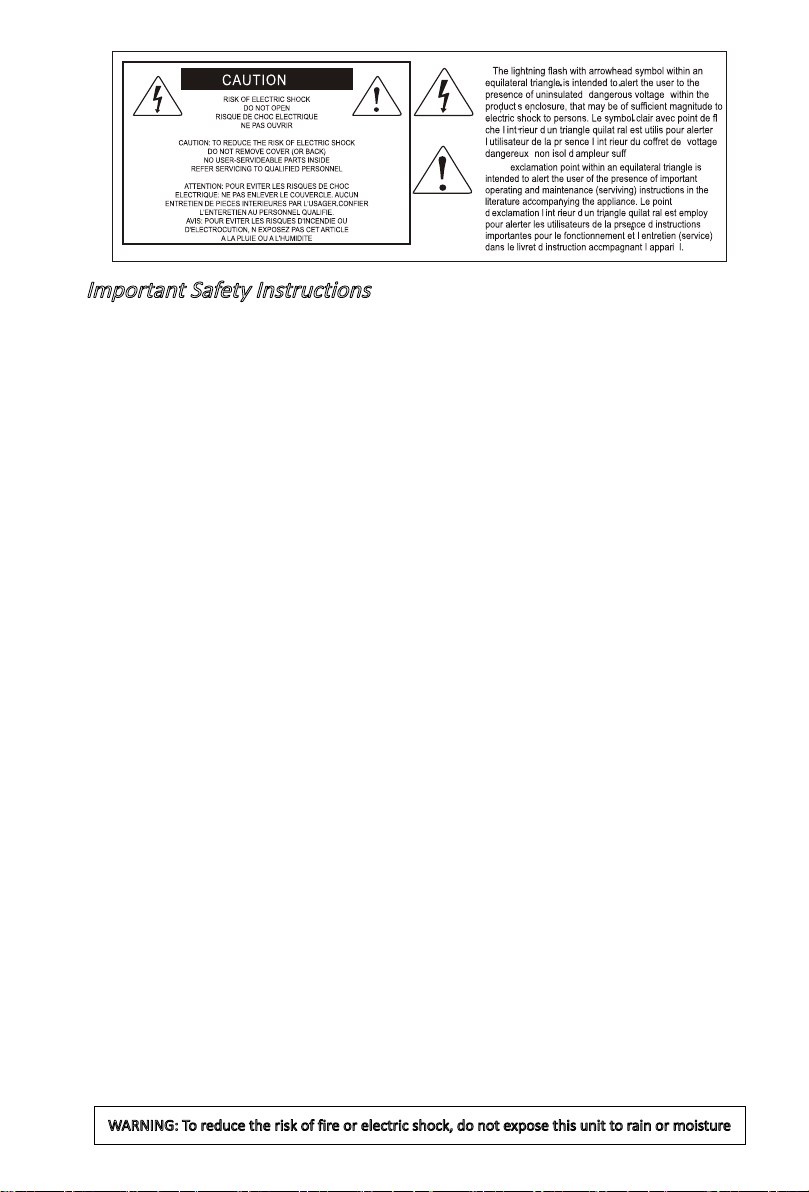

Important Safety Instructions

1. Read this manual thoroughly before using this unit.

2. Keep this manual for future reference.

3. Take notice of and comply with all warnings included in the user's manual or indicated on the

appliance.

4. Follow all instructions included in this manual.

5. Do not expose this unit to rain or moisture. Avoid having water or other liquids spilled on this

unit.

6. When cleaning the cabinet or other parts of this appliance, use only a dry or slightly damp soft

cloth.

7. Do not block any ventilation openings or interfere with the proper ventilation of this unit. Install

in accordance with the manufacturer's instructions.

8. Do not use or store near any heat sources such as radiators, heat registers, stoves, or other heat-

producing appliances.

9. Do not interfere with the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding-type plug has two blades and a third

grounding prong. These are designated for your safety. If the provided plug does not fit into your

outlet, consult an electrician.

10. Protect the power cord from being walked on or otherwise damaged by items placed on or

against them. Particular attention should be given to the plugs, receptacles, and the point where

the cord exits the appliance.

11. To avoid the risk of electrical shock, do not touch any exposed wiring while the unit is in

operation.

12. Only use attachments/accessories specified by the manufacturer.

13. Unplug this unit and all connected electrical equipment during lightning storms or when left

unused a long period of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the appliance has

been damaged in any way or fails to operate normally.

WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture

Introduction...............................................................................................4

What’s in the package? ............................................................................4

Features ...................................................................................................6

Front Panel ..............................................................................................8

Rear Panel................................................................................................9

Top Panel................................................................................................10

Mac driver installation............................................................................. 11

Install ProDriver 4 with LoopBack function............................................. 11

Mixer control panel(Mac)........................................................................15

Windows driver installation.....................................................................17

ProDriver4 ..............................................................................................20

Mixer control panel(Windows) ................................................................21

Settings (Sample rate and latency settings)...........................................24

ProDriver hosting rack (Mac/Windows) ..................................................28

Hardware Connections...........................................................................36

Different types of microphone connection method diagram ...................37

Specications .........................................................................................38

Services..................................................................................................39

Contents

Introduction

What’s in the package?

●Cube2Nano Dyna USB Recording Interface

●Quick Start Guide x 1

●USB 2.0 cable (Type C) x 1

●3.5mm TRS audio cable x 1

Firstly, congratulations on your purchase of the ICON Pro Audio Cube2Nano Dyna

digital audio Interface! In these pages, you'll nd a detailed description of the features

of the Cube2Nano Dyna digital audio Interface, as well as a guided tour through its

front and rear panels, step-by-step instructions for their setup and use and a full list

of specications. As you read through the ma- nual, you will spot orange boxes -

these denote actions for you to complete which will help you get underway.

As with most electronic devices, we strongly recommend you retain the original

packaging. In the unlikely event that the product is returned for servicing, the original

packaging (or reasonable equivalent) is required. With proper care and adequate air

circulation, your Cube2Nano Dyna digital audio interfacewill operate awlessly for

many years to come.

We trust that this product will provide years of excellent service and in the unlikely

event that your product does not perform to the highest standard, every effort will be

made to address the issue.

personal account

1. Check serial number of your device

Please go to http:// iconproaudio.com/registration or scan the QR code

below.



Input your device’s serial number and the other information on the screen. Click

“Submit”.



A message will pop up showing your device information such as model name

and its serial number - Click “Register this device to my account” or if you see

any other message, please contact our after-sales service team



2. Log in to your personal account page for existing user or

Existing user: Please log into your personal user page by inputing your

user name and password.



New user: Please click “Sign Up” and ll in all the information.



3. Download all useful materials

All your registered devices under your account will show on the page. Each

product will be listed along with all its available les such as drivers, rmware,

user manual in different languages and bundled software etc. for download.

Please make sure you have download the necessary les such as driver before

you begin device installation.

Features

●24-Bit 192KHz 1 mic-In/1 inst-In, 2-Out USB Recording Interface

●Hi-end studio grade DAC/ADC provides super high dynamic range

Dynamic Range: 127dB

●Supporting Mac/PC connectivity operating simultaneously with SmartDevice

●Live session possible with audio signal processing via ProDriver4 virtual plug-in rack

●2x2 analog I/O full duplex recording and playback

●Compatible with iOS and Android Digital I/O jack (Type C) & Analog I/O jack (3.5mm

stereo TRRS)

●For direct connection with smartphone, tablet or other device

●Mic/Instrument preamps with individual gain control and phantom power switch

●2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector

●Smart phone input level control on the top panel

●Direct monitor button control on the top panel

●1 headphone output with assignable source and individual volume control

●Flexible channel routing via the ProDriver4 software control panel

●ICON ProAudio developed ultra low latency ProDriver4™driver is provided

●ICON ProAudio innovative and user friendly plug-in hosting rack software is built-in

with ProDriver4™ (Windows and Mac)

●USB2.0 High Speed equipped and USB bus-powered

●ARM-M7/500MHz processing power and technology for super fast and stable signal

processing

●Supports DirectSound, WDM and ASIO2.0

●LoopBack function is equipped with ProDriver 4™ for both Mac and Windows

platforms

●Compatible with mac OS (M1/ Intel/ Mac) 10.11 and later, iOS 9 or above, Andriod

and Windows 7, 8 & 10 (32-bit/64-bit)

●Full duplex, simultaneous record/playback

The ICON ProAudio Cube2Nano Dyna USB recording interface provides an audio

input and output module as well as analog & digital connectivity with any smart

mobile devices for live streaming applications. Main features include:

●+5VDC power supply connector is equipped for external power supply when using

with iOS

●Rugged aluminum construction

●Bitwig 8Track included

●Dotec audio plugins included

63 2

47 5

Front Panel

1. 3-pin XLR (Balanced) – For condenser microphone with +48V

phantom power or dynamic microphone.

Please refer to P.36 for the connection method of different types of microphones

and instruments.

1/4” TS (Unbalanced) – For dynamic microphone

Please refer to P.36 for the connection method of different types of microphones.

2. 48V phantom power switch

Press to supply +48V phantom power to the associated XLR input. This phantom

power circuit is suitable for most condenser microphones.

3. Input gain level control (Microphone)

This potentiometer controls the input level of the analog microphone input.

4. Input gain level control (Guitar)

This potentiometer controls the input level of the instrument input.

5. Headphone level control

This potentiometer controls the output level of the headphone output.

6. Headphone output

This output jack accepts a standard 1/4″ stereo TRS headphone connector.

7. Mon (Monitor – Control smart phone & PC monitoring signal)

Switch between monitoring smart device with PC signal or only PC’s signal

Rear Panel

1. USB 2.0 connector (Type C)

Connect it with the provided USB cable Type C to your Mac/PC or your

iOS device camera kit’s USB connector. Your Mac/PC must have a USB2.0

connector in order to run the full speed of Cube2Nano Dyna .

2. HI-Z input

This is a high impedance input for guitar/bass.

3. Line outputs L/R

These are unbalanced analog outputs on standard 1/4″ TS connectors at +6dBU

line level.

4. Stereo output L/R

This is an unbalanced analog output on a standard 3.5mm stereo connector.

(Note: Master level control will only adjust the output level of both the Line

output L/R and the 3.5mm stereo output.)

5. Smart Device I/O (Digital - Type C & Analog - 3.5mm TRRS)

These ports allow you to connect your smart device and your Mac/PC

simultaneously so you may process the audio signal wih your Mac/PC before

delivering signal to the smart device for live streaming application.

Digital - Type C jack for connecting directly to the digital jack of the smart

device (OTG adapter required)

Analog - TRRS stereo jack for connecting directly to smart device’s audio I/O

6. Power supply connector (USB Type C)

Cube2Nano Dyna is USB-bus powered. If your computer does not supply

sufcient power, connect an ICON 5VDC power supply adapter to this jack. Or

you may try to use your smart phone power adapter with the correct cable type

(USB Type C). Normally it should work and provide enough power to the device.

(Note: You can get the power adapter from ICON distributors/dealers near you)

(Note: External power adapter is needed if the Cube2Nano Dyna is us as a

standalone unit without a Mac or PC)

1. Direct Monitor button

Press to monitor the input signal (i.e. microphone or instrument) through your

headphones. Pressing In will allow for Direct monitoring of signal whick mean

signal without computer processing.

2. Smart Phone Input Level Control

Adjust to control the audio input level to the smart phone.

3. Master Level Control

Master level control will only adjust the output level of both the Line output 1/2

and the 3.5mm stereo output.

Top Panel
