ICON WEIDER POWER TOWER Manuel utilisateur
USER’S MANUAL
Model No. WEBE99712.3
Serial No.
Write the serial number in the
space above for reference.
Serial Number
Decal
weiderfitness.com
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
To register your product and
activate your warranty today,
go to my.weiderfitness.com.
For service at any time, go to
weiderservice.com.
Or call 1-877-992-5999
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE
2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
EXERCISE GUIDELINES ....................................................................12
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS
WEIDER is a registered trademark of ICON Health & Fitness, Inc.

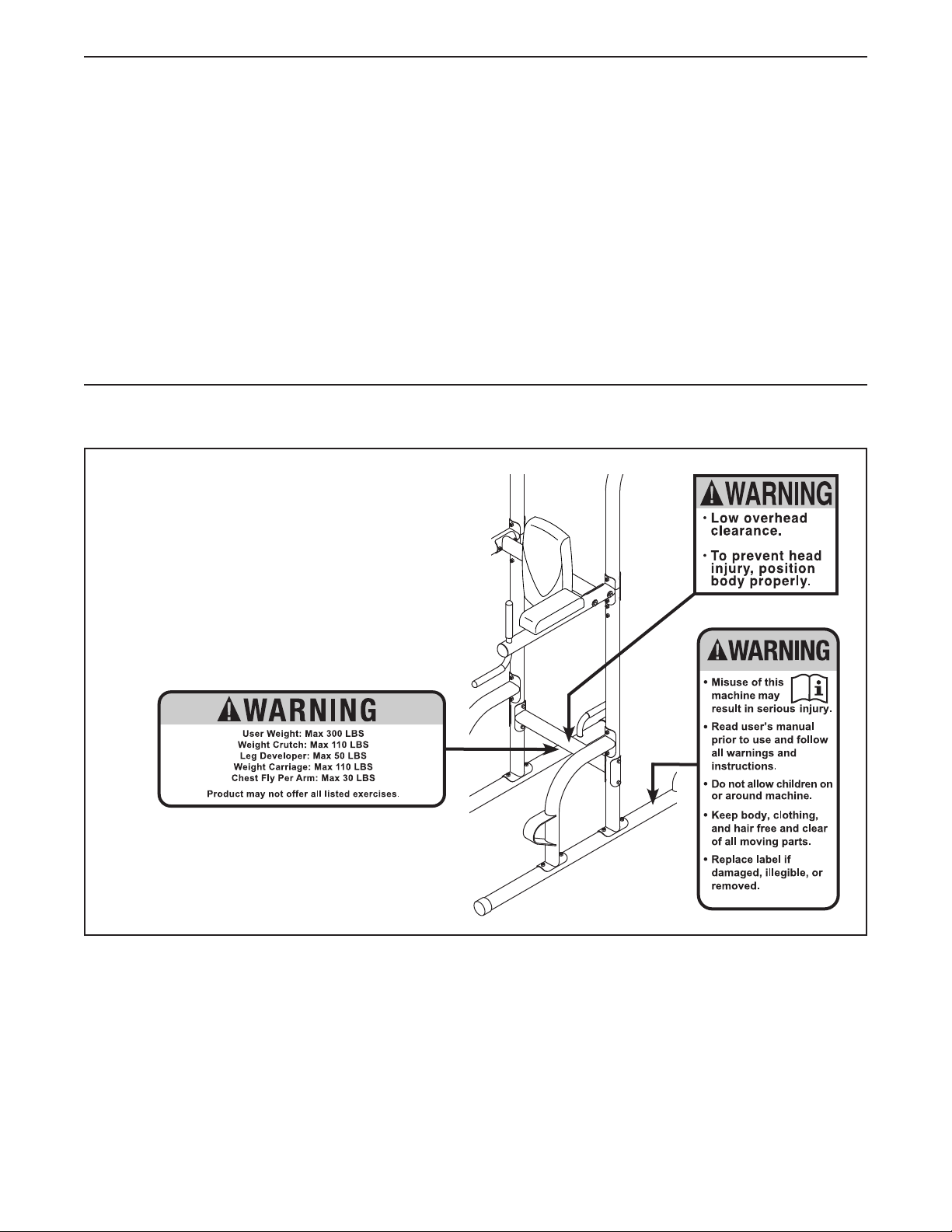

This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT
3
1. It is the responsibility of the owner to
ensure that all users of the exercise rack are
adequately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
3. The exercise rack is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the exercise
rack by someone responsible for their safety.
4. Use the exercise rack only as described in
this manual.
5. The exercise rack is intended for home use
only. Do not use the exercise rack in a com-
mercial, rental, or institutional setting.
6. Keep the exercise rack indoors, away from
moisture and dust. Do not put the exercise
rack in a garage or covered patio, or near
water.
7. Use the exercise rack only on a level surface.
Cover the floor beneath the exercise rack to
protect the floor.
8. Make sure that all parts are properly tight-
ened each time the exercise rack is used.
Replace any worn parts immediately.
9. Keep children under age 13 and pets away
from the exercise rack at all times.
10. The exercise rack is designed to support a
maximum user weight of 300 lbs. (136 kg).
11. Always wear athletic shoes for foot protec-
tion while exercising.
12. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise rack before using your exercise rack.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
IMPORTANT PRECAUTIONS
4
STANDARD SERVICE PLANS
5
Pull-up Bar
Arm Pad
Dip Arm
Footrest
Backrest
Dip Arm Handles
Push-up Handle
Thank you for selecting the versatile WEIDER®
POWER TOWER exercise rack. The POWER TOWER
exercise rack is designed to help you develop the
major muscle groups of the upper body. Whether your
goal is a shapely figure, dramatic muscle size and
strength, or a healthier cardiovascular system, the
exercise rack will help you achieve the specific results
you want.
For your benefit, read this manual carefully before
using the exercise rack. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Upright
BEFORE YOU BEGIN
Length: 4 ft. 9 in. (145 cm)
Width: 3 ft. 5 in. (104 cm)
Height: 7 ft. (213 cm)
6
PART IDENTIFICATION CHART
M6 Washer
(21)
M8 x 68mm Carriage Bolt (20)
M10 Curved
Washer (26)
M8 Curved
Washer (23)
M8 x 68mm Bolt (24)
M8 x 77mm Bolt (28)
M10 x 50mm Screw (19)
M6 x 73mm Screw (18)
M6 x 16mm
Screw (27)
M8 x 75mm Bolt (17)
M8 Locknut
(22)
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in
the hardware kit, check to see if it has been preassembled. Extra parts may be included.
7

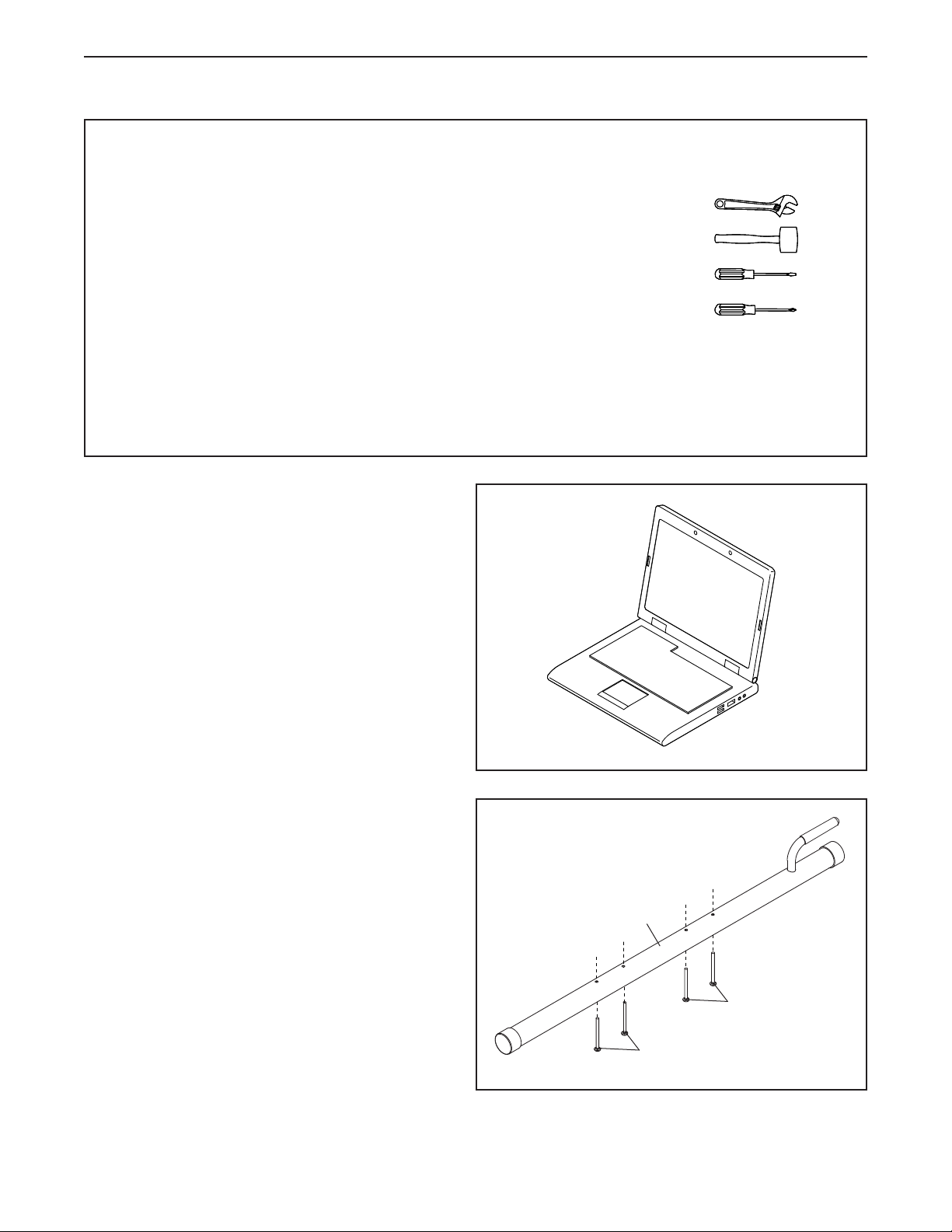

2. Insert four M8 x 68mm Carriage Bolts (20)
upward through a Base (1). Tip: It may be
helpful to place tape on the heads of the
Carriage Bolts to hold them in place until
later steps.
Repeat this step with the other Base (not
shown).
2
20
20
1
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Because of its weight and size, the exercise rack
should be assembled in the location where it will
be used. Make sure that there is enough clear-
ance to walk around the exercise rack as you
assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• To identify small parts, see page 6.
• The included grease and the following tools (not
included) may be required for assembly:
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
1. Go to my.weiderfitness.com on your
computer and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
8
22
22
20
1
4. Orient the Bottom Crossbar (10) so that the
warning decal (B) is on top.
Attach the Bottom Crossbar (10) to one of the
Uprights (2) with two M8 x 77mm Bolts (28), a
Support Plate (13), and two M8 Locknuts (22);
do not tighten the Locknuts yet.
Attach the Bottom Crossbar (10) to the other
Upright (2) in the same way.
3
2
A

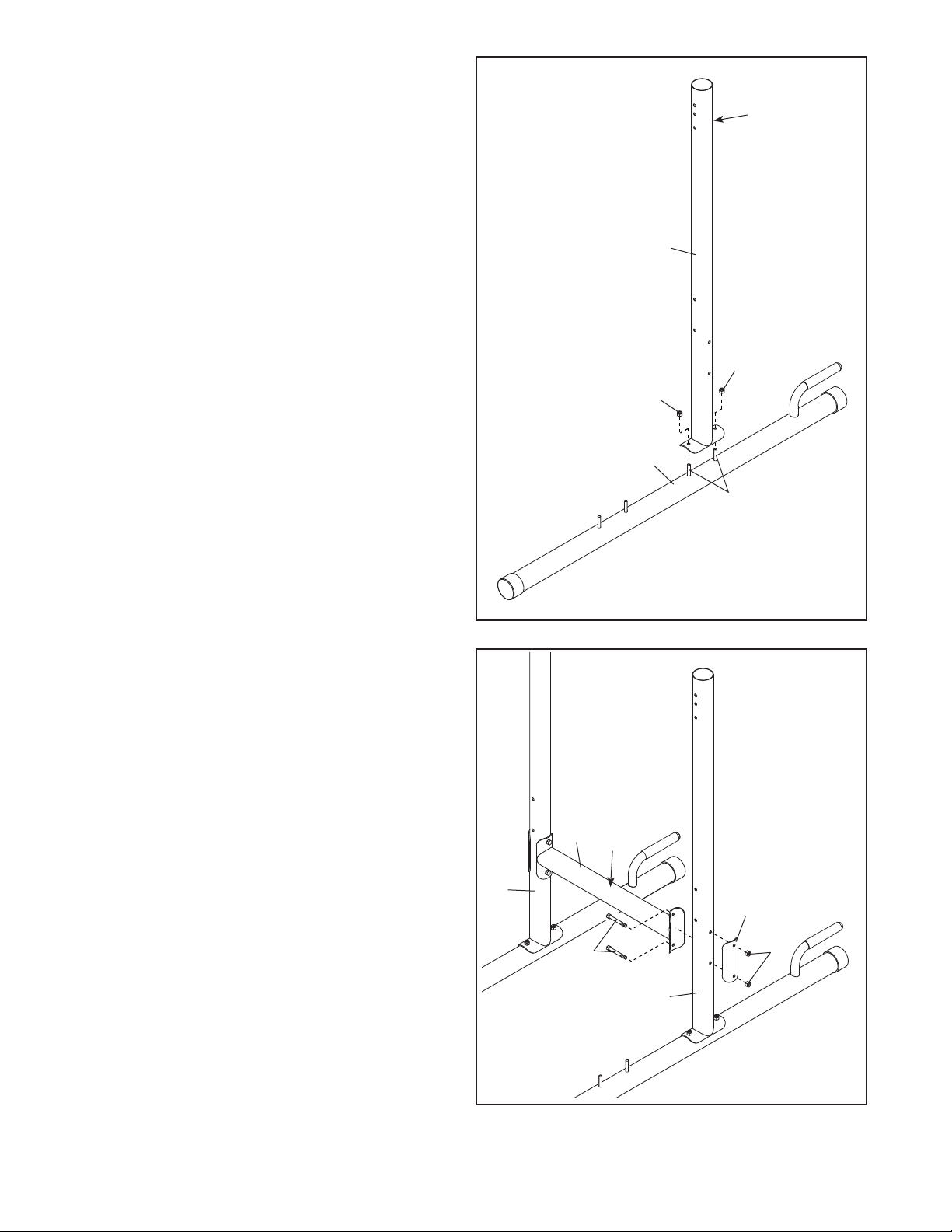

3. Orient one of the Uprights (2) and one of the
Bases (1) as shown; make sure that the
hexagonal holes (A) are on the indicated side
of the Upright.
Attach the Upright (2) to the Base (1) with the
two indicated M8 x 68mm Carriage Bolts (20)
and two M8 Locknuts (22); do not tighten the
Locknuts yet.
Attach the other Upright (not shown) to the
other Base (not shown) in the same way.
28
2
10
2
13
22
B
4
9

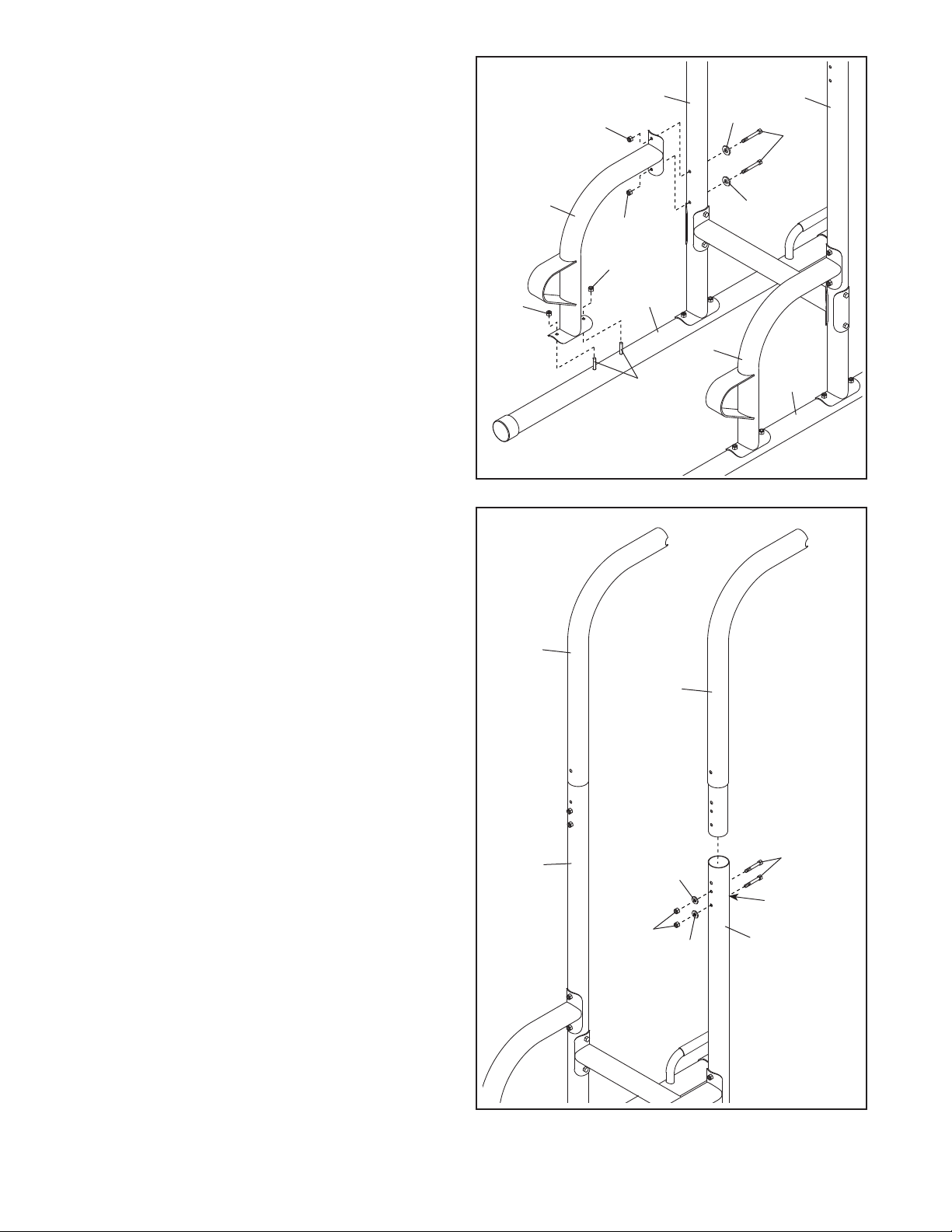

6. Orient one of the Pull-up Frames (3) as shown,
and insert it into one of the Uprights (2). Attach
the Pull-up Frame with two M8 x 68mm Bolts
(24), two M8 Curved Washers (23), and two
M8 Locknuts (22). Note: The Bolts must be
inserted into the lowest set of holes in the
Pull-up Frame and the Upright. Make sure
that the bolt heads are in the hexagonal
holes (C) in the Upright. Do not tighten the
Locknuts yet.
Attach the other Pull-up Frame (3) to the
other Upright (2) in the same way.
3
3
2
6
2
22
23
23
24
5. Attach a Footrest Frame (4) to one of the Bases
(1) with the two indicated M8 x 68mm Carriage
Bolts (20) and two M8 Locknuts (22); do not
tighten the Locknuts yet.
Next, attach the Footrest Frame (4) to the
Upright (2) with two M8 x 75mm Bolts (17), two
M8 Curved Washers (23), and two M8 Locknuts
(22); do not tighten the Locknuts yet.
Attach the other Footrest Frame (4) to the
other Base (1) and the other Upright (2) in the
same way.
5
1
1
22
22
20
17
23
23
22
22
2
4
2
4
C
10
8. Attach the Top Crossbar (7) to one of the Dip
Arms (5) with two M8 x 75mm Bolts (17), two
M8 Curved Washers (23), and two M8 Locknuts
(22); do not tighten the Locknuts yet.
Attach the Top Crossbar (7) to the other Dip
Arm (5) in the same way.
8
5
17
22
7
5
23
23
7. Attach a Dip Arm (5) to one of the Pull-up
Frames (3) and one of the Uprights (2) with two
M8 x 77mm Bolts (28), a Support Plate (13),
and two M8 Locknuts (22); do not tighten the
Locknuts yet.
Repeat this step with the other Dip Arm (5). 13
5
3
22
5
2
28
22
9
26
26
12
12
9
D
D19
3
3
19
9. Attach the Pull-up Bar (9) to the Pull-up Frames
(3) with two M10 x 50mm Screws (19) and two
M10 Curved Washers (26). Make sure that the
indented holes (D) in the Pull-up Bar are on
the side shown. Then, press the two Rubber
Caps (12) into the ends of the Pull-up Frames.
See steps 3–8. Tighten all of the M8
Locknuts (22).
7
