8271 NWAYS ETHERNET LAN SWITCH

MODEL 524

QUICK INSTALLATION GUIDE

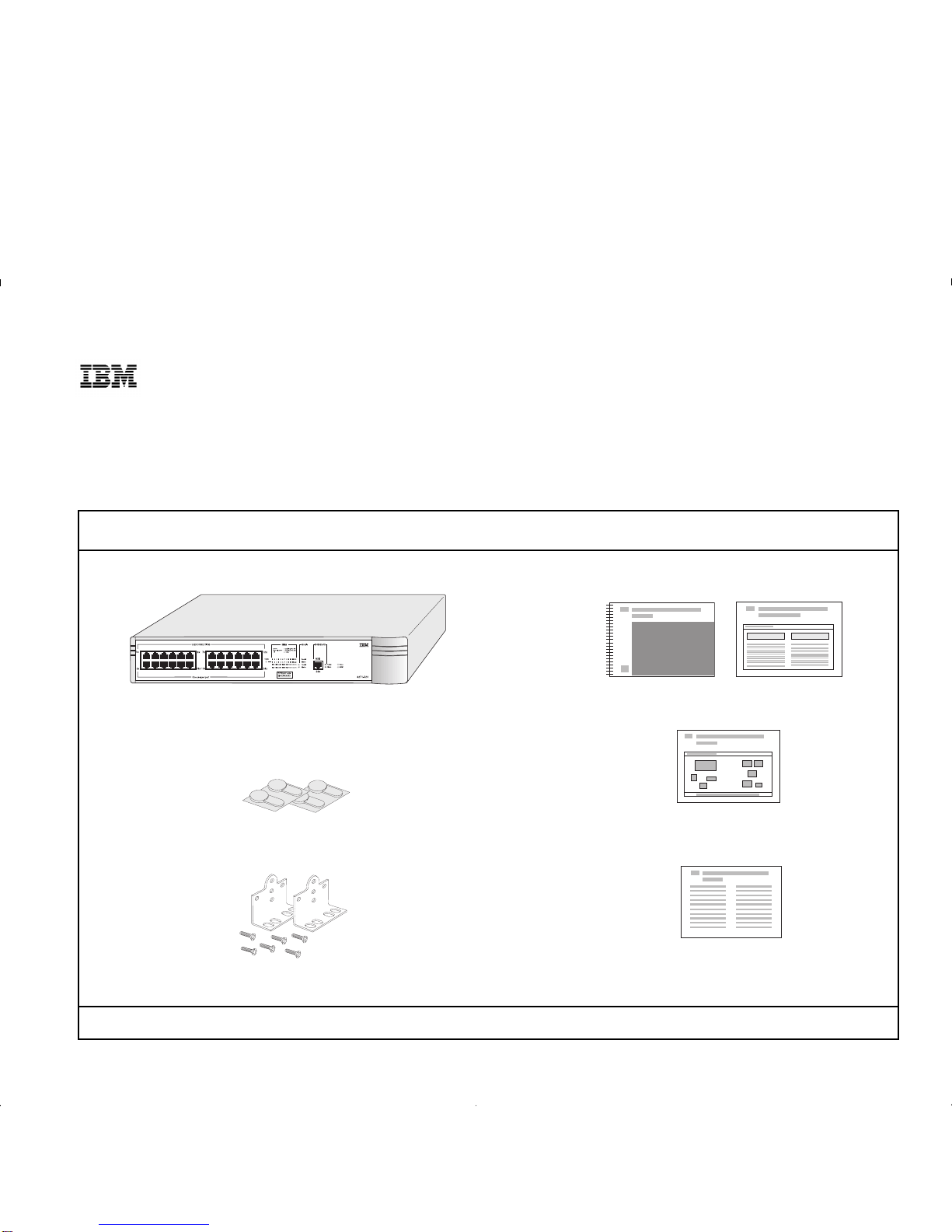

Checking the Package Contents

IBM 8271 Switch Model 524

4 x rubber feet

2 x mounting brackets + 6 x fixing screws

User’s Guide + Quick Reference Guide

Quick Installation Guide

Release Notes

Installing the Switch

DANGER: 02L1325.

The User’s Guide also contains further informa-

tion on the following steps.

Into a 19-inch rack

Fit the brackets as shown in 1 (below) to each

side of the unit. Following the manufacturer’s

instructions, secure the unit into the rack.

On the wall

Place the unit the right way up on a hard flat sur-

face with the front facing towards you. Fit the

brackets as shown in 2 (below) to each side of the

unit. Place the base of the unit against the wall,

ensuring that the ventilation holes face sidewards

and the front panel faces upwards. Secure using

suitable screws and fixings (not supplied). The wall

surface should be smooth, flat, dry and sturdy.

Use a plywood sheet between the unit and wall

if necessary.

Powering Up

1As required:

aFit a Transceiver Module

bFit a Plug-in Module

cConnect network cabling

2Connect the power cord to the IEC socket on the

rear of the Switch, and to your mains socket.

The 8271 Model 524 Switch has no ON/OFF

switch, the only method of connecting or discon-

necting mains power is through the power cord.

3The Switch enters a Power On Self Test (POST).

The time taken for the test to complete is depen-

dent on the type of POST configured for the unit.

For a new Switch that is being installed for the

first time, power-up takes approximately 13 sec-

onds.

4Check the status LEDs to ensure the Switch is

operating correctly.

ntelligent Flow Management (IFM) should be dis-

abled if the port is connected to a repeated seg-

ment where the traffic is mainly local to that

segment.

Further information on these steps is available in:

IBM 8271 Nways Ethernet LAN Switch

Model 524 User’s Guide,

Part Number 02L1325

IBM 8271 Nways Ethernet LAN Switch

Model 524 Quick Reference Guide,

Part Number 02L1326

Part No. 02L1349

Published October 1997

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels IBM Changer

IBM

IBM RedBooks SAN24B-5 Manuel utilisateur

IBM

IBM 8239 Token-Ring Stackable Hub Guide de sécurité

IBM

IBM Nways 8260 Manuel utilisateur

IBM

IBM Flex System EN4023 Manuel utilisateur

IBM

IBM Multi-Port USB Hub Manuel utilisateur

IBM

IBM Nortel Networks L2/3 Manuel utilisateur

IBM

IBM RS/6000 SP Manuel utilisateur

IBM

IBM FC5022 Manuel utilisateur

IBM

IBM SAN24B-6 Manuel utilisateur

IBM

IBM xSeries 300 Manuel utilisateur

IBM

IBM SAN16B-2 - TotalStorage Express Model Switch Guide de dépannage

IBM

IBM FC5022 Manuel utilisateur

IBM

IBM SAN32M-2 Manuel utilisateur

IBM

IBM 24R9718 IB Manuel utilisateur

IBM

IBM 2109 Model M12 Manuel utilisateur

IBM

IBM RackSwitch G8332 Manuel utilisateur

IBM

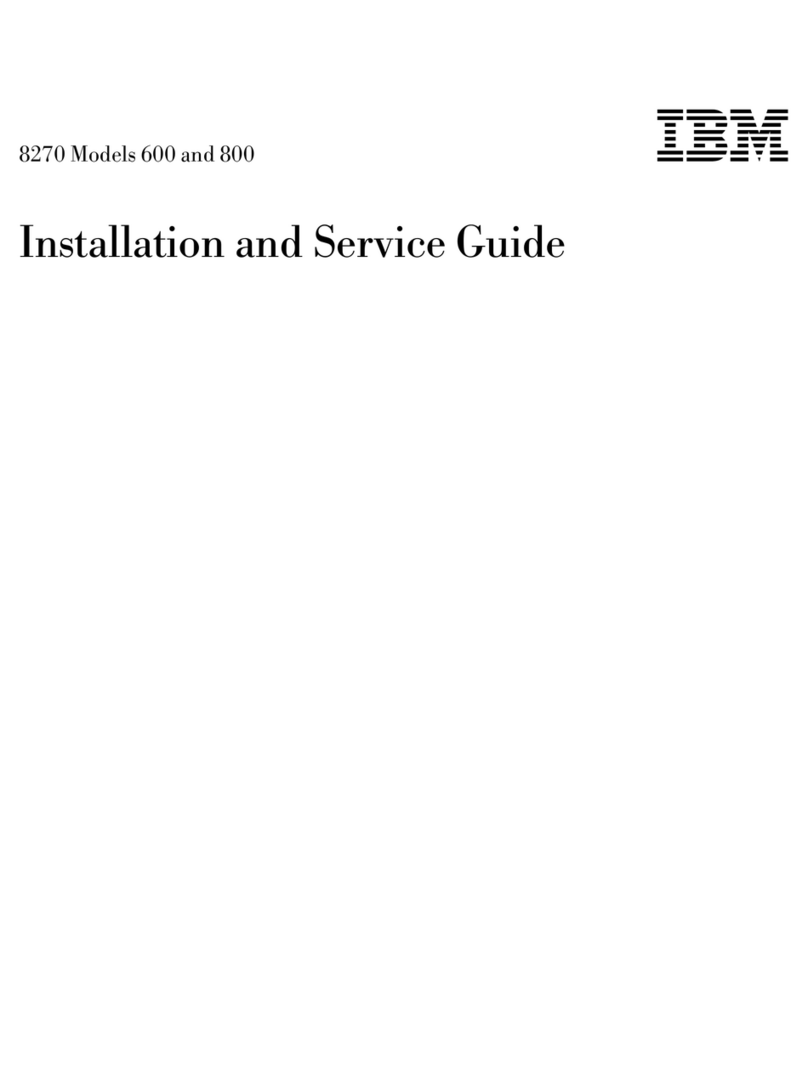

IBM 8270 Instructions d'installation et d'entretien
