IBM Ultrastar 18ZX Manuel utilisateur

IBM storage products

Installation guide

Ultrastar 9LZX & 18ZX

Multi-mode SE/LVD

Models: DRVS-09V

DRVS-09D

DRVS-18V

DRVS-18D

TABLE OF CONTENTS

Page 22

Glossary

...............................................................

Page 21

Compatibility Matrix

...................................................

Page 19

Drive Copy

............................................................

Page 19

Utilities

................................................................

Page 19

Backup & Restore

.....................................................

Page 19

Controller Information

.................................................

Page 18

Jumper Block Information

..............................................

Page 17

Making a Bootable DOS Diskette

.......................................

Page 16

Automated Fax Back Service

...........................................

Page 16

Technical Support

.....................................................

Page 15

Operating System Installation

.........................................

Page 15

File Systems

...........................................................

Page 15

Formatting

.............................................................

Page 13

FDISK

.................................................................

Page 12

Host Adapter Settings

.................................................

Page 11

Boot Computer

........................................................

Page 11

Drive Setup

............................................................

Page 11

Replace the cover on your computer

...................................

Page 10

Connectors

............................................................

Page 10

Mounting

..............................................................

Page 8

Jumper Settings

........................................................

Page 8

Unpackaging your hard drive

...........................................

Page 8

Opening your computer

.................................................

Page 8

Prepare to install your hard drive

........................................

Page 7

Hardware Description

...................................................

Page 7

Installation Kit

..........................................................

Page 6

Installation Checklist

...................................................

Page 5

Hard Disk Drive Handling Guide

.........................................

Page 4

Introduction

............................................................

Page 3

Hard Disk Drive Installation Flowchart

..................................

Page 2

Technical Support

......................................................

TECHNICAL SUPPORT

http://www.ibm.com/harddrive

888.426.5214

HARD DISK DRIVE INSTALLATION FLOW CHART

IBM storage products

Page 2

IBM Hard Disk Drive Technical Support Center version 1.0

IBM storage products

Page 3

IBM Hard Disk Drive Technical Support Center version 1.0

Step 1

Assemble needed equipment

Page 6

Step 2

Prepare to install your hard drive

Page 8

Step 3

Set jumpers

Page 8

Step 5

Connectors

Page 10

Step 4

Mount drive securely

Page 10

Step 6

Plug cable into

SCSI controlle

(68 pin only)

Page 11

Step 7

Replace cover on computer

Page 11

Step 8

Replace system cables

Page 11

Step 9

Drive Setup

Page 11

Boot from bootable diskette

Page 11

Step 10

FDISK

Page 13

Step 11

Format

Page 15

Step 12

Install Operating System if required

Page 15

80 pin: Plug the drive

into blackplane

Page 11

68 pin: Connect SCSI

cables and power

cables to drive

Page 10

INTRODUCTION

The Hardware Installation and Drive Preparation Manual for IBM Hard Disk Drives

This manual was prepared to help you install your IBM Ultrastar 9LZX or Ultrastar 18ZX hard drive in

most computer systems. If you do not feel comfortable installing this drive yourself, take it to a qualified

installer.

International Business Machines Corporation provides this publication "AS IS" without warranty of any

kind, either express or implied, including, but not limited to, the implied warranties of merchantability or

fitness for a particular purpose. Some states do not allow disclaimers of express or implied warranties in

certain transactions, therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Product data and

specifications are subject to change without notice. Changes are periodically made to the information

herein; these changes will be incorporated in new editions of the publication. IBM may make

improvements and/or changes in the product(s) and/or the program(s) described in this publication at any

time.

It is possible that this publication may contain reference to, or information about, IBM products (machines

and programs), programming, or services that are not announced in your country. Such references or

information must not be construed to mean that IBM intends to make available such IBM products,

programming, or services in your country.

Product description data contained herein represents IBM’s design objectives and is provided for

comparison among IBM products; actual results may vary based on a variety of factors. Except as

explicitly stated in the Warranty section of this Guide, the product data contained herein does not

constitute a warranty. Questions regarding IBM warranty terms or the methodology used to derive data

should be referred to an IBM representative.

Technical information about IBM hard disk drive products can be obtained via the Internet at:

http://www.ibm.com/harddrive or by calling the IBM Hard Disk Drive Technical Support Center at

888.426.5214.

Government Users - Documentation related to restricted rights - Use, duplication or disclosure is subject

to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.

IBM is a registered trademark of the International Business Machines Corporation. The following are also

trademarks or registered trademarks of the International Business Machines Corporation in the United

States, other countries, or both: Ultrastar and OS/2. Any other products or trademarks are the property

of their respective owners.

IBM storage products

Page 4

IBM Hard Disk Drive Technical Support Center version 1.0

Before you begin installation, please read the following important disk drive handling

caution:

HARD DISK DRIVE HANDLING GUIDE

These notes are designed to provide a simple overview of the need to be cautious when handling a disk

drive.

Disk drives can be easily damaged either by electrical static shock or by rough handling. In order to

minimize the risk of damage it is essential that disk drivesbe handled on a cushioned surface (which is

electrostatically safe). Many such static safe mats are available, examples are 3M's 8210 table mat or

3M's "First Touch" computer pad. Great care should be taken when handling disk drives.Do not bump

them against any object. When attaching brackets or mounting the drive in the computer, be very

careful. It is VERY EASY to introduce shocks which exceed the specification.

Please note that the capacity of each disk drive to withstand electrical or mechanical shock varies

depending on its design. The IBM Hard Disk Drive Technical Support Center can advise you on the

suitability of your Deskstar drive for a specific application.

Damage incurred to a drive might not be immediately evident and may cause it to fail months later.

IBM storage products

Page 5

IBM Hard Disk Drive Technical Support Center version 1.0

Step 1: Installation Checklist

To install the Ultrastar drive you may need the following components, depending on your computer:

1) __ The installation kit containing your Ultrastar drive, 4 mounting screws, and any related publications.

Save the box the drive came in.

2) __ The documentation that came with your computer or storage enclosure.

3) __ A small, flat-blade screwdriver.

4) __ A SCSI controller, which is either built-in or an adapter inside your computer,and any related

documentation.

5) __ Mounting brackets, if required for your computer. Contact your place of purchase if you

are unsure if mounting brackets are required.

6) __ A bootable DOS diskette. (If you do not have a bootable DOS diskette, see instructions for

creating one in the appendix.)

7) __ If you are replacing an older internal drive with the new Ultrastar drive and want to copy all of the

files from the older drive to the new drive, you may need additional software. (See the section

entitled Drive Copy on page 25 for more information.)

Continue installation with the following procedures:

1) __ Backup your existing drive to avoid any loss of data during installation. (See the section entitled

Backup & Restore on page 24.) After completing backup, shut down as normal.

2) __ Unplug your system from the electrical outlet.

3) __ Establish a common voltage between your body and the hard drive. Simultaneously touch an

unpainted metal surface on the outside of your computer system with your bare hands and with

the hard drive encased in it’s anti-static bag.Avoid excessive movement until the drive has been

mounted.

4) __ DO NOT LOW-LEVEL FORMAT YOUR DRIVE! IBM drives are low-level formatted by the

manufacturer and reformatting may cause permanent damage to your drive and/or your system.

(See Utilities on page 25)

5) __ Record the following information:

Drive Model ________________ Date of Purchase_________________

Drive P/N __________________ Place of Purchase_________________

Serial # ____________________

IBM storage products

Page 6

IBM Hard Disk Drive Technical Support Center version 1.0

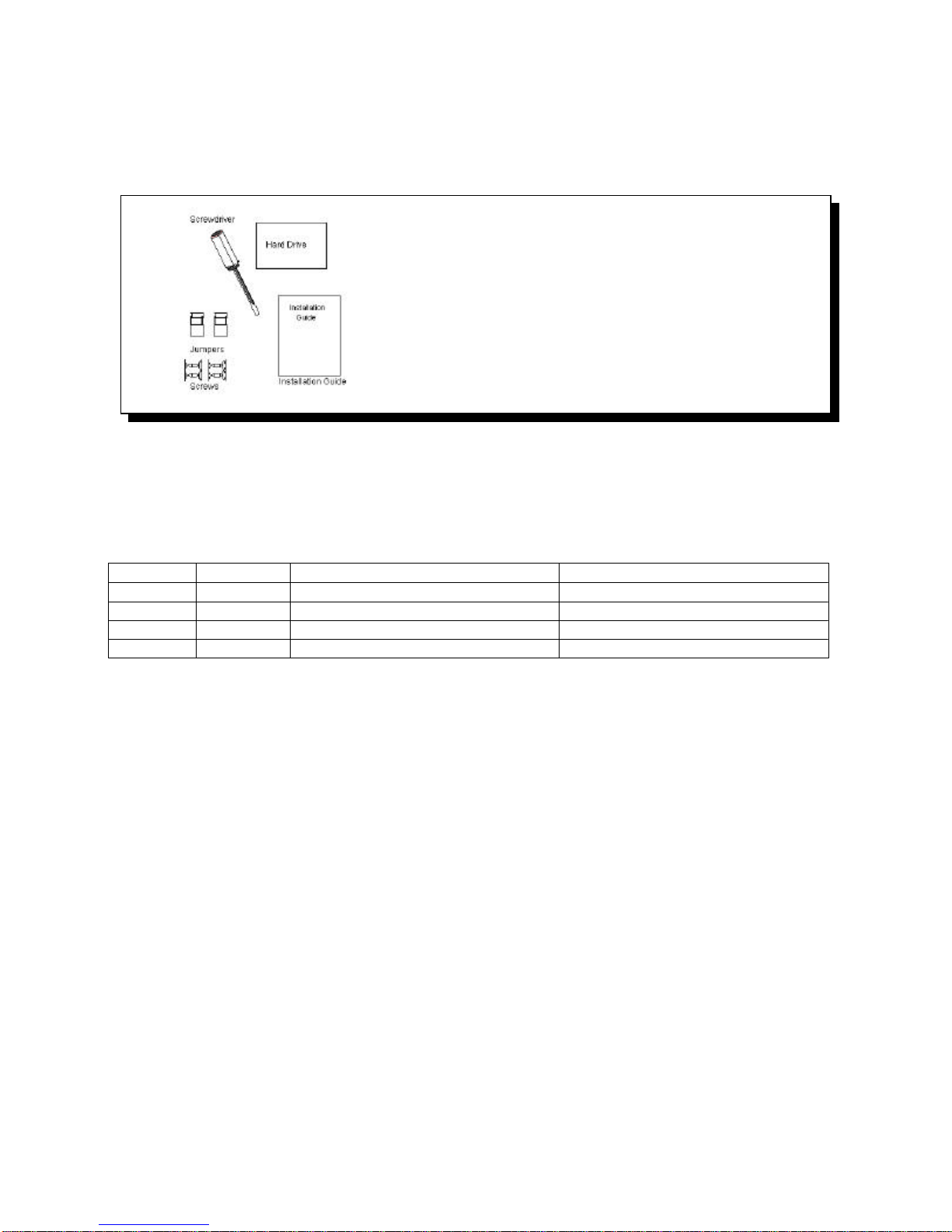

Installation Kit

The DRVS model drives come complete with 4 screws for mounting and an installation guide.

Hardware Description

The Ultrastar 9LZX and 18ZX family is available in various models with a variety of the following options:

{Capacity of 9.1GB or 18.2GB

{68 pin or 80 pin (SCA) connectors

{68 pin SCSI connectors use the SCSI P connector which supports wide data transfers

{80 pin SCSI connectors use the SCA-2 connector

These drives have an advanced LVD interface and support transfer rates of up to 80 MB/sec. To take

advantage of the higher transfer rate of 80 MB/sec, your computer will need to have a controller that

supports the LVD interface. If your SCSI controller does not support LVD, the drive will work, but will be

limited in data transfer speed due to the lower speed of your controller. If you have a slower controller,

you may choose to purchase an LVD controller card (which fits into one of the available slots in your

computer) to take advantage of Ultrastar’s 80 MB/sec data transfer rate.

If you currently have wide SCSI drives (single-ended) and a non-LVD controller, you may still attach the

Ultrastar 9LZX or 18ZX to the existing cable. However, single-ended wide SCSI drives cannot be added

to a bus with an LVD drive if it is connected to an LVD controller.

To determine if your current controller card is LVD, refer to the documentation that came with your

controller or contact the controller manufacturer for information.

These drives are 3.5" drives designed to work in NT and Unix workstations and servers. They are ideal

for use in video production and movie editing. The Ultrastar 9LZX and 18ZX families are designed to

work with MMX systems. Compatibility listings are included in the appendix.

IBM storage products

Page 7

IBM Hard Disk Drive Technical Support Center version 1.0

Low Voltage Differential (Ultra2)80 SCA-2DRVS-18D18.2 GB Low Voltage Differential (Ultra2)68 / Unitized ConnectorDRVS-18V18.2 GB Low Voltage Differential (Ultra2)80 SCA-2DRVS-09D9.1 GB Low Voltage Differential (Ultra2)68 / Unitized ConnectorDRVS-09V9.1 GB SCSI Electrical Signal TypeSCSI Pins/Connector TypeModelCapacity

Step 2: Prepare to install your hard drive

Opening your computer

1. Turn the system off.

2. Unplug the power cord from the wall outlet.

3. Remove all cables from the back of your computer, labeling them if necessary.

4. Remove the cover from your computer. (Consult your user's guide for instructions if needed.)

Unpackaging your hard drive

1. Remove the drive from the anti-static package that it was shipped in.

2. Handle the drive by the sides only.

3. Do not touch the main computer chip board.

4. Do not drop. A drop of only 1/4 inch could permanently damage your hard drive.

5. If available, use an ESD (Electronic Static Discharge) wrist strap while handling your drive.

6. Place the drive carefully on a static free area.

Step 3: Jumper Settings

The jumper settings are found on the hard drive on the opposite end of the interface connector. (See the

diagram on page 9.) These are physical settings that can be changed to allow for different uses of your

hard

drive.

SCSI ID

Jumper

Each

SCSI

device

will need

to have

it’s own

SCSI ID.

You can

use ID 0

through

ID 15

reservin

g ID 7

for your

controlle

r card. Follow the table below to set an ID on your SCSI drive.

IBM storage products

Page 8

IBM Hard Disk Drive Technical Support Center version 1.0

15onononon 14offononon 13onoffonon 12offoffonon 11ononoffon 10offonoffon 9onoffoffon 8offoffoffon 7onononoff 6offononoff 5onoffonoff 4offoffonoff 3ononoffoff 2offonoffoff 1onoffoffoff 0offoffoffoff AddressBIT 0BIT 1BIT 2BIT 3

SCSI Address Determination

Drive Termination

The SCSI bus will need to be terminated at both ends of the bus. The Ultrastar 9LZX and 18ZX do not

have onboard active termination. You will need to supply an external Ultra2 compatible terminator.

Termination Power

Some controllers may require the drive to supply 5 volts of power to the bus to in termination. If your

controller requires this, place a jumper on the Termination Power Enable jumpers to the side of the

jumper block. These pins require a 2.54mm jumper shunt.

Auxiliary Option Jumper Block

The 68 pin models contain an “auxiliary” connector that replicates some of the functions contained in the

front option jumper block. Either the front option block or the auxiliary option block may be used, but not

both.

Additional Jumper Options

The Ultrastar drives offer additional options on the jumper block. See the appendix for details of the

additional jumper options shown below.

IBM storage products

Page 9

IBM Hard Disk Drive Technical Support Center version 1.0

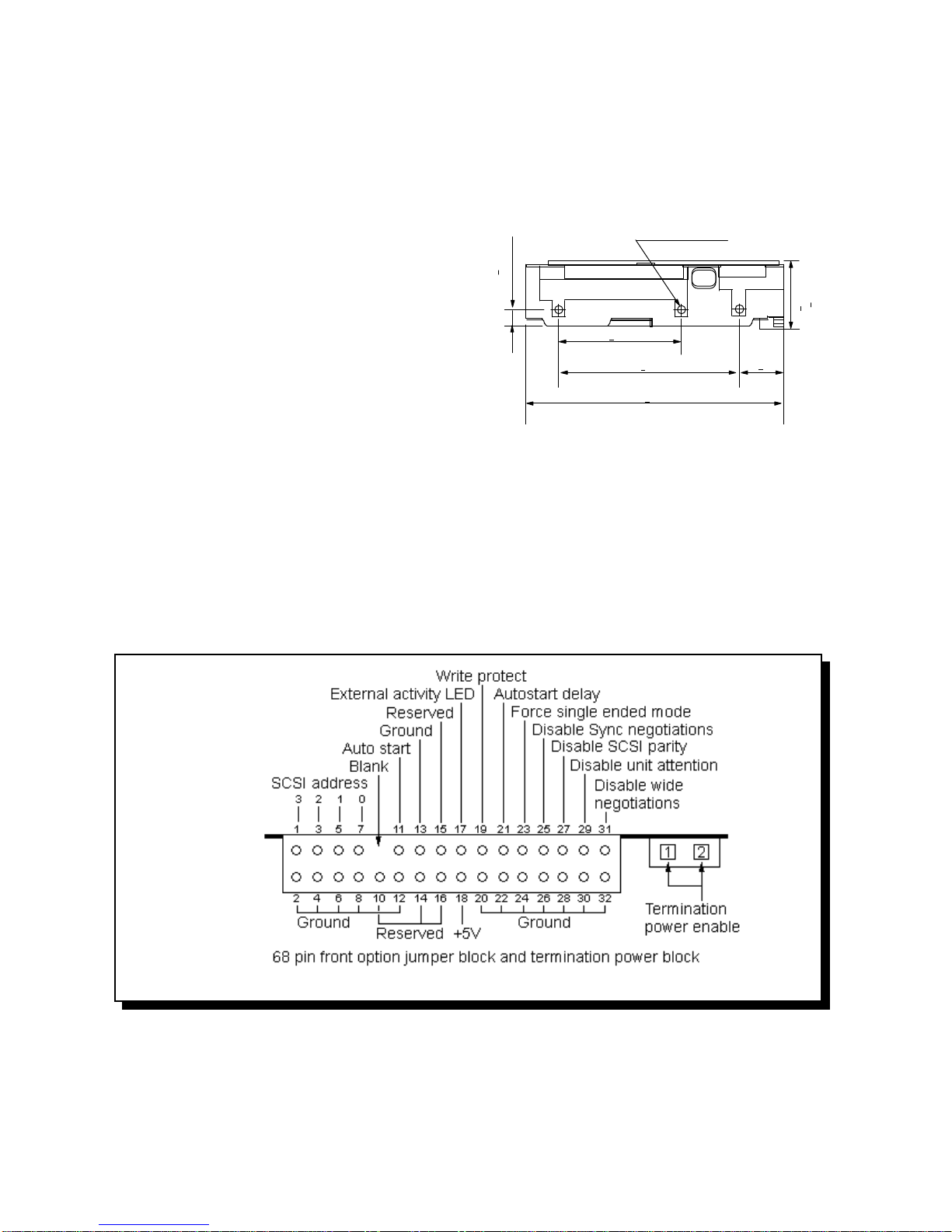

Jumper settings

Step 4: Mounting

After setting the jumpers, mount the hard drive in your system. The Ultrastar drive can be mounted with

any of its six surfaces facing down (right side up, upside down, sideways, etc.). See below for mounting

hole locations. Be sure to treat the disk drive very carefully and gently.

Mounting hole locations

IBM storage products

Page 10

IBM Hard Disk Drive Technical Support Center version 1.0

(6X) 6-32UNC- 2B X 4 MAX

25.7 +

0.3 (9.1GB)

41.48

0.4 (18.2GB)

(6X) 6.3 +0.25

60 +0.2

101.6 +0.2

146.75 +0.25

28.5 +0.5

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels IBM Stockage

IBM

IBM Storwize V3500 Manuel utilisateur

IBM

IBM TotalStorage IP Storage 200i 110 Manuel utilisateur

IBM

IBM Storwize V7000 Gen2 Manuel utilisateur

IBM

IBM EXN4000 Manuel

IBM

IBM DBCA-206480 - Travelstar 6.4 GB Hard Drive Manuel utilisateur

IBM

IBM IC25N020ATDA04 - Travelstar 20 GB Hard Drive Manuel utilisateur

IBM

IBM SYSTEM STORAGE EXP3000 - INTEROPERABILITY MATRIX... Manuel utilisateur

IBM

IBM XIV Gen3 Series Manuel technique

IBM

IBM LTO Generation 3 Manuel utilisateur

IBM

IBM ESS 5000 SC Series Instructions d'installation

IBM

IBM Netfinity EXP300 Manuel du propriétaire

IBM

IBM FlashSystem 720 Mode d’emploi

IBM

IBM Storwize V7000 Manuel d'utilisation

IBM

IBM System Storage TS3100 Manuel utilisateur

IBM

IBM System Storage TS3310 Manuel

IBM

IBM Ultrastar 9LZX Manuel utilisateur

IBM

IBM TotalStorage NAS 100 Manuel utilisateur

IBM

IBM TotalStorage DS4800 Mode d'emploi

IBM

IBM System Storage EXN2000 Manuel

IBM

IBM System Storage DS5000 series Guide d'installation

IBM

IBM SAN768B Manuel

IBM

IBM Deskstar Deskstar 5 Manuel utilisateur

IBM

IBM HH LTO Manuel utilisateur

IBM

IBM TotalStorage DS8000 Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
