IBM J58S Manuel utilisateur

IBM Ethernet Appliance J58S

Getting Started Guide

April 2010

Part Number:

This document describes how to install the IBM Ethernet Appliance J58S.

Contents About This Guide .............................................................................................3

Step 1: Prepare the Site ...................................................................................4

Rack-Mounting Requirements ...................................................................4

Required Tools ..........................................................................................5

Step 2: Install the Mounting Hardware ............................................................6

Install the Mounting Hardware in a Four-Post Rack or Cabinet .................6

Install the Mounting Hardware in an Open-Frame Rack ............................7

Step 3: Install the Device .................................................................................8

Install the Device Using a Lift ....................................................................9

Install the Device Without a Mechanical Lift ...........................................10

Remove Components .......................................................................11

Lift the Chassis into the Rack ............................................................12

Reinstall Components ......................................................................13

Step 4: Connect External Devices and IOC Cables .........................................13

Connect to a Network for Out-of-Band Management ...............................14

Connect a Management Console .............................................................14

Connect the IOC Cables ..........................................................................14

Step 5: Connect Ground and Power Cables ...................................................15

Connect the Grounding Cable .................................................................15

Connect Power to an AC-Powered Ethernet Appliance ............................16

Connect Power to a DC-Powered Ethernet Appliance .............................17

Step 6: Perform Initial Software Configuration ..............................................19

Safety Warnings ............................................................................................24

Compliance Statements for NEBS ..................................................................25

■1

Compliance Statements for EMC Requirements ............................................25

Canada ...................................................................................................25

European Union ......................................................................................26

Hardware and Software Documentation for IBM Ethernet Appliances

J58S ........................................................................................................27

Requesting Technical Support .......................................................................28

Revision History ............................................................................................28

2■

IBM Ethernet Appliance J58S Getting Started Guide

About This Guide

This guide contains information you need to install and configure the IBM Ethernet

Appliance J58S quickly. For complete installation instructions, see the IBM Ethernet

Appliance J58S Hardware Guide at http://www.ibm.com/systems/support/networking .

WARNING: This guide contains a summary of safety warnings in “Safety Warnings”

on page 24. For a complete list of warnings for this device, including translations,

see the IBM Ethernet Appliance J58S Hardware Guide at

http://www.ibm.com/systems/support/networking .

The IBM Ethernet Appliance J58S is a high-performance, highly-scalable, carrier-class

security device with multi-processor architecture. The Ethernet appliance has a

capacity of up to 120 gigabits per second (Gbps), full duplex. The device is 16 rack

units (U) tall. Three devices can be stacked in a single floor-to-ceiling rack, for

increased port density per unit of floor space. The device provides 14 slots that can

be populated with up to 12 Services Processing Cards (SPCs) and I/O cards (IOCs)

and 2 Switch Control Boards (SCBs) in nonredundant fabric configurations.

By installing different combinations of IOCs and SPCs, you can tailor both the number

of gigabit ports and the maximum security processing capacity to suit your network.

Table 1 on page 3 describes the minimum system configuration for the IBM Ethernet

Appliance J58S.

Table 1: Minimum System Configuration for the IBM Ethernet Appliance J58S

MinimumComponent

1SPC

1IOC

2SCB

1Routing Engine

Fully populated, the device provides up to 440 Gigabit Ethernet or up to 44 10-Gigabit

Ethernet ports. Two types of IOC interface cards are available, each of which consists

of four Packet Forwarding Engines and enables a throughput of 10 Gbps. You can

install any combination of IOC types in the Ethernet appliance.

The IBM Ethernet Appliance J58S provides redundancy and resiliency. The hardware

system is fully redundant, including power supplies and SCBs.

The Ethernet appliance is shipped in a cardboard box strapped securely to a wooden

pallet. Plastic straps secure the top and bottom in place. The device chassis is bolted

to this pallet. A printed copy of this document and a cardboard accessory box are

also included in the shipping container.

About This Guide ■3

About This Guide

Step 1: Prepare the Site

Figure 1: Rack Clearance and Chassis Dimensions for the IBM Ethernet Appliance

J58S

Rack-Mounting Requirements

■You can install the device in a four-post rack or cabinet or an open-frame rack.

■The rack rails must be spaced widely enough to accommodate the device chassis's

external dimensions: 27.75 in. (70.49 cm) high, 23.0 in. (58.42 cm) deep, and

17.37 in. (44.11 cm) wide. The outer edges of the mounting brackets extend the

width to 19 in. (48.3 cm).

■The rack must be strong enough to support the weight of the fully configured

device, up to 350 lb (158.76 kg). If you stack three fully configured devices in

one rack, it must be capable of supporting about 1,050 lb (476.3 kg).

■For service personnel to service the device, there must be adequate space at the

front and back of the device. Allow at least 30 in. (76.2 cm) in front of the device

and 24 in. (61 cm) behind the device.

■The rack or cabinet must have an adequate supply of cooling air.

4■Step 1: Prepare the Site

IBM Ethernet Appliance J58S Getting Started Guide

■Ensure that the cabinet allows the chassis hot exhaust air to exit the cabinet

without recirculating into the device.

■The device must be installed into a rack that is secured to the building structure.

■The device should be mounted at the bottom of the rack if it is the only unit in

the rack.

■When mounting the device in a partially filled rack, load the rack from the bottom

to the top with the heaviest component at the bottom of the rack.

Required Tools

To unpack the Ethernet appliance and prepare for installation, you need the following

tools:

■A mechanical lift

■Phillips (+) screwdrivers, numbers 1 and 2

■2.5-mm flat-blade (–) screwdriver

■3/8-in. nut driver

■1/2-in. or 13-mm open-end or socket wrench to remove bracket bolts from the

shipping pallet

■Electrostatic discharge (ESD) wrist strap (provided)

■Antistatic mat

Step 1: Prepare the Site ■5

Step 1: Prepare the Site

Step 2: Install the Mounting Hardware

To install the mounting hardware in a four-post rack or cabinet or an open-frame

rack, perform one of the following procedures:

■Install the Mounting Hardware in a Four-Post Rack or Cabinet on page 6

■Install the Mounting Hardware in an Open-Frame Rack on page 7

Install the Mounting Hardware in a Four-Post Rack or Cabinet

To install the mounting shelf:

1. On the front rack rails, install cage nuts in the holes specified for the large shelf

in Table 2 on page 6.

2. On the front of each front rack rail, partially insert a mounting screw into the

hole containing the lowest cage nut.

3. Install the large shelf on the front rack rails. Rest the bottom slot of each ear on

a mounting screw.

4. Partially insert a mounting screw into the top hole in each ear of the large shelf.

5. Tighten all the screws completely.

6. On the rear rack rails, install cage nuts in the holes specified for the small shelf

in Table 2 on page 6.

7. On the back of each rear rack rail, partially insert a mounting screw into the hole

containing the lowest cage nut.

8. Install the small shelf on the back rack rails. Rest the bottom slot of each ear on

a mounting screw. The small shelf installs on the back of the rear rails, extending

toward the center of the rack. The bottom of the small shelf should align with

the bottom of the large shelf.

9. Partially insert screws into the open holes in the ears of the small shelf.

10. Tighten all the screws completely.

Table 2: Four-Post Rack or Cabinet Mounting Hole Locations

Small

Shelf

Large

ShelfDistance Above “U”DivisionHole

0.86 U1.51 in. (3.8 cm)3

0.50 U0.88 in. (2.2 cm)2

0.14 U0.25 in. (0.6 cm)1

6■Step 2: Install the Mounting Hardware

IBM Ethernet Appliance J58S Getting Started Guide

Figure 2: Mounting Hardware for a Four-Post Rack or Cabinet

Four-post open rack

Small mounting shelf

Large mounting shelf

Install the Mounting Hardware in an Open-Frame Rack

1. On the rear of each rack rail, partially insert a mounting screw into the highest

hole specified in Table 3 on page 7.

2. Install the large shelf on the rack. Hang the shelf over the mounting screws using

the keyhole slots located near the top of the large shelf flanges.

3. Partially insert screws into the open holes in the ears of the large shelf.

4. Tighten all the screws completely.

Table 3: Open-Frame Rack Mounting Hole Locations

Distance Above “U”DivisionHole

9.86 U17.26 in. (43.8 cm)30

8.86 U15.51 in. (39.4 cm)27

7.86 U13.76 in. (34.9 cm)24

6.86 U12.01 in. (30.5 cm)21

Step 2: Install the Mounting Hardware ■7

Step 2: Install the Mounting Hardware

Table 3: Open-Frame Rack Mounting Hole Locations (continued)

Distance Above “U”DivisionHole

5.86 U10.26 in. (26.0 cm)18

4.86 U8.51 in. (21.6 cm)15

3.86 U6.76 in. (17.1 cm)12

2.86 U5.01 in. (12.7 cm)9

1.86 U3.26 in. (8.3 cm)6

0.86 U1.51 in. (3.8 cm)3

0.50 U0.88 in. (2.2 cm)2

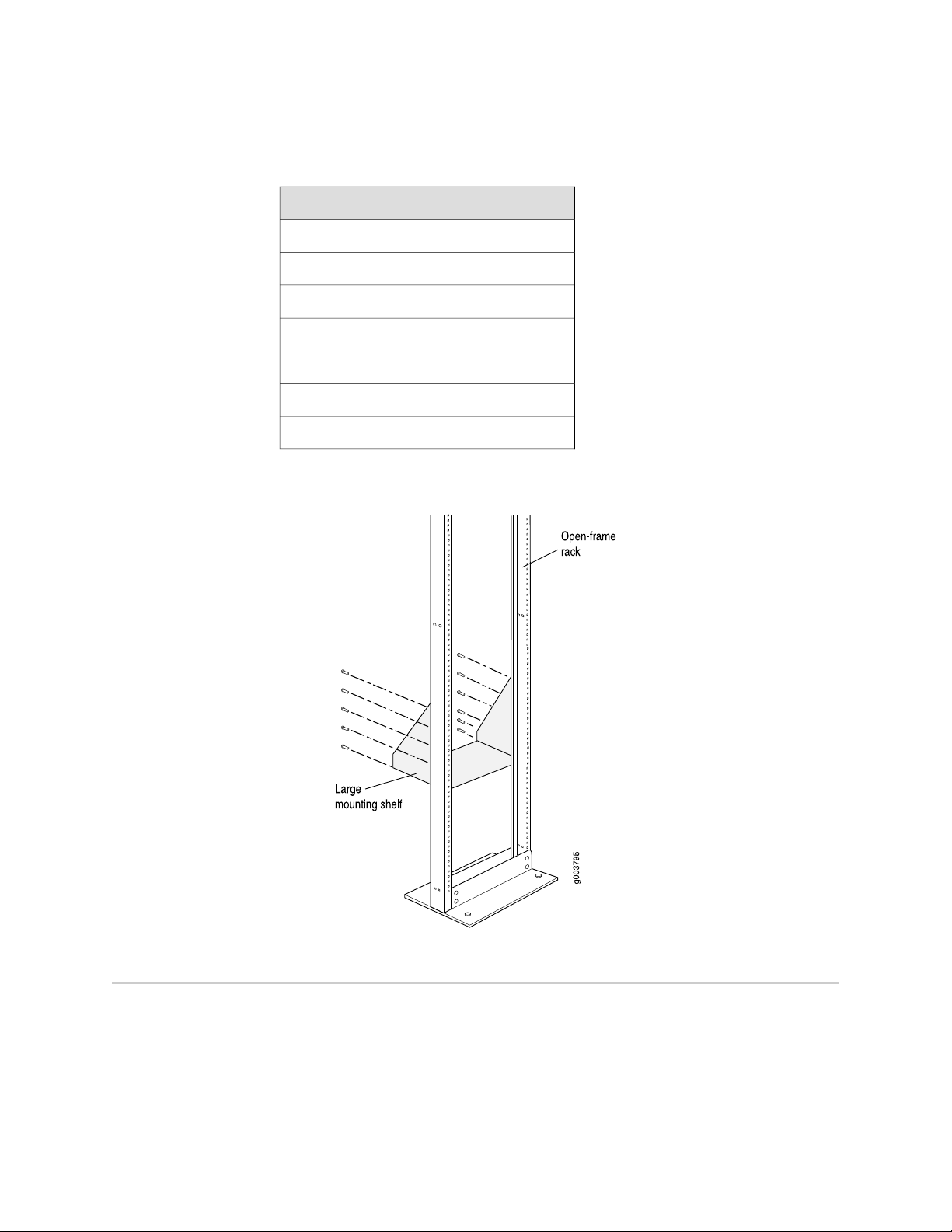

Figure 3: Mounting Hardware for an Open-Frame Rack

Step 3: Install the Device

Because of the device's size and weight, you must install the device using a mechanical

lift. The procedure for installing the device depends on whether you use a mechanical

lift:

■Install the Device Using a Lift on page 9

■Install the Device Without a Mechanical Lift on page 10

8■Step 3: Install the Device

IBM Ethernet Appliance J58S Getting Started Guide

Install the Device Using a Lift

1. Ensure the rack is in its permanent location and is secured to the building. Ensure

that the installation site allows adequate clearance for both airflow and

maintenance. For details, see the IBM Ethernet Appliance J58S Hardware Guide.

2. Load the device onto the lift, making sure it rests securely on the lift platform

(see Figure 4 on page 9).

Figure 4: Load the Device onto the Lift

g004081

3. Using the lift, position the device in front of the rack or cabinet, centering it in

front of the mounting shelf.

4. Lift the chassis approximately 0.75 in. above the surface of the mounting shelf

and position it as close as possible to the shelf.

5. Carefully slide the device onto the mounting shelf so that the bottom of the

chassis and the mounting shelf overlap by approximately two inches.

Step 3: Install the Device ■9

Step 3: Install the Device

6. Slide the chassis onto the mounting shelves until the mounting brackets or

front-mounting flanges contact the rack rails. The shelves ensure that the holes

in the mounting brackets and the front-mounting flanges of the chassis align

with the holes in the rack rails.

7. Move the lift away from the rack.

8. Install a mounting screw into each of the open mounting holes aligned with the

rack, starting from the bottom.

9. Visually inspect the alignment of the device. If the device is installed properly in

the rack, all the mounting screws on one side of the rack should be aligned with

the mounting screws on the opposite side and the device should be level.

Install the Device Without a Mechanical Lift

To install the device without a mechanical lift:

■Remove Components on page 11

■Lift the Chassis into the Rack on page 12

■Reinstall Components on page 13

Figure 5: Components to Remove from the Front of the Device

10 ■Step 3: Install the Device

IBM Ethernet Appliance J58S Getting Started Guide

Table des matières

Autres manuels IBM Matériel réseau

IBM

IBM Proventia Management SiteProtector SP1001 Manuel utilisateur

IBM

IBM 2671 Manuel utilisateur

IBM

IBM EtherLink XL Manuel utilisateur

IBM

IBM TS4300 Manuel utilisateur

IBM

IBM DualPort TR Controller NetFlex-2 Instructions d'utilisation

IBM

IBM Nways 2216 Guide d'installation et d'utilisation

IBM

IBM J36S Manuel utilisateur

IBM

IBM System Storage TS3100 Manuel utilisateur

IBM

IBM 7036-P16 Manuel utilisateur

IBM

IBM totalstorage 326 Manuel de service

IBM

IBM GX5008C-ROHS Mode d’emploi

IBM

IBM 360 Manuel utilisateur

IBM

IBM NEXUS 5000 - OVERVIEW 19-10-2010 Manuel utilisateur

IBM

IBM 39Y9314 Manuel

IBM

IBM Storwize V3500 Manuel utilisateur

IBM

IBM System storage DS6000 Series Manuel technique

IBM

IBM ioMemory VSL 3.2.6 Manuel

IBM

IBM 7063-CR2 Manuel utilisateur

IBM

IBM MELLANOX CONNECTX-2 Manuel utilisateur

IBM

IBM TotalStorage 201 Fiche d'information produit

IBM

IBM Gigabit Fibre Channel PCI Adapter 4-S Mode d’emploi

IBM

IBM 2078-4F4 Manuel utilisateur

IBM

IBM MDS 9124 - INTEROPERABILITY MATRIX 12-1-2010 Manuel utilisateur

IBM

IBM System Storage N3700 Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
