HyperX Cloud Core Manuel utilisateur

Document No. 480HX-HHSC1C.A01

HyperX Cloud Core Wireless

Page 1 of 17

HyperX Cloud Core Wireless

Part Numbers

HHSC1C-CG-BK/G

Document No. 480HX-HHSC1C.A01

HyperX Cloud Core Wireless

Page 2 of 17

TABLE OF CONTENTS

Overview..........................................................................................................................................3

Specifications.................................................................................................................................4

Setting up with PC..........................................................................................................................6

Setting up with PlayStation 4.......................................................................................................9

Setting up with PlayStation 5.....................................................................................................10

Controls.........................................................................................................................................12

Status LED........................................................................................................................................ 12

Power button..................................................................................................................................... 12

Micmute / mic monitoring button....................................................................................................... 13

Volume wheel.................................................................................................................................... 13

Charging the Headset..................................................................................................................14

Wired charging.................................................................................................................................. 14

DTS Headphone:X........................................................................................................................15

Manually Pairing the Headset and USB Adapter.....................................................................17

Document No. 480HX-HHSC1C.A01

HyperX Cloud Core Wireless

Page 3 of 17

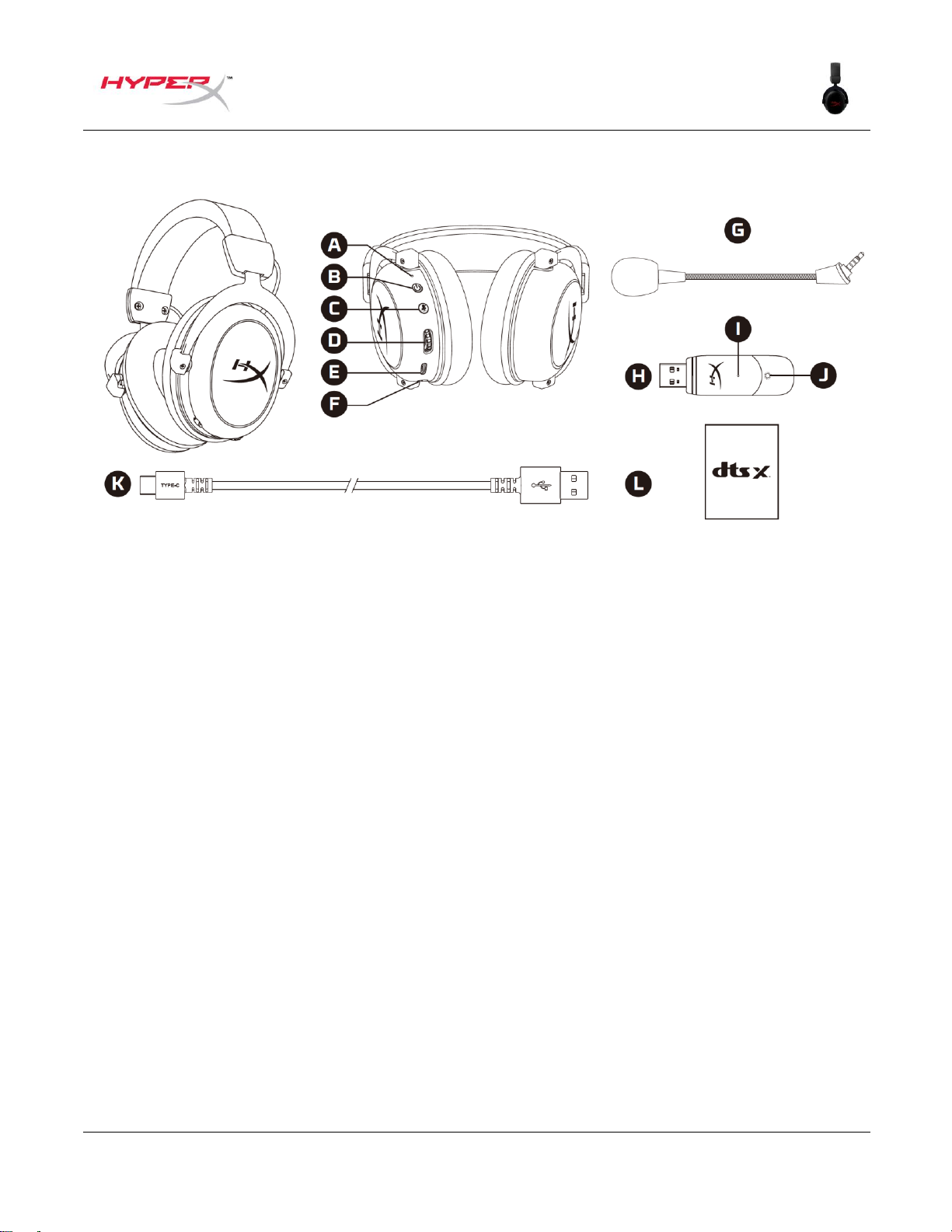

Overview

A. Status LED

B. Power button

C. Mic mute / mic monitoring button

D. Volume wheel

E. USB-C charge port

F. Microphone port

G. Detachable microphone

H. USB adapter

I. Wireless pairing pin hole

J. Wireless status LED

K. USB-C charge cable

L. DTSinstruction card

Document No. 480HX-HHSC1C.A01

HyperX Cloud Core Wireless

Page 4 of 17

Specifications

Headphone

Driver: Dynamic, 53mm with neodymiummagnets

Formfactor: Over ear, circumaural, closed back

Frequency response: 10 Hz –21 kHz

Impedance: 60 Ω

Sensitivity: 99 dBSPL/mW at 1 kHz

T.H.D.: ≤1%

Frame type: Aluminum

Ear cushions: Memory foam

Microphone

Element: Electret condenser microphone

Polar pattern: Bi-directional, Noise-cancelling

Frequency response: 20 Hz –6.8 kHz

Sensitivity: -44 dBV(1 V/Pa at 1 kHz)

Connectionsand Features

Audio connection: Wireless USB

USB audio format: Stereo

USB specification: USB2.0

Sampling rates: 48 kHz

Bit-Depth: 16 bit

Included virtualsurround sound: DTS Headphone:X

Audio controls: Onboard audio controls

Battery

Type: Rechargeable lithium-polymer

Battery life*: 20 hours

Charge time: 3 hours

Document No. 480HX-HHSC1C.A01

HyperX Cloud Core Wireless

Page 5 of 17

Wireless

Type: 2.4 GHz

Wireless range**: Up to 20 meters

Physical

Weight: 283g

Weight with microphone: 294g

Cable length(s) and type(s): 0.5mUSB charge cable

*Tested at 50% headphone volume. Battery life varies depending uponthe usage.

**Wireless range may vary due to environmental conditions.

Document No. 480HX-HHSC1C.A01

HyperX Cloud Core Wireless

Page 6 of 17

Setting up with PC

1. Connect the wireless USBadapter to the PC.

2. Power on the headset.

3. Right click Speaker icon > Select Sounds

Document No. 480HX-HHSC1C.A01

HyperX Cloud Core Wireless

Page 7 of 17

4. Under the Playback tab, click on “HyperX Cloud Core Wireless”and click on the Set Default

button.

5. Under the Recording tab, click on “HyperXCloud Core Wireless”and click on the Set Default

button.

Document No. 480HX-HHSC1C.A01

HyperX Cloud Core Wireless

Page 8 of 17

6. Under the Playback tab, verify that “HyperX Cloud Core Wireless”is set as Default Device.

Under the Recording tab, verify that “HyperX Cloud Core Wireless”is set as Default Device.

The Set Default button should also be grayed out when selecting these devices under the

Playback tab and the Recording tab.

Document No. 480HX-HHSC1C.A01

HyperX Cloud Core Wireless

Page 9 of 17

Setting up with PlayStation 4

1. Set Input Device to USB Headset (HyperXCloud Core Wireless)

2. Set Output Device to USB Headset (HyperX Cloud Core Wireless)

3. Set Output to Headphones to All Audio

4. Set Volume Control (Headphones) to maximum level.

Document No. 480HX-HHSC1C.A01

HyperX Cloud Core Wireless

Page 10 of 17

Setting up with PlayStation 5

1. Go to the home page and select Settings >Sound

2. Under Microphone, set the following:

•Input Device to USB Headset (HyperXCloud Core Wireless)
