HyperX Cloud Alpha Headset

Find the language and latest documentation for your HyperX Cloud Alpha Headset here.

HyperX Cloud Alpha Headset Installation Guide

Simplied Chinese .....

Traditional Chinese ....

............For instructions in English

. . . . . . . . . . . . . . . . . . Para instrucciones en Español

.........Für Anleitungen in Deutsch

. . . . . . . . . . . . . . . . . . Pour des instructions en Français

. . . . . . . . . . . . . . . . . . Per le istruzioni in Italiano

............Por as instruções em Português

. . . . . . . . . . . . . . . . . . Instrukcje w jezyku Polskim

. . . . . . . . . . . . . . . . . . Для инструкции на Pусском

. . . . . . . . . . . . . . . . . . Turkce talimatlar icin

. . . . . . . . . . . . . . . . . . Japanese

. . . . . . . . . . . . . . . . . . Korean

. . . . . . . . . . . . . . . . . . Thai

. . . . . . . . . . . . . . . . . . Vietnamese

Document No. 480HX-HSCA001.A01

HyperX Cloud Alpha Headset

Page 1 of 10

HyperX Cloud Alpha Headset

Part Numbers:

HX-HSCA-RD/AM

HX-HSCA-RD/AS

HX-HSCA-RD/EE

HX-HSCA-RD/EM

Document No. 480HX-HSCA001.A01

HyperX Cloud Alpha Headset

Page 2 of 10

Introduction

HyperXTM Cloud Alpha’s ground-breaking Dual Chamber Drivers design gives audio more

distinction and clarity by reducing distortion. The dual chambers separate the bass for cleaner,

smoother sound. Cloud Alpha has premium red memory foam, an expanded headband and

softer, more pliable leatherette, an aluminium frame, detachable braided cable and noise-

cancellation microphone. Multi-platform compatible with in-line audio controls on PC, PS4™,

Xbox One™and other platforms with 3.5mm ports.

What’s included:

•HyperX Cloud Alpha Headset

•Detachable microphone

•Detachable headset cable

•PC extension cable

•Carry bag

Document No. 480HX-HSCA001.A01

HyperX Cloud Alpha Headset

Page 3 of 10

Features:

•HyperX dual chamber drivers

•Signature award-winning HyperX comfort

•Durable aluminium frame with expanded headband

•Detachable braided cable with convenient in-line audio control

•Detachable noise-cancellation microphone

•Discord and!TeamSpeakTM)Certified!!

•Multi-platform compatibility

Technical Specifications:

Headphone:

•Driver: Custom dynamic, 50mm with neodymium magnets

•Type: Circumaural, closed back

•Frequency response: 13Hz–27,000 Hz

•Impedance: 65 Ω

•Sound pressure level: 98dBSPL/mW at 1kHz

•THD: < 1%

•Weight: 298g

•Weight w/ mic: 336g

•Cable length and type: Detachable headset (1.3m) + PC extension cable (2m)

•Connection: Detachable headset - 3.5mm plug (4 pole) + PC extension cable - 3.5mm

stereo and mic plugs

Microphone:

•Element: Electret condenser microphone

•Polar pattern: Noise-cancelling

•Frequency response: 50Hz-18,000 Hz

•Sensitivity: -43dBV (0dB=1V/Pa,1kHz)

Document No. 480HX-HSCA001.A01

HyperX Cloud Alpha Headset

Page 4 of 10

Overview

A. Headband adjustment slider

B. Detachable noise cancellation mic

C. Detachable headset cable

D. In-line audio control

E. PC extension cable with 3.5mm stereo

and mic plugs

Document No. 480HX-HSCA001.A01

HyperX Cloud Alpha Headset

Page 5 of 10

Setup

The headset features a detachable cable and detachable microphone.

To connect the detachable headset cable, locate the end with the headphone icon label and

plug the cable into the female jack on the left headset ear cup. The plug and ear cup female

jack both have a grey colour for easy identification.

To connect the detachable microphone, plug the microphone into the female microphone jack

on the ear cup and push until the microphone sits flush.

Document No. 480HX-HSCA001.A01

HyperX Cloud Alpha Headset

Page 6 of 10

In-line audio control operation

The in-line audio control contains a volume wheel to adjust the headphone output volume and

a microphone mute slider to mute the microphone.

To increase the headset volume, rotate the volume wheel clockwise (towards the + sign). To

reduce the volume, rotate the volume wheel anticlockwise (towards the – sign).

To mute the microphone, slide the microphone mute button to the down position. To activate

the microphone, slide the microphone mute button to the up position.

Microphone

Active

Microphone

Mute

Headphone

Volume

Document No. 480HX-HSCA001.A01

HyperX Cloud Alpha Headset

Page 7 of 10

Usage (PC)

To connect the headset to your computer (or other device) that has both a headphone jack and

a microphone jack, connect the headset’s 3.5mm plug to the female jack on the PC extension

cable. The PC extension cable has two 3.5mm jacks. The audio plug, which has green stripes,

plugs into the port signified by a green input or headphone symbol . The microphone plug,

which has pink stripes, plugs into the port signified by a pink input or a microphone symbol .

Using with PC extension cable

Document No. 480HX-HSCA001.A01

HyperX Cloud Alpha Headset

Page 8 of 10

Usage (PlayStation™4)

To use the headset with a PlayStation™4 (PS4™), connect the 3.5mm plug on the headset

directly to the PS4™game controller and follow these steps:

1. Turn on your PS4™game console.

2. Navigate to the ‘Settings’ Menu and select it.

3. Highlight the ‘Devices’ menu option and select it.

4. Scroll down to ‘Audio Devices’ and select it.

5. Choose ‘Output to Headphones’ and select ‘All Audio’’.

Using with PS4™

Document No. 480HX-HSCA001.A01

HyperX Cloud Alpha Headset

Page 9 of 10

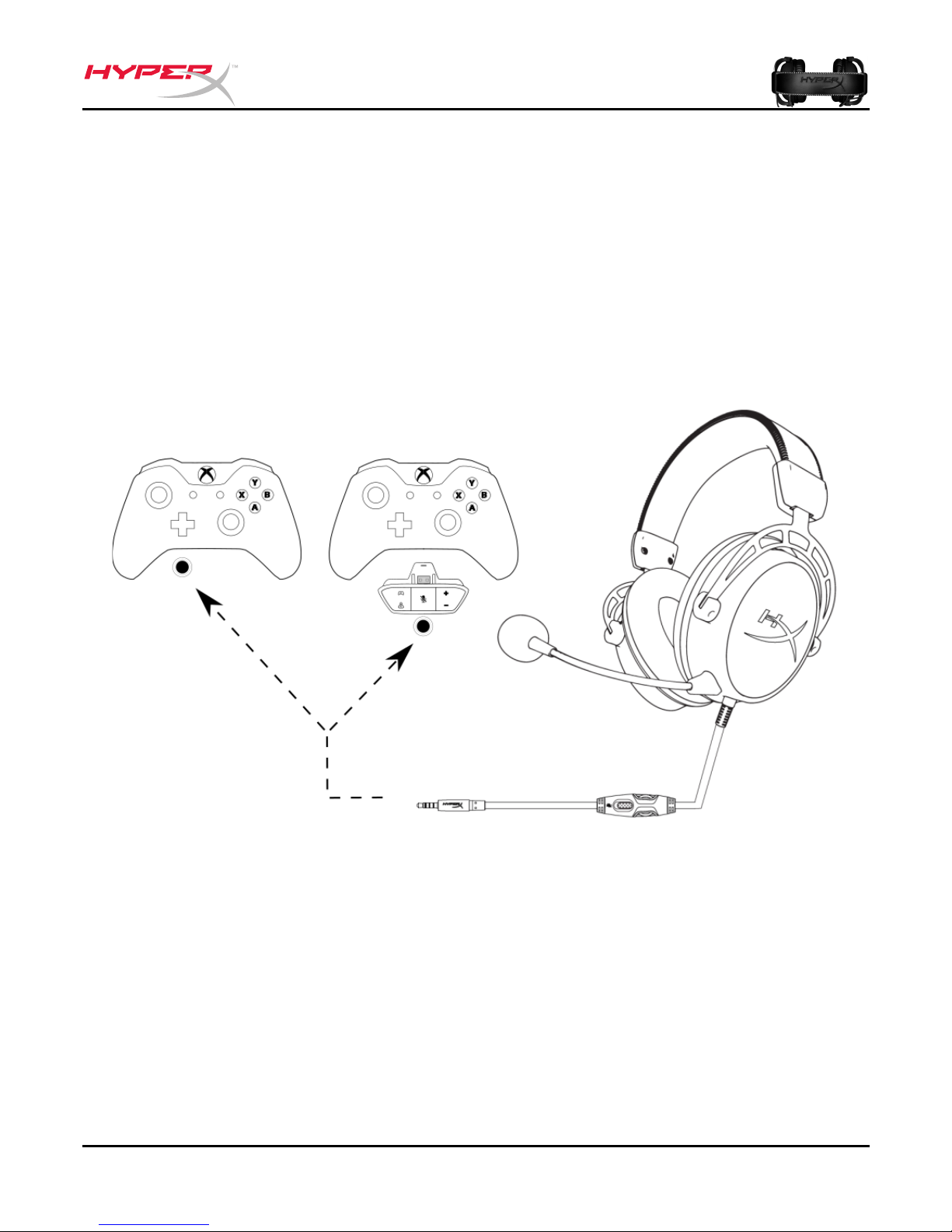

Usage (Xbox One™)

To use the headset with an Xbox One™, connect the 3.5mm plug on the headset directly to the

3.5mm jack on the Xbox™One controller

*If your Xbox One™controller does not have a 3.5mm jack, you will need the Xbox One™Stereo

Headset adapter (sold separately) that plugs into the Xbox One™controller (pictured below).

Using with Xbox One™
