HyperX Cloud Buds Manuel utilisateur

User Manual

HyperX Cloud Buds

Find the language and latest documentation for your HyperX Cloud Buds here.

HyperX Cloud Buds Installation Guide

Simplified Chinese ..简体中文说明书

............ For instructions in English

. . . . . . . . . . . . . . . . . . Para instrucciones en Español

. . . .. Für Anleitungen in Deutsch

. . . . . . . . . . . . . . . . . . Pour des instructions en Français

. . . . . . . . . . . . . . . . . . Per le istruzioni in Italiano

............ Por as instruções em Português

. . . . . . . . . . . . . . . . . . Instrukcje w jezyku Polskim

. . . . . . . . . . . . . . . . . . Для инструкции на Pусском

. . . . . . . . . . . . . . . . . . Turkce talimatlar icin

. . . . . . . . . . . . . . . . . .日本語マニュアル用

. . . . . . . . . . . . . . . . . .한국어 안내

. . . . . . . . . . . . . . . . . . คำ�แนะนำ�ภ�ษ�ไทย

. . . . . . . . . . . . . . . . . . Để xem hướng dẫn bằng tiếng Việt

Traditional Chinese ....繁體中文說明

ﻰﺑرﻋ. . . . . . . . . . . . .ﺔﯾﺑرﻌﻟا ﺔﻐﻠﻟﺎﺑ تﺎﻣﯾﻠﻌﺗﻟا ﻰﻠﻋ لوﺻﺣﻠﻟ

Document No. 480HX- HEBBXX.A01

HyperX Cloud Buds

Page 1 of 7

HyperX Cloud Buds

Part Numbers

HEBBXX-MC-RD/G

Document No. 480HX- HEBBXX.A01

HyperX Cloud Buds

Page 2 of 7

TABLE OF CONTENTS

Overview........................................................................................................................................3

Specifications...............................................................................................................................4

Fitting the HyperX Cloud Buds to your Ears............................................................................5

Changing Ear Tips .......................................................................................................................5

Controls.........................................................................................................................................6

Power Button ............................................................................................................................................................ 6

Volume Buttons........................................................................................................................................................ 6

Multifunction Button ................................................................................................................................................ 6

Headset Charging ........................................................................................................................7

Status LED Indicators..................................................................................................................7

Factory Reset................................................................................................................................7

Questions or Setup Issues?.......................................................................................................7

Document No. 480HX- HEBBXX.A01

HyperX Cloud Buds

Page 3 of 7

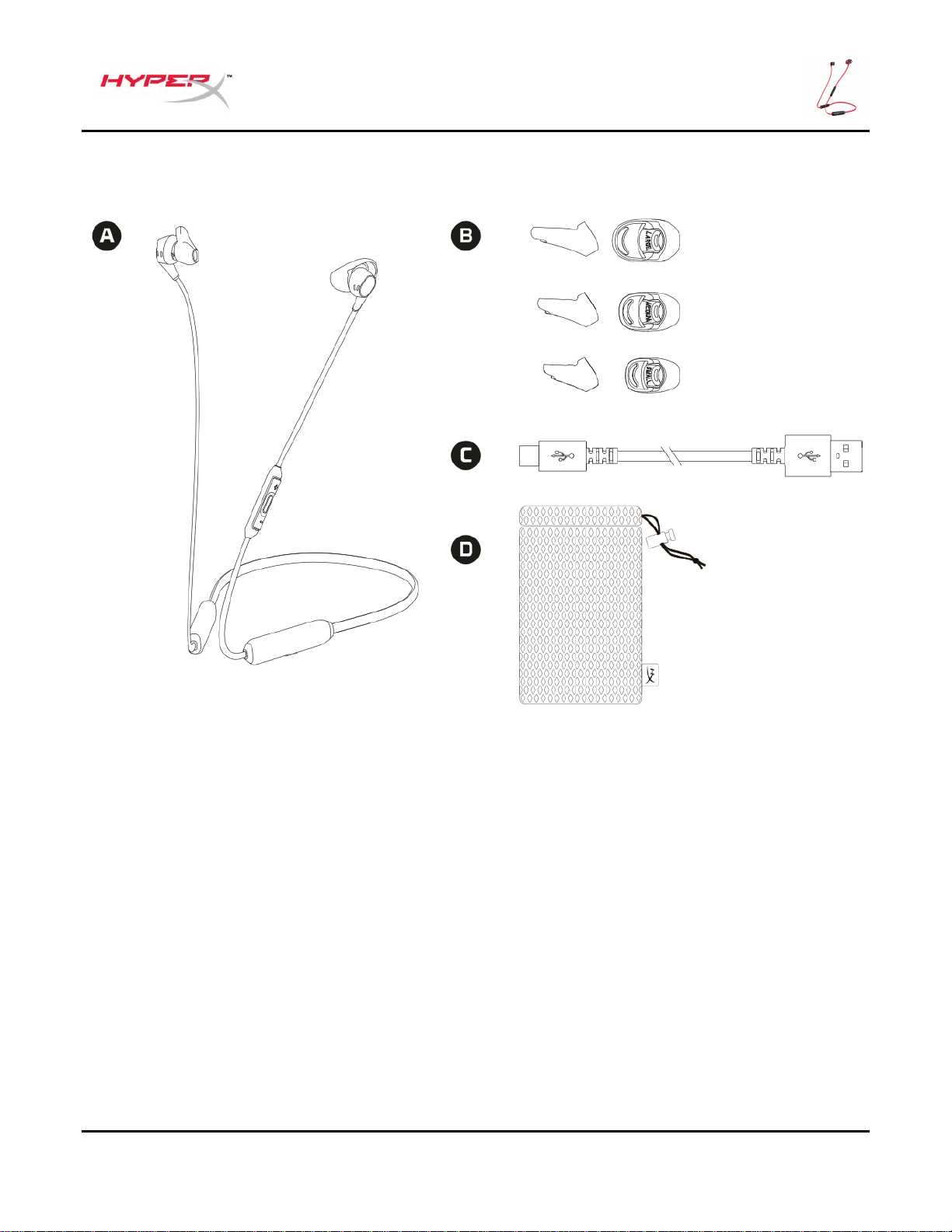

Overview

A. HyperX Cloud Buds

B. Interchangeable ear tips

C. USB-C charge cable

D. Carrying case

Document No. 480HX- HEBBXX.A01

HyperX Cloud Buds

Page 4 of 7

Specifications

Headphone

Speaker driver : Dynamic with Neodymium magnets

Type: Neckband

Frequency response: 20Hz - 20kHz

Impedance: 65.2 Ω

Sound pressure level: 104±3 dB 1mW at 1kHz

T.H.D: ≦2% at 200-3kHz

Weight: 27.5g

Charge cable length: USB-C to USB-A: 0.2m

Inline Microphone

Element: Electret condenser microphone

Polar pattern: Omni-directional

Frequency response: 100Hz - 7.2kHz

Open circuit sensitivity: -16.5dBV (1V/Pa at1kHz)

Battery Life*

Bluetooth: 10 hours

Bluetooth

Bluetooth version: 5.1

Wireless range**: Up to 10 meters / 33 feet

Supported codecs: aptX™, aptX™ HD, SBC

Supported profiles: A2DP, AVRCP, HFP, HSP

*Tested at 50% headphone volume

**Wireless range may vary due to environmental conditions

Document No. 480HX- HEBBXX.A01

HyperX Cloud Buds

Page 5 of 7

Fitting the HyperX Cloud Buds to your Ears

1. Insert ear tip into ear.

2. Tuck stabilizer flap into ear fold.

Changing Ear Tips

1. Remove original ear tip by gripping the

stabilizer flap and stretching ear tip over the

hook on the nozzle.

2. Place new ear tip on the nozzle of the ear

bud.

3. Pull the stabilizer flap to stretch the nozzle

over the hook

Document No. 480HX- HEBBXX.A01

HyperX Cloud Buds

Page 6 of 7

Controls

Power Button

Power On/Off

Hold for 2 seconds to turn on or off.

Bluetooth® Pairing

1. With the headset off, hold the power button for 5 seconds to enter pairing mode. The LED indicator

will flash red and blue and a voice prompt will play.

2. On your Bluetooth® enabled device, search and connect to “HyperX Cloud Buds.” Once connected,

the indicator LED will flash blue every 5 seconds and a voice prompt will play.

Volume Buttons

Press the + and – buttons to adjust the volume level up or down.

Multifunction Button

Status

1 Press

2 Presses

3 Presses

Long Press

Playing Media

Play/Pause

Skip Track

Previous Track

Activate Mobile

Assistant

Receiving Call

Answer Call

Reject Call

In Call

End Call

Swap Calls

Note: Button functionality may differ depending on connected device.

Document No. 480HX- HEBBXX.A01

HyperX Cloud Buds

Page 7 of 7

Headset Charging

When the headset is connected to a charger with the USB charge cable, the status LED will indicate

the charge status. The headset will take approximately 3 hours to fully charge.

Status LED

Charging Status

Breathing red

Charging

Off

Fully charged

Status LED Indicators

The status LED on the headset indicates the current state of the headset.

Status LED

Headset Status

Flash blue every 5 seconds

Connected to a device

Flash blue every 2 seconds

Not connected to a device

Pairing mode

Flashing red and blue

Factory reset

Flash blue 5 times and light up red for 1 second

Factory Reset

To perform a factory reset on the headset, hold the power and volume up buttons together for 7

seconds. The status LED will flash red and blue 2 times, followed by solid red for 1 second. At the

same time, the headset will play two low beeps. After this, the headset will automatically turn off.

Questions or Setup Issues?

Contact the HyperX support team at: hyperxgaming.com/support/headsets

N.º de documento 480HX- HEBBXX.A01

HyperX Cloud Buds

Página 1 de 8

HyperX Cloud Buds

Números de referencia

HEBBXX-MC-RD/G

N.º de documento 480HX- HEBBXX.A01

HyperX Cloud Buds

Página 2 de 8

ÍNDICE

Visión general.......................................................................................................................... 3

Especificaciones ..................................................................................................................... 4

Colocación de los HyperX Cloud Buds en los oídos............................................................ 5

Cambio de las almohadillas para los oídos .......................................................................... 5

Controles.................................................................................................................................. 6

Botón de encendido .................................................................................................................................................6

Botones de volumen ................................................................................................................................................6

Botón multifunción...................................................................................................................................................7

Carga de los auriculares......................................................................................................... 7

Indicadores LED de estado..................................................................................................... 7

Restablecimiento a condiciones de fábrica.......................................................................... 8

¿Alguna pregunta o problema de configuración?................................................................ 8
