Field Service Bulletin 807570 Revision 0 1
Gas Console manifold Replacement
Introduction
Purpose
This document describes the steps necessary to replace the gas manifold in an HPRXD manual gas console or the two
manifolds in the HPRXD auto gas console.
Tools required
Torx driver - T20
Phillips head screwdriver - number 2
228946 (Auto gas console) – Kit Contents
Part number Description Quantity
229524 Manifold subassembly: HPRXD auto gas inlet 1
229525 Manifold subassembly: HPRXD auto gas outlet 1
228947 (Manual gas console) – Kit Contents
Part number Description Quantity
229526 Manifold subassembly: HPRXD manual gas inlet 1
2Field Service Bulletin 807570 Revision 0
Gas Console manifold Replacement
Manual gas console (078532)
Remove the old manifold
1. Turn OFF all power to the system.
2. Turn off all supply gases and disconnect the supply gas hoses from the console.
3. Remove the cover from the gas console.
4. Remove the connectors from the nine solenoid valves (SV2, SV3, SV4, SV6, SV8, SV9, SV10, SV11, and SV12).
They can be very difficult to remove, but do not use pliers or other tools that can pinch or damage the wires.
Two of the nine SV connectors
5. Disconnect the four hoses (blue, red, green, and black) on the open (right side) side of the enclosure.
Blue Red Green Black
Note: The hose connections use
push-to-connect fittings.
To disconnect a hose, push
the connector-collar toward
the fitting, and pull the hose
away from the fitting.
To make a connection, push
the hose into the appropriate
connector until it stops, about
12 mm (0.472 in).
Connector-collar
Field Service Bulletin 807570 Revision 0 3
Gas Console manifold Replacement
6. Disconnect the valve power connector J3.3 and the communication cable connector.
7. The two hoses (yellow and green) that attach to the control board from the manifold should be disconnected at the
manifold.
Green hose
Control board
Yellow hose
4Field Service Bulletin 807570 Revision 0
Gas Console manifold Replacement

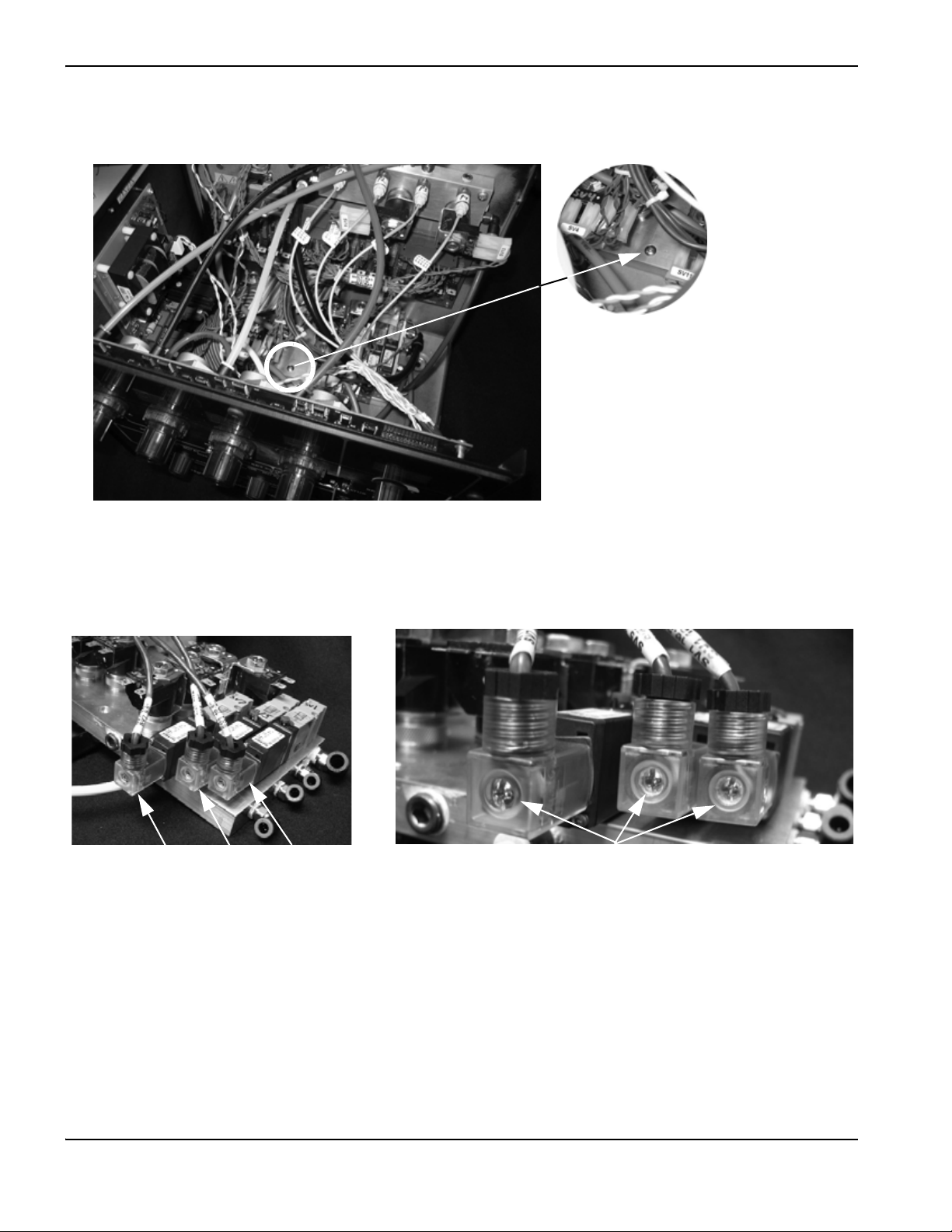

8. Remove the phillips head screw that secures the manifold to the base of the enclosure.
9. Carefully pull the manifold out the side of the enclosure to access valves SV1, SV5, and SV7. Remove the connectors
by loosening the phillips head screw and pulling off the connector.
Phillips head screws (3)
SV5SV7 SV1
Field Service Bulletin 807570 Revision 0 5
Gas Console manifold Replacement
10. Remove the yellow hose loop from the old manifold and install it onto the new manifold. The old manifold can be
discarded.
Yellow hose
Install the new manifold
NOTES:
• Always make sure the number on the valve matches the number on the connector
• Refer to the pictures shown during the removal process when installing the new manifold
1. Attach the connectors to valves SV1, SV5, and SV7 and tighten the phillips head screw to 0.7 Nm (6 in-lbs).
2. Attach the connectors to valves SV2, SV3, SV4, SV6, SV8, SV9, SV10, SV11, and SV12.
3. Attach the yellow hose and then the green hose to the front of the manifold.
4. Slide the manifold back into place and secure it to the base of the enclosure with the phillips head screw that was
removed previously.
5. Reconnect the communication cable and the valve power connector.
6. Reconnect the hoses (red, green, black, and blue). Make sure the hoses are fully seated into the valve connection.
There is a mark on the hoses that indicates when the hose is fully inserted, but it may not still be visible in the field.
The tubing is fully seated when the mark is no longer visible.
7. Reconnect the supply gas hoses and turn on the supply gases.
8. Run the gas leak tests for the system. See your HPRXD instruction manual for details.
6Field Service Bulletin 807570 Revision 0
Gas Console manifold Replacement
Auto gas console (078533)
Remove the old upper manifold
1. Turn OFF all power to the system.
2. Turn off all supply gases and disconnect the supply gas hoses from the console.
3. Remove the cover from the gas console.
4. Disconnect the gas hoses (7)
Black
Yellow
Red
White
Black
Green
Blue
.
Field Service Bulletin 807570 Revision 0 7
Gas Console manifold Replacement
5. Disconnect the wire harness from the pressure transducers P1, P2, P3, and P4 by turning the connector ring a 1/4
turn counter-clockwise.
P1
P3P4
P2
6. Remove the connectors (4) from the valves.
8Field Service Bulletin 807570 Revision 0
Gas Console manifold Replacement
7. Remove the 2 phillips head screws that secure the manifold to the rear panel and pull the manifold out of the
enclosure.
Phillips head screws (2)
8. Loosen the phillips head screw that secures the connector to valve SV10 and remove the connector.
Phillips head screw
Install the new upper manifold
NOTE: refer to the pictures shown during the removal process when installing the new manifold
1. Attach the connector to the valve marked SV10 first.
2. Mount the manifold onto the rear wall of the enclosure. The mounting screws should be tightened to
3.3 Nm (29 in-lbs).
NOTE: Make sure the yellow, black, and red wires are not trapped under the manifold when it is installed
3. Reconnect the gas hoses (7).
4. Attach the black 1/4 inch hose (the short one) to the manifold.
5. Install the connectors to the solenoid valves, SV11, SV12, SV13, and SV14.
NOTE: Make sure the yellow, black, and red wires are not trapped under the manifold when it is installed.
6. Attach the connectors to the pressure transducers, P1, P2, P3, and P4.
