HY17M26 Series

IDE Hardware User’s Manual

HY17M26 Series

IDE Hardware User’s Manual

www.hycontek.com

APD-HY17MIDE010-V02_EN

page2

Table of Contents

1. PACKAGE CONTENTS...............................................................................................................................................4

2. SAFETY PRECAUTIONS............................................................................................................................................5

3. SOFTWARE INSTALLATION REQUIREMENTS....................................................................................................6

3.1. IDE Software Installation Requirements................................................................................................................ 6

4. DESCRIPTION OF THE HARDWARE......................................................................................................................7

4.1. Architecture description.............................................................................................................................................7

4.2. Control Box Introduction........................................................................................................................................... 7

4.3. Introduction to Target Board..................................................................................................................................... 8

4.4. Target Board Circuit Diagram.................................................................................................................................11

4.5. Control Box and Target Board Hardware Connection Steps............................................................................ 12

5. REVISIONS..................................................................................................................................................................13

HY17M26 Series

IDE Hardware User’s Manual

www.hycontek.com

APD-HY17MIDE010-V02_EN

page3

Attention:

1、HYCON Technology Corp. reserves the right to change the content of this datasheet

without further notice. For most up-to-date information, please constantly visit our

website: http://www.hycontek.com .

2、HYCON Technology Corp. is not responsible for problems caused by figures or

application circuits narrated herein whose related industrial properties belong to third

parties.

3、Specifications of any HYCON Technology Corp. products detailed or contained herein

stipulate the performance, characteristics, and functions of the specified products in the

independent state. We does not guarantee of the performance, characteristics, and

functions of the specified products as placed in the customer’s products or equipment.

Constant and sufficient verification and evaluation is highly advised.

4、Please note the operating conditions of input voltage, output voltage and load current

and ensure the IC internal power consumption does not exceed that of package

tolerance. HYCON Technology Corp. assumes no responsibility for equipment failures

that resulted from using products at values that exceed, even momentarily, rated values

listed in products specifications of HYCON products specified herein.

5、Notwithstanding this product has built-in ESD protection circuit, please do not exert

excessive static electricity to protection circuit.

6、Products specified or contained herein cannot be employed in applications which

require extremely high levels of reliability, such as device or equipment affecting the

human body, health/medical equipments, security systems, or any apparatus installed in

aircrafts and other vehicles.

7、Despite the fact that HYCON Technology Corp. endeavors to enhance product quality

as well as reliability in every possible way, failure or malfunction of semiconductor

products may happen. Hence, users are strongly recommended to comply with safety

design including redundancy and fire-precaution equipments to prevent any accidents

and fires that may follow.

8、Use of the information described herein for other purposes and/or reproduction or

copying without the permission of HYCON Technology Corp. is strictly prohibited.

HY17M26 Series

IDE Hardware User’s Manual

www.hycontek.com

APD-HY17MIDE010-V02_EN

page4

1. Package Contents

HY17M26 IDE Hardware development kit includes HY17M00 Control Box and

HY17M26-NS32 Target Board(refer to table 1-1), In addition, the HY17M00 control box can

be used as an IDE hardware development tool, and can also be used as a programmer of

the HY17M series, this user’s manual mainly introduces the control box applied to the IDE

hardware development tool, the related hardware is equipped as shown below:

Model No.

Part Name

Description

Quantity

HY17M26-DK01

1. HY17M26-AM01

HY17M26-NS32 Target Board

2. HY17M00-CM01

HY17M00 Control Box

3. Cable line

USB Type A to Mini B Cable

4. Interface line

5pin/2.54 (2.54mm pitch)

Table1-1

HY17M26 Series

IDE Hardware User’s Manual

www.hycontek.com

APD-HY17MIDE010-V02_EN

page5

2. Safety Precautions

Do not place heavy objects on the display panel, in order to avoid damage caused by

stress.

Place the application display boards at steady place, so as to avoid falling damage.

Do not use this product with the input voltage which is not meeting the electrical

specifications,, in order to avoid working abnormally or damage.

Avoid application display boards being touched by liquid, dirt and avoid being exposed

to moisture during operation. This application should be kept in a dry environment, so

as not to affect the function and performance.

Remove the power supply when not using it.

When following status occurred, please remove the power supply immediately, and

contact our engineer.

Power Supply line is worn or damaged.

Power source (battery) connected but no any light on while operating.

Component off.

HY17M26 Series

IDE Hardware User’s Manual

www.hycontek.com

APD-HY17MIDE010-V02_EN

page6

3. Software Installation Requirements

3.1. IDE Software Installation Requirements

Minimum System Requirements of operating HY17M IDE hardware development kit:

(1) PC/NB hardware requirement:

IBM PC compatible X86 system CPU

512MB Memory (1GB recommended)

1GB Hard disk

(2) Supported Products:

HY17M26 Series chip

(3) Supported Hardware Model No.:

HY17M26-DK01: HY17M26 IDE hardware development kit

(FW version applicable to HY17M00-CM01 is W17M01.9.2 or above)

(4) Supported software version:

HY17M IDE V2.02 above: HY17M Series Assembly Language IDE software

H08 CIDE V1.30 above: HYCON 8-bit MCU C Language IDE software

(5) Supported Operating system:

Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10

(6) Apply the following interface modes:

USB Port with HID-compliant device

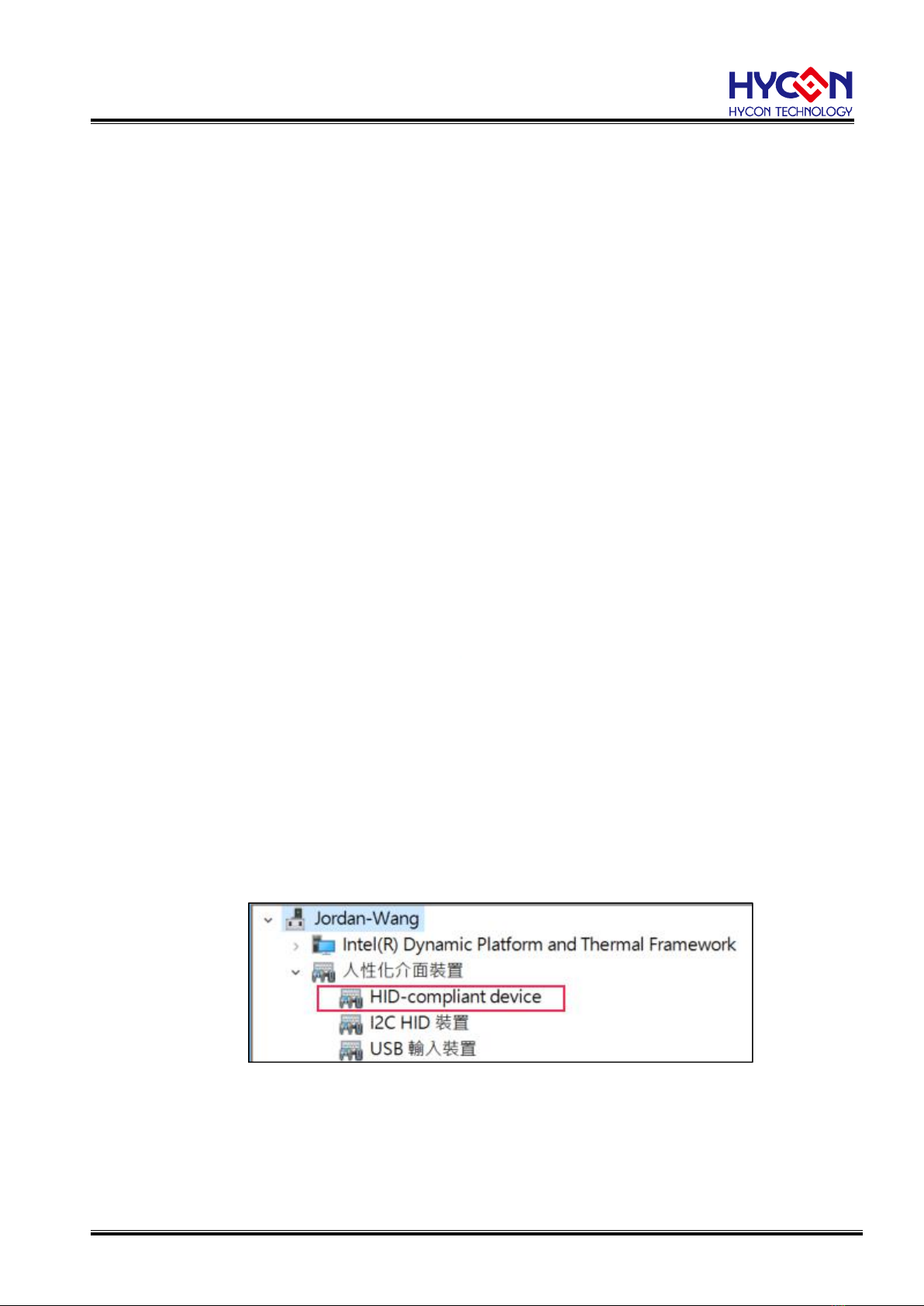

The HY17M26-DK01's USB Port driver uses the Windows standard HID driver

(Figure 3-1), so no It can be used with an additional USB driver

Figure 3-1

HY17M26 Series

IDE Hardware User’s Manual

www.hycontek.com

APD-HY17MIDE010-V02_EN

page7

4. Description of the hardware

4.1. Architecture description

The HY17M00-CM01 Control Box is a control device between the HY17M26-AM01

Target Board and the HY17M IDE software. It can be used as a development tool through

the connection between the JTAG line and the USB cable, the assembly diagram is as

follows:

Figure 4-1

4.2. Control Box Introduction

Control Box (Model No.: HY17M00-CM01) is commonly used in HY17M series products

(appearance shown in Figure 4-2), the following describes the related functions of the

Control Box:

Figure 4-2

(1) Information LED

Feature: status Indicator LED

Description: the definition of L1~L3 is as follows

Item

Name

Description

Green LED, When the USB Port is connected to a computer

or an external 5V power supply, the L1 light indicates that the

Control Box is powered.

Error

Red LED (reserved, no use).

Busy

Yellow LED (reserved, no use).

HY17M26 Series

IDE Hardware User’s Manual

www.hycontek.com

APD-HY17MIDE010-V02_EN

page8

(2) Debug Port

Feature: The Debug interface port is connected to the Debug port of Target Board to

control the chip.

Description: Pins are defined as follows

Item

Name

Description

PCAL

HAO calibration pin

VDD

Power source output, fixed output 3.3V with 100mA power

supply

SCL

I2C Clock Pin (with pull-up 10KΩ)

SDA

I2C Data Pin (with pull-up 10KΩ)

VSS

Ground Pin

(3) USB Port

Feature: USB Port.

Description: Connect to your computer via USB Type A to Mini B Cable.

(4) Programming Switch

Feature: the switch for programming.

Description: when the control box is used as an IDE development tool, please do not

press "Program" button at will to avoid the HY17M26 chip’s code on the

Target Board being changed and affecting normal development.

4.3. Introduction to Target Board

The Target Board (Model No.: HY17M26-AM01) is commonly used in the HY17M26

series (Appearance shown in Figure 4-3), this Target Board can be used in addition to IDE

hardware tools, It can also be used as a demo board, the following describes the related

functions of the Target Board:

HY17M26 Series

IDE Hardware User’s Manual

www.hycontek.com

APD-HY17MIDE010-V02_EN

page9

Figure 4-3

(1) U1

Feature: Target Board Chip, called HY17M26 (Part No: HY17M26-NS32).

(2) J10

Feature: External Power source VDD_EXT pin.

Description: Pins are defined as follows

Name

Description

1-1

VSS

Power ground pin

2-2

VDD_EXT

External Power supply pin

(3) J5

Feature: Target Board Chip’s UART/I2C interface port and also can be used as

secondary Debug port and HAO calibration pin.

Description: Pins are defined as follows

Name

Description

1-1

PCAL

HAO calibration pin

2-2

VDD_ICE

External Power supply pin

3-3

SCL/RC/ECK2

UART RX pin, I2C and Debug Port2’s clock pin

(with pull-up 4.7KΩ on board)

4-4

SDA/TX/EDIO2

UART TX pin, I2C and Debug Port2’s data pin

(with pull-up 4.7KΩ on board)

5-5

VSS

Power ground pin

(4) J6

Feature: Target Board Chip’s primary Debug port and HAO calibration pin.

Description: Pins are defined as follows

Name

Description

1-1

PCAL

HAO calibration pin

2-2

VDD_ICE

External Power supply pin

3-3

ECK

Debug port’s clock pin

4-4

EDIO

Debug port’s data pin

5-5

VSS

Power ground pin

(5) J1

Feature: Target Board Chip’s VDD power source selection.

Description: Pins are defined as follows

Name

Description

VDD_ICE

Target Board Chip’s VDD power is coming from Control Box

VDD_IN

Target Board Chip’s VDD power

VDD_EXT

Target Board Chip’s VDD power is coming from external

power

HY17M26 Series

IDE Hardware User’s Manual

www.hycontek.com

APD-HY17MIDE010-V02_EN

page10

(6) J9

Feature: Target Board Chip’s SPI interface (implemented with firmware) port, The main

purpose is to be able to connect to the ENOB tool's control board SPI for use as an

ENOB demo board.

Description: Pins are defined as follows

Name

Description

VDD

Target Board chip’s Power Pin

SDI

Target Board chip’s SDI Pin

SCK

Target Board chip’s SCK Pin

SDO

Target Board chip’s SDO Pin

Target Board chip’s CS Pin

VSS

Power Ground pin

(7) J8

Feature: Target Board Chip’s I2C interface port.

Description: Pins are defined as follows

Name

Description

VSS

Power ground pin

VDD

Target Board Chip’s VDD power

SCL

I2C’s clock pin

SDA

I2C’s data pin

(8) J7

Feature: Target Board Chip’s UART interface port.

Description: Pins are defined as follows

Name

Description

VDD

Power ground pin

VSS

Target Board Chip’s VDD power

UART’s receive pin

UART’s transform pin

Note：The above only describes the basic functions that the Target Board will use, for other

unlisted parts, please refer to the circuit diagram or contact FAE technical support.

Table des matières

Autres manuels HYCON Microcontrôleur

HYCON

HYCON HY16F3981 Instructions d'utilisation

Manuels Microcontrôleur populaires d'autres marques

AMS

AMS AS7261 Demo Kit Manuel utilisateur

Novatek

Novatek NT6861 Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266 SDK Guide de configuration

Nuvoton

Nuvoton ISD61S00 ChipCorder Mode d’emploi

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manuel utilisateur

Texas Instruments

Texas Instruments Chipcon CC2420DK Manuel utilisateur

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manuel utilisateur

NEC

NEC 78GK0S/K 1+ Series Instructions d'installation et d'utilisation

Mikroe

Mikroe SEMITECH N-PLC Click Instructions d'installation et d'utilisation

Intel

Intel Agilex Manuel utilisateur

Cypress

Cypress CY4607 HX2VL Manuel utilisateur

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manuel utilisateur

Texas Instruments

Texas Instruments TMS320F2837 D Series Manuel utilisateur

CYPRES

CYPRES CY14NVSRAMKIT-001 Manuel utilisateur

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266EX Mode d'emploi

Abov

Abov AC33M8128L Manuel utilisateur

Laird

Laird BL654PA Manuel utilisateur
