NOTE: Be sure merchandisers have

been leveled according to the

installation instructions. Carefully

unpack and inspect the Wall/Island

Joint Kit, making sure there is no

breakage or damage.

STEPS

1Remove the Bumper so as to

expose the bumper retainer.

2Remove two (2) existing screws

holding bumper retainer to the

vertical brace. Save the screws

for re-insertion later.

3Attach the

Joining Strap – 1 to the bumper

retainer using screws from Step 2

and Screws – 2 provided.

Wide Island End Cap (6’) to Wide Island Merchandiser

Joint Kit Instruction

LWE TO LW OR LWU

LWEG TO LWG OR LWUG

For Low Temperature Island Merchandisers

JOINT

JOINT KIT

KIT

PARTS LIST

Item No. Quantity Description

LWE LWEG

1. 8 4Joining Strap

2. 20 12 Hex Head Sheet Metal Screws 8 x1/2

3. 2 2Styrofoam Insulation

4. 1 1Silicone

5. 1 1Gasket 1/2x 1/2x 180

6. 1 1Gasket 1 5/8x 1/2 x 180

7. 1 1 Neoprene Gasket

8. 1 1 Center Flue Joining Bracket (2 Pieces)

9. 2 2 Hex Nut 3/8x 24

10. 4 2Cap Screw5/16-18 x 1

11. 4 2Lock Washer Split Steel;5/16

12. 4 2 Flat Washer 5/16

13. 4 2Hex Nut 5/16 - 18

14. – 2Cover — Glass Post End

15. 12 10 Screw Phillips Sheet Metal 8 x 1/2

16. 2 2Nosing Joint Trim

17. 1 1Nosing Joint Trim Center

18. 2 – Nosing Joint Side Trim

Splashguard Brackets

MUST BE INSTALLED

Before Piping Case.

NOTE:

Refer to the Installation

Manual to install

splashguard brackets.

Remove Bumpers At Circled Locations

Exposing

Bumper

Retainers

LWE

Bumper

Retainer

Figure 1. Removing the Bumpers

Figures 2 and 3. Removing Bumpers, Existing Screws,

and Installing Joining Strap

Re-insert Screws

LWE

LW or LWU

Joining

Strap

LWE

Retainer

March, 1998

P/N 0398652A

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Print d in U.S.A.)

4Install the

Styrofoam Insulation – 3, by

applying Silicone – 4 to one

side of styrofoam. Place the

styrofoam filler into the corner

created by flat foam assembly

and bottom. Push until the sil-

icone makes contact with the

case causing the styrofoam to

stay in place.

NOTE: APPLY GASKET TOONE

CASE ONLY.

5Apply Gaskets – 5 and 6

as shown in Figure 5.

• Remove paper backing as

gasket is applied.

• Lap gaskets at lower corners.

• Check that there are no gaps

between gasket and the

merchandiser.

• Do not stretch gasket,

especially around corners.

• Do not butt gaskets; always

overlap joints.

Merchandisers

ﬁ

P/N 398652A

SOLID

LWG

GLASS

Figure 5. Installing Gasket Solid and Glass

Apply

Silicone

This Side

Styrofoam

Insulation

Styrofoam

Insulation

Apply

Styrofoam

Insulation here

Bottom Foam

Assembly

LWE(G)

Bottom Foam

Assembly

LW(G) or LWU(G)

Figure 4. Installing Styrofoam Insulation

Solid

Glass

1/2X1/2X180 15/8X1/2X180

FoamTape Gasket FoamTape Gasket

6A. Place one half of the

Center Flue Joining

Bracket – 8 over stud on the

back of the LWE case.

B. Apply strip of

Neoprene – 7 over the stud

and onto the bracket half that

was just installed.

C. Place the other half of the

Center Flue Joining

Bracket – 8 over the stud

and onto the Neoprene.

D. Fasten the Joining brack-

ets and Neoprene together

using Hex Nut – 9, see

Detail A.

7Move Wide Island End Cap

(LWE) against Wide Island

(LW), see Figure 6.

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Print d in U.S.A.)

LWE TO LW OR LWU

LWEG TO LWG OR LWUG JOINT KIT

P/N 0398652A

LWE

Figure 6. Moving the CasesTogether

Neoprene

Studs

Detail A.

Center Flue Joining Bracket

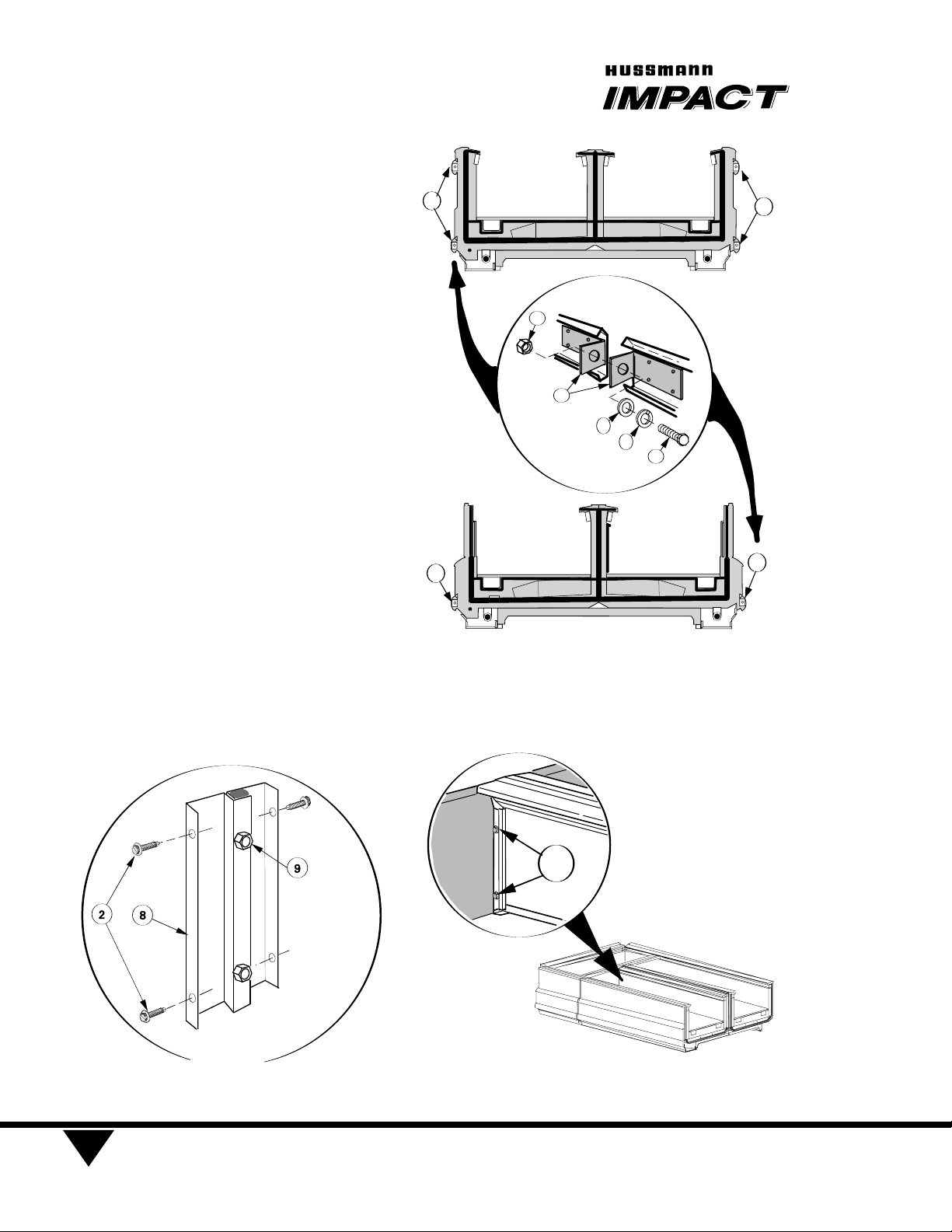

8Begin Fastening the cases

together at the Joining

Straps – 1, starting at the

bottom first.

9Fasten the joining straps

together using,

Cap Screw – 10

Lock Washer – 11

Flat Washer –12and

Hex Nut – 13.

10 Fasten the Joining Bracket

to the side of the Wide

Island Center Flue using

Screws – 2 (see Figure 8,

Detail B).

NOTE: Refer to the

Installation Instruction

to install the splash-

guard brackets.

4HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Print d in U.S.A.)

Merchandisers

ﬁ

LW(G)

GLASS

SOLID

Figure 7. Installing and Fastening

Joining Straps to Cases

P/N 398652A

LWE

Figure 8. Fastening the Cases at the Center Flue

Detail B.

LWG

GLASS

IFINSTALLING GLASS

CASES

11 Install the Glass Post End

Cover – 14, using

Screws – 15.

12 Install Plastic Top Rails.

Make sure to offset

joints from case joints

(see Figure 9).

13 Use Screws – 15 to attach

Trims – 16, 17 and 18,

at the locations shown in

Figure 10, Details C and D.

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Print d in U.S.A.)

P/N 0398652A

LW G

LW EG

Top Rail

SOLID

LWG

GLASS

CENTER

SIDES

Figure 9. Installing Glass Cover-Post End andTop Rails

Figure 10. InstallingTrims

LWE TO LW OR LWU

LWEG TO LWG OR LWUG JOINT KIT

Detail C.

Detail D.

LWEG

LWG
