Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 7W Fan Assembly (1)

0058698 Fan Motor, Evaporator

142780 Fan Blade,

embossing toward motor

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

C. 0353949 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0466234 Ballast, Electronic

2 lamps (4)

D. 0466235 Ballast, Electronic

3 lamps (4)

D. 0466236 Ballast, Electronic

4 lamps (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

P/N 0453524A

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Note: Changed items have been underlined.

E2S

Data Sheet Set

P/N 0453524A

NSF®Certified

October 2005

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

4 ft 6 ft 8 ft 12 ft

General

(A)

Case Length (without ends or partitions) 48 1/8(1222) 72 1/8 (1832) 96 1/4(2445) 144 3/8(3667)

Maximum O/S dimension back to front (with bumper) 46 1/2(1181) 46 1/2(1181) 46 1/2(1181) 46 1/2(1181)

Back of case to front of front panel 34 1/2 (876) 34 1/2 (876) 34 1/2 (876) 34 1/2 (876)

Back of case to O/S edge of front skid rail 29 3/8 (746) 29 3/8 (746) 29 3/8 (746) 29 3/8 (746)

Width of skid rail 4 1/2 (114) 4 1/2 (114) 4 1/2 (114) 4 1/2 (114)

RH end of case to outside edge of external support 1 3/8(34) 1 3/8(34) 1 3/8(34) 1 3/8(34)

Distance between edges of

external support and center support NA 28 1/2 (724) 40 1/2 (1029) 40 1/2 (1029)

Distance between edges of center supports NA NA NA 44 (1118)

Distance between edges of external supports 37 (940) NA NA NA

Stub-up area between front skid rail and front panel 5 3/4 (146) 5 3/4 (146) 5 3/4 (146) 5 3/4 (146)

Electrical Service (Electrical Field Wiring connection point)

(B)

Length of electrical raceway 18 3/8 (467) 18 3/8 (467) 37 (940) 37 (940)

(C)

RH End of case to center of farthest knockout 36 5/8 (930) 60 3/4 (1543) 84 3/4 (2153) 132 3/4 (3372)

Back of case to center of end knockout 29 5/8 (752) 29 5/8 (752) 29 5/8 (752) 29 5/8 (752)

(D)

RH End of case to RH end of raceway 27 5/8 (702) 51 5/8 (1311) 57 1/4 (1454) 105 1/8 (2670)

(E)

LH End of case to LH end of raceway 2 1/8 (54) 2 1/8 (54) 2 (51) 2 1/4 (57)

Waste Outlet

(F)

RH End of case to the center of waste outlet 24 1/4 (616) 24 1/4 (616) 24 1/2 (622) 72 1/4 (1834)

LH End of case to the center of waste outlet 23 7/8 (606) 47 7/8 (1216) 71 3/4 (1822) 72 1/8 (1832)

Back O/S of case to center of waste outlet 27 5/8 (702) 27 5/8 (702) 27 5/8 (702) 27 5/8 (702)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38) 1 1/2 (38) 1 1/2 (38)

NOTE: Water seal outlet must clear front skid rail;

water seal rotation in forward direction only due to low base.

Refrigeration Outlet

Back of case to center of refrigeration outlet 30 3/4 (781) 30 3/4 (781) 30 3/4 (781) 30 3/4 (781)

RH end of case to center of refrigeration outlet 8 3/8 (213) 8 3/8 (213) 8 3/8 (213) 8 3/8 (213)

E2S

Meat, Delicatessen

Precut & Packaged

Produce

41 In. High

2 of 7 E2S Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

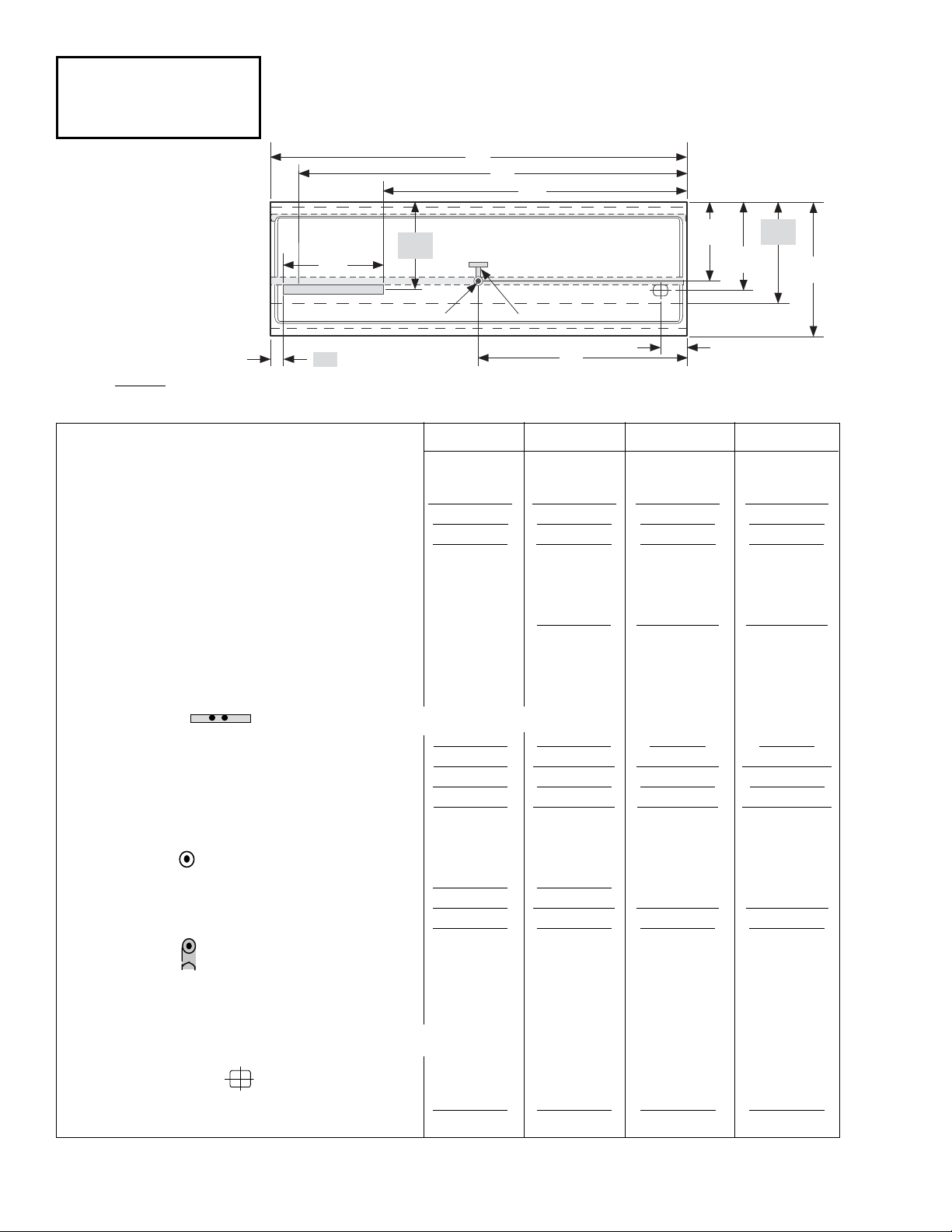

Engineering

Plan Views

Dimensions shown as inches and (mm).

09-2005

34 1/2

(876)

83/8(213)

Electrical Service

29 5/8

(752)

Waste Outlet

Front

27 5/8

(702)

30 3/4

(781) 46 1/2

(1181)

Water Seal

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75 (°F)

and 55% R.H.

E2S

MEAT DELI

Discharge Air (°F) 25 28

Evaporator (°F) 18 21

Unit Sizing (°F) 16 19

Btu/hr/ft*

Parallel 840 800

Conventional 920 870

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

Frequency (hr) 6

Defrost Water 8 lb/ft/day

(± 15% based on case configuration and

product loading).

OFFTIME E2S

Temp Term (°F) 48

Failsafe (minutes) 40

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F – open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control CI/CO**

E2S Meat Deli

Temp (°F) 11 / 6 14 / 4

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)*** E2S

4 ft 0.9

6 ft 1.8

8 ft 1.9

12 ft 2.9

***This is an average for all refrigerant types

actual refrigerant charge may vary by

approximately half a pound.

Length (in.) Added to Lineup by Each

End or Insulated Partition 1

3 of 7

P/N 0453524A HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

FAN

Refrigeration

Outlet

7 1/2(191)

41 3/4

(1060)

17 1/8

(435)

31 (787)

19 1/4

(489)

(305)

(559)

34 1/2

(876)

46 1/2

(1181)

(305)

27 5/8

(702)

30 3/4

(781)

E2S

4 1/4

(108)

12 (305)

18 (457)

Impact Elite E2S

Meat, Delicatessen

Precut & Packaged Produce

Elite Specialty Merchandiser Multi-deck, Prep Top, 2 Display Levels

Dimensions shown as in. & (mm).

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

See Page 7 for

shelf arrangement.

4 of 7 E2S Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact Elite E2S

Meat, Delicatessen

Precut & Packaged Produce

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans — 7W 1223

Number of Fans — 7W (Export) 1223

(Export: 230V 50 hz shown)

Amperes Watts

Merchandiser 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Fans

Standard (120V 60Hz) 0.50 1.00 1.00 1.5 36 78 78 117

Energy Efficient (120V 60 Hz) 0.26 0.52 0.52 0.78 18 36 36 54

Export (230V 50Hz) 0.28 0.56 0.56 0.84 44 89 89 132

Cycling Anti-sweat Heaters NA

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 0.70 1.20 1.20 1.70

With Energy Efficient Fans (120V 60 Hz) 0.46 0.72 0.72 0.98

With Export Fans (230V 50Hz) 0.48 0.76 0.76 1.04

Maximum Over Current Protection 20 20 20 20

Export (230V 50Hz) 15 15 15 15

Electric Defrost Heaters (208V 1Ph) NA

Standard Lighting

2 Rows Canopy 0.51 1.01 1.01 1.52 66 122 122 183

Optional Lighting

1 Row Rail Lights 0.51 0.51 0.51 0.76 62 62 62 96

1 Row Ledge Lights 0.51 0.51 0.51 0.76 62 62 62 96

Optional Shelf Lighting

1 Row of Shelves 0.51 0.51 0.51 0.76 62 62 62 96

2 Rows of Shelves 0.51 1.01 1.01 1.52 66 122 122 183

5 of 7

P/N 0453524A HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Fan Wiring

Offtime Defrost

2 & 3 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

= Case GROUND

Connector

Connector Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Shelf Lighting

G G

Connector

Optional Lighting: 1 Row Ledge or 1 Row Rail

Light Circuits

Standard Lighting 1 Row Canopy

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120V POWER = 120V NEUTRAL

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

RBL

555

4 ft case has 1 Lamp

6 ft case has 2 Lamps

8 ft case has 2 Lamps

12 ft case has 3 Lamps

4 ft case has 1 Lamp

6 ft case has 2 Lamps

8 ft case has 2 Lamps

12 ft case has 3 Lamps

6 of 7 E2S Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

7 of 7

P/N 0453524A HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

SHELF CONFIGURATION

This merchandiser is designed for two

shelves.

This illustration shows recommended

shelf depth and shelf angle for the two

locations.

It is critical to case performance that no

product, shelf or stop extend beyond the

load limit, as shown in this illustration.

This configuration supports the air

curtain and provides optimal case

performance.

Check with Hussmann engineering

before using a different configuration.

Impact Elite E2S

Delicatessen

Precut & Packaged Produce

Load Limit

12 in.

10°

Recommended

Angle

Shelf

Size

18 in.

0°
