Hussmann RDI Mode d’emploi

1 of 13

RDI

Technical Data Sheet

Rev A

ecialt

Products

RDI

These merchandisers are manufactured to meet ANSI/National Sanitation

Foundation Standard #7 requirements.

We reserve the right to change or revise specifications and

roduct design in connection with any feature of our

roducts. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75F and 55% R.H.

Discharge Air (F) 30

Evaporator (F) 20

ote: Not recommended to control temp by regulating

coil temp allow t-stat to cycle and control temp.

tu/hr/

Parallel 750

Conventional 863

*For all refrigeration equipment other than Hussmann,

use conventional Btu values.

DEFROST DATA

Frequency Hrs 4

OFFTIME

Temp Term °F 54

Failsafe Minutes 20

ELECTRIC or GAS Not Recommended

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 ½*

Merchandiser Liquid Line (in.) 3/8*

Merchandiser Suction Line (in.) 5/8*

Estimated Charge (lb)***

4ft 1.2

5ft 1.5

6ft 1.8

*Dependent on case length and refrigerant type.

*** This is an average for all refrigerants types. Actual

refrigerant charge may vary by approximately half a

ound. GLYCOL REQUIREMENTS

GPM PSI

NA NA

CUL Listed

UL Sanitation

2 of 13

RDI

Technical Data Sheet

Rev A

ecialt

Products

RDI

Engineering

Cut & Plan View RDI

3 of 13

RDI

Technical Data Sheet

Rev A

ecialt

Products

RDI

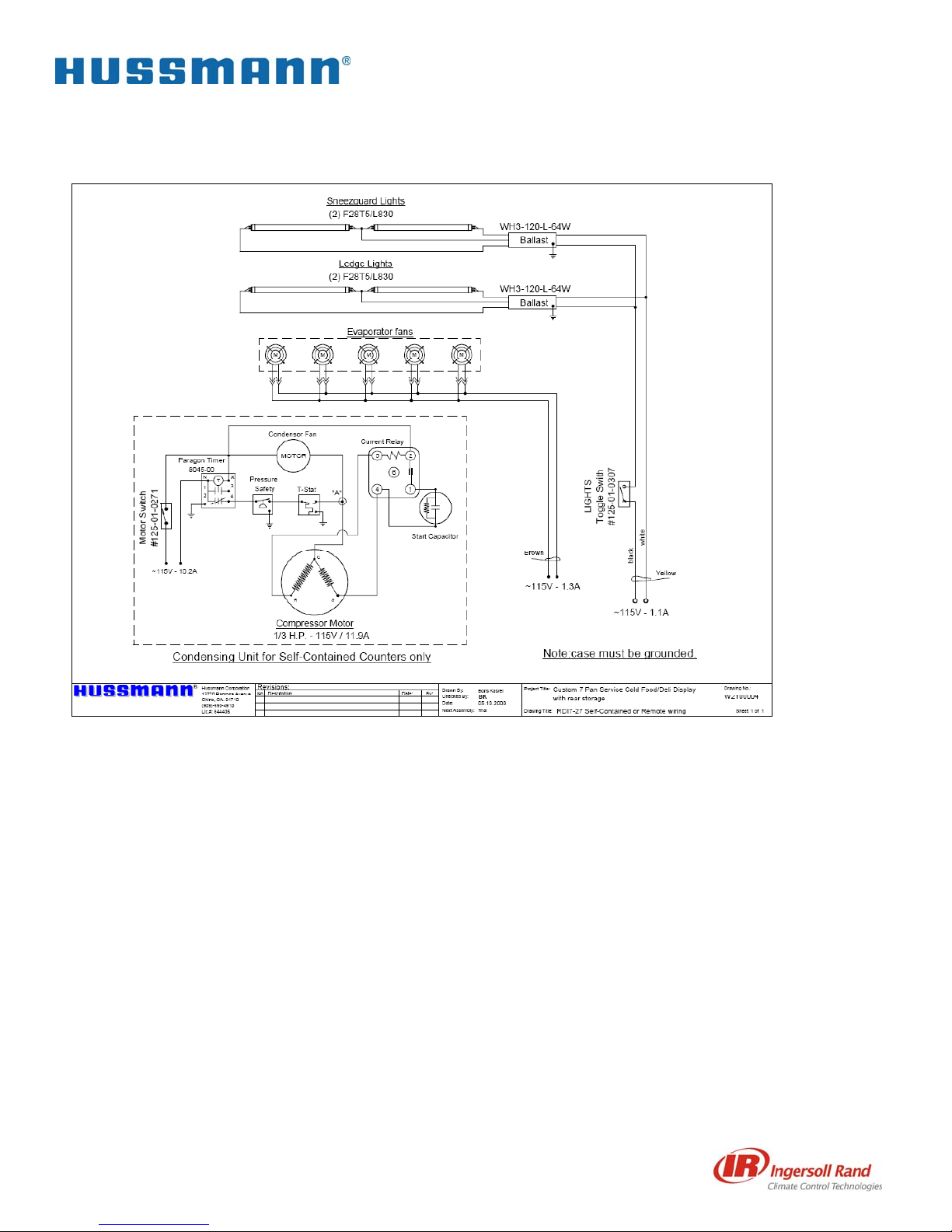

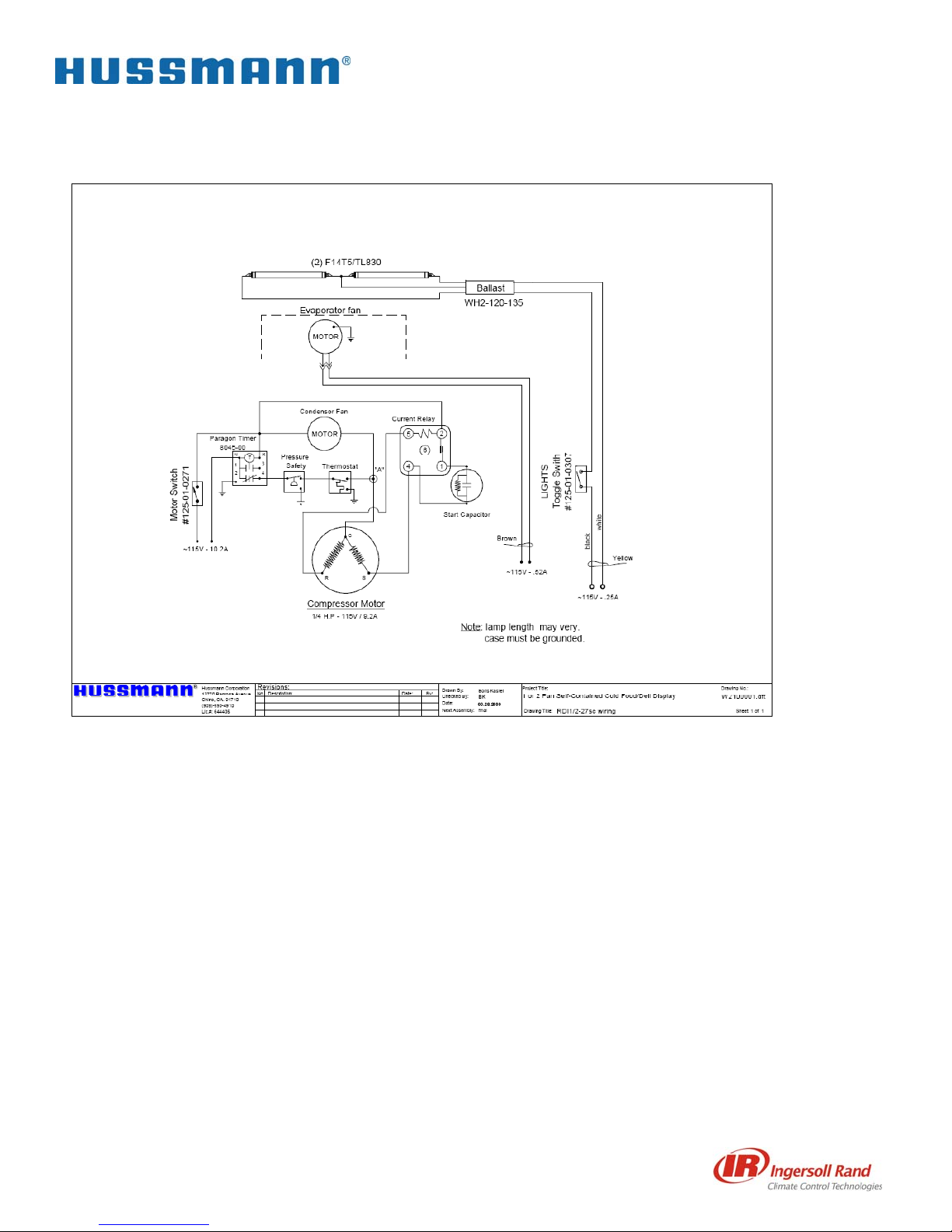

RDl 1 or 2 Pans, 1/4 HP-115V W2100001

Remote or S/Contained 3 or 4 Pans, 1/4 HP-115V W2100002

5 or 6 Pans, 1/4 HP-115V W2100003

7 or 8 Pans, 1/3 HP-115V 8' W2100004

9 or 10 Pans, 1/2HP-115V W2100005

11 Pans, 3/4 HP-230V W2100006

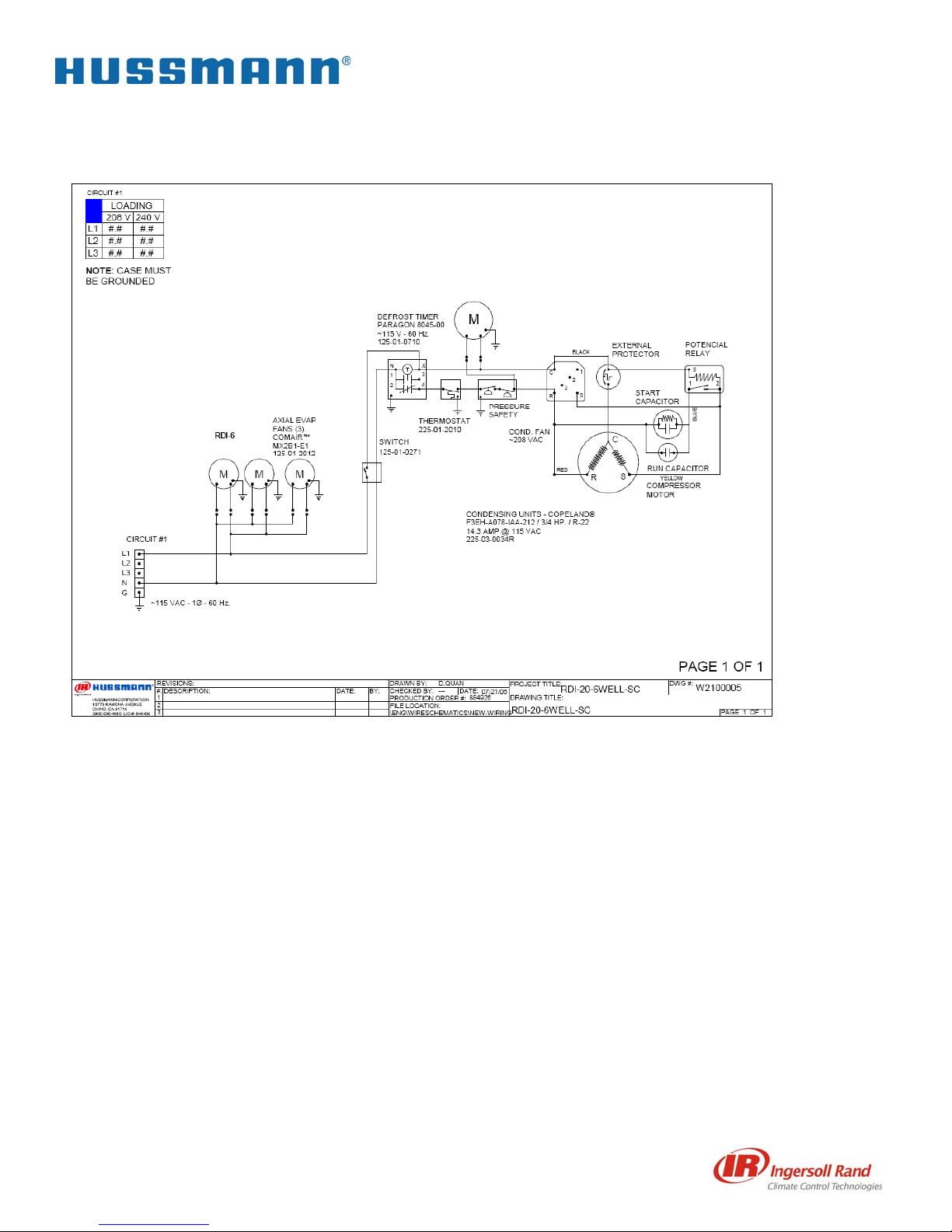

RDI-20-6WELL-SC 6 W2100005

RDI-20-7WELL-SC W2100007

RDI-20-9WELL-SC 1H07238

RDI-27 5 Well-SC 1H07235

4 of 13

RDI

Technical Data Sheet

Rev A

ecialt

Products

RDI

5 of 13

RDI

Technical Data Sheet

Rev A

ecialt

Products

RDI

6 of 13

RDI

Technical Data Sheet

Rev A

ecialt

Products

RDI

7 of 13

RDI

Technical Data Sheet

Rev A

ecialt

Products

RDI

8 of 13

RDI

Technical Data Sheet

Rev A

ecialt

Products

RDI

9 of 13

RDI

Technical Data Sheet

Rev A

ecialt

Products

RDI

10 of 13

RDI

Technical Data Sheet

Rev A

ecialt

Products

RDI
