User’s Guide

545, 555

KEEPING THE WORLD SEWING

2 Instruction book Lily 555/545

When using an electrical appliance, basic safety precautions should always be follo-

wed, including the following:

Read all instructions before using this household sewing machine

DANGER

- To reduce the risk of electric shock:

• A sewing machine should never be left unattended when plugged in. Always unplug

the sewing machine from the electric outlet immediately after using and before

cleaning.

• Always unplug before relamping. Replace bulb with same type rated 5 Watts.

WARNING

- To reduce the risk of burns, ﬁre, electric shock,

or injury to persons:

• Do not allow to be used as a toy. Close attention is necessary when used by or near

children.

• Use only for its intended use as described in this manual. Use only attachments

recommended by the manufacturer as contained in this manual.

• Never operate this sewing machine if it has a damaged cord or plug, if it is not wor-

king properly, if it has been dropped or damaged, or dropped into water. Return it

to the nearest authorized dealer or service center for examination, repair, electrical

or mechanical adjustment.

• Never operate the sewing machine with any air openings blocked. Keep ventilation

openings of the sewing machine and foot controller free from the accumulation of

lint, dust, and loose cloth.

• Keep ﬁngers away from all moving parts. Special care is required around the sewing

machine needle.

• Always use the proper needle plate. The wrong plate can cause the needle to break.

• Do not use bent needles.

• Do not pull or push the fabric while stitching. It may deﬂect the needle causing it to

break.

• Switch the sewing machine off (''0'') when making any adjustments in the needle

area, such as threading needle, changing needle, threading bobbin, or changing

presser foot, etc.

• Always unplug the sewing machine from electrical outlet when removing covers,

or when making any other user servicing adjustments mentioned in the instruction

manual. No lubrication by customer is recommended.

• Do not use outdoors.

• Do not operate where aerosol (spray) products are being used or where oxygen is

being administrated.

• To disconnect, turn the switch off (''0'', then remove plug from outlet.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

3Instruction book Lily 555/545

Safety instructions 2

Machine parts Model 555 4

Machine parts Model 545 5

Procedures 6-16

Unpacking, Packing away 6

Connecting the foot control 7

Connecting to the power

supply 7

Accessory box, Sewing surface 8

Spool pin 9

Threading the upper thread 10

Threading for twin needles 11

Bobbin winding, Direct

winding 12

Threading lower thread 13

Thread tension, Correct and

incorrect thread tension 14

Presser foot pressure,

Presser foot lever, Changing

the presser foot 15

Changing the needle, Lowering

feed teeth 16

Functions 17-27

Infodisplay 17-19

Stitch selection, Model 555 20

Stitch selection, Model 545 21

Memory 22

Programming 23-26

Mirror image 25

CLR - Deleting programs 26

Satin taper and darning

stitches 27

Maintenance 52

Care of the machine 52

Changing light bulbs 52

List of contents

Sewing 28-51

Automatic buttonholes 28-29

Buttonholes, Buttonhole

knife 30-31

Sewing buttons 32

Straight stitch 33

Needle positions 33

Gathering with straight

stitches 34

Zipper 35

Reinforced straight stitches 36

Stretch stitch, Zigzag 36

Lace edging 37

Three-step zigzag 38

Sewing terry cloth 38

Mending and darning 38

Flatlock 39

Hemming 40

Bridging stitch 41

Seam and Overcast 42

Darning stitch 43

Automatic taper stitch 43

Decorative stitches 44

Quilting, Applique 45

Pictogram 46

Sewing hints 47

Free arm, Jeans hem,

Sewing on belt loops 47

Stitch table, Model 555 48-49

Stitch table, Model 545 50-51

Fault-ﬁnding 53-54

Accessories, Needles 55

Index 56-57

4 Instruction book Lily 555/545

Summary Model 555

Summary

1. Door

2. Thread take-up lever

3. Presser foot pressure dial

4. Thread guide

5. Buttonhole sensor socket

6. Light

7. Needle bar

8. Presser foot

9. Free arm

10. Bobbin cover

11. Base plate

12. Drop feed dial

13. Needle plate

14. Presser bar and Presser foot

ankle

15. Needle clamp screw

16. Presser foot lifter

17. Thread tension

18. Thread guide for bobbin

winding

19. Spool pin

20. Spool holders

21. Recess for additional spool

22. Quick-info

23. Thread cutter for bobbin

winding

24. Handwheel

25. Bobbin spindle, Bobbin stop

26. Infodisplay

27. Function selectors

28. Stitch panel

29. Main power switch, Connec-

tion to power supply

10.

11. 12.

19. 20.

29.

17.

16.

15.

14.

13.

18.

28.

27.

26.

25.

24.

23.

22.

21.

5Instruction book Lily 555/545

Summary

18. Thread guide for bobbin

winding

19. Spool pin

20. Spool holders

21. Recess for additional spool

22. Quick-info

23. Thread cutter for bobbin

winding

24. Handwheel

25. Bobbin spindle, Bobbin stop

26. Infodisplay

27. Function selectors

28. Stitch panel

29. Main power switch, Connec-

tion to power supply

Summary Model 545

1. Door

2. Thread take-up lever

3. Presser foot pressure dial

4. Thread guide

5. Buttonhole sensor socket

6. Light

7. Needle bar

8. Presser foot

9. Free arm

10. Bobbin cover

11. Base plate

12. Drop feed dial

13. Needle plate

14. Presser bar and Presser foot

ankle

15. Needle clamp screw

16. Presser foot lifter

17. Thread tension

10.

11.

12.

13.

14.

15.

16.

17.

19. 20.

28.

29.

27.

26.

25.

24.

23.

22.

21.

18.

6 Instruction book Lily 555/545

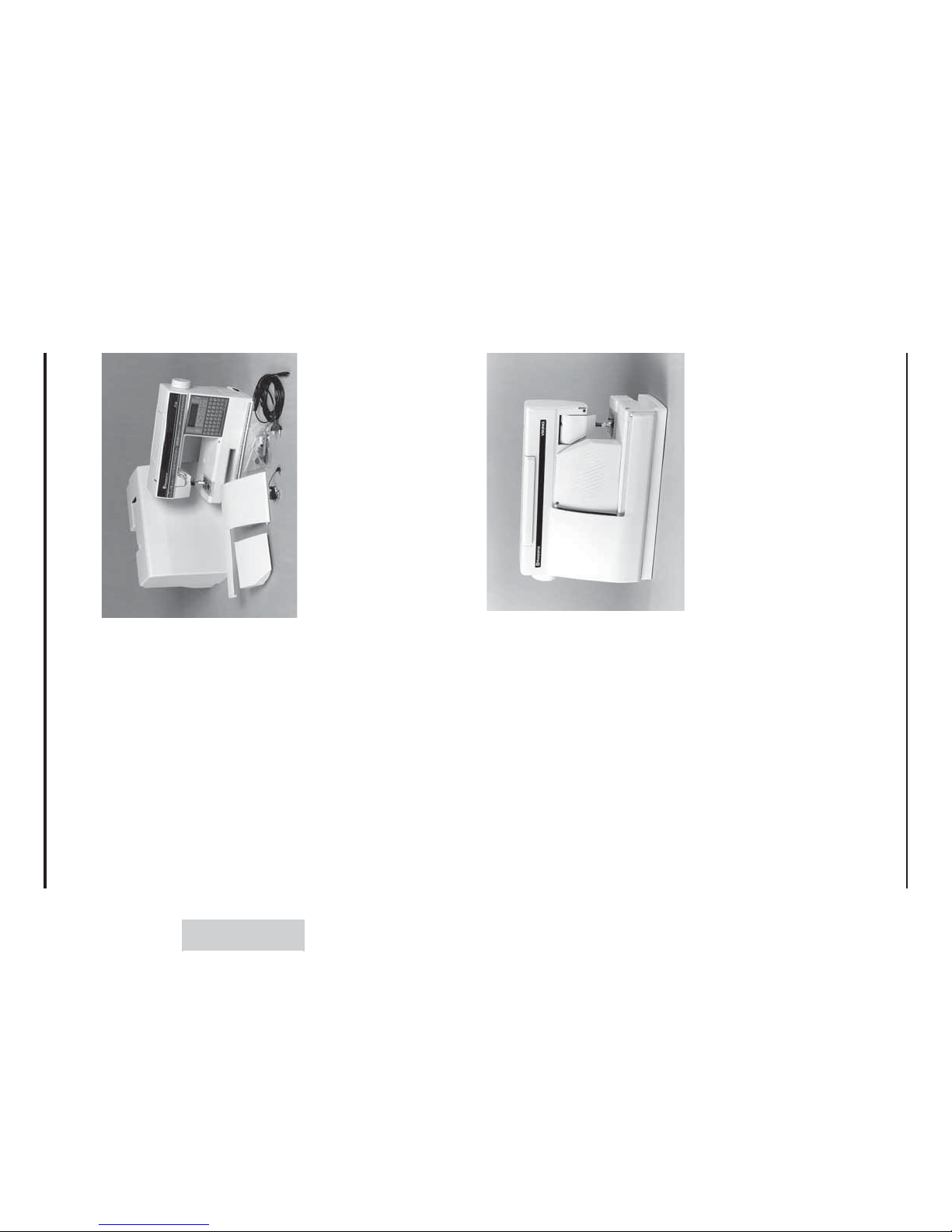

1. Place the machine on the table

or cabinet, remove the packaging

and lift off the cover.

2. Remove the side parts of the

packing material, the extension

table, the foot control and ﬁnally

the protection cover.

3. The machine is delivered with an

accessory bag, a main cord and a

foot control cord.

4. Wipe the machine, particularly

around the needle and needle

plate to remove any soil before

sewing.

Unpacking

Make sure the extension table is ﬁt-

ted into the right part of the acces-

sory tray and fold the table toward

the machine. Fold down the handle

and replace the cover.

Procedures

1. Unplug the cords from the wall

socket and the machine.

2. Wind the cords around your hand

and place the foot control cord

in the foot control storage space

and the main cord in the pocket

of the cover. There is also space

provided for the instruction book.

3. Check to ensure that all acces-

sories are in the accessory tray.

Slide it onto the machine behind

the free arm.

4. Lower the presser foot.

5. Place the foot control, underside

toward you, on the accessory

tray at the back of the machine,

where also the extension table is

placed.

Packing away after sewing

7Instruction book Lily 555/545

Connecting the foot control

Among the accessories you will ﬁnd

the foot control cord and the main

cord.

1. Place the foot control on its nar-

row side. Fit the plug into the

socket inside the foot control

compartment.

2. Push it ﬁrmly to make sure it is

properly connected. This opera-

tion is only necessary the very

ﬁrst time you are going to use the

machine.

3. To correctly turn away the cord,

place it into the slot, see picture.

Note: Before plugging in, check to

ensure that the foot control is of

"type FR2".

312

1. Connect the foot control cord to

the ﬁrst socket on the bottom

right side of the machine.

2. Connect the main cord to the

back socket on the bottom right

side of the machine.

3. When you press the power

switch, both the machine and the

light are switched on.

Procedures

Connecting to the power supply

On the underside of the machine you will ﬁnd information about the power

supply (V) and the frequency (Hz). Check the power supply setting in the

machine to ensure that this agrees with the main supply before you connect

the machine.

For the USA and Canada

This Sewing Machine has a polarized plug (one blade wider than the other). To

reduce the risk of electric shock, this plug is intended to ﬁt in a polarized outlet only

one way. If the plug does not ﬁt fully in the outlet, reverse the plug. If it still does

not ﬁt, contact a qualiﬁed electrician to install the proper outlet. Do not modify the

plug in any way.

8 Instruction book Lily 555/545

Accessory box

1. Open the Accessory box by pla-

cing your ﬁnger in the space on

the top and lift upward.

2. In the Accessory box there is a

special tray for presser feet and

bobbins plus space for other ac-

cessories.

3. Store the presser feet and the

bobbins in the tray from the be-

ginning so they are always easily

accessible (refer to the ﬁgure).

Extended sewing surface

Procedures

1. Keep the Accessory Tray on the

machine to provide a larger ﬂat

work surface.

2. Slide the Accessory Tray to the

left when you wish to remove it

and use the free arm.

3. To facilitate sewing trouser legs

and sleeve hems use the free arm.

4. To replace the Accessory Tray,

slide it tight onto the machine.

5. The extension table provides an

even larger work surface. To at-

tach the extension table, place the

rear, right corner to the Accessory

Tray and the front, right hook

onto the recess on the free arm.

6. To remove it, push slightly in the

direction of the arrow at the front

right corner, then lift the hook out

of the free arm.

9Instruction book Lily 555/545

Spool pin

The machine has spool pins suitable

for all types of thread. The main

spool pin (a) is horizontal - the

thread reels off the stationary spool.

Place the spool so that the thread

reels counter-clockwise.

There are two spool holders on

the spool pin. With narrow thread

spools, the small holder (b) is pla-

ced in front of the thread. If you use

large thread spools, the large holder

Slide the correct size spool holder

in place so the ﬂat side is pressed

ﬁrmly against the spool. No space

between spool holder and spool.

There is also a separate spool pin

(d) to be attached onto the machine.

The ﬁngers on the extra spool pin ﬁt

into the two holes to the right of the

ﬁxed spool pin. Push downward to

snap in place.

The large spool holder (c) is placed

under the thread. This spool pin is

used when winding a bobbin from

a second spool of thread or for a

second spool when sewing with a

twin needle.

Procedures

abc

10 Instruction book Lily 555/545

Threading the upper thread

Make sure the presser foot

is raised and the needle is

in the up position

1. Pull the spool pin out.

Place the thread on the

spool pin and the spool

holder on the spool pin

as described. Push the

spool pin back in.

2. Bring the thread in the

direction of the arrow

under the thread guide (a) and

over the thread guide (b).

3. Bring the thread down between

the thread tension discs.

4. Continue threading by drawing

the thread from the right into the

slot on the take-up lever.

5. Thread last guide just above

needle.

6. The needle is threaded from front

to back. The white on the press-

ser foot ankle makes it easy to

see the eye of the needle.

Procedures

7. Place thread under the presser

foot and into the thread knife

where it is cut.

Autres manuels pour 545 TrioBrake

Ce manuel convient aux modèles suivants

Autres manuels Husqvarna Machine à coudre

Husqvarna

Husqvarna Viking 3600 Manuel utilisateur

Husqvarna

Husqvarna ZIGZAG 1030 Manuel utilisateur

Husqvarna

Husqvarna HUSKYLOCK 400 Manuel utilisateur

Husqvarna

Husqvarna Viking 990 Manuel utilisateur

Husqvarna

Husqvarna VIKING Designer Jade 20 Manuel utilisateur

Husqvarna

Husqvarna VIKING Amber Air S 600 Manuel utilisateur

Husqvarna

Husqvarna Huskylock 90 Manuel utilisateur

Husqvarna

Husqvarna Viking Tribute 145C Manuel utilisateur

Husqvarna

Husqvarna 6030 Manuel utilisateur

Husqvarna

Husqvarna 555 Manuel utilisateur

Husqvarna

Husqvarna Viking Platinum Q 160 Manuel utilisateur

Husqvarna

Husqvarna Viking Amber Air S 400 Manuel utilisateur

Husqvarna

Husqvarna 3240 Guide de référence

Husqvarna

Husqvarna Quilt Designer II Manuel utilisateur

Husqvarna

Husqvarna Viking Designer Sapphire 85 Manuel utilisateur

Husqvarna

Husqvarna VIKING Onyx 15 Manuel utilisateur

Husqvarna

Husqvarna Viking Automatic 21 Manuel utilisateur

Husqvarna

Husqvarna Classica 90 Manuel utilisateur

Husqvarna

Husqvarna VIKING Lisa Manuel utilisateur

Husqvarna

Husqvarna HUSKYLOCK 900 Manuel utilisateur

Husqvarna

Husqvarna Eden Rose 250M LIMITED EDITION Manuel utilisateur

Husqvarna

Husqvarna Zig Zag Manuel utilisateur

Husqvarna

Husqvarna V. S. Manuel

Husqvarna

Husqvarna Platinum 730 Manuel utilisateur

Manuels Machine à coudre populaires d'autres marques

Riccar

Riccar RL634DE Manuel utilisateur

Singer

Singer 2517 Manuel utilisateur

Pfaff

Pfaff 3307-1 SERIES Manuel utilisateur

Janome

Janome Quilt Maker Pro 18 VERSA Manuel utilisateur

Siruba

Siruba C007JP Manuel utilisateur

Husqvarna Viking

Husqvarna Viking Designer SE Manuel utilisateur

Singer

Singer 148-5 Manuel utilisateur

IKEA

IKEA SY Manuel utilisateur

Pfaff

Pfaff 571 Manuel utilisateur

Singer

Singer 15-91 Manuel utilisateur

Brother

Brother BB370 Manuel utilisateur

Pegasus

Pegasus WT100 Series Manuel utilisateur

Reliable

Reliable 7100DB Manuel utilisateur

Pfaff

Pfaff 937 Manuel utilisateur

Singer

Singer 6038 Manuel utilisateur

Singer

Singer 413K Manuel utilisateur

Pfaff

Pfaff 1471 E1 Manuel utilisateur

Kenmore

Kenmore 16677 - Serger Sewing Machine Manuel utilisateur
