Page 1 Hitch Mount Mud Flap INS_R1

Hitch Mount Mud Flap

Installation Instructions

PACKAGE CONTENTS:

Hitch Mount Mud Flap

Driver’s Side (1)

Hitch Mount Mud Flap

Passenger’s Side (1)

RECOMMENDED INSTALLATION TOOLS :

• Allen Wrench’s

• 9/16” Combination Wrench

VEHICLE PREPARATION:

Your vehicle’s mounting area should be

cleaned prior to the installation of your

new Husky Hitch Mount Mud Flap.

Installation

Read all directions thoroughly prior to the

installation of your Hitch Mount Mud Flaps.

1. Layout the center section and the driver &

passenger side mudaps on a at surface.

2. Assemble the center section to the driver &

passenger side mudaps using the button

head bolts.

1 - Drivers Side Hitch Mount Mud Flap

1 - Passengers Side Hitch Mount Mud Flap

1 - Center Section with Mount

8 - Button Head Bolts

Center Section (1)

Page 2 Hitch Mount Mud Flap INS_R1

3. Install drop hitch through the Mud Flap cen-

ter section mounting plate. Insert drop hitch

into the vehicles reciever hitch and install a

hitch pin with clip.

4. Once installed, position the Hitch Mount Mud

Flap the desired distance from the bumper

and tighten the mounting ange tension bolt

and lock nut to secure.

5. If the Hitch Mount Mud aps need to be

shortened for the ride height of your vehicle,

remove the 4-SS bolts and nylock nuts that

hold the ap to the mounting tube. Cut of de-

sired length from the top of the ap. Use the

cut o portion of the ap as a guide to re-drill

the mounting holes for the ap. Re-install the

ap to the mounting tube with the SS bolts

and nylock nuts.

6. You have now successfully installed your

Husky Liners Hitch Mount Mud Flap.

Page 3 Hitch Mount Mud Flap INS_R1

HUSKY LINERS HITCH MOUNT MUD FLAP LIMITED LIFETIME

WARRANTY

WINFIELD CONSUMER PRODUCTS WARRANTS YOUR HUSKY LINERS HITCH MOUNT MUD FLAP WITH A LIMITED

LIFETIME WARRANTY TO THE ORIGINAL PURCHASER. IF YOUR FINISHED PRODUCT IS FOUND DEFECTIVE, WINFIELD

CONSUMER PRODUCTS WILL AUTHORIZE THE REPLACEMENT OF YOUR PRODUCT AT NO CHARGE TO THE ORIGINAL

PURCHASER. THIS WARRANTY COVERS PRODUCT REPLACEMENT ONLY. WINFIELD CONSUMER PRODUCTS WILL NOT

PROVIDE A MONETARY REFUND FOR THE PRICE OF THE PRODUCT OR CHARGES INCURRED DURING INSTALLATION.

THIS WARRANTY IS NOT TRANSFERABLE. WINFIELD CONSUMER PRODUCTS ASSUMES NO LIABILITY FOR PRODUCT

FAILURE DUE TO ACCIDENT, COLLISION, NEGLIGENCE, VANDALISM OR ABUSE.

THERE IS NO WARRANTY OF MERCHANTABILITY AND NO WARRANTY THAT THE PRODUCT SHALL BE FIT FOR ANY PARTICU-

LAR PURPOSE OR USE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY HAVE OTHER RIGHTS WHICH

VARY FROM JURISDICTION.

THIS PRODUCT IS TO BE USED IN COMPLIANCE WITH ALL APPLICABLE STATE OR PROVINCIAL LAWS. INSTALLATION OF

THIS PRODUCT IN A MANNER THAT VIOLATES STATE OR PROVINCIAL LAW IS A MISUSE OF THE PRODUCT AND VOIDS ALL

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY. WINFIELD

CONSUMER PRODUCTS SHALL NOT BE LIABLE IN ANY MANNER WHATSOEVER FOR DAMAGES RELATED TO THE USE OF

THIS PRODUCT IN AN ILLEGAL MANNER.

FOR WARRANTY SERVICE CONTACT YOUR HUSKY LINERS DEALER OR CALL WINFIELD CONSUMER

PRODUCTS AT 800 3448759.

Congratulations,

You have now successfully installed

your new Husky Liners Hitch Mount

Mud Flap. If you have any questions

please call us at 1-800-344-8759.

Table des matières

Autres manuels HUSKY LINERS Accessoires automobiles

HUSKY LINERS

HUSKY LINERS X-act Contour 53111 Manuel

HUSKY LINERS

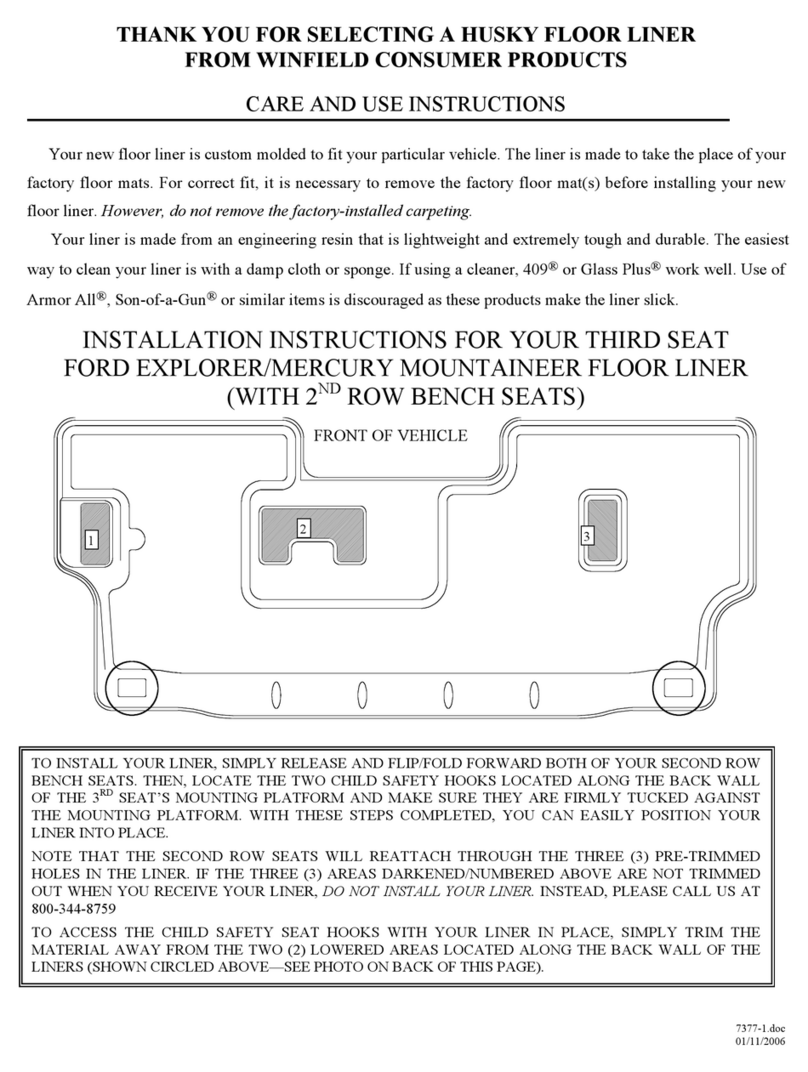

HUSKY LINERS 7377 Manuel
