HunterDouglas PowerView Manuel utilisateur

PowerView® reference guide

Installing a hub

6.1 Connect the Hub to your home network router

6.2 Connect the Hub to your power outlet

6.3 Check the range of the Hub

Your Hub should be able to reach each shade in the

house.

Use your remote from the same location as your Hub

to operate your shades. If some shades do not

respond, add or relocate a repeater and check again.

MANUAL

Page 1 of 22 version: 1.3

Resetting a repeater

Add a repeater using the Remote

Installation of a repeater is necessary when your shade isn't responding to a command from your remote control.

IMPORTANT: Put the repeater at a strategic location. Preferably halfway between the unresponsive shade and the

remote control location. Look here] for more info.

6.4 Wait approximately 2 minutes and observe the Hub

light.

•Blue/Red blinking : All ok. Proceed with the

installation.

•Red blinking : Hub is downloading updates.

Please wait. (approx. 5 mins.)

•Continuous blue : Hub is already connected to a

network. If you have previously setup your hub

you can continue. If not you can clear the data on

the hub. Goto Erase hub data in the Additional

actions chapter.

Locate the following button on your repeater:

1. Press the repeater button for approx 6 seconds

until the green light starts to light up. Your repeater is

now reset.

MANUAL

Page 2 of 22 version: 1.3

This instruction will make use of the following buttons

on the Remote:

Find the following button/light on the repeater.

5.1 Assemble the repeater kit and plug it in an

outlet

(The

repeater light

illuminates green )

5.2 Press stop for 6 seconds.

(Keep pressing until the remote lights start blinking.)

5.3 Hold the remote within 20cm. from the repeater.

MANUAL

Page 3 of 22 version: 1.3

Add a repeater using the App

Repeater location

The range of any indoor wireless device is always dicult to determine. Factors like used building materials and presence

of other wireless devices can have a big (negative) impact on wireless range. To improve the range of the PowerView®

network repeaters can be used.

A repeater picks up any incoming wireless PowerView® signal and transmits it again at full power increasing the range

of the signal being sent.

In practice nding the ideal location of a repeater is a bit of trial and error. But the below rules of thumb can be a good

help:

• Preferably don't use more than 6 repeaters.

5.4 Press stop .

(The

repeater light

will turn off. The repeater is

now part of your personal PowerView® Network.)

1. Make sure your repeater is reset

2. Open the app. Select blinds and discover shades .

3. The repeater light should start blinking and nally end with the led switched off.

MANUAL

Page 4 of 22 version: 1.3

• Ideally locate your repeater halfway between your hub/remote and the blind.

• The repeater should be in range of both hub/remote and blind. If required place a second repeater. Look here

to check

whether a repeater is part of the PowerView® network and picking up a signal.

• There should be just enough overlap (see yellow parts in the image) in range between hub/remote and repeater:

• Too much overlap will make the signals of hub, remote and repeater interfere and range extension is not optimal.

• Too little or no overlap means the signal is not being received by the repeater.

In the image above the red blind is receiving a hub signal being repeated by the rst repeater. The green blind is

receiving a hub signal being repeated by the second repeater, which was being repeated by the rst repeater.

Check whether a repeater is part of the PowerView® network

Pairing and Duplicating a remote

Out of the box each remote creates its own PowerView® network. In most cases however your remotes need to be on the

same "network".

Pairing remotes will be necessary. Consider the following scenario:

Out of the box you have two remotes. As soon as you add your shade to remote 1 they belong to the same

PowerView® network and you can now control your blind with remote 1 . As soon as you add your blind to remote 2

your shade moves to the network of remote 2 . You can control the shade with remote 2 , but not anymore with

remote 1 . Pairing remotes rst would have solved this issue. Both remotes are part of the same PowerView®

network. Both remote 1 and remote 2 would have functioned.

Duplicating a remote not only pairs the remotes to the same network, it also copies all group information from your

source / old remote to the new remote. A duplicate remote will function exactly in the same way as your source remote.

Locate the following button on your repeater:

1. Make sure you have a working remote.

2. Control a blind by selecting a group and sending an

open or close command.

See also here

3. The repeater button/light should start blinking.

MANUAL

Page 5 of 22 version: 1.3

Pairing a remote

Take two remotes. Name them

original , target and follow the instructions below.

Procedure

Locate the following buttons on your remote:

1. target Remove the back cover.

(keep the batteries in place)

MANUAL

Page 6 of 22 version: 1.3

Duplicating a remote

Take two remotes. Name them

original , target and follow the instructions below.

2. target: Press the reset button for six seconds.

(The group buttons will ash on the press of the Reset

button, then again at 6 seconds)

3. target: Close the back cover.

4. original: Press the stop button for 6 seconds.

(Keep pressing until the remote lights start blinking)

5. target: Press and hold the stop button.

6. original: Press and release the stop button.

(As conrmation

target

will ash the group buttons)

7. target: Release the stop button.

8. If original is still ashing Press and hold the 

stop button for 6 seconds.

(Keep pressing until the ashing stops)

MANUAL

Page 7 of 22 version: 1.3

Locate the following buttons on both remotes:

1. target: Remove the back cover.

(keep batteries in place)

2. target: Press the reset button for 6 seconds.

(The group buttons will ash on the press of the Reset

button, then again at 6 seconds)

3. target: Close the back cover.

MANUAL

Page 8 of 22 version: 1.3

Pairing a remote to an existing Hub network

You have created a PowerView® network with shades and a hub and now want to add a remote. Another scenario could

be you want to add a newly purchased remote to the network.

4. original: Press and hold the stop for 6

seconds.

(Keep pressing until the remote lights start blinking)

5. target: Press and hold the all button.

6. original: Press and release the stop button.

(The Group numbers on the target remote will ash 2x)

7. target: Release the all button.

8. If the original is still ashing Press and hold the 

stop button for 6 seconds.

(Keep pressing until the ashing stops)

Locate the Pbutton on the back of the hub:

Locate the the stop button on the remote you want to pair.

MANUAL

Page 9 of 22 version: 1.3

1. Remote 2: Remove the back cover.

(keep the batteries in place)

2. Remote 2: Press the reset button for 6 seconds.

(The group buttons will ash on the press of the Reset

button, then again at 6 seconds)

3. Remote 2: Close the back cover.

4. Press and hold the Pbutton.

5. Press and hold the stop button.

7. Release both Pand stop buttons.

(The group buttons will ash as conrmation.)

MANUAL

Page 10 of 22 version: 1.3

Autres manuels pour PowerView

Table des matières

Autres manuels HunterDouglas Changer

HunterDouglas

HunterDouglas PowerView Hub 2.0 Manuel utilisateur

HunterDouglas

HunterDouglas Powerview Gen 2 Manuel utilisateur

HunterDouglas

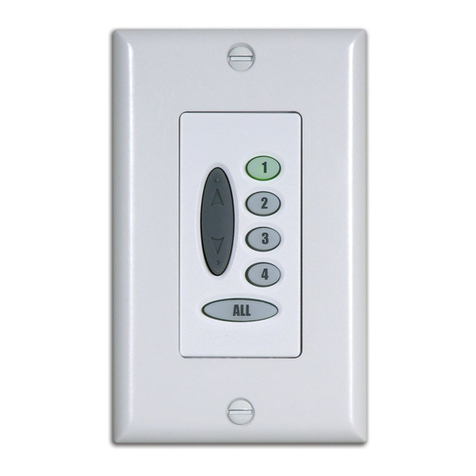

HunterDouglas Platinum Technology Manuel utilisateur
