Hunter 28110 Manuel utilisateur

41467-01 8/14/2001

Installation and Operation Manual

For Hunter Ceiling Fans

41467-01 8/14/2001

All manuals and user guides at all-guides.com

all-guides.com

241467-01 8/14/2001

All manuals and user guides at all-guides.com

41467-01 8/14/2001

CONGRATULATIONS!

Your new Hunter ceiling fan is an

addition to your home or office that

will provide comfort and perfor-

mance for many years. This manual

gives you complete instructions for

installing and operating your fan.

We are proud of our work. We ap-

preciate the opportunity to supply

you with the best ceiling fan avail-

able anywhere in the world.

Before installing your fan, record the

following information for your

records and warranty assistance.

lease refer to the carton and the

Hunter nameplate (located on top

outside fan motor housing) for the

proper information.

8/14/2001

Model Name ___________________

Catalog No. ____________________

Serial No. ______________________

Date urchased _________________

Where urchased _______________

lease attach your arts Guide to this

manual for future reference.

Attach Your Receipt

or a Copy of

Your Receipt Here

All manuals and user guides at all-guides.com

441467-01 8/14/2001

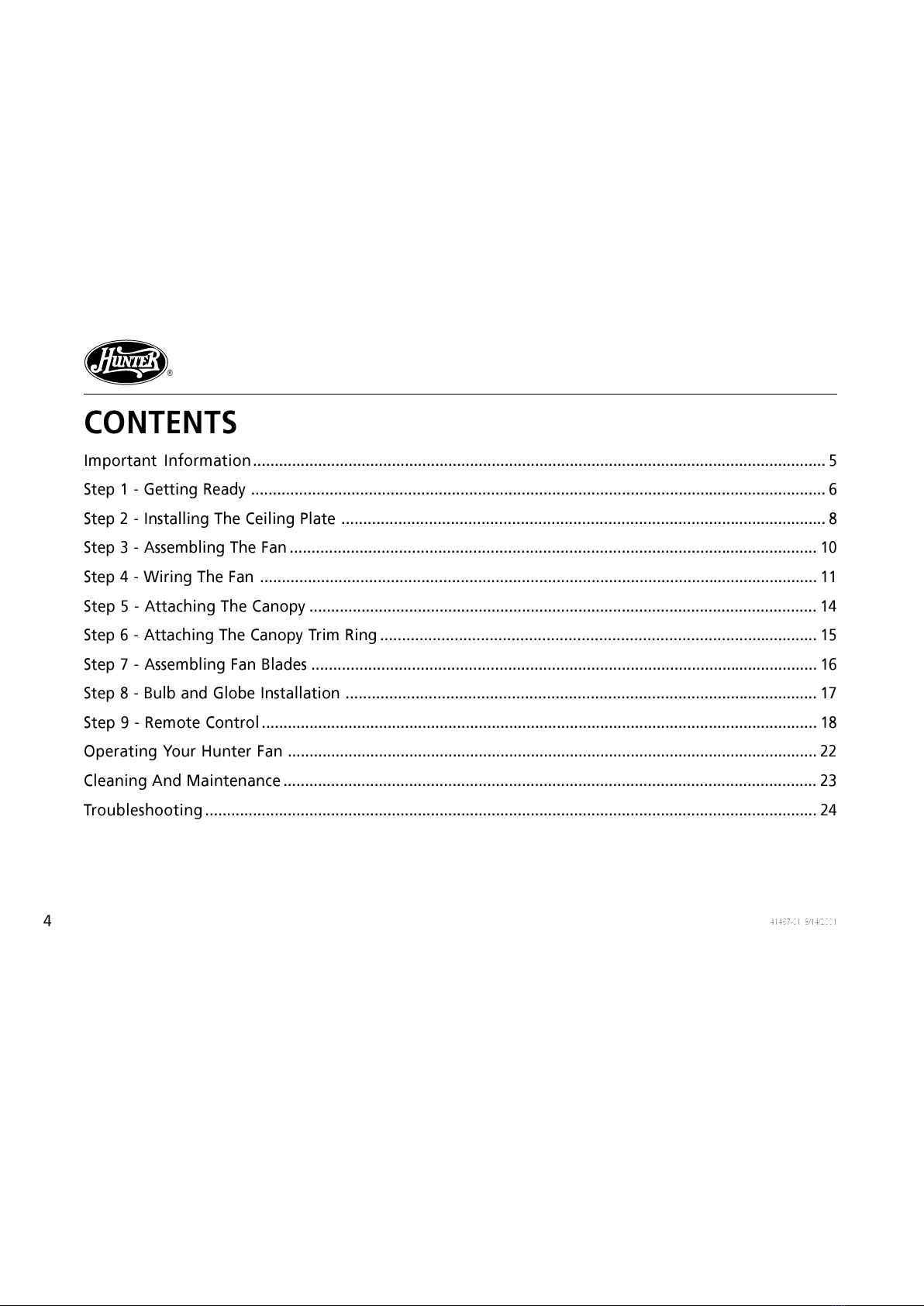

CONTENTS

Important Information.................................................................................................................................... 5

Step 1 - Getting Rea y .................................................................................................................................... 6

Step 2 - Installing The Ceiling Plate ............................................................................................................... 8

Step 3 - Assembling The Fan ......................................................................................................................... 10

Step 4 - Wiring The Fan ................................................................................................................................ 11

Step 5 - Attaching The Canopy ..................................................................................................................... 14

Step 6 - Attaching The Canopy Trim Ring .................................................................................................... 15

Step 7 - Assembling Fan Bla es .................................................................................................................... 16

Step 8 - Bulb an Globe Installation ............................................................................................................ 17

Step 9 - Remote Control................................................................................................................................18

Operating Your Hunter Fan .......................................................................................................................... 22

Cleaning An Maintenance ........................................................................................................................... 23

Troubleshooting ............................................................................................................................................. 24

All manuals and user guides at all-guides.com

41467-01 8/14/2001

IMPORTANT INFORMATION

not lock the circuit break-

ers in the off position, se-

curely fasten a prominent

warning device, such as a

tag, to the service panel.

• All wiring must be in accor-

dance with national and lo-

cal electrical codes and

ANSI NFPA 70. If you are

unfamiliar with wiring, you

should use a qualified elec-

trician.

• To reduce the risk of per-

sonal injury, do not bend

the blade attachment sys-

tem when installing, bal-

ancing, or cleaning the fan.

Never insert foreign objects

between rotating fan

blades.

DO YOU NEED HELP?

To install a ceiling fan, be sure you

can do the following:

• Locate ceiling joist or other suit-

able support in ceiling.

• Drill holes for and install wood

screws.

• Identify and connect electrical

wires.

• Lift 40 pounds.

If you need help installing the fan,

your Hunter fan dealer can direct you

to a licensed installer or electrician.

• To reduce the risk of fire,

electrical shock, or motor

damage, do not use a solid-

state speed control with

this fan. Use only Hunter

speed controls.

WARNINGS

• To avoid possible electrical

shock, before installing

your fan, disconnect the

power by turning off the

circuit breakers to the out-

let box and associated wall

switch location. If you can-

CAUTIONS

• Read entire booklet care-

fully before beginning in-

stallation and save these

instructions.

• To reduce the risk of per-

sonal injury, attach the fan

directly to the support

structure of the building ac-

cording to these instruc-

tions, and use only the

hardware supplied.

All manuals and user guides at all-guides.com

641467-01 8/14/2001

GATHERING THE TOOLS

You will need the following tools for

installing the fan:

• Electric drill with 9/64" bit

• Standard screwdriver

• hillips-head screwdriver

• Wrench or pliers

STEP 1 - GETTING READY

PREPARING THE FAN SITE

The location of a ceiling fan and

how the fan is attached to the build-

ing structure are essential for reli-

able operation, maximum effi-

ciency, and energy savings. For this

reason, we have included a sepa-

rate booklet — “Guide to Choos-

ing and reparing a Ceiling Fan

Site” — to help you select the best

location for your fan. The booklet

also provides information to ensure

your fan support and electric out-

let box meet UL-approved safety

codes for ceiling fans.

The instructions in this installation

manual assume that you have used

“Guide to Choosing and reparing

a Ceiling Fan Site” to pick the fan

location and make certain the proper

fan support and outlet box are in-

stalled.

CHECKING YOUR FAN PARTS

Carefully unpack your fan to avoid

damage to the fan parts. Check for

any shipping damage to the motor

or fan blades. If one of the fan blades

was damaged in shipment, return all

the blades for replacement.

Hint: If you are installing more than

one fan, keep the fan blades

in sets, as they were shipped.

The fan includes a separate diagram

of the screws and other small parts

needed for the fan. Keep this dia-

gram handy for identifying parts dur-

ing installation; the diagram indicates

the step in which each part is used.

If any parts are missing or damaged,

contact your Hunter dealer or call

Hunter arts Department at

901-248-2222.

All manuals and user guides at all-guides.com

all-guides.com

41467-01 8/14/2001

FAN MOUNTING METHOD

You can install your Hunter fan in

one of two ways. The steps in this

manual include specific instructions

for the fan mounting method of

your choice. For a ceiling 8 feet or

higher, standard mounting is rec-

ommended.

Stan ar Mounting (Figure 1a)

hangs from the ceiling by a con-

nector pipe (included), for ceilings

8 feet or higher. For ceilings higher

than eight feet, you can purchase

Hunter extension rods. All Hunter

fans use sturdy 3/4" diameter pipe

to assure stability and wobble-free

performance.

Figure 1b - Angle Mounting

Figure 1a - Standard Mounting

12"

34°Max

Pitch

Angle Mounting (Figure 1b) hangs

from a vaulted or angled ceiling.

All manuals and user guides at all-guides.com

841467-01 8/14/2001

STEP 2 - INSTALLING THE CEILING PLATE

Figure 2a - Adding Isolators to

Ceiling Plate

Isolators

Ceiling

Plate

WARNING

• To avoid possible electrical

shock, before wiring fan,

disconnect power by turn-

ing off the circuit breakers

both to the outlet box and

to its associated wall switch

location. If you cannot lock

the circuit breakers in the

off position, securely fasten

a prominent warning de-

vice, such as a tag, to the

service panel.

• All wiring must be in accor-

dance with national and lo-

cal electrical codes and

ANSI NFPA 70. If you are

unfamiliar with wiring, you

should use a qualified elec-

trician.

For Angle Mounting Only: Be

sure to orient the ceiling plate so

that the two hooks point up to-

wards the ceiling peak as shown

in Figure 2b. Note: You will use

the hooks to support the fan dur-

ing STE 4 - WIRING THE FAN.

1. Drill two pilot holes into the wood

support structure through the

outermost holes on the outlet

box. The pilot holes should be

9/64" in diameter by 2 3/4" in

depth.

2. Thread the lead wires from the

outlet box through the hole in the

middle of the ceiling plate.

3. Your fan comes with two neo-

prene noise isolators. osition the

isolators between the ceiling plate

and ceiling by inserting the raised

areas on each isolator into the

holes in the ceiling plate. Refer to

Figure 2a.

4. Align the slotted holes in the ceil-

ing plate with the pilot holes in

the wood support structure.

Note: The isolation pads should

be flush against the ceiling.

All manuals and user guides at all-guides.com

41467-01 8/14/2001

Figure 2b - Correct Position of Ceiling

Plate for Angle Mounting

Ceiling Plate

Hooks

Figure 2c - Attaching Ceiling Plate to

2 x 4 Brace

Ceiling Joist

Ceiling

Outlet Box

Ceiling

Plate

Flat

Washer 3" Wood

Scre

5. lace a flat washer on each of the

two 3" screws and pass the

screws through the slotted holes

in the ceiling plate as shown in

Figure 2c.

6. Tighten the screws into the 9/64"

pilot holes; do not use lubricants

on the screws. Do not over-

tighten.

All manuals and user guides at all-guides.com

10 41467-01 8/14/2001

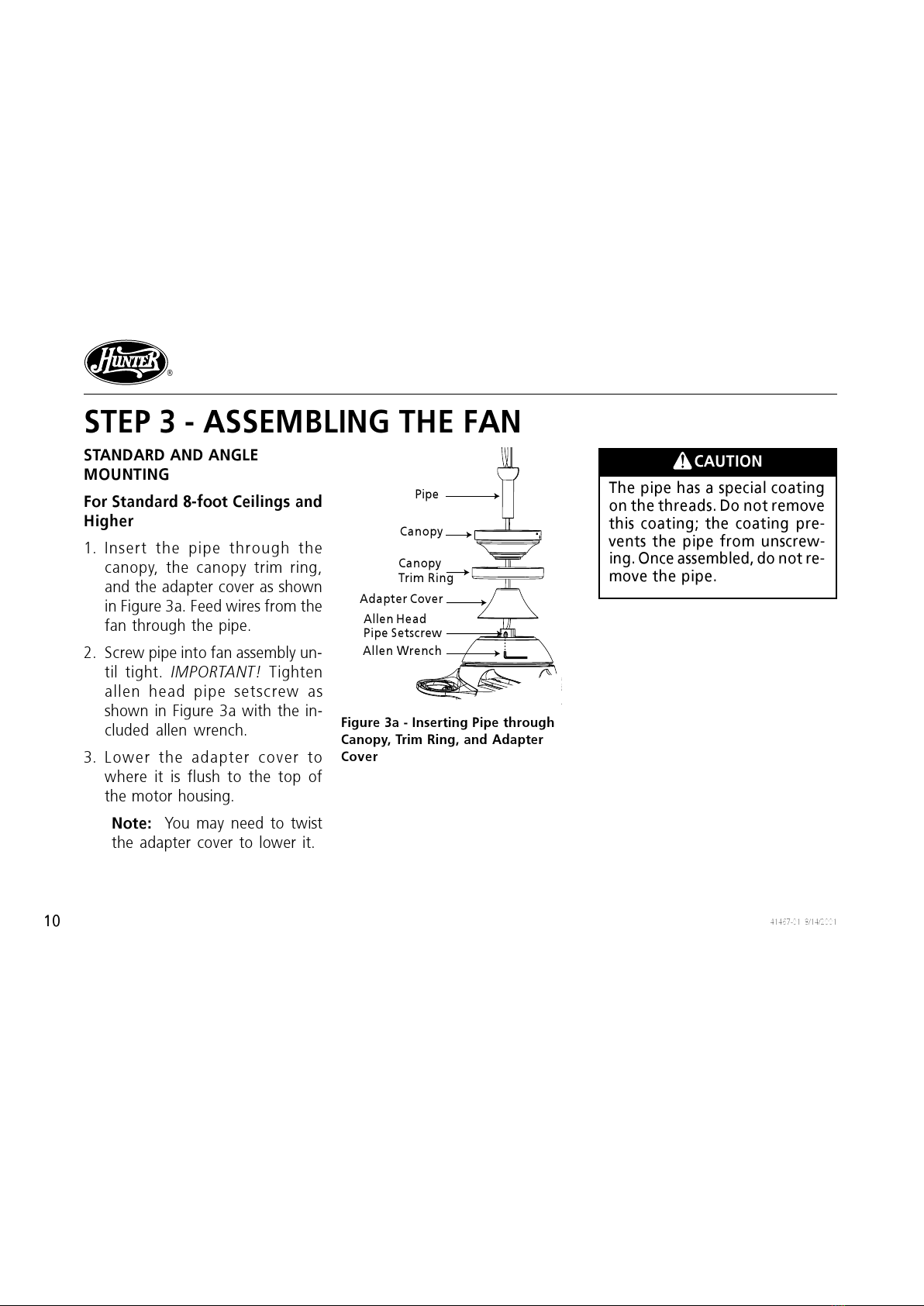

STEP 3 - ASSEMBLING THE FAN

CAUTION

The pipe has a special coating

on the threads. Do not remove

this coating; the coating pre-

vents the pipe from unscrew-

ing. Once assembled, do not re-

move the pipe.

STANDARD AND ANGLE

MOUNTING

For Standard 8-foot C ilings and

High r

1. Insert the pipe through the

canopy, the canopy trim ring,

and the adapter cover as shown

in Figure 3a. Feed wires from the

fan through the pipe.

2. Screw pipe into fan assembly un-

til tight. IMPORTANT! Tighten

allen head pipe setscrew as

shown in Figure 3a with the in-

cluded allen wrench.

3. Lower the adapter cover to

where it is flush to the top of

the motor housing.

Not : You may need to twist

the adapter cover to lower it.

Figure 3a - Inserting Pi e through

Cano y, Trim Ring, and Ada ter

Cover

Pipe

Canopy

Trim Ring

Allen Wrench

Adapter Cover

Allen Head

Pipe Setscre

All manuals and user guides at all-guides.com

Autres manuels pour 28110

Table des matières

Autres manuels Hunter Ventilateur

Hunter

Hunter MD520-01 Manuel utilisateur

Hunter

Hunter Type 3 Models Manuel utilisateur

Hunter

Hunter 23965 Manuel

Hunter

Hunter 53151 Manuel d'instructions

Hunter

Hunter Windspan 59012 Manuel d'instructions

Hunter

Hunter Dondra Manuel utilisateur

Hunter

Hunter Jetty Manuel utilisateur

Hunter

Hunter Acela 51674 Manuel utilisateur

Hunter

Hunter 28790 Mode d’emploi

Hunter

Hunter 48054 Manuel utilisateur

Hunter

Hunter 90437 Manuel utilisateur

Hunter

Hunter 42667-01 Manuel d'instructions

Hunter

Hunter 21187 Manuel utilisateur

Hunter

Hunter Ashbury 81001 Manuel utilisateur

Hunter

Hunter Hunter Ceiling Fan Manuel utilisateur

Hunter

Hunter 20552 Manuel d'instructions

Hunter

Hunter Dublin Manuel utilisateur

Hunter

Hunter 28028 Manuel

Hunter

Hunter 45037-01 Manuel d'instructions

Hunter

Hunter 40955-01 Manuel utilisateur

Hunter

Hunter 25746 Mode d’emploi

Hunter

Hunter 22375 Manuel utilisateur

Hunter

Hunter Pacer Manuel utilisateur

Hunter

Hunter 20531 Manuel d'instructions

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage

Litex Industries

Litex Industries E-CGL52CB5C1 Manuel utilisateur

Lindab

Lindab LTDF Manuel utilisateur
