Hunter Hunter Ceiling Fan Manuel utilisateur

www.HunterFan.com 1.888.830.1326

Congratulations on purchasing

your new Hunter® ceiling fan! It will

provide comfort and performance

in your home or ofce for many

years. This installation and operation

manual contains complete

instructions for installing and

operating your fan.

We are proud of our work and

appreciate the opportunity to

supply you with the best ceiling fan

available anywhere in the world.

To register your fan please visit:

www.HunterFan.com/register

30 inches

7 feet

PAGE

What to Expect with

Your Installation Ceiling Bracket

Ladder

PAGE

Tools Needed

PAGE

Hanging the Fan

PAGE

Motor Housing

Table of Contents

PAGE

Maintenance,

Operation & Cleaning TroubleshootingLight Kit

PAGE

Preparation

PAGE

Wiring

PAGE

Switch Housing

Blades

M0024-01 • 11/28/12 • © Hunter Fan Company

PAGE

www.HunterFan.com 1.888.830.1326

M0024-01 • 11/28/12 • © Hunter Fan Company

1.888.830.13261.888.830.1326

What to Expect with Your Installation

Know your wiring

If you are unfamiliar

with wiring, use a

qualied electrician.

You may need a

friend to help you.

Check box to see

fan weight

Assess location

30 inches

from blade tip

to nearest wall

or obstruction 7 feet

from bottom

edge of blade

to the oor

w.1 - To reduce the risk of re, electrical shock, or

personal injury, mount fan directly from building

structure and/or an outlet box marked acceptable for

fan support of 70 lbs (31.8 kg) and use the mounting

screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing

or servicing your fan, disconnect the power by turning

off the circuit breakers to the outlet box and associated

wall switch location. If you cannot lock the circuit

breakers in the off position, securely fasten a prominent

warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor

damage, use only Hunter Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the

blade brackets when installing the blade brackets, balancing

the blades, or cleaning the fan. Do not insert foreign objects

in between rotating fan blades.

c.1 - All wiring must be in accordance with national and

local electrical codes ANSI/NFPA 70. If you are unfamiliar

with wiring, use a qualied electrician.

c.2 - Use only Hunter replacement parts.

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

CAUTIONS

Must be able to

secure the fan to

building structure or

fan-rated outlet box

www.HunterFan.com 1.888.830.1326

Tools Needed

Ladder

Power Drill

(optional)

9/64” Drill Bit

(optional)

Screwdrivers

If mounting to a support structure, you will also need these tools.

M0024-01 • 11/28/12 • © Hunter Fan Company

1.888.830.1326

www.HunterFan.com

Ceiling Bracket

OFF

Refer to warning w.1 on pg. 2

To avoid possible electrical shock, before installing your fan,

disconnect the power by turning off the circuit breakers to the

outlet box associated with the wall switch location.

Turn Power

Use wood screws

(included) when securing

to support structure with

approved electrical outlet

box. Drill 9/64” pilot holes

in support structure to aid

in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

Make sure all four (4) bumpers are still attached.

Bumper

M0024-01 • 11/28/12 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326

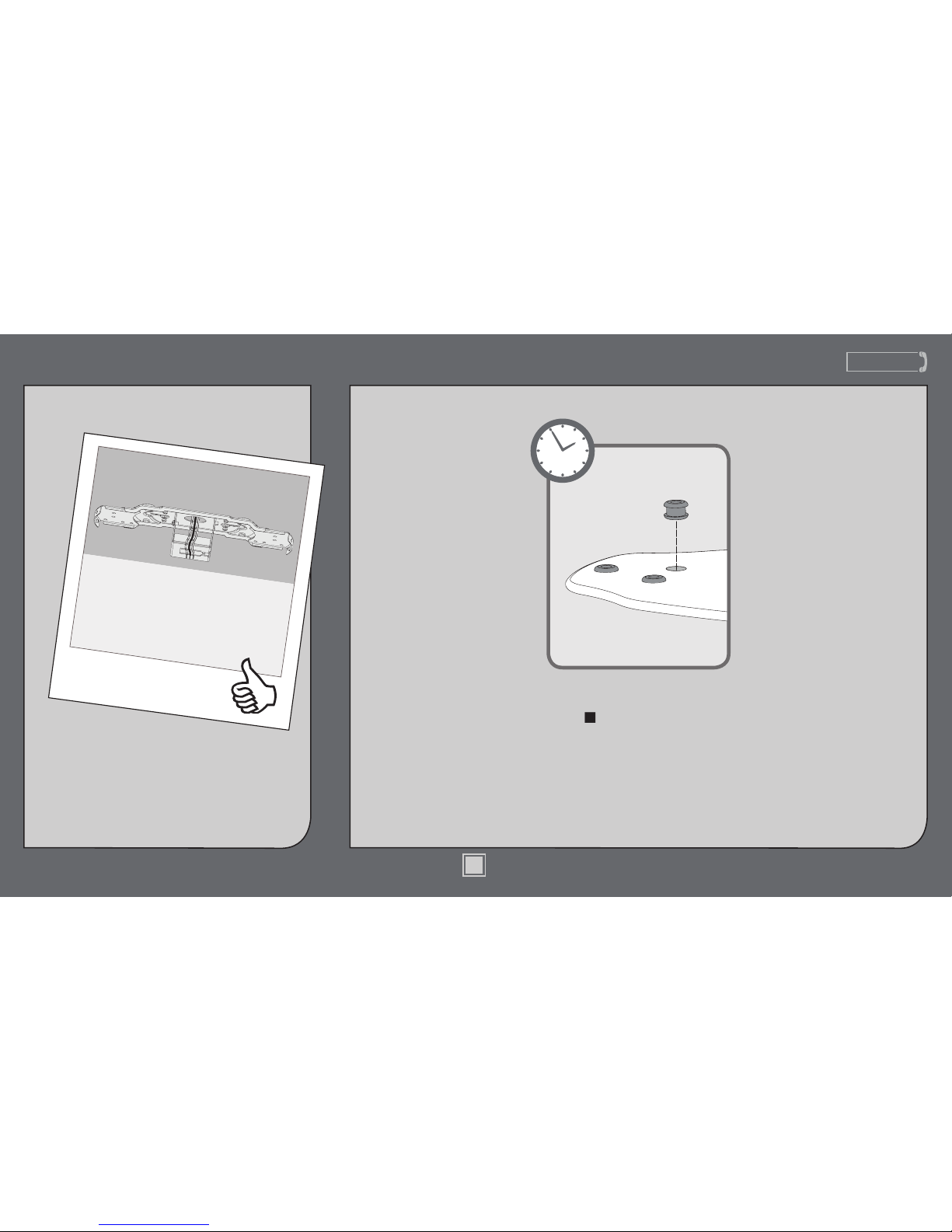

Ceiling Bracket (continued) Preparation 1.888.830.1326

www.HunterFan.com

Time Saver Tip: Get a helper

to insert grommets, found in

the hardware bag, into the

blades while you’re doing the

next couple of steps.

M0024-01 • 11/28/12 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326

M0024-01 • 11/28/12 • © Hunter Fan Company

Hanging the Fan

While holding the wires out of the way, lift

the motor assembly and place the square

hanger into the opening in the ceiling

bracket. Be sure the ground wire attached

to the hanger faces out of the large

opening in the ceiling bracket.

Ground

Wire

Note: Fan style may vary.

Locking

Screw

Once the motor is in the ceiling

bracket, use the two locking screws

found in the hardware bag to secure

the motor to the ceiling bracket.

Screw

Hole

www.HunterFan.com 1.888.830.1326

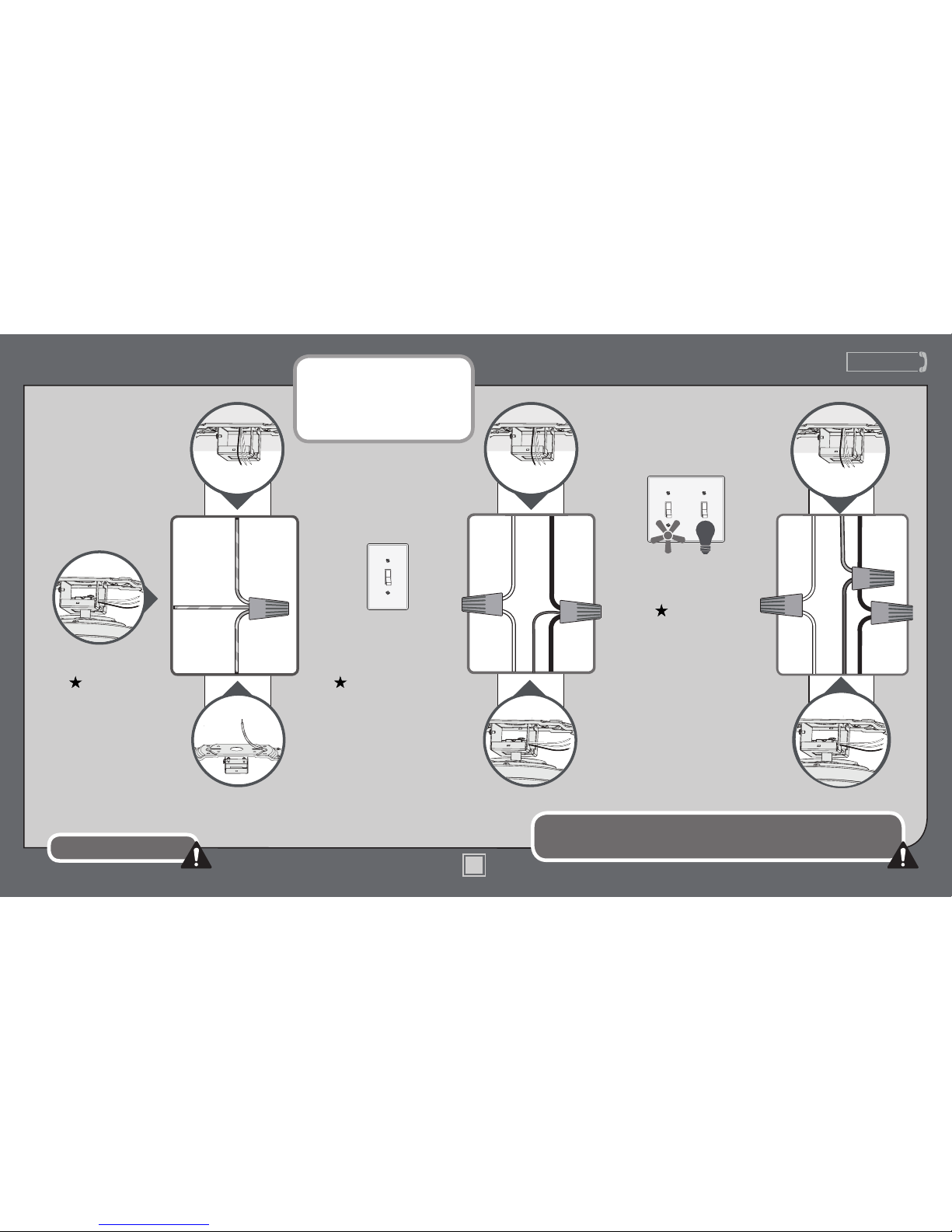

Wiring

Using an orange wire

connector from

the hardware bag,

connect the 3 grounding

wires (green, green/

yellow stripe, or bare

copper) coming from the

ceiling, downrod, and

hanging bracket.

(Grounding) Green/Yellow

Stripe

Green/Yellow

Stripe

White

Black

(Grounded)

Note: To connect the wires,

hold the bare metal leads

together and place a wire

connector over them, then twist

clockwise until tight.

Using the orange wire

connectors from

the hardware bag, connect

the black wire (ungrounded)

from the ceiling to the black

and the blue wires from the

fan. Connect the white wire

(grounded) from the ceiling to

the white wire from the fan.

Using orange wire

connectors from

the hardware bag,

connect the white wire

(grounded) from the

ceiling to the white wire

from the fan.

Connect the black wire

(ungrounded) from the

ceiling to the black wire

from the fan. Connect the

second (ungrounded) wire

from the ceiling to the blue

wire from the fan.

White

(Ungrounded)

Black

Blue

(Grounded)

(Ungrounded)

Blue

For Dual Switches

For a Single Switch

Turn the splices upward and push them carefully back through the hanger bracket

into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Refer to CAUTION c.1 on pg. 2

M0024-01 • 11/28/12 • © Hunter Fan Company

(Ungrounded)

www.HunterFan.com 1.888.830.1326

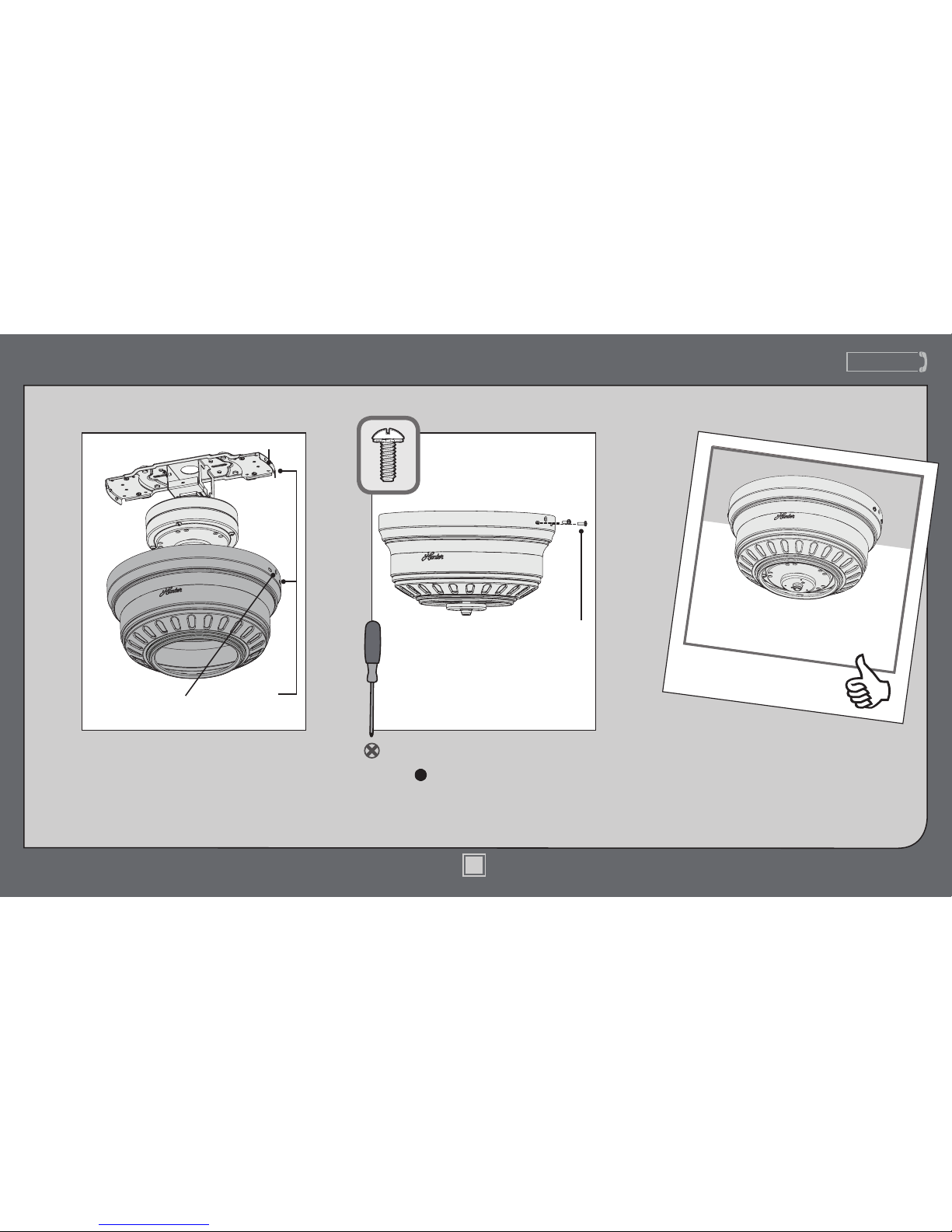

Motor Housing

With a Phillips head screwdriver, install

the four motor housing screws found

in the hardware bag. Tighten all four

screws securely.

Screw

Holes

Motor

Housing

Screw

Indentation

Notch

Raise the motor housing up over the motor

and ceiling bracket. Turn the motor housing

so the screw holes align and the indentation

in the housing locks into place with the notch

in the ceiling bracket. The motor housing is

not secured until the next step is complete.

Do not leave unattended.

M0024-01 • 11/28/12 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326

M0024-01 • 11/28/12 • © Hunter Fan Company

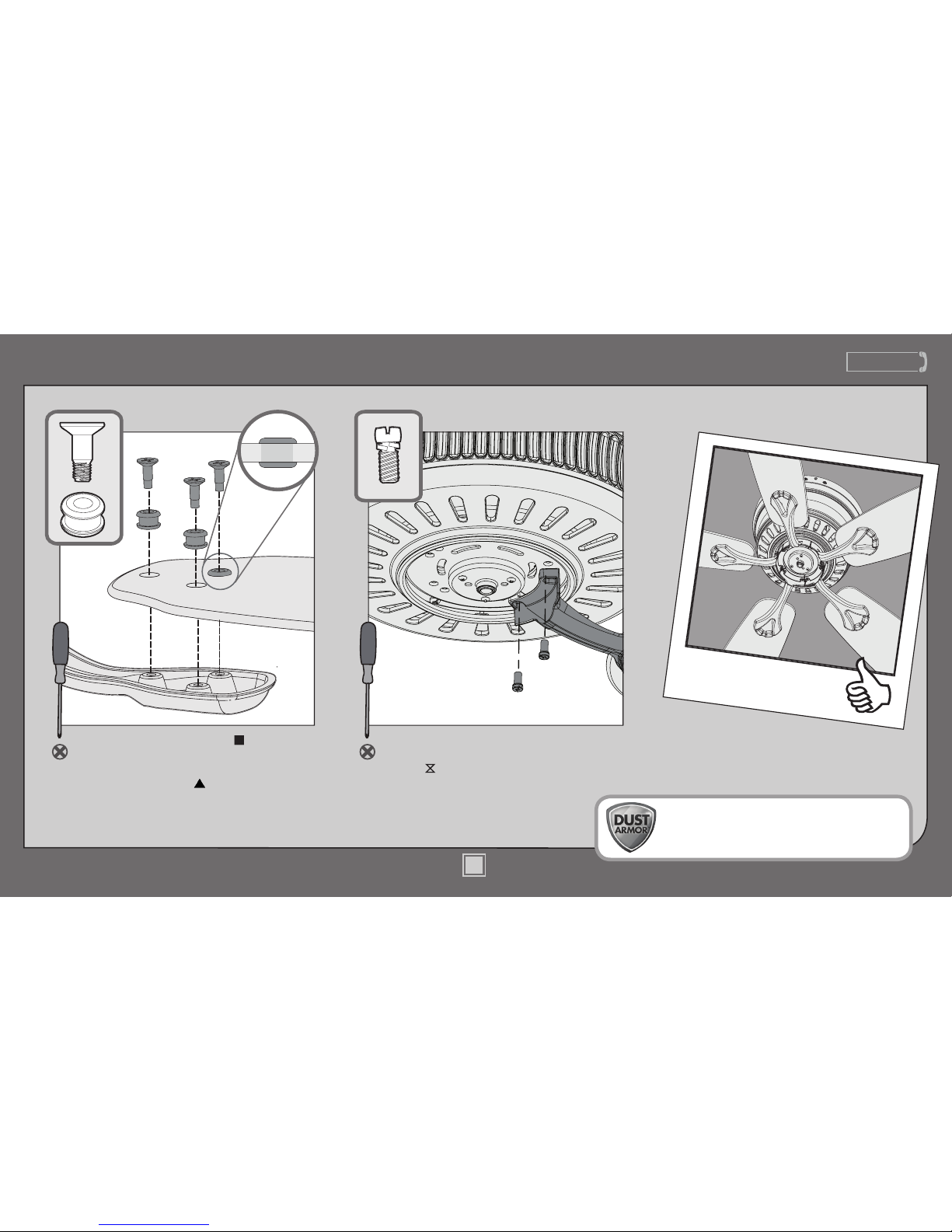

Blades

Insert grommets found in the hardware

bag into the holes in the blades, then

secure each blade to a blade iron with

screws found in the hardware bag.

Lightly attach the blade irons to the

motor with screws found in

the hardware bag, then securely

tighten after both screws are attached.

Your blades are shielded with Dust Armor® which

is a nanotechnology coating that repels dust. For

cleaning the fan, use soft brushes or cloths to prevent

scratching. Cleaning agents may damage the nishes.

www.HunterFan.com 1.888.830.1326

Feed the wire plug through the center

hole of the upper switch housing, then

wrap keyhole slots around the screws and

twist counterclockwise.

Screw two (2) housing assembly screws

from the hardware bag halfway into

the motor housing. It does not matter

which two screw holes you choose.

Insert the third screw, found in

the hardware bag, into place and then

tighten all three (3) screws.

Make sure the upper switch housing is securely

attached to the mounting plate. Failure to properly

secure all three assembly screws could result in the

switch housing xture falling.

Switch Housing

M0024-01 • 11/28/12 • © Hunter Fan Company
