Hunter Pacific Attitude Manuel utilisateur

Attitude

Installation Manual

POWER OUTLETS OR FIXED WIRING

MUST BE INSTALLED BY A LICENSED

ELECTRICIAN

National Wa anty Line

1300 360 280

Monday to Friday from 9am to 5pm EST

Only available within Australia

Hunter Pacific International Pty Ltd, Building 8, 256 New Line Road, Dural NSW 2 58 Australia

ABN : 8 063 52 666

TO PROTECT YOUR WARRANTY, PLEASE READ PAGE 2 OF THIS BOOKLET PRIOR

TO THE INSTALLATION OF THIS PRODUCT.

™

Attitude

Installation Manual

(a)

O NOT USE WALL CONTROLLERS. Other than a simple On/Off switch

(b)

The power outlet must provide an earth.

(c)

Mounting bracket must be firmly screwed to a solid structure such as a concrete ceiling,

steel structure or timber framing. If additional bracing is added it must be firmly secured to

the rafters and not left floating on the ceiling. Special mounts, such as T-hooks, are

available for certain types of installation.

(d)

After installation, fan blades must be at least 2.1 m (7 feet) above floor level.

(e)

The use of these products by children and the infirm must be under supervision.

IMPORTANT INFORMATION READ PRIOR TO INSTALLATION

1. Installer details and purchase receipts are essential for warranty claims and must be available

upon demand. A page towards the back of this manual has been allocated to allow you to record

these details.

2. Power outlets, switches and fixed wiring products must only be installed by persons who are ap-

propriately licensed by the applicable State regulatory body. Therefore, to protect our repair per-

sonnel, on-site warranty claims will not be accepted if power outlets or fixed wiring has been per-

formed by unlicensed persons.

amage caused by incorrect installation, force-majeure, electrical surges, lightning, power grid

fluctuations, water or by connection to stand alone alternative power supply sources (such as

non-grid solar inverters, etc.) is not eligible for warranty repair.

When products are installed in a location requiring special access equipment (such as

scaffolding or scissor lifts, etc) the cost of providing, installing and operating special access

equipment must be borne by the site owner.

Fo safety, and to p otect you wa anty, the following must be taken into account when

installing and ope ating the p oduct(s):

ATTENTION ELECTRICIANS:

This p oduct must be installed using an ON/OFF wall switch to aid in Cont ol Module

p og amming and t oubleshooting. If it is not possible to use a wall switch then the

Cont ol Module and Handsets must be checked befo e installation. To do so connect

the Cont ol Module to a standa d GPO and ve ify the Cont ol Module beeps when

buttons a e p essed on the hand piece. If not p og am the unit as pe page 17.

IF THERE ARE ANY PROBLEMS WITH THE PRODUCT AT TIME OF

INSTALLATION THE INSTALLER MUST CONTACT THE WARRANTY

HOT LINE NUMBER

1300 360 280

BEFORE LEAVING THE JOB

SITE. PLEASE DO NOT REMOVE THE FAN FROM THE CEILING

ONCE INSTALLED UNLESS INSTRUCTED TO DO SO.

Pa ts List -

ATTITUDE

Attitude

Installation Manual

1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or

optional special modules only. Contact Hunter Pacific International for details. Any modification or

attempt to directly wire the fan will void warranty unless those modifications are authorised.

Attitude

Installation Manual

IMPORTANT INFORMATION

The table below contains information that can help you quickly identify the product you are

installing. If you have any difficulties installing our product, we recommend you to call our warranty

line on 1300 360 280 for advice.

ATTITUDE Ceiling Fans 132cm (52”)

CODE FAN MODEL NAME COLOUR

A0160 ATTITUDE White Motor & Blades

A0161 ATTITUDE Matt Black Motor & Blades

A0162 ATTITUDE Brushed Aluminium Motor

& Brushed Silver Blades

A0163 ATTITUDE Pearl Ice Motor & Blades

A0164 ATTITUDE Black Ice Motor

& Black Ice UV coated Blades

A0165 ATTITUDE Silver Ice Motor

& Silver Ice UV coated Blades

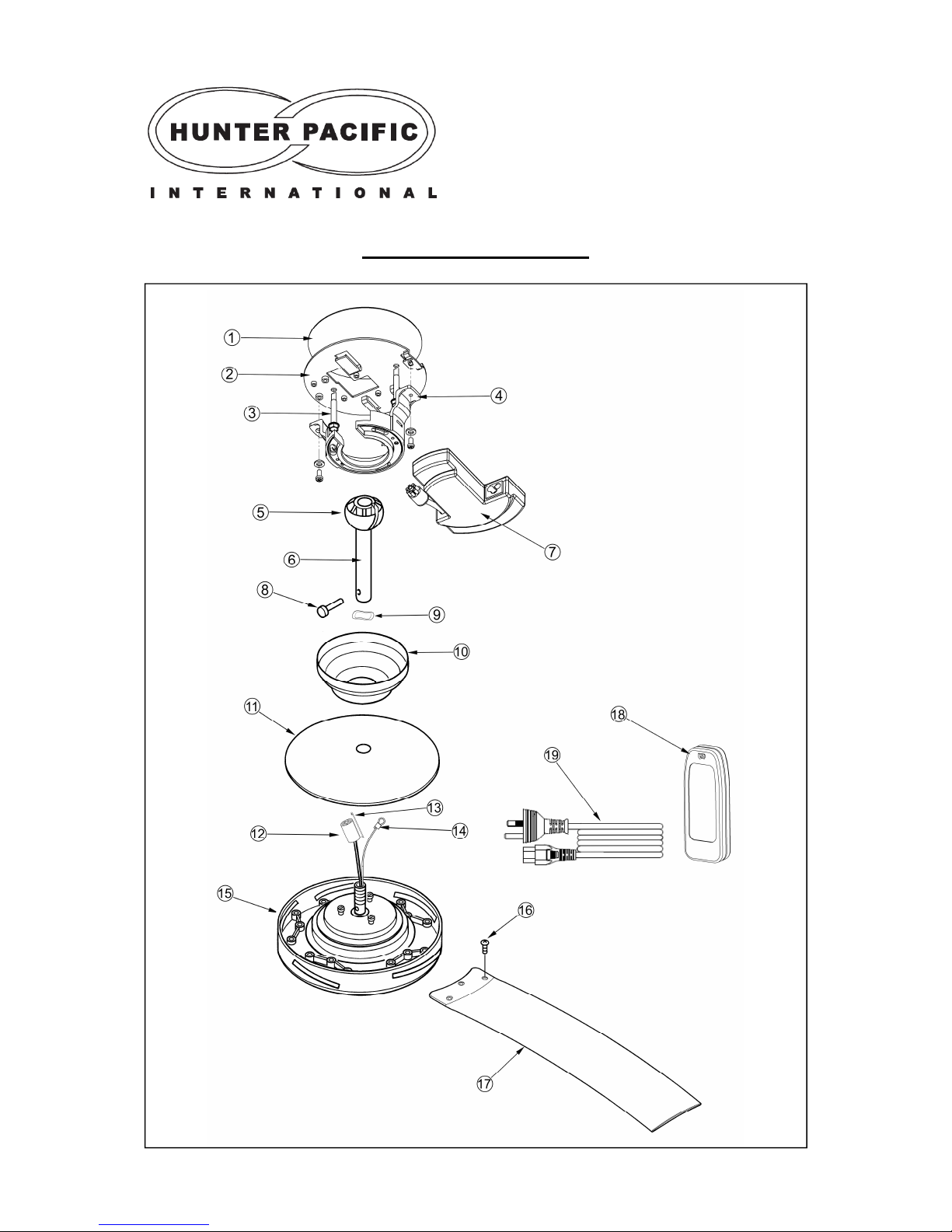

ATTITUDE Ceiling Fan Pa ts List

No. Pa t Quantity No. Pa t Quantity

1 Silicone pad 1 11 Motor Canopy 1

2 Plate 1 12 Motor Plug 1

3 Hex Head Screw 2 13 Motor Plug Clip 1

4 Hanger Bracket 1 14 Tether 1

5 Ball Joint 1 15 Motor Housing 1

6 own Rod (26mm iameter) 1 16 Blade Screws 15

7 Control Module 1 17 Blades 5

8 own Rod Pin 1 18 Handset 2

9 Wave washer 1 19 IEC C5 AU Specification 3

pin plug

10 Top Canopy 1

The contents inside an Attitude fan box are listed in the table below:

The following installation steps apply if you are installing the fan on a plasterboard ceiling

with access to the crawl space. If you are installing the fan on a concrete ceiling or access

to the roof space is limited please go to page 6. ALL FIXE WIRING WORK MUST BE

ONE BY A LICENSE ELECTRICAL WORKER.

1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or

optional special modules only. Contact Hunter Pacific International for details. Any modification or

attempt to directly wire the fan will void warranty unless those modifications are authorised.

Installation Inst uctions

(Installing the fan on a Plasterboard Ceiling)

Attitude

Installation Manual

Fig. 1

Hole for IEC C5 plug

Ceiling

Timber nogging

Ceiling

Plug

Power point (pre-installed

by licensed electrical

worker).

Fig. 2

Timber nogging

Hex Head

Screw

Plate

Ceiling

IEC C5 plug

Fig. 3

Silicone

Pad

Fig. 4

Ceiling

IEC C5 plug

Plate

Hex Head

Screw

STEP 1 (Fig. 1)

a) rill a minimum size hole of 25mm or 1-1/8” in or beside the timber nogging for the IEC C5 plug.

A timber nogging must be supported between two ceiling joists as shown in Figure 1.

STEP 2 (Fig. 2)

a) Install power point* in the roof space (*power point is for illustrative purposes. A standard 3 pin plug base can

also be used. Any power outlet must include earth and be installed by a licensed electrical worker.)

b) Insert plug into power point

STEP 3 (Fig. 3 & 4)

a) Pass the IEC C5 plug through the hole in the Plate

b) Place Plate on the ceiling and mark holes for the hex head screws.

c) rill a pilot hole into timber nogging for each screw.

d) Slit the Silicone pad with a utility knife to allow the IEC C5 to pass through.

e) Place Silicone Pad between Plate and Ceiling, secure Plate using the supplied Hex Head screws

DANGER: PLASTERBOARD CANNOT SUPPORT THE WEIGHT OF A CEILING FAN!

A SUPPORTING STRUCTURE MUST BE PLACED ABOVE THE CEILING.

Installation Inst uctions

(Installing the fan on a Concrete Ceiling or where access to roof space is limited)

Fig. 1

Attitude

Installation Manual

IEC C5

plug

The following installation steps apply if you are installing the fan on a concrete

ceiling or where access to crawl space is limited. (THIS TYPE OF HARDWIRED

POWER CONNECTION MUST ONLY BE DONE BY A LICENSED ELECTRICAL

WORKER)

Fig. 2

Wires from cord

1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or

optional special modules only. Contact Hunter Pacific International for details. Any modification or

attempt to directly wire the fan will void warranty unless those modifications are authorised.

Junction Box

Cover

Silicone Pad

Silicone Pad IEC C5 plug

Terminate

Wires

Ceiling

Approx. 200mm (8”)

STEP 1 (Figs 1, 2 & 3)

Remove 3 pin plug from cord set, strip

sheath and strip conductors. Cut cord

approximately 200mm(8”) as shown in

Figure 1.

b) rill a hole the same diameter as cord

through the junction box cover and silicone

insulating pad and pass wires through both.

c) Connect the cord-set to the fixed wiring with

appropriate terminals and insulate to comply

with wiring rules.

d) Slit the Silicone pad with a utility knife to al-

low the IEC C5 to pass through.

e) Re-install junction box cover and then install

Plate making sure the Silicone Pad is placed

between the Ceiling and the Plate.

Use anchors appropriate for the ceiling

material

(Mounting screws shown in Fig. 3 are for illustrative

purposes only).

Fig. 3

Ceiling

Silicone Pad

Plate

IEC C5 plug

Mounting

Screws

DANGER: DO NOT PLACE TERMINATED WIRES INSIDE CANOPY. THIS MAKES

THE FAN NON-USER SERVICEABLE AND THE CONTROL MODULE WILL NOT FIT

Installation Inst uctions

(Installing the Bracket to the Plate )

Fig. 5

Attitude

Installation Manual

Fig. 6

Fig. 7

1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or

optional special modules only. Contact Hunter Pacific International for details. Any modification or

attempt to directly wire the fan will void warranty unless those modifications are authorised.

Large hole Small threaded hole

Plate

Bracket

IEC C5

Plug

Ceiling

Plate

Bracket

M5 Bracket

Screw and

washer

Bracket

Small

threaded

hole

Cradle in Plate

Bracket

Plate

STEP 4 (Fig. 5)

a) Identify the holes in the Bracket.

b) Bracket will only fit one way onto the Plate

STEP 5 (Fig. 6 & 7)

a) Slide the leg of the Bracket with the small

hole into the cradle on the Plate.

b) Lift the other end of the Bracket into place

and secure using the screws provided.

STEP 7 (Fig. 9)

a) Ensure th IEC C5 plug and flex can move

freely through the hole in the ceiling and

Plate.

Installation Inst uctions

(Installing the Bracket to the Plate )

Fig. 8

Attitude

Installation Manual

Fig. 9

1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or

optional special modules only. Contact Hunter Pacific International for details. Any modification or

attempt to directly wire the fan will void warranty unless those modifications are authorised.

Ceiling

Plate

Bracket

M5 Bracket

Screw and

washer

Ceiling

Plate

Bracket

STEP 6 (Fig. 8)

a) Secure the other end of the Bracket into

place with the screws provided.

IEC C5 Plug

IMPORTANT: IF INSTALLING ON PITCHED CEILING: DOUBLE CHECK THE

LUG IN THE BRACKET IS ON THE HIGH SIDE TOWARD APEX OF THE CEILING.

IF LUG IS ON LOW SIDE THE FAN WILL NOT HANG PROPERLY

Fig. 10

Lug

Bracket

Plate

DANGER: The Down Rod must be screwed all the way down until the holes line up clearly between the Down Rod

and Motor Shaft.

A thin screwdriver or tool maybe used through the hole in the top of the Down Rod to aid in screwing it down properly.

Installation Inst uctions

(Assembling the fan )

Attitude

Installation Manual

Fig. 13

Fig. 11

Blade

Screw

Motor

Housing

Motor Plug

own Rod

Motor Shaft

Wave

Washer

Tether

STEP 8 (Fig 11)

a) Insert blade into to the motor housing as

shown in Figure 5.

b) Tighten the 3 blade screws firmly but do not

over tighten. (Do not use powe tools)

c) Repeat the above steps fo the emaining

blades. o not mix blades from different

fans as this may upset the balance of the

fan.

STEP 10 (Fig 13 & 13a)

a) Pass the Motor Plug and Tether through the

own Rod. Screw own Rod on to Motor Shaft

until own Rod compresses Wave Washer and

the holes completely line up between the own

Rod and Motor Shaft.

1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or

optional special modules only. Contact Hunter Pacific International for details. Any modification or

attempt to directly wire the fan will void warranty unless those modifications are authorised.

STEP 9 (Fig 12)

a) Remove pre-fitted own Rod Pin from Motor

Shaft.

DANGER: DO NOT DISCARD PIN AS

IT MUST BE USED AGAIN.

Fig. 12

Motor Shaft

own Rod

Wire

Holes

Fig. 13a own

Rod

Motor

Shaft Holes

Installation Inst uctions

(Assembling the fan )

Fig. 1

Attitude

Installation Manual

Fig. 15

Blade

Motor

Housing

own

Rod

own Rod Pin STEP 11 (Fig. 14)

a) Remove wire attached to own Rod Pin

and discard the wire.

b) Insert own Rod Pin into the hole. It

maybe necessary to wiggle it through the

wires. Make sure the pin is pushed all the

way through or the Motor Canopy will not

fit.

Keyway

Motor Canopy

Keyway Screw

Motor Housing

STEP 12 (Fig. 15)

a) Slide Motor Canopy over own Rod

b) Align holes in Keyway with the Keyway

Screws.

c) While tightly holding the own Rod, turn

the Motor Canopy clockwise until a dull

‘click’ noise is heard. This indicates the

Motor Canopy is secured firmly to the

Motor Housing (a screwdriver through the

hole in the top of the own Rod may

assist in holding own Rod still).

1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or

optional special modules only. Contact Hunter Pacific International for details. Any modification or

attempt to directly wire the fan will void warranty unless those modifications are authorised.

DANGER: PIN MUST BE INSERTED!!

The pin prevents the Down Rod unscrewing from the Motor Shaft. If the pin is not inserted

the fan could fall. Never o erate fan without in in lace.

Fig. 14

Note: If the Motor Canopy does not fit properly make sure the pin is pushed all the way

in and the wire removed from the pin.

If the Motor Canopy is not secured it will rattle when fan is in use.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hunter Pacific Ventilateur

Hunter Pacific

Hunter Pacific Majestic Everglade Manuel utilisateur

Hunter Pacific

Hunter Pacific Majestic Micro Manuel utilisateur

Hunter Pacific

Hunter Pacific AQUA DC AIP2661 Mode d’emploi

Hunter Pacific

Hunter Pacific THE WOOD Series Manuel du propriétaire

Hunter Pacific

Hunter Pacific Majestic Coolah Manuel utilisateur

Hunter Pacific

Hunter Pacific Icon Fan Manuel utilisateur

Hunter Pacific

Hunter Pacific Majestic Palm Manuel utilisateur

Hunter Pacific

Hunter Pacific RADICAL 2 Mode d’emploi

Hunter Pacific

Hunter Pacific Majestic Magnum Manuel utilisateur

Hunter Pacific

Hunter Pacific Typhoon Manuel utilisateur

Hunter Pacific

Hunter Pacific X-OVER DC Mode d’emploi

Hunter Pacific

Hunter Pacific Majestic Penta Manuel utilisateur

Hunter Pacific

Hunter Pacific Icon 52 Manuel utilisateur

Hunter Pacific

Hunter Pacific Concept Guide de démarrage rapide

Hunter Pacific

Hunter Pacific Majestic Rosewood Manuel utilisateur

Hunter Pacific

Hunter Pacific POLAR DC P3B2571 Mode d’emploi

Hunter Pacific

Hunter Pacific Typhoon Timber 42" Manuel utilisateur

Hunter Pacific

Hunter Pacific Intercept II Manuel utilisateur

Hunter Pacific

Hunter Pacific Typhoon Mach 2 Timber Manuel utilisateur

Hunter Pacific

Hunter Pacific Majestic Duo Manuel utilisateur

Hunter Pacific

Hunter Pacific VortX V500i Guide d'installation

Hunter Pacific

Hunter Pacific Aurora Alternatives 2 Manuel utilisateur

Hunter Pacific

Hunter Pacific Majestic Madagascar Manuel utilisateur

Hunter Pacific

Hunter Pacific Concept Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
