Hunter Pacific Majestic Penta Manuel utilisateur

Electrician

Installation Manual

Majestic Penta Ceiling Fan

CEILING FAN MUST BE INSTALLED

BY A LICENSED ELECTRICIAN

(NO OTHER PERSONS SHOULD ATTEMPT TO INSTALL THIS FAN)

*After installation, electricians must tick off all items on the

quick checklist and fill out their details onto the back page of

the Fan Owner Warranty & Operations Manual

National Warranty Line

1300 360 280

Monday to Friday from 9am to 5pm EST

Only available within Australia

Hunter Pacific International Pty Ltd, Building 8, 256 New Line Road, Dural NSW 2158 Australia

ABN :18 063 521 666

ELECTRICIANS - TO PROTECT YOUR CUSTOMER’S WARRANTY, PLEASE READ

PAGE 2 OF THIS BOOKLET PRIOR TO THE INSTALLATION OF THIS PRODUCT.

IMPORTANT INFORMATION

ELECTRICIANS MUST READ PRIOR TO INSTALLATION

1. Distributor and installer details and purchase receipts are essential for on-site warranty claims

and must be presented to repair personnel, make sure you record your details in the Fan Owner

Warranty and Operations Manual.

2. Fans and fixed wiring products must only be installed by persons who are appropriately licensed

by the applicable State regulatory body. Therefore, to protect our repair personnel, on-site

warranty claims will not be accepted if products have been installed by unlicensed persons.

3. Damage caused by incorrect installation, force-majeure, electrical surges, lightning, power grid

fluctuations, water or by connection to alternative power supply sources (such as solar inverters,

etc.) is not eligible for warranty repair.

4. Blades must be replaced only as a complete set. Blades are supplied only as a pre-balanced set

and the replacement of individual blades may void the warranty by causing mechanical damage

to the motor, excessive noise or premature wear.

5. When products are installed in a location requiring special access equipment (such as

scaffolding or scissor lifts, etc) the cost of providing, installing and operating special access

equipment must be borne by the site owner.

For safety, and to protect your customers warranty, the following must be taken into

account when installing and operating the product(s):

IF THERE ARE ANY PROBLEMS WITH THE PRODUCT AT TIME OF

INSTALLATION THE INSTALLER MUST CONTACT THE WARRANTY

HOT LINE NUMBER 1300 360 280. BEFORE LEAVING THE JOB

SITE. PLEASE DO NOT REMOVE THE FAN FROM THE CEILING

ONCE INSTALLED UNLESS INSTRUCTED TO DO SO.

(a) DO NOT USE SOLID-STATE WALL CONTROLLERS. Neither leading nor lagging edge

controllers will give satisfactory performance. Wall controls must only be types approved

for use by Hunter Pacific International.

(b) The fan, light and bracket must be earthed.

(d) Mounting bracket must be firmly screwed to a solid structure such as a concrete ceiling,

steel structure or timber framing. If additional bracing is added it must be firmly secured to

the rafters and not left floating on the ceiling. Special mounts, such as T-hooks, are

available for certain types of installation.

(e) After installation, fan blades must be at least 2.1 m (7 feet) above floor level.

(f) The use of these products by children and the infirm must be under supervision.

Electrician

Installation Manual

Majestic Penta Ceiling Fan

Parts List - Majestic Penta

Electrician

Installation Manual

Majestic Penta Ceiling Fan

Please refer to the next page for the Majestic Penta Parts List.

Hanger Bracket

Ball Joint Hex Head Screw

Canopy Cover

Motor Housing Cap

Motor Housing

Blade Screw

Blade Washer

Pull cord

Assembly Kit Blade

Blade Holder

Blade Holder Screw & Washer

IMPORTANT INFORMATION

The table below contains information that can help you quickly identify the product you are

installing. If you have any difficulties installing our product, we recommend you to call our warranty

line on 1300 360 280 for advice.

CODE SIZE FAN MODEL NAME COLOUR

860 132cm, (52”) Majestic Penta White Motor, White Blades

861 132cm, (52”) Majestic Penta Burnt Copper Motor,

Walnut or Rosewood Blades

862 132cm, (52”) Majestic Penta

Brushed Chrome Motor,

Brushed Chrome or Beech

Blades

867 132cm, (52”) Majestic Penta Antique Brass Motor, Walnut or

Rosewood Blades

1. Do not attempt to operate the fan (or optional light kit) with any wall control that is

not approved by Hunter Pacific for use with its fans. DO NOT use solid state

controllers. The use of unapproved controllers will void your warranty.

2. Do not mix blade sets from one fan to another as this may upset the balance of

the fan. If only one blade is damaged you are still required to replace with a new set.

Electrician

Installation Manual

Majestic Penta Ceiling Fan

Part Qty Part Qty Part Qty

Blades 5 Canopy Cover Screws 2 Hex Head Screws 2

Blade Screws 20 Canopy Cover 1

Blade Holders 5 Motor Housing 1

Blade Holders Screws 10 Motor Housing Cap 1

Blade Holders Washers 10 Hanger Bracket 1

Ball Joint 1 15cm Down Rod 1 Down Rod Cotter Washer 1

Ball Joint Screw 1 Down Rod Cotter Pin 1 Down Rod Screws 2

Ball Joint Pin 1 Down Rod Cotter Key 1 (these parts come preassembled)

Pull cord Assembly Kit (comes preassembled - 1x pull cord assembly, 1x start up capacitor,

1x speed capacitor, 1x pull chain, 3x screws and 2x lights wires).

Majestic Penta Parts List

STEP 3 (Fig. 3)

a) TIGHTEN THE GRUB SCREW. (This is

important to ensure the fan will not wobble and

the weight of the fan is supported).

b) Hang the ball joint into the hanger bracket.

Ensure the groove on the hanger bracket is

locked into the slot on the ball joint.

1. Do not attempt to operate the fan (or optional light kit) with any wall control that is

not approved by Hunter Pacific for use with its fans. DO NOT use solid state

controllers. The use of unapproved controllers will void your warranty.

2. Do not mix blade sets from one fan to another as this may upset the balance of

the fan. If only one blade is damaged you are still required to replace with a new set.

Assembling the fan

Fig. 2

STEP 2 (Fig. 2)

a) Drill a hole in the timber nogging for wiring.

b) Secure the hanger bracket onto the timber

nogging, using the two hex head screws

provided. The timber nogging should be

supplied by the installing electrician and must

be supported between the two ceiling joists as

shown in the diagram above.

STEP 1 (Fig. 1)

ONLY PERFORM THIS STEP IF FAN WIRES

HAVE NOT BEEN FED THROUGH DOWN ROD.

a) Loosen the ball joint screw and remove the

ball joint pin to separate the down rod from the

ball joint.

b) Feed wires from motor housing up and

through the down rod.

c) Insert the cotter pin through the connection

collar and the down rod (avoid pinching wires).

Then lock the down rod using the cotter key

and washer. Secure down rod with the two

down rod screws provided.

d) Slide on canopy cover and refit the ball joint.

If an extension rod needs to be installed

please go to page 10.

Fig. 1

Canopy Cover

Cotter

Washer

Down Rod

Screw

Connection Collar

Cotter Key

Cotter Pin

Hanger

Bracket

Down Rod

Timber Nogging

Hex Head Screw

Hanger

Bracket

Fig. 3

Electrician

Installation Manual

Majestic Penta Ceiling Fan

Down Rod

Installation Instructions

(Assembling the fan )

Fig. 4

Green

Earth Wires

STEP 4 (Fig 4 & 5)

a) Connect wires from the fan with wires in

the ceiling via the terminal block on the

hanger bracket refer to figure 4 and 5.

b) Make sure earth wires are also connected.

c) Connect light wires (red/white) if a light

fitting is going to be used. (Cap seal light

wires if a light fitting is not going to be used).

Brown-Active Wire

Blue-Neutral Wire

Green-Earth Wire

Blue-Neutral Wire

Brown Active Wire

Red/White for Light

Brown for Fan

Fan Motor

Light Active Brown

Light Fitting

Wiring Instructions (with and without accessory light)

Light Controlled from Wall Controller

and Fan Controlled by Pull Cord (Fig. 5)

Switch Wire

Brown

Blue

Red/White Earth Wires

1. Do not attempt to operate the fan (or optional light kit) with any wall control that is

not approved by Hunter Pacific for use with its fans. DO NOT use solid state

controllers. The use of unapproved controllers will void your warranty.

2. Do not mix blade sets from one fan to another as this may upset the balance of

the fan. If only one blade is damaged you are still required to replace with a new set.

Electrician

Installation Manual

Majestic Penta Ceiling Fan

STEP 7 (Fig 8)

a) Attach blade holders to the motor housing

(blades should already be attached).

Installation Instructions

(Assembling the fan )

Blade Screw

Blade

Blade Holder

Base of

Motor

Housing

Nine Pin

Plug

Connectors.

Pull Cord Screw

STEP 5 (Fig 6)

a) Slide canopy cover up and over the hanger bracket.

b) Twist canopy cover as shown in diagram until the

screws holes can be seen.

c) Half loosen canopy cover screws.

d) Now twist canopy cover in the opposite direction to

the diagram and fully tighten the canopy covers screws,

this will stabilise the canopy cover.

Hanger Bracket

Canopy Cover

Canopy Cover Screws

Fig. 6

Blade Holder Screw

Blade with

Holder attached

STEP 6 (Fig 7)

a) Attach blades on to the blade holders as

shown in figure 7.

Fig. 7

Fig. 8

STEP 8 (Fig 9)

a) Unscrew the pull cord screws to

separate the pull cord assembly kit from

the motor housing. (If a light kit needs

to be installed please go to page 8).

b) Make sure the two ends of the nine

pin plug are connected together and the

colours on the plugs are corresponding.

c) Use pull cord screws to re-secure the

pull cord assembly kit to the motor

housing.

d) Attach the pull cord handle to the pull

cord chain.

Fig. 9

Pull Cord

Assembly Kit

1. Do not attempt to operate the fan (or optional light kit) with any wall control that is

not approved by Hunter Pacific for use with its fans. DO NOT use solid state

controllers. The use of unapproved controllers will void your warranty.

2. Do not mix blade sets from one fan to another as this may upset the balance of

the fan. If only one blade is damaged you are still required to replace with a new set.

Electrician

Installation Manual

Majestic Penta Ceiling Fan

Blade Washer

Base of

Motor Housing

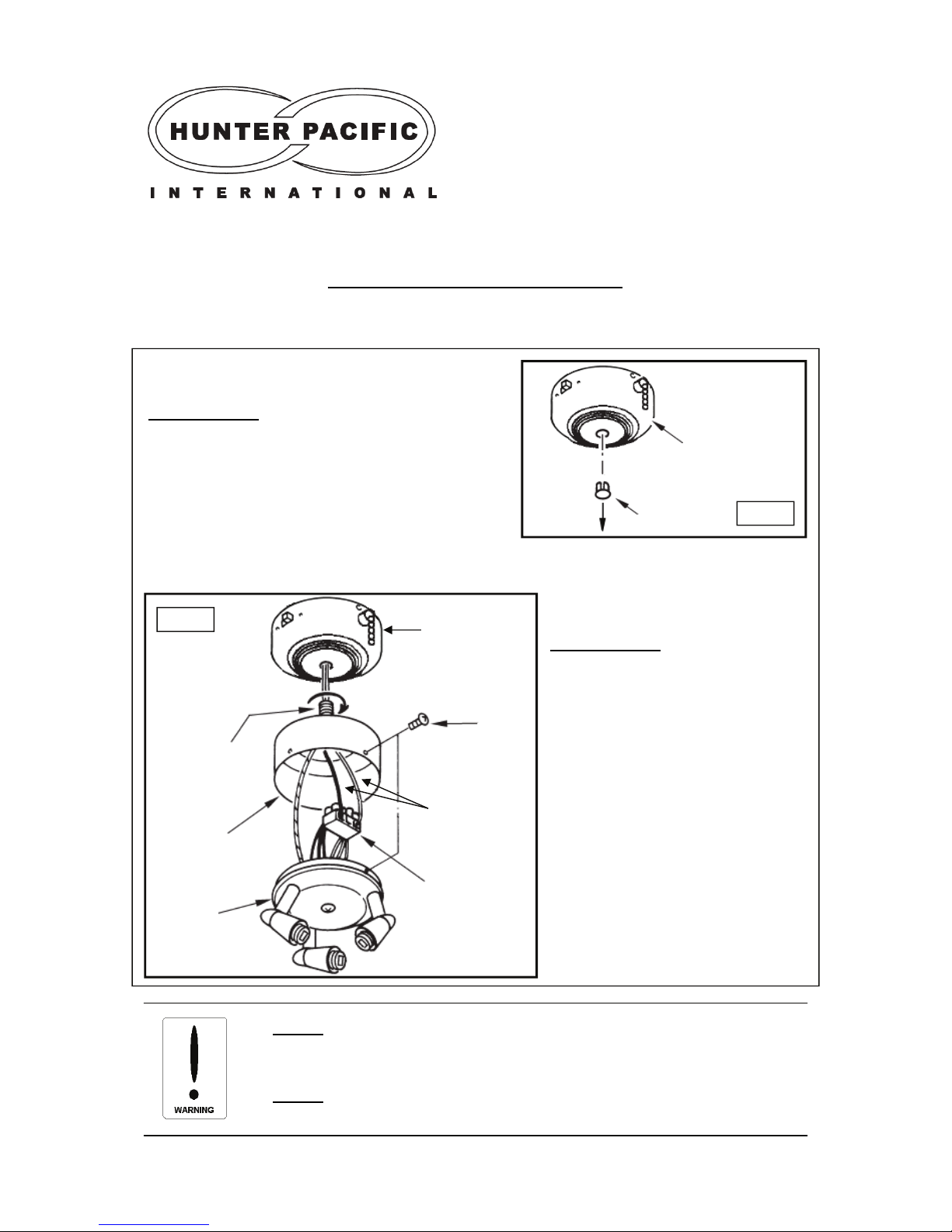

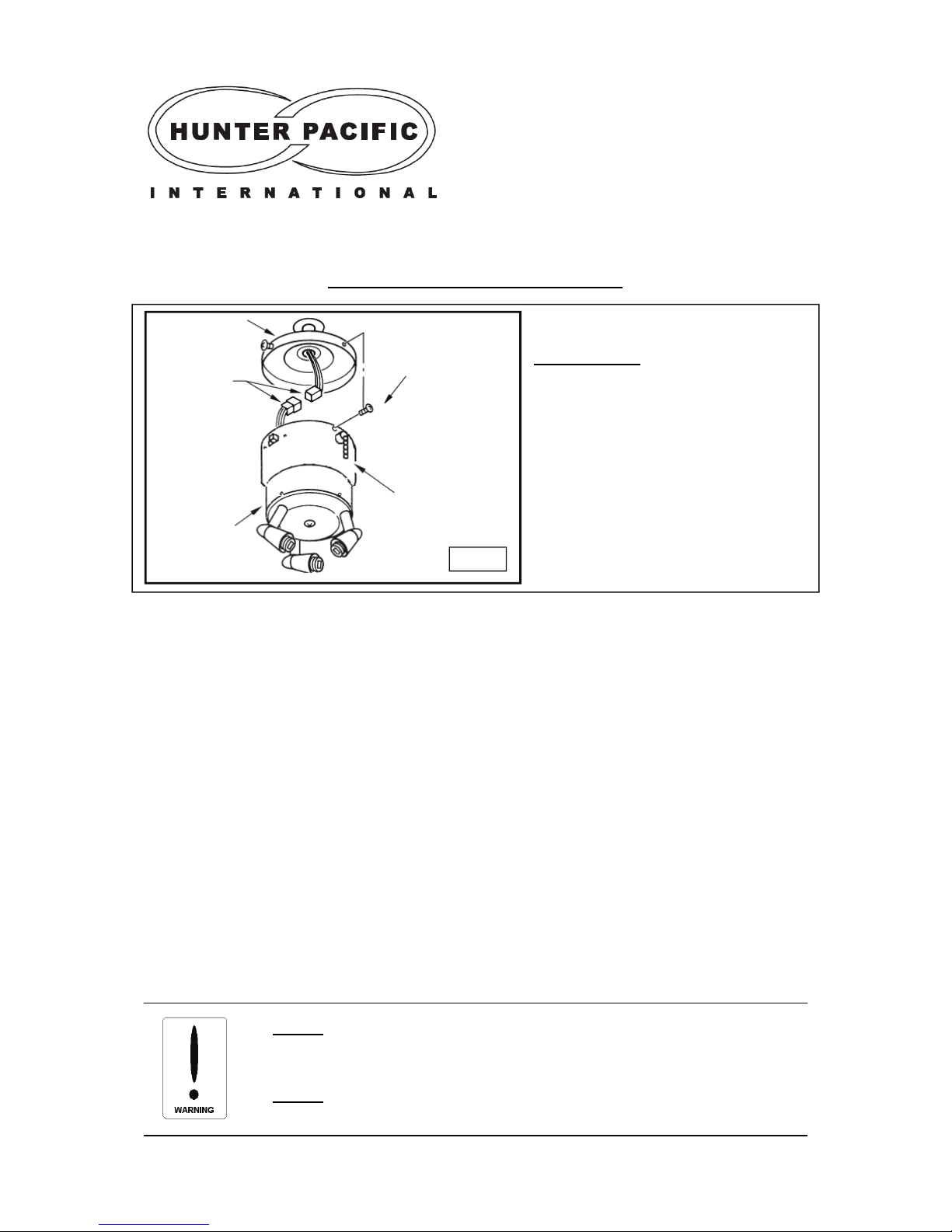

Installation Instructions

(Attaching an accessory light kit)

STEP 1 (Fig. 10)

a) Use your thumb to push out the plug in the pull cord

assembly kit, see figure 10.

NOTE: These instructions follow from step 8a of the ‘Assembling the Fan section’ on page 7

Pull Cord

Assembly Kit

Fig. 10

STEP 2 (Fig. 11)

a) Loosen and remove the light kit

screws to separate the top cover from

the lower part of the light kit.

b) Feed light wires from pull cord

assembly kit through the thread and

into the light kit.

c) Attach the light kit to pull cord

assembly kit by tightening the thread

clockwise as shown in figure 11.

d) Connect light wires to terminal block

in lower part of the light kit.

e) Reattach lower part of the light kit to

the top cover of the light kit using the

three screws removed from step 2a).

Plug

Pull Cord

Assembly Kt

Light Kit

Screw

Light Wires

Terminal Block

Thread

Top Cover

of Light Kit

Lower Part

of Light Kit

Fig. 11

1. Do not attempt to operate the fan (or optional light kit) with any wall control that is

not approved by Hunter Pacific for use with its fans. DO NOT use solid state

controllers. The use of unapproved controllers will void your warranty.

2. Do not mix blade sets from one fan to another as this may upset the balance of

the fan. If only one blade is damaged you are still required to replace with a new set.

Electrician

Installation Manual

Majestic Penta Ceiling Fan

Installation Instructions

(Attaching an accessory light kit)

STEP 3 (Fig 12)

a) Connect the two ends of the nine pin

plug together. Make sure the colours on

the plugs are corresponding.

b) Secure the pull cord assembly kit (with

the light attached) to the motor housing

using the 3 screws provided.

c) Attach the pull cord handle to the pull

cord chain.

Base of Motor

Housing

Nine Pin Plug

Connectors

Light Kit

Pull Cord

Assembly Kit Screw

Pull Cord Chain

Fig. 12

Trouble Shooting Tips - Light

 Light will not turn on - Make sure globe has not blown and it is properly fitted

between the metal prongs. Check all light wires in the light kit, the terminal block

in the canopy cover and the wall switch has been connected together correctly.

 Light is not corresponding to remote control - Make sure globe has not

blown and it is properly fitted between the metal prongs. Check all light wires in

the light kit, the terminal block in the canopy cover and the wall switch has been

connected together correctly. Check dip switch settings in remote hand piece

and remote receiver are corresponding.

 Light wires appear to be missing or too short - Wires may be stuck in the

motor housing. Carefully pull wires out of the motor housing, careful not to strip

the wires as this may cause the fan to short.

 Light flickers or flashes - Check globe is secured between the metal prongs in

the light kit. Make sure you are using the globes specified.

1. Do not attempt to operate the fan (or optional light kit) with any wall control that is

not approved by Hunter Pacific for use with its fans. DO NOT use solid state

controllers. The use of unapproved controllers will void your warranty.

2. Do not mix blade sets from one fan to another as this may upset the balance of

the fan. If only one blade is damaged you are still required to replace with a new set.

Electrician

Installation Manual

Majestic Penta Ceiling Fan

Installation Instructions

(Attaching an extension rod - Hunter Pacific rods to be used ONLY)

Step 1) (Fig. 13)

Loosen the down rod screws then unlock and

remove the cotter pin to remove the standard

down rod from the motor housing.

Step 2) (Fig. 14)

Loosen the ball joint screw, take out the

ball joint pin and remove the ball joint.

Then slide off the canopy cover.

Ball Joint

Ball Joint Pin

Ball Joint

Screw

Down Rod

Fig. 14

Down Rod

Tighten Ball

Joint Screw

Ball Joint

Ball Joint Pin

Fig. 15

Cotter Pin

Cotter

Washer

Down Rod

Screw

Cotter Key

Fig. 16

Step 3) (Fig. 15 & 16)

Now install the extension rod and

reverse step 1 & 2 to secure the rod to

the fan and the ball joint.

NOTE: If the extension rod needs to be shortened, cut the rod to the required length and drill the

appropriate hole size to fit the ball joint pin. The cut end of the rod should be used on the ball joint

end only. When installing a 1.8m extension rod the wiring will need to be extended and joined. This

should be done using crimp style connectors.

Cotter Pin

Fig. 13

Cotter

Washer

Down Rod

Screw

Cotter Key

Connection Collar

1. Do not attempt to operate the fan (or optional light kit) with any wall control that is

not approved by Hunter Pacific for use with its fans. DO NOT use solid state

controllers. The use of unapproved controllers will void your warranty.

2. Do not mix blade sets from one fan to another as this may upset the balance of

the fan. If only one blade is damaged you are still required to replace with a new set.

Electrician

Installation Manual

Majestic Penta Ceiling Fan

Down Rod

Table des matières

Autres manuels Hunter Pacific Ventilateur

Hunter Pacific

Hunter Pacific Intercept II Manuel utilisateur

Hunter Pacific

Hunter Pacific X-OVER DC Mode d’emploi

Hunter Pacific

Hunter Pacific Icon Fan Manuel utilisateur

Hunter Pacific

Hunter Pacific Concept Manuel utilisateur

Hunter Pacific

Hunter Pacific THE WOOD Series Manuel du propriétaire

Hunter Pacific

Hunter Pacific Majestic Madagascar Manuel utilisateur

Hunter Pacific

Hunter Pacific Typhoon Mach 2 Timber Manuel utilisateur

Hunter Pacific

Hunter Pacific Majestic Everglade Manuel utilisateur

Hunter Pacific

Hunter Pacific Majestic Micro Manuel utilisateur

Hunter Pacific

Hunter Pacific Aurora Alternatives 2 Manuel utilisateur

Hunter Pacific

Hunter Pacific Icon 52 Manuel utilisateur

Hunter Pacific

Hunter Pacific Majestic Duo Manuel utilisateur

Hunter Pacific

Hunter Pacific AQUA DC AIP2661 Mode d’emploi

Hunter Pacific

Hunter Pacific Majestic Palm Manuel utilisateur

Hunter Pacific

Hunter Pacific Majestic Magnum Manuel utilisateur

Hunter Pacific

Hunter Pacific VortX V500i Guide d'installation

Hunter Pacific

Hunter Pacific Coolah Mode d’emploi

Hunter Pacific

Hunter Pacific POLAR DC P3B2571 Mode d’emploi

Hunter Pacific

Hunter Pacific Attitude Manuel utilisateur

Hunter Pacific

Hunter Pacific Majestic Coolah Manuel utilisateur

Hunter Pacific

Hunter Pacific Concept Guide de démarrage rapide

Hunter Pacific

Hunter Pacific Majestic Rosewood Manuel utilisateur

Hunter Pacific

Hunter Pacific Typhoon Manuel utilisateur

Hunter Pacific

Hunter Pacific Majestic Little Bay Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
