Hubsan H501A Manuel utilisateur

THE HUBSAN X4 CAM

BRUSHLESS WITH APP

ITEM NO: H501A

FLY WHEN NO GPS SETUP, SEE CAUTION ON PAGE 02

ARM/DISARM MOTORS, SEE PAGE 06

RTH FUNCTION, SEE PAGE 09-10

FOLLOW ME FUNCTION, SEE PAGE 10-11

COMPASS CALIBRATION, SEE PAGE 16

TRANSMITTER CALIBRATION, SEE PAGE 18

Ages 14+

READ THE INSTRUCTION MANUAL CAREFULLY

PLEASE VISIT WWW.HUBSAN.COM TO UPGRADE

Transmitter FCC ID:2AEXY901ATX

Please read the instruction manual carefully!

THE HUBSAN X4 CAM BRUSHLESS WITH APP

IMPORTANT SAFETY NOTES

OPERATION:

Flight:

Take responsiblity for the safety of yourself and others when flying the X4 !

Do not fly the X4 in crowded places.

Do not fly in bad weather.

Never try to catch the X4 while it is in flight.

This model is intended for experienced pilots age 14+.

Power off the X4 after flight to prevent the propellers from causing injuries.

Always remove the battery after you stop flying to avoid injuries from accidentally powering

on the motors.

Always take great caution to protect yourself when near the propellers. The flight system

will start after powering on regardless of the transmitter signal. The high speed propellers

are very dangerous.

Power off the X4 after every flight, otherwise the propellers may still rotate and cause injury.

Be extremely careful and responsible when using the drone. Small electronic components can

be damaged by crashing or by dropping the X4 into water. To avoid further damages, please

replace broken parts immediately.

0:08:49 M2

Exit

0:08:49

MAIN MENU

Set Reverse

Set Sensitivity

5.8G Frequency

Set Manual

Fly When no GPS

Show Version

Exit

Fly When NO GPS

YES

For safety, the quadcopter is default set to CAN NOT FLY WHEN NO GPS. If you prefer to

fly when GPS is not available, please reset the value as instructed below before using.

Pull the throttle stick to the lowest position and press the Elevator stick for 1.5 seconds to

enter into the MAIN MENU interface. Push the Elevator stick up/down to select “Fly When

no GPS”, push the stick right to enter into the “ Fly When no GPS” interface, select “YES”.

The Default Setting is “NO”.

Select “Exit” to exit.

CAUTION:

5LiPo Balance charger 1PC

For recharging the LiPo battery

INTRODUCTION

1. ITEMS INCLUDED IN THE BOX

Check all the items in the box before use.

S/N Part Name Photos Q'ty Remarks

1 Quad copter 1PC Equipped with smart flight

controller,GPS and compass

Propeller A 4pcs, Propeller

B 4pcs

2 Propellers 8PCS

7 Assistant wrench 1PC For removing propellers

47.4V LiPo battery 1PC For quad copter

6LiPo Charger Adapter

1PC 110-240V

FPV: First Person View Function enables you to experience every live moment of the flight

from the drones's point of view.

FPV Transmitter, equipped

with 4 X AA battery (Not included)

3 Transmitter 1PC

Thank you for buying the HUBSAN products. It is designed as an easy-to-use,

multi-functional RC model, capable of hovering, fast forward and acrobatic ﬂight

maneuvers. Please read the manual carefully and follow all the instructions. Be

sure to keep the manual for future reference.

8 2PCS Disclaimer

Hubsan X4 Instruction Manual

User Manual

Quadcopter Weight: 435g(including battery)

3. QUAD COPTER BATTERY

3.1 INTRODUCTION

The quad copter battery is rechargeable with 2700mAh capacity and 7.4V voltage.

The battery should ONLY be charged with the HUBSAN charger to avoid overcharge.

3.3 CHARGING

Connect the battery to the balance charger and wall charger. The balance charger

indicator is solid red when charging and turns to solid green when the battery is fully charged.

It takes around 210 minutes to get the battery fully charged.

3.2 INSTALL THE BATTERY

Push the battery into the battery compartment

correctly and connect the battery plugs with the

correct polarity.

Close the battery compartment cover.

7.4V 2700mAh 10C

2. QUAD COPTER MOTOR LED INDICATOR

Please fully charge the batteries to avoid loss of control due to low voltage.

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the local regulations.

Indicator Status:

1. Power on: 4 white LED indicators blink simultaneously every 1.5 seconds.

2. Compass Calibration:

1). Horizontal calibration: 4 red LED indicators blink circularly.

2). Vertical calibration: 4 green LED indicators blink circularly.

3. GPS Flight: 4 LED indicators remain blink. .

4. GPS Return : 2 front LED blink in white, 2 back LED blink in blue.

5. Altitude Hold: 2 front LED blink in white, 2 back LED blink in yellow.

6. Position Hold: 2 front LED blink in white, 2 back LED blink in green.

7. Low Voltage: 2 front LED blink in white, 2 back LED blink in red.

8. LED indicators can be turned off by long pressing the lower Throttle Trim on transmitter.

● Hazardous moving parts keep fingers and other body part away.

● Make sure that the A and B propellers are installed correctly. The X4 will not fly if

propellers are improperly installed.

5. PROPELLER

Attach the propellers to the corresponding motors that

are marked A and B,tighten the propellers and keep the

motors deadlocked with the U wrench.

4. QUAD COPTER UPGRADE

Upgrade firmwares via the USB port inside

battery compartment.

USB port

6.1 FLIGHT ENVIRONMENT

(1) The flying area should be open and without tall buildings or other obstacles; the steel

structure within buildings interferes with the compass and the GPS signal.

(2) DO NOT fly in bad weather such as strong wind, heavy snow, rain or fog.

(3) Keep away from barriers, people, power cables, trees, and other obstructions.

(4) Do NOT fly near radio towers or airports.

(5) The X4 control system will not work properly at the South or North Pole.

(6) DO NOT fly in restricted areas and obey your country's laws and regulations.

6. START TO FLY

High Tension Line RainInterferenceAirport

6.3 ARM/ DISARM THE MOTORS

Arm the motors

Method : Pull the left stick to the left lowest corner and the right

stick to the right lowest corner as the picture shows. Release

both sticks after the motors are armed.

Disarm the motors

Method : Pull the left stick to the left lowest corner and the right

stick to the right lowest corner again, and release both sticks after the motors are disarmed.

Do not stop the motors during the flight to avoid crashing.

Push the sticks lightly. Release the sticks after the motors are armed or disarmed.

The binding is completed in factory.

For re-binding, press Photo button and power on the transmitter simultaneously until “Bind to

Plane” displayed, then power on the drone, and place it very close to the transmitter, the binding

will be completed after one “ beep” heard.

Should the binding failed, please power off the drone and repeat above steps.

6.2 BINDING

6.4 BASIC FLIGHT

Transmitter (Model 2) X4 Remarks

The operation mode for the transmitter including Mode 1 or Mode 2. The manual will use Mode 2 as

an example to illustrate the transmitter’s operation.

The throttle stick controls the ascent and

descent .

Push up the stick and the X4 will ascend.

Pull down the stick and the X4 will descend.

When the stick is in the center, the X4 will hover

and hold its alititude automatically .

Move the throttle stick above the center position

to take off. (Move the stick gradually to prevent

the X4 from ascending too quickly.)

DOWN

Forward

Backward

Right

Left

The Elevator stick moves the X4 forward and

backward.

Push the stick up the and the X4 will fly

forward.

Pull the stick down and the X4 will fly

backward.

When the stick is in the center, the X4 will hold

its position.

The angle of stick movement corresponds to

the angle of tilt and flight speed.

The Aileron stick controls left and right flight.

Push the stick to the left and the X4 will fly to

the left.

Push the stick to the right and the X4 will fly to

the right.

The X4 will keep the current status when the

stick is in the center.

The angle of stick movement corresponds to

the angle of tilt and flight speed.

The Rudder stick controls the rotate direction

Push the stick to the left and the X4 will rotate

counter-clockwise

Push the stick to the right and the X4 will rotate

clockwise.

When the stick is in the center,the X4 will keep

the current direction and not rotate.

Pushing harder will cause the X4 to rotate

faster in the corresponding directions.

Right rotation

Left rotation

Insert the SD card into quadcopter before using Photo/Video function.

Press the Photo/Video button for 0.5 second to take photos.

Press the Photo/Video button for 0.5 second to take videos and press again to save the videos.

6.5 PHOTO/VIDEO

Stop recording before the SD card is removed.

PHOTO VIDEO

position 1 (upward)position 2 (downward)

GPS Switch

Photo Button Video Button

RTH Switch

Important Note: The GPS and RTH functions are only available

outdoors.Please make sure the two switches keep downward when

indoors.

The GPS Switch controls the position-hold

function.

In position 1 (up), the GPS function works.

In position 2 (down), the GPS function is

inactive.

For the Photo/Video function, always

power off the quadcopter and the

transmitter when inserting or removing

the SD card

The RTH Switch controls the automatic return

home function.

In position 1 (up), the RTH function works.

In position 2 (down), the RTH function is

inactive.

The

Home Point is recorded when armed the motors with no less than 6 GPS satellites.

!The RTH MODE only works when the GPS mode is activated with no less than 6 satellites.

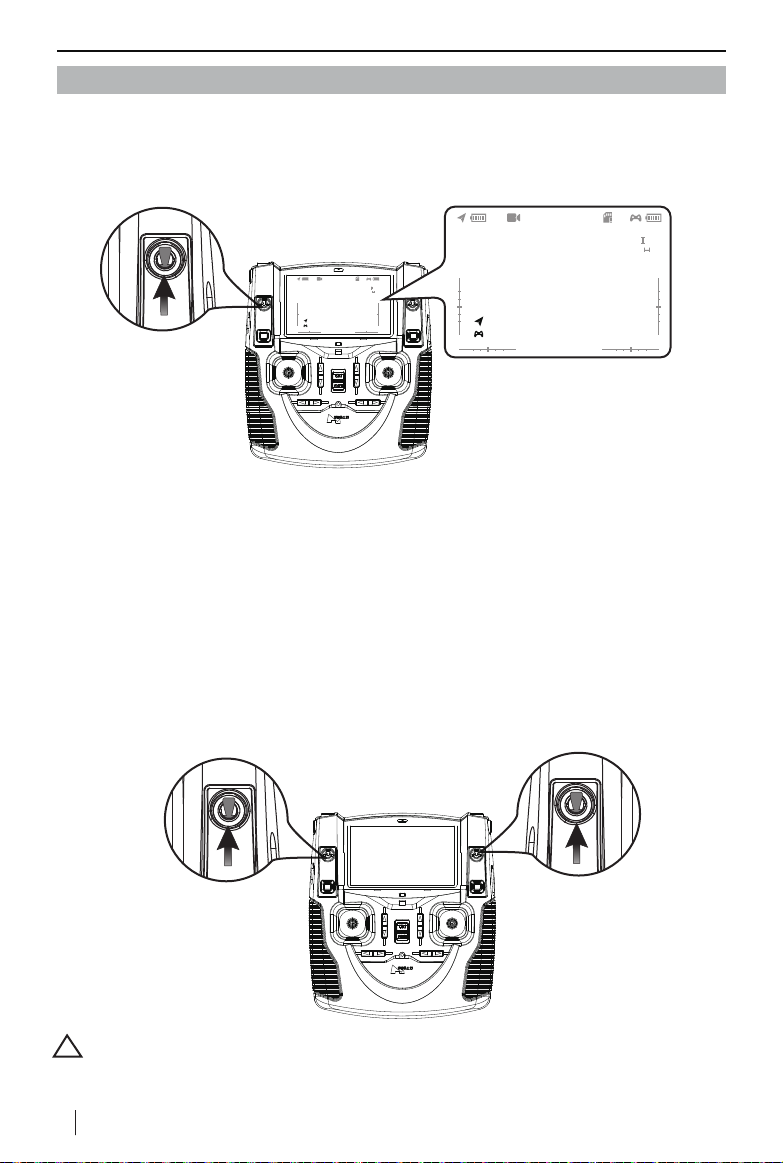

7.2 RTH MODE (RETURN TO HOME)

ENTER INTO RTH MODE

Push the GPS Switch and the RTH Switch up, and the quad copter will enter into RTH mode.

The flight control system will control the quad copter to fly back to the home point and land

automatically.

7.1 GPS POSITIONING/ HOME POINT SETTING

1.) GPS Positioning works ONLY when the GPS signal has no less than 6 satellites.

2.) Home Point is recorded when armed the motors with no less than 6 GPS satellites.

3.) You should be in an open place to search for the GPS satellites, it’ll take 3 mins to finish the

searching, and the GPS signal strength depends on the flying environment.

Push up the GPS switch to activate the GPS positioning.

Pull down the GPS switch to exit the GPS positioning (only altitude hold will be active).

7. ADVANCED PERFORMANCE SETUP

GPS 6

00:23:59

Altitude

N22.7914931 E:114.0479740

N:22.7914650 E:114.0479983

7.3V 0.3m/s

1.5m

R 0

P 0

H 247

GPS 6

00:23:59

Altitude

N22.7914931 E:114.0479740

N:22.7914650 E:114.0479983

7.3V 0.3m/s

1.5m

R 0

P 0

H 247

Table des matières

Autres manuels Hubsan Quadricoptère

Hubsan

Hubsan X4 Pro FPV Manuel utilisateur

Hubsan

Hubsan X4 DESIRE Manuel utilisateur

Hubsan

Hubsan FPV X4 H107D Manuel utilisateur

Hubsan

Hubsan ZINO PRO Manuel utilisateur

Hubsan

Hubsan X4 Pro FPV Manuel utilisateur

Hubsan

Hubsan ACE SE REFINED Manuel utilisateur

Hubsan

Hubsan X4 DESIRE H502S Manuel utilisateur

Hubsan

Hubsan X4 Pro FPV Manuel utilisateur

Hubsan

Hubsan X4 DESIRE Manuel utilisateur

Hubsan

Hubsan X4 DESIRE Manuel utilisateur

Hubsan

Hubsan X4 DESIRE Manuel utilisateur

Hubsan

Hubsan X4 DESIRE Manuel utilisateur

Hubsan

Hubsan X4 H107P Manuel utilisateur

Hubsan

Hubsan X4 DESIRE Manuel utilisateur

Hubsan

Hubsan FPV X4 H107D Manuel utilisateur

Hubsan

Hubsan FPV X4 H107D Manuel utilisateur

Hubsan

Hubsan X4 Star Manuel utilisateur

Hubsan

Hubsan X4 DESIRE Manuel utilisateur

Hubsan

Hubsan X4 FPV QUADBRUSHLESS Manuel utilisateur

Hubsan

Hubsan FPV RTF Manuel utilisateur

Hubsan

Hubsan X4 DESIRE H502S Manuel utilisateur

Hubsan

Hubsan X4 FPV QUADBRUSHLESS Manuel utilisateur

Hubsan

Hubsan FPV X4 PLUS H107D+ Manuel utilisateur

Hubsan

Hubsan X4 FPV BRUSHLESS Manuel utilisateur

Manuels Quadricoptère populaires d'autres marques

dji

dji MAVIC 2 PRO Manuel utilisateur

Autel Robotics

Autel Robotics EVO II Dual 640T Manuel utilisateur

Carson

Carson X4 NANO Manuel utilisateur

Attop

Attop W80 Manuel utilisateur

Alias

Alias 6608 Manuel utilisateur

Reely

Reely Drone Copter 2-in-1 Manuel utilisateur

Falcon

Falcon S2-210 Manuel utilisateur

Kaiser Baas

Kaiser Baas KBA15007 Manuel utilisateur

Denver Electronics

Denver Electronics DCH-261 Manuel utilisateur

Craig

Craig INTERCEPTOR Manuel utilisateur

Odyssey

Odyssey TURBO RUNNER Manuel utilisateur

IMAGINARIUM

IMAGINARIUM droni stream Manuel utilisateur

AR.Drone

AR.Drone Parrot VSM Manuel utilisateur

Walkera

Walkera QR X900 Manuel utilisateur

dji

dji Phantom 2 Vision + Manuel utilisateur

HobbyZone

HobbyZone Zugo Manuel utilisateur

dji

dji PHANTOM 3 4K Manuel utilisateur

Ares

Ares RECON FPV Manuel utilisateur
