Huawei HW-01H Manuel utilisateur

1

Thank you for purchasing the HW-01H. This HW-01H

brings you a high speed wireless network connection.

This document will help you understand your HW-01H so you can start using it right

away. Please read this document carefully before using your HW-01H.

For detailed instructions for logging in to the web management page, refer to "Logging

In to the Web Management Page" on page 15.

2

Getting to Know Your HW-01H

Note:

The HW-01H function descriptions and illustrations in this document are for your

reference only. The product you have purchased may vary.

Application Scenarios

Wi-Fi devices (such as smartphones, tablet computers, and game consoles) or

computers can all access the Internet through HW-01H. The specific connection

procedure depends on the operating system of the Wi-Fi device or computer. Establish

a connection according to your device's specific instructions.

To access the Internet through a USB port connection, install the driver according to the

instructions.

3

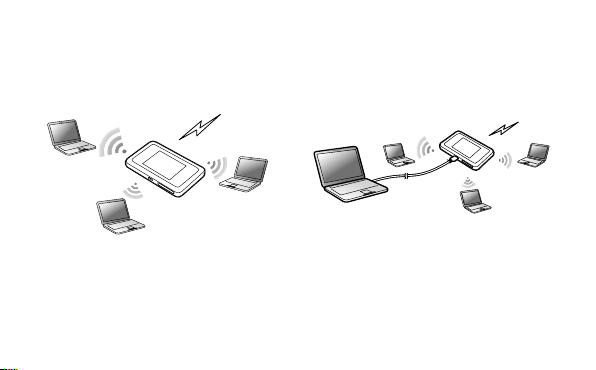

Scenario 1: Connecting multiple

devices through Wi-Fi

Scenario 2: Connecting multiple

devices through Wi-Fi and USB

simultaneously

4

Appearance

2

1

3

4

Power button

Lanyard hole

Screen

Micro USB port

5

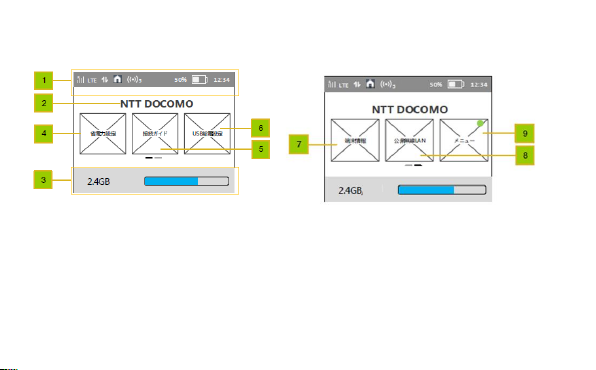

Screen

Status bar

Character zone

When connect to 3G/LTE network, show the operator name

When connect to public Wi-Fi hotspot, show the SSID name of the hotspot

When SIM card is not normal, show "PIN1 code required"/"PIN unlock code

required";

6

Data usage information

If user set the data information, show used data and total data.If user turn off the display

of data on Home screen, hide this zone.

Power save settings

user can tap on to view information of “Power save settings”.

Wi-Fi connection guide

user can tap on to view information of "Wi-Fi connection guide".

SSID&password

user can tap on to set data of “Charging function”.

About

user can tap on to view device information.

Public WLAN

user can tap on to view information of “ Public WLAN setting”.

7

Menu

user can tap on to view more functions.

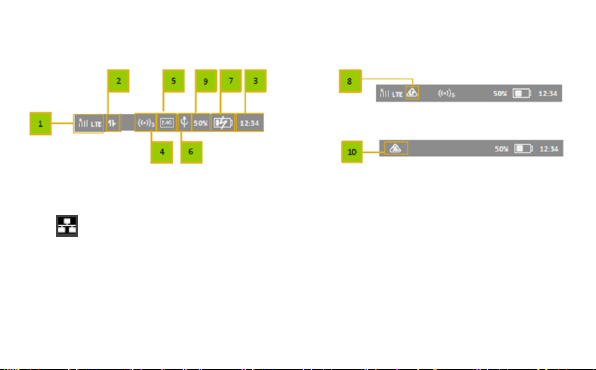

Signal icon

R: when in roaming status; Show network mode, including "3G/LTE".

: when connecting to public Wi-Fi hotspot.

Icon of traffic.

Show the icon when connect to network. When there is upload and download data the

icon changes color. When disconnect from network, hide the icon.

Time information

8

Wi-Fi

Wi-Fi turned on.

Number of connected Wi-Fi devices.

Wi-Fi Mode

USB

Show it when connected to USB cable and HW-01H supports Charging with standard

functions process. If connected to USB cable only for charging, hide this icon.

Battery : Battery level from low to high.

Overheating

If the device’s temperature is overheating in [48,54) degree and connect to network ,

show the icon.

% of current battery

9

Flying mode

If the device’s temperature is in [54,58) degree, show the icon.

10

SSID and Wireless Network Encryption Key

When a Wi-Fi device establishes a connection to the HW-01H for the first time, you may

need to enter the default Service Set Identifier (SSID) and wireless network encryption

key. These are printed on the HW-01H.

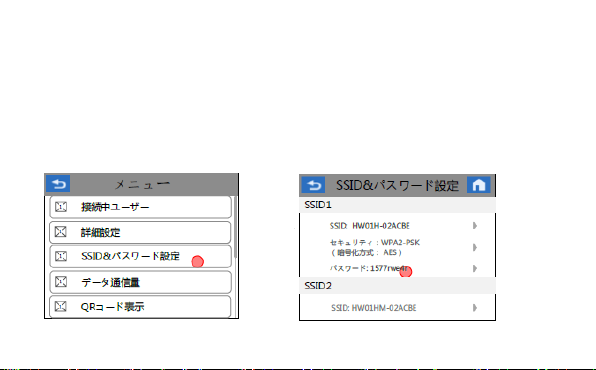

To view the current SSID and wireless network encryption key on the screen:

1. Press the Menu>SSID&password

on the homepage.

2. The SSID and Password display on the

screen.
