Huawei E5885 Manuel utilisateur

Quick Start

Appearance

 WPS button

To connect a WPS-enabled device to your HUAWEI Mobile WiFi Pro2 using the WPS button.

When WPS is enabled, press and hold the button for more than five seconds to set up a WPS

connection.

 Screen

 Slot cover

 Power button

Press and hold to turn your HUAWEI Mobile WiFi Pro2 on or off.

 Lanyard hole

 Output charging port

 Micro USB port

 Ethernet port

 NFC sensor

Use NFC function to establish a Wi-Fi® connection.

 Reset button

Press and hold to restart your HUAWEI Mobile WiFi Pro2 and restore it to its factory settings.

Note:

If you forget the username, password or SSID for your HUAWEI Mobile WiFi Pro2, try

restoring the device to its factory settings.

Installation

micro-SIM card

microSD card (optional)

Reset

Network connection

You can view the current SSID (Wi-Fi network name) and Wi-Fi

network key on the screen.

We strongly recommend that you change the default SSID and

Wi-Fi network key to keep your data secure.

HUAWEI Mobile WiFi Pro2 as a router

Use a network cable to reduce mobile data usage.

HUAWEI HiLink app

APP

Download the HUAWEI HiLink app to manage your HUAWEI Mobile WiFi Pro2 more easily.

 Change the SSID and Wi-Fi network key.

 Check data traffic and SMS messages.

 Check roaming state and signal strength.

Note:

 You can als o manage your HUAWEI Mobile WiFi Pro2 through the web interface at http://192.168.8.1. The default

username and password is admin.

 Click Help in the upper right corner of the web interface to learn more about your HUAWEI Mobile WiFi Pro2.

Connect to Wi-Fi via NFC(optional)

If you are using a device (such as an Android phone or tablet) with NFC functionality, you can connect automatically to Wi-Fi

by simply touching your device against the NFC sensor on the HUAWEI Mobile WiFi Pro2.

Before starting, make sure that your phone or tablet is unlocked and that NFC is enabled. Ensure that your HUAWEI Mobile

WiFi Pro2 is powered on and that you have the HUAWEI HiLink app installed on your device.

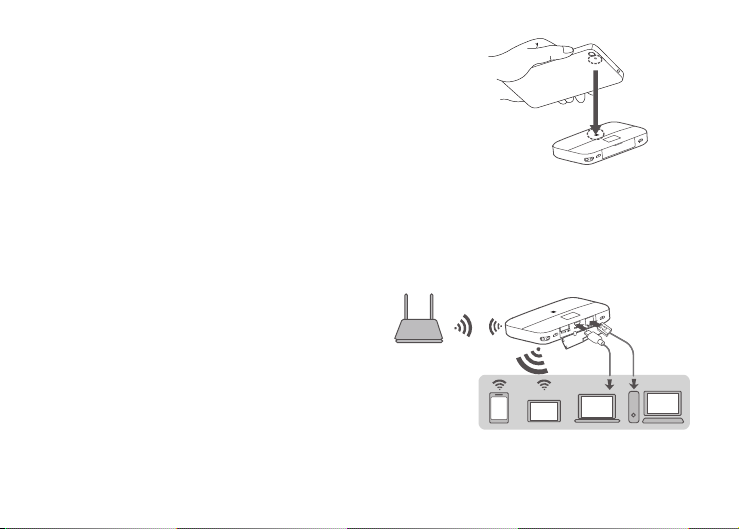

1. Touch your device against the NFC sensor on the HUAWEI Mobile WiFi

Pro2, as shown in the following figure.

2. When detection is successful, the HUAWEI HiLink app will automatically

open on your device and you will be connected to Wi-Fi. The Wi-Fi icon

should be visible in the status bar of your device if connection has

succeeded.

Note:

 This feature is not available for iOS devices.

 If HUAWEI HiLink is not installed on your device, touching the device against the NFC sensor on the HUAWEI

Mobile WiFi Pro2 will automatically bring up the Choose an action screen. From here, select New tag scanned

(the name of this option may vary by device) and follow the link to download and install the HUAWEI HiLink app.

 You can als o downlo ad and install HUAWEI HiLink by scanning the QR code in the HUAW EI HiL ink app section of

this manual. Alternatively, search for and download HUAWEI HiLink in Google Play or the HUAWEI App Center.

Wi-Fi extender (optional)

The Wi-Fi extender feature increases Wi-Fi coverage and

connects to Wi-Fi networks where available to reduce mobile

data usage.

On the HUAWEI HiLink app, enable the Wi-Fi extender function,

and connect HUAWEI Mobile WiFi Pro2 to a Wi-Fi network.

Charging other devices

You can ch arge your phone or Bluetooth headset with the HUAWEI Mobile W iFi Pro2 using a charging stra p or charging

cable.

Method 1: Charging other devices using the charging strap

1. Please open the charging strap as indicated in the figure.

Note:

The charging strap is a standard

accessory.

2. Insert the charging strap in the port shown in the figure.

Method 2: Charging other devices using a charging cable

Note:

Your HUAWEI Mobile WiFi Pro2 will not be able to charge other devices when it has a low battery or is overheating.

Charging

Please only use compatible chargers provided by a designated manufacturer.

Note:

The charger is an optional accessory. To buy a charger, please contact an authorized retailer.

Tips

1. Why isn't my HUAWEI Mobile WiFi Pro2 responding?

Try restarting the device. If that doesn't work, restore the device to its factory settings.

2. Why can't I connect to my HUAWEI Mobile WiFi Pro2 sometimes?

To save power, your HUAWEI Mobile WiFi Pro2's Wi-Fi auto off feature is designed to turn off Wi-Fi when there haven't

been connections for a while. You can press the POWER button to turn on Wi-Fi again. Alternatively, you can disable this

feature, although this might impact battery life. Log in to the web interface and disable the Wi-Fi auto off feature.

3. Why won't my HUAWEI Mobile WiFi Pro2 connect to a network even though all the settings are correct?

The PIN verification feature might be enabled. Launch HUAWEI HiLink and enter the correct PIN.

You can disable this feature if you find entering the PIN regularly inconvenient.

From the HUAWEI HiLink app, select Settings and then disable the PIN verification feature.

4. Why can't I access the web interface at 192.168.8.1?

This is likely due to an IP address conflict when the HUAWEI Mobile WiFi Pro2 assigns itself a new IP address. Please

try 192.168.9.1 in this case.

If your HUAWEI Mobile WiFi Pro2 has an LCD screen, the new IP address of your web interface will be displayed.

5. Why won't my HUAWEI Mobile WiFi Pro2 power on?

Your battery is probably out of power.

Charge your HUAWEI Mobile WiFi Pro2 for a while and power it back on.

6. Why did my HUAWEI Mobile WiFi Pro2 power off all of a sudden?

Your HUAW EI Mobile WiFi Pro 2 may overheat when you use it continuously over a long period of time, and the reby

trigger its automated protection system. Wi-Fi will be turned off and your HUAWEI Mobile WiFi Pro2 will power off if this

occurs.

Please ensure the device is properly ventilated and cooled before you power it on again.

Démarrage rapide

Apparence

 Bouton WPS

Pour connecter un périphérique WPS à votre HUAWEI Mobile WiFi Pro2 en utilisant le bouton

WPS.

Une fois le WPS activé, appuyez et maintenez le bouton WPS pendant plus de cinq secondes

afin d'établir une connexion WPS.

 Écran

 Capot du logement

 Bouton marche/arrêt

Appuyez et maintenez le bouton pour allumer ou éteindre votre HUAWEI Mobile WiFi Pro2.
