Huawei E5573Cs-322 Caractéristiques techniques

Product Description

HUAWEI E5573Cs-322 Mobile WiFi

V200R001

Issue 01

Date 2016-04-12

HUAWEI TECHNOLOGIES CO., LTD.

HUAWEI E5573Cs-322 Mobile WiFi V200R001

Product Description

Issue 01 (2016-04-12) Commercial in Confidence Page 2 of 20

Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service.

Please feel free to contact our local office or company headquarters.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://consumer.huawei.com/en/

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

HUAWEI E5573Cs-322 Mobile WiFi V200R001

Product Description

Issue 01 (2016-04-12) Commercial in Confidence Page 3 of 20

About This Document

Summary

This document provides information about the major functions, supported services

and system architecture.

The following table lists the contents of this document.

Chapter Details

1 Overview The supported network modes, basic services and functions,

and the appearance of the product.

2 Features The supported features and technical specifications of the

product.

3 Services and

Applications

The services and applications of the product.

4 System

Architecture

The architecture of the product.

5 Packing List The items contained in the package of the product.

HUAWEI E5573Cs-322 Mobile WiFi V200R001

Product Description

Issue 01 (2016-04-12) Commercial in Confidence Page 4 of 20

History

Issue Details Date

01 First release. 2016-04-12

HUAWEI E5573Cs-322 Mobile WiFi V200R001

Product Description

Issue 01 (2016-04-12) Commercial in Confidence Page 5 of 20

Contents

1 Overview..........................................................................................................................6

1.1 Brief Introduction .............................................................................................................................. 6

1.2 Optional Features............................................................................................................................. 7

2 Features...........................................................................................................................8

2.1 Main Features .................................................................................................................................. 8

2.2 Technical Specifications ................................................................................................................... 9

2.2.1 Hardware ................................................................................................................................. 9

2.2.2 Software..................................................................................................................................11

3 Services and Applications ...........................................................................................13

3.1 Data Service................................................................................................................................... 13

3.1.1 Wireless Modem.................................................................................................................... 13

3.1.2 USB Modem .......................................................................................................................... 14

3.1.3 LTE/3G/Wi-Fi Auto Offload .................................................................................................... 14

3.2 SMS................................................................................................................................................ 14

3.3 Connecting an Android Device to the E5573Cs-322 Using a 2D Barcode .................................... 15

4 System Architecture .....................................................................................................16

4.1 System Architecture ....................................................................................................................... 16

4.2 Functional Modules ........................................................................................................................ 17

5 Packing List...................................................................................................................18

HUAWEI E5573Cs-322 Mobile WiFi V200R001

Product Description

Issue 01 (2016-04-12) Commercial in Confidence Page 6 of 20

1 Overview

1.1 Brief Introduction

HUAWEI E5573Cs-322 Mobile WiFi (hereinafter referred to as the E5573Cs-322) is a

high-speed packet access mobile hotspot. It is a multi-mode wireless terminal for

SOHO (Small Office and Home Office) and business professionals.

The E5573Cs-322 supports the following standards:

Long Term Evolution (LTE) Frequency Division Duplex (FDD)

Dual Carrier High Speed Packet Access Plus (DC-HSPA+)

High Speed Packet Access Plus (HSPA+)

High Speed Uplink Packet Access (HSUPA)

High Speed Downlink Packet Access (HSDPA)

Universal Mobile Telecommunications System (UMTS)

Enhanced Data rates for Global Evolution (EDGE)

General Packet Radio Service (GPRS)

Global System for Mobile communications (GSM)

The E5573Cs-322 provides the following services:

LTE FDD packet data service

DC-HSPA+ packet data service

HSPA+/HSPA/UMTS packet data service

EDGE/GPRS packet data service

Short Message Service (SMS)

You can connect the E5573Cs-322 with the USB interface of a computer, or connect

the E5573Cs-322 with the Wi-Fi. In the service area of the LTE

FDD/DC-HSPA+/HSPA+/HSPA/UMTS or EDGE/GPRS/GSM network, you can surf

the Internet and send/receive messages/emails cordlessly. The E5573Cs-322 is fast,

reliable, and easy to operate. Thus, mobile users can experience many new features

and services with the E5573Cs-322. These features and services will enable a large

number of users to use the E5573Cs-322 and the average revenue per user (ARPU)

of operators will increase substantially.

Figure 1-1 shows the profile of the E5573Cs-322.

HUAWEI E5573Cs-322 Mobile WiFi V200R001

Product Description

Issue 01 (2016-04-12) Commercial in Confidence Page 7 of 20

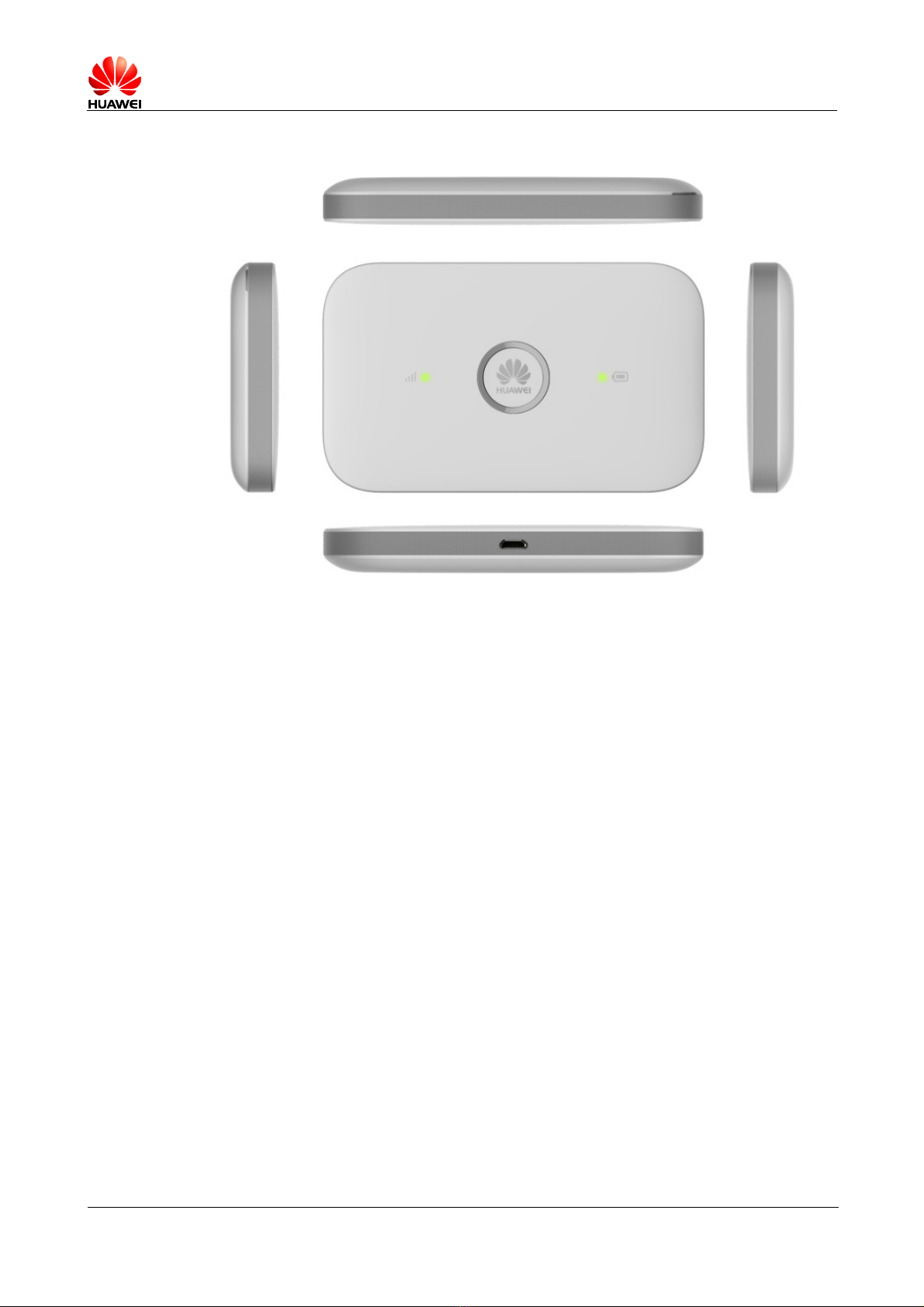

Figure 1-1 E5573Cs-322 profile

1.2 Optional Features

Optional features refer to features that are not supported by the standard version or

are disabled by default. These features can be customized according to operator or

customer requirements. The E5573Cs-322's optional feature is as follows:

IPv6/IPv4 dual stack (optional)

Dual SSID (optional)

HUAWEI E5573Cs-322 Mobile WiFi V200R001

Product Description

Issue 01 (2016-04-12) Commercial in Confidence Page 8 of 20

2 Features

2.1 Main Features

The E5573Cs-322 mainly supports the following features:

LTE FDD (DL) data service of up to 150 Mbit/s

LTE FDD (UL) data service of up to 50 Mbit/s

DC-HSPA+ (DL) data service of up to 43.2 Mbit/s

HSPA+ (DL) data service of up to 21.6 Mbit/s

HSDPA (DL) data service of up to 14.4 Mbit/s

HSUPA (UL) data service of up to 5.76 Mbit/s

UMTS data service of up to 384 kbit/s

EDGE data service of up to 236.8 kbit/s

GPRS data service of up to 85.6 kbit/s

PS domain data service based on LTE/UMTS/GSM

SMS based on LTE/UMTS/GSM

Built-in LTE/UMTS/GSM and WLAN high gain antenna

Wi-Fi 2.4 GHz

LTE/3G/Wi-Fi auto offload

Support for HUAWEI HiLink App

Press and Play

IPv6/IPv4 dual stack (optional)

Built-in DHCP Server, DNS RELAY and NAT

Online software upgrade

Traffic statistic

Standard Micro USB interface

2D Barcode easy connection

Windows 7, Windows 8, Windows 8.1 ,Windows 10 (does not support Windows RT),

MAC OS X 10.7, 10.8, 10.9, 10.10 and 10.11 with latest upgrades

HUAWEI E5573Cs-322 Mobile WiFi V200R001

Product Description

Issue 01 (2016-04-12) Commercial in Confidence Page 9 of 20

2.2 Technical Specifications

2.2.1 Hardware

Table 2-1 lists the hardware specifications.

Table 2-1 Hardware specifications

Item Specifications

Technical

standard

WAN: LTE

FDD/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM

WLAN: IEEE 802.11b/g/n

Operating

frequency

LTE:

FDD B1/B3/B7/B8/B20

DC-HSPA+/HSPA+/HSPA/UMTS: B1/B8

EDGE/GPRS/GSM: B2/B3/B5/B8

WLAN: 2.4 GHz

Internal memory 128 MB Flash, 128 MB DDR SDRAM

Maximum

transmitter

power

LTE: Conform to Power Class 3 Definition

UMTS: Conform to Power Class 3 Definition

WLAN 802.11b: 14 dBm

802.11g: 11 dBm

802.11n: 10 dBm

Receiver

sensitivity

LTE: Conform to 3GPP Requirements

UMTS: Conform to 3GPP Requirements

WLAN 802.11b: -76 dBm@11 Mbit/s

802.11g: -65 dBm@54 Mbit/s

802.11n: -64 dBm@65 Mbit/s

WLAN speed 802.11b: Up to 11 Mbit/s

802.11g: Up to 54 Mbit/s

802.11n HT20: Support MCS0–MCS7; Up to 72.2 Mbit/s.

Support MCS8–MCS15; Up to 144.4 Mbit/s.

HT40: Support MCS0–MCS7; Up to 150 Mbit/s.

Support MCS8–MCS15; Up to 300 Mbit/s.

Maximum power

consumption

3.5 W

HUAWEI E5573Cs-322 Mobile WiFi V200R001

Product Description

Issue 01 (2016-04-12) Commercial in Confidence Page 10 of 20

Item Specifications

Power supply AC: 100–240 V

DC: 5 V, 1 A

Battery Type: Li (rechargeable)

Capacity: 3.8 V, 1500 mAh

Maximum working time: 6 hours (depending on the network)

Maximum standby time: 300 hours (depending on the network)

External

interfaces

Micro USB interface

Standard 6-pin SIM card interface

Indicators LED indicators: Signal, Battery

Key-press Power switch, RESET switch

Antenna Built-in LTE/UMTS/GSM main antenna

Built-in LTE/UMTS diversity antenna

Built-in WLAN antenna

Dimensions

(W × D × H)

96.8 mm×58.0 mm×12.8 mm

Weight about 75 g (including the battery)

Temperature Operating: 0℃to +35℃

Storage: -20℃to +60℃

Humidity 5% to 95% (non-condensing)
