UPS5000-S-(350 kVA-600 kVA)

Quick Guide

1Overview

UPS5000-S-400K-SM/FM UPS5000-S-500K-SM/FM

(1) Power modules

(2) Control module

(3) Power distribution

module cover

(4) Maintenance bypass

switch

(5) Bypass module

(6) Mains input switch

(7) Output switch

(8) Bypass input switch

UPS5000-S-600K-SM/FM

The UPS5000-S-400K-FM, UPS5000-S-500K-FM, and UPS5000-S-600K-FM are models in full

configuration. The UPS5000-S-400K-SM, UPS5000-S-500K-SM, and UPS5000-S-600K-SM are

models in standard configuration. A UPS in standard configuration has no mains input

switch, output switch, or bypass input switch.

(1) Power modules

(2) Control module

(3) Power distribution module

cover

(4) Maintenance bypass switch

(5) Bypass module

(6) Mains input switch

(7) Output switch

(8) Bypass input switch

UPS Model Weight Dimensions (H x W x D)

UPS5000-S-400K-SM 670 kg

2000 mm x 1200 mm x 850 mm

UPS5000-S-400K-FM 710 kg

UPS5000-S-500K-SM 790 kg

UPS5000-S-500K-FM 830 kg

UPS5000-S-600K-SM 1060 kg 2000 mm x 1400 mm x 850 mm

UPS5000-S-600K-FM 1110 kg

The UPS can be installed on channel steel or the floor. Install the UPS based on site requirements.

Floor installation: Determine the UPS mounting holes using the marking-off template, drill

holes, and install the expansion sleeves of the M12x60 expansion bolts in the mounting holes.

Channel steel installation: Ensure that the distance between the outer surfaces of two pieces

of channel steel is 800 mm and secure the channel steel to the floor using expansion bolts.

Huawei does not provide channel steel or expansion bolts used for securing channel steel. The

customer should purchase channel steel (recommended width: 50 mm or more) and

expansion bolts.

1. Before installation, read the user manual carefully to get familiar with product information

and safety precautions.

2. Use insulated tools during installation and operation.

3. Only Huawei engineers or engineers certified by Huawei are allowed to install, commission,

and maintain the UPS. Otherwise, personal injury or equipment damage may occur, and the

resulting UPS faults are beyond the warranty scope of Huawei.

4. This document describes how to install a single UPS. For details about how to install parallel

systems, contact Huawei technical support.

Determining the UPS Installation Position

2.1

Installing the UPS

UPS5000-S-400K/500K-SM/FM

UPS5000-S-600K-SM/FM

Unit: mm

A: mounting holes on the channel steel

B: mounting holes on the floor

•Floor mounting: Use eight M12x60 expansion bolts to secure the cabinet to the ground.

•Channel steel mounting: Use eight M12x60 common bolts to secure the cabinet to channel

steels.

Securing the UPS

2.2

(1)

Cabinet mounting holes (ground installation mode)

(2) Cabinet mounting holes (channel steel installation mode)

3Connecting Cables

Installing the Front, Rear, Left, and Right Anchor Baffle Plates

2.3

1. This document describes cable routing by removing the top cover when there are two mains

inputs.

2. In the case of single mains, you do not need to connect bypass input power cables and

remove short-circuit copper bars.

UPS Cable Connection Reference

3.1

Installing Cables

3.2

•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps

may ignite and cause personal injury or device damage.

•After cables have been installed, clean the cabinets in a timely manner. Keep the cabinets

and surrounding environment clean and tidy.

•You need to prepare terminals onsite. The stripped length of the copper wire should be the

same as that of the part of the terminal that covers the conductor.

The cabling route is for reference only. Connect cables based on site requirements.

2. Remove the top cover from the

cabinet based on cable routes and

dimensions.

1. Open the front door of the bypass cabinet, and

remove front power distribution covers

(UPS5000-S-500K-FM is used as an example).

3. Remove the rear cover from the bypass

cabinet, and then remove the connecting

copper bars between the mains input

terminals and bypass input terminals. (If

the mains input and bypass input share a

power source, skip this step.)

UPS5000-S-500K-SM/FM

UPS5000-S-400K-SM/FM

Scenario 1: Routing Cables from the Top

UPS5000-S-600K-SM/FM 4. Connect the ground cable to the UPS.

6. Connect output power cables.

5. Connect mains input power cables.

7. Connect bypass input power cables. 8. Connect battery cables.

9. Connect the signal cable.

The figure shows the signal cable

routing and is for reference only.

Connect the cable based on the actual

situation.

Scenario 2: Routing Cables from the Bottom

For the screw specifications and torque

used for connecting cables in a bottom

cable routing scenario, refer to the top

cable routing scenario. This section only

shows the cable routes in the bottom

cable routing scenario.

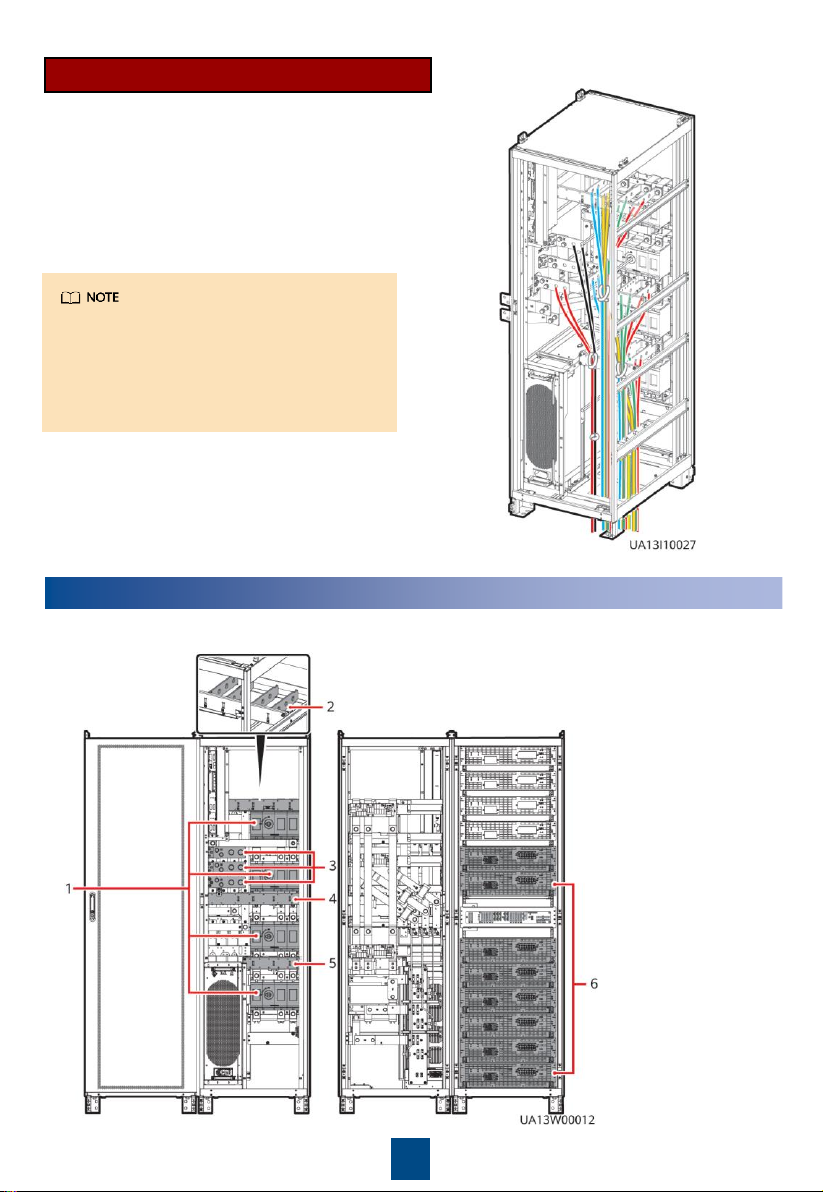

1. Remove the cable covers from the bottom of

the cabinet, drill holes in the covers, attach

grommet strips to the hole edges for

protecting cables, and reinstall the cable

covers.

2. Connect power cables and signal cables.

4Installation Verification

1. Check that there is no foreign matter in the cabinet.

(1) Switches

(2) Mains input wiring

copper bars

(3) Battery input

wiring copper bars

(4) Output wiring

copper bars

(5) Bypass input wiring

copper bars

(6) Cabinet rear
