Huawei UPS5000-S Series Manuel utilisateur
(1)
Cover (2) Maintenance
bypass switch
(3) Control
module
(4) Bypass module
(5) Power
modules
(6) Monitor display
unit
1
Issue: 05
Part Number: 31500BBT
Date: 2020-11-24
UPS5000-S-(50 kVA-300 kVA)
Quick Guide (Isolation Protection)
UPS Model Cabling Mode Capacity Weight Dimensions (H x W x D)
UPS5000-S-200K-FM Routed in and
out from the
top
50 kVA, 100
kVA, 150 kVA,
200 kVA, 250
kVA, 300 kVA
380 kg 2000 mm x 600 mm x
850 mm
UPS5000-S-300K-SMT 460 kg
1Overview
UPS5000-S-200K-FM UPS5000-S-300K-SMT
(1)
Cover
(2) Mains input switch
(3) Bypass input switch
(4) Maintenance bypass switch
(5) Output switch
(6) Control module
(7) Bypass module
(8) Power modules
(9) Monitor display
unit
(10) Folder
Copyright © Huawei Technologies Co., Ltd. 2020. All rights reserved.
2
1. Before installation, read the user manual carefully to get familiar with product information
and safety precautions.
2. Use insulated tools during installation and operation.
3. Only Huawei engineers or engineers certified by Huawei are allowed to install, commission,
and maintain the UPS. Otherwise, personal injury or equipment damage may occur, and the
resulting UPS faults are beyond the warranty scope of Huawei.
4. This document describes how to install a single UPS. For details about how to install parallel
systems, contact Huawei technical support.
2Installing the UPS
Secured Installation
1. Determine the position for installing the
cabinet. Mark mounting holes based on
the drawings. (unit: mm)
2. Use a hammer drill to drill four holes for
installing expansion bolts and then install four
expansion bolts in the holes. Remove the bolt,
spring washer, and flat washer.
3. Slide the cabinet on its castors to the installation
position.
4. (Optional) If the castors of the UPS need to be
lifted from the ground, perform Step 1 to Step 2
in Non-Secured Installation.
5. Remove the rear panel of the cabinet, and then
open the front door.
6. Remove the four rubber plugs from the bottom
of the cabinet (two on the front and two at the
back).
7. Insert four M12x115 expansion bolts into
the expansion bolt holes in the floor, and
tighten the expansion bolts.
3
2. Check whether the bottom of the cabinet is
horizontal by using a level. If the cabinet is
not leveled, adjust the leveling feet.
1. Lower the four leveling feet at the bottom of
the cabinet by using a wrench until all the four
castors at the bottom hang in the air and the
leveling feet bear the whole cabinet weight.
3Connecting Cables
Non-Secured Installation
UPS Cable Connection Reference
3.1
•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps
may ignite and cause personal injury or device damage.
•After cables have been installed, clean the cabinets in a timely manner. Keep the cabinets
and surrounding environment clean and tidy.
•You need to prepare terminals onsite. The stripped length of the copper wire should be the
same as that of the part of the terminal that covers the conductor.
The cabling route is for reference only. Connect cables based on site requirements.
signal
cable
4
1. Ensure the maintenance bypass switch is OFF.
Open the front door, remove the front cover,
and remove covers from the top of the
cabinet based on the site requirements.
Connecting Cables to the UPS5000-S-200K-FM
3.2
2. (Skip this step if the mains input and bypass
input share a power source.) Remove the
copper bars between the mains input and
bypass input.
3. Connect the ground cable, input cables
(There is no need to connect the bypass
input power cable if the mains input and
bypass input share a power source.), and
signal cable.
Port
Description Bolt
Specifications Torque
Mains input M10 x 40 26N•m
Bypass input M10 x 40 26N•m
Battery
input M12 x 60 46N•m
Output M10 x 40 26N•m
PE M10 x 30 26N•m
5
4. Connect battery cables and output cables.
1. Ensure the maintenance bypass switch is OFF.
Open the front door, remove the front cover,
and remove covers from the top of the
cabinet based on the site requirements.
2. (Skip this step if the mains input and bypass
input share a power source.) Remove the
copper bars between the mains input and
bypass input.
Connecting Cables to the UPS5000-S-300K-SMT
3.3
6
3. Connect the ground cable, power cables, and signal cable. There is no need to connect the
bypass input power cable if the mains input and bypass input share a power source.
Port
Description Bolt
Specifications Torque
Mains input M12 x 45 46N•m
Bypass input M12 x 45 46N•m
Battery
input M12 x 45 46N•m
Output M12 x 45 46N•m
PE M12 x 30 46N•m
signal cable
7
(1) Rear of modules (2) Cabinet top (3) Wiring terminal blocks (4) Switches
UPS5000-S-200K-FM UPS5000-S-300K-SMT
4Verifying the Installation
1. Check that there is no foreign matter in the cabinet.
Paper protective
film
Sealing putty
Dustproof cover
2. After verifying the installation, reinstall all the
covers.
3. (Remove the paper protective film from the
sealing putty.) After routing cables and
verifying cable connections, seal the gap
between cables and the cabinet using sealing
putty.
4. Do not remove the dustproof cover
before power-on to prevent dust inside
the UPS.
Sealing putty must
be used as a whole
and the gap can be
sealed only from
the top.
5Powering On and Starting the UPS
1. Before powering on the UPS, ensure that the UPS has passed all check items in the
UPS5000
Commissioning and Acceptance Report
and Chapter 4.
2. Measure the voltage and frequency of the UPS upstream input switch. The line voltage range
is 138–485 V AC, and the frequency range is 40–70 Hz.
8
Initial Startup
5.2
Download and install the Service Expert app.
After login, tap Power-on password
activation on the screen. A message is
displayed, indicating whether to start the UPS.
Tap OK.
Insert the WiFi module into the USB port on
the MDU. Enable the mobile phone WLAN,
search for the UPS_WIFI signal, and connect to
the WiFi signal. The password is Changeme.
Set the Site and Device Type as required, and
connect the device. Set IP to 192.168.0.10, Port
to 443, Username to admin, Password to
Changeme, and click Login.
Enter Bar code and Verification code
obtained from the LCD on the Offline
Activation screen. Tap Generate PWD to
generate a startup password.
Set Site and Device Type as required,
and tap Offline Activation.
Enter the generated password in the
password textbox on the LCD to start the
UPS.
Use the app to
start the UPS
online?
Yes
No, start
the UPS
offline
On the app home screen, tap StartUp to access the Set Startup screen.
•If the UPS is powered on for the first time, you need to obtain the startup password from the
Service Expert app. Skip this step if the UPS is not powered on for the first time.
•The Service Expert app can be downloaded from Google Play Store and can run on Android.
1. Obtain the startup password.
Powering On the UPS
5.1
Close the upstream bypass and mains input switches.
(Full configuration model) Close the UPS bypass input switch, output switch, and mains input
switch.
After the UPS is powered on, initialization begins. The MDU displays the Huawei logo and an
initialization progress bar.
9
To ensure system security,
change the LCD and WebUI
passwords after the first login.
1. On the main menu, choose Common Functions and
tap Inv. ON.
2. In the displayed login window, enter the user name and
password, and tap .
3. In the displayed dialog box, tap Yes to start the inverter.
Starting inverter
5.3

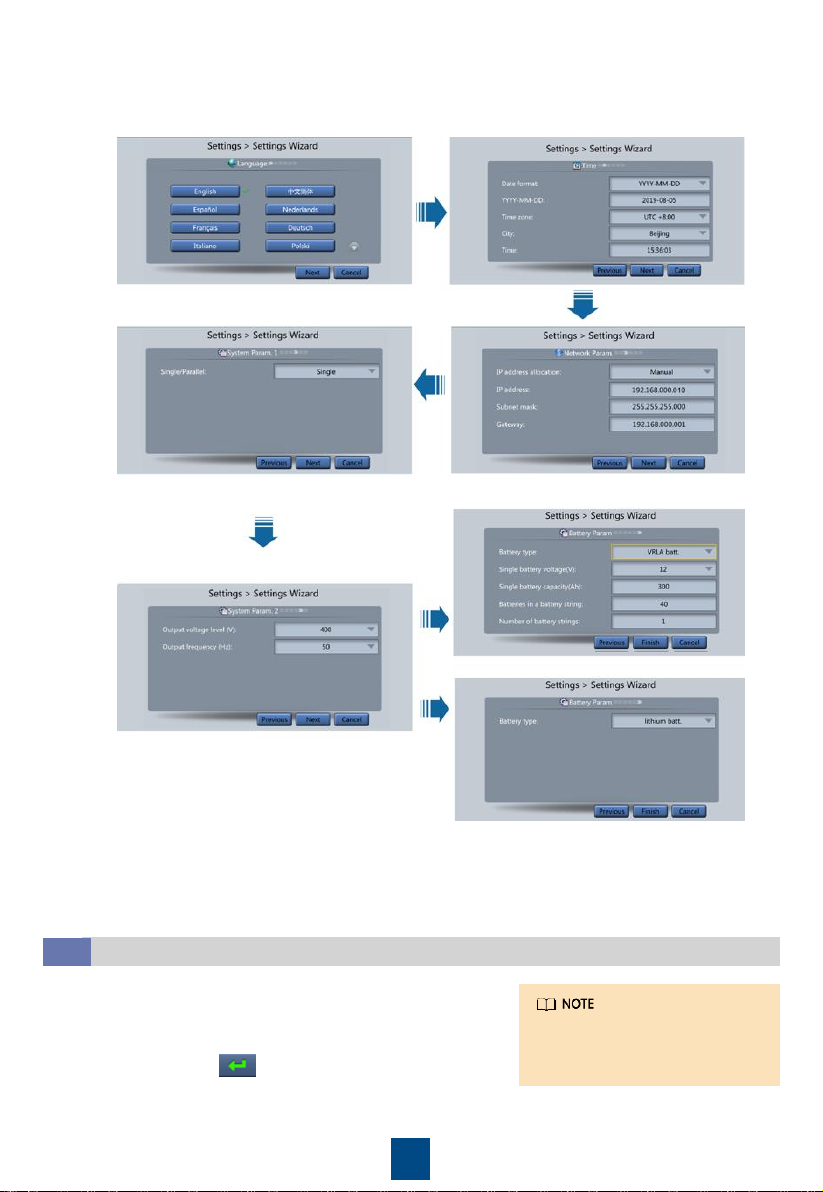

2. Set the language, time, date, network parameters, and system parameters on the Settings
Wizard screen.
4. If the system has connected to the remote EPO switch, you need to choose Monitoring > UPS
System > Running Parameter > System Settings on the WebUI and set EPO detection to
Enable.
5. View the system running status diagram on the MDU to check that the UPS is working in
bypass mode.
3. After you perform the settings, the Bypass mode
and No battery alarms are reported by the MDU
and do not need to be cleared. If there is any
other alarm, you need to rectify the fault.
10
Powering On Loads
5.4
1. After the inverter starts, the UPS works in normal mode. The Bypass mode alarm disappears
from the MDU.
2. After confirming that the battery strings are properly connected, turn on the battery string
input circuit breaker. If there are multiple battery strings, turn on the circuit breaker for each
battery string and then turn on the general circuit breaker between battery strings and the
UPS. The No battery alarm disappears from the MDU.
3. Turn on the UPS downstream output switch to supply power to the loads.
6Shutting Down the UPS
After you shut down the inverter, the UPS transfers to bypass mode if the bypass is normal;
the UPS supplies no power if the bypass is abnormal. Before shutting down the UPS, ensure
that all loads have been shut down.
Powering Off a Single UPS
6.2
Shutting Down the Inverter to Transfer the UPS to Bypass Mode
6.1
(Optional) Setting Parameters for the BCB Box
5.5
1. On the main menu of the LCD, choose Common Functions and tap Inv. OFF.
2. In the displayed login window, enter the user name and password, and tap .
3. In the displayed dialog box, tap Yes to shut down the inverter.
1. If a BCB box is configured, set MUE05A connection to Enable in System Info > Settings >
Dry Contacts Set, and then set BCB connection [OL] and Battery breaker [STA] to Enable.
Open the downstream output switch and battery string switch.
(Full configuration model) Open the UPS mains input switch, bypass input
switch, and output switch.
Open the upstream mains input and bypass input switches.
System User LCD Preset Password WebUI Preset Password
admin (system
administrator) 000001 Changeme
operator (common user) 000001 Changeme
