Huawei OceanStor CloudStor CSE Manuel utilisateur

Safety Information

OceanStor CloudStor CSE V100R001C01

Quick Installation Guide

Issue: 03

Date: 2012-10-17

Do not operate devices or handlecables on a stormy day.

To avoid personal injuries, take off your electrostatic discharge (ESD) wrist strap before insertinga power cable.

To avoid personal injuries, arrangeenough persons to carry the devices according to the suggestion on the package.

Before handling devices, wear an ESD suite, ESD gloves, or an ESD wrist strap and take off conductive objects such

as ornaments and watches.

To avoid device damage, ensure thatthe devices are grounded before powering them on.

Do not insert or remove disks or cables duringpower-on of the CSE. When data is being read or written on hard

disks, do not power off the device by cutting off power or holding down the power button for seconds. Otherwise, the

hard disks may have bad tracks and data may be damaged. To power off the device, stop reading and writing data on

the hard disks first and then send a shutdown command through the operating system (OS).

Installation Process

The power distribution system (DC or AC power distribution box), auxiliary tools (guide rails and floating nuts) are

pre-installed and cables (includingpower cables and network cables) are laid out in the system cabinet of the CSE

before delivery.

确定T3200 G3在机柜中的位置

Prepare the materials and

installation tools.

Take antistatic measures.

Install hardware devices of

the CSE.

Connect cables.

Power on the devices and

check indicator status.

Install software.

Start

End

Page 2

Page 14

Page 12 to 13

Page 7 to 11

Page 4 to 7

Page 3

Determine positions of

devices in the cabinet.

Remove filler panels.

Install back-end storage

devices.

Install a KVM.

Install a switch.

Install a SD-Node.

Page 4

Page 5

Page 6

Install a C-Node.

Install a SMS modem.

Page 6

Connect the SD-Node.

Connect the C-Node.

Connect the switch.

Connect the KVM.

Connect the SMS modem.

Connect the remote modem.

Page 10

Page 11

Install a Remote modem.Page 7

List of Tools and Materials

PS/2 to USB converter KVM cables 100M/1000Mnetwork cable

Stack cables

SD-Node C-Node KVM

Switch SMS modem Remotemodem

AC power cable

ESD wrist strap with a crocodileclip

Floatingnut, M6 screw, and

M4 screw ESD suite

ESD wrist strap with a plug

ESD gloves

Phillipsscrewdriver Diagonal pliers

1E1 trunk cable PGND cable

Tie

The previous table lists part of the materials required for installation.For the complete list, refer to the

Packing List.

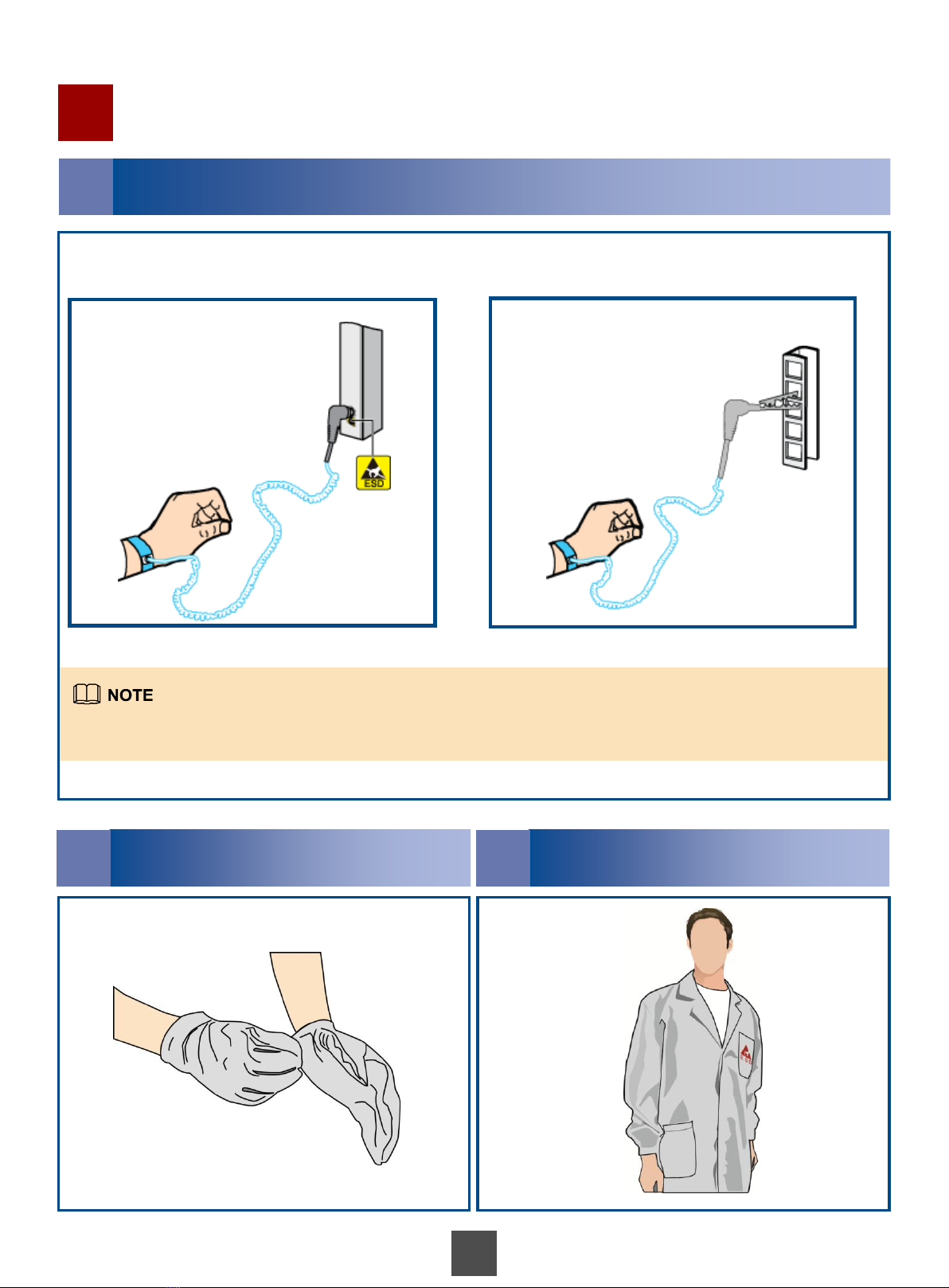

Wearing ESD Gloves

Wearing an ESD Wrist Strap

Taking Antistatic Measures

For an ESD wrist strap with a plug, insert the plug into the ESD jack on the cabinet (scenario 1). For an ESD

wrist strap with a crocodile clip, snap the clip onto the cabinet (scenario 2).

Scenario 1: Wearingan ESD wrist strap with a plug

Scenario 2: Wearingan ESD wrist strap with a crocodile clip

Wearing an ESD Suite

Determining Positions of Devices in the Cabinet

Installing Hardware Devices of the CSE

Install the devices of the CSE according to the

specific installationenvironment. The following

describes the general installationplan:

Each cabinet requires two switches and one

KVM device.

You are advised to install the back-end

storage devices in the storage space of 3 U to 22

You are advised to install devices except the

back-end storage devices in the storage space of

32 U to 41 U.

SD-Nodes must be installedbelow C-Nodes.

If the number of C-Nodes exceeds three or the

number of OSN nodes exceeds three, an

expansion cabinet is required.

If an expansion cabinet is used, installthe

back-end storage devices in the storage space of

1 U to 22 U, and C-Nodes in the positions of 32

U to 41 U. Devices in the expansion cabinets

must be parallel to the devices of the same type

in the system cabinet.

The CSE uses a cloud storage system (CSS) as the back-end storage. This section uses the CSS as an example to

explain how to install a CSE system.

Thissection uses the configuration of three C-Nodes in the CSE as an example. The CSE includes two SD-Nodes,

threeC-Nodes, two switches, one KVM device, and the back-end storage (CSS with two MDS nodes and two OSN

nodes).

2 Removing Filler Panels

Remove only filler panels that cover the planned

installationpositions.

3 Installing Back-End Storage Devices

Install the back-end storage device by referring to the accompanying documents.

4 Installing a KVM

1Installthe KVM balancingpole to the

rear of the cabinet. 3

Slide the KVM along the guide rails.

5 Installing a Switch

1Fix the mountingears on each side of the

switch by using M4 panel screws.

Slide the switch along the guide

rails.

Fix the mountingears on the square hole bar

of the cabinet by using M6 panel screws.

Fix the mountingears on the square

hole bars of the cabinet by using M6

panel screws.

The SMS modem is equipped with the 220 V to 12 V transformer. When the equipment

room has only –48 V DC power supply, use the service provider (SP) short message method

instead.

The SMS modem is a small and lightpurchased component. Different types of SMS

modems may require different installationmethods. Use a tie to fix the SMS modem in a free

position near the SD-Node in the cabinet so that you can connect cables of the SD-Node

conveniently.

Tie the SMS modem securely to prevent it from falling off and ensure that the SMS modem

does not affect the wiring of other devices or opening/closing of the cabinet door.

8 Installing an SMS Modem

7 Installing a C-Node

The installation procedure of a C-Node is the same as that of an SD-Node. Install the C-Nodes by referring to the

installationprocedure of an SD-Node.

A C-Node weighs 29 kg in its full configuration, so at least two persons are required to mount the C-Node into the

cabinet.

After the previous devices have been installed,you are advised to install filler panels to cover empty positions to

ensure good ventilation. If an SMS modem or a remote modem is used, install the modem before installingfiller panels.

6 Installing an SD-Node

An SD-Node weighs 29 kg in its full configuration,

so at least two persons are required to mount the SD-

Node into the cabinet.

To avoid hard disk vibration, push the SD-Node into

the cabinet gently and secure it.

Slide the SD-Node into the cabinet

along the guide rails.

Fix the device in the cabinet using

two M6 screws.

To keep the gravity balance of the cabinet, you are advised to installdevices of the CSE from bottom to top.

1 Connecting Ground Cables of the CSE

Connecting Cables

The remote modem is equipped with a 220 V to 12 V transformer, which connects to an external power supply.

The remote modem is a small and light purchased component. Different types of remote modems may require

different installationmethods. Use a tie to fix the remote modem in a free position near the SD-Node in the cabinet

so that you can connect cables of the SD-Node conveniently.

The remote modem is connected to an external power supply instead of the cabinet power supply. Ensure that the

remote modem does not affect the cabling of other devices or opening/closing of the cabinet door.

Because the SD-Node provides only one serial port, you cannot connect an SMS modem and a remote modem at

thesame time.

9 Installing a Remote Modem

Before connecting cables of devices, make sure that the cabinet is securely grounded.

Before connecting other types of cable, ground the devices by referring to the following figure.

2 Connecting Network Cables of the CSE

Network cables are delivered with labels that describe the connections. Connect the network cables by referring

to the labels.

Before connecting the network cables, make sure that the devices have been grounded securely.

Thisfigure shows the network cable connections among devices of the CSE. Power cable connections and ground

cable connections are not illustrated.

3 Distribution of Switch Ports

Distributionof network ports on switch 1

On a switch, network ports are numbered from bottom to top and then from left to right.

Network cables are clearly labeled before delivery. The following tables describe distribution of network ports on

switches to help you quickly complete network cable connections.

Device Port Switch port Number

Switch port Number Device Port

- 1 2 -

- 3 4 -

- 5 6 -

- 7 8 -

MDS1 NIC1 9 10 MDS1 NIC2

MDS2 NIC1 11 12 MDS2 NIC2

OSN1 NIC1 13 14 OSN1 NIC2

OSN2 NIC1 15 16 OSN2 NIC2

- 17 18 -

SD-Node-1 IPMI 19 20 C-Node1 IPMI

C-Node-3 IPMI 21 22 -

MDS-1 IPMI 23 24 OSN-1 IPMI

SD-Node-1 Slot0-B 25 26 SD-Node-2 Slot-0-B

C-Node-1 Slot2-B 27 28 C-Node-2 Slot-2-B

C-Node-3 Slot2-B 29 30 -

- 31 32 -

- 33 34 -

SD-Node-1 Slot0-A 35 36 SD-Node-2 Slot-0-A

C-Node-1 Slot2-A 37 38 C-Node-2 Slot-2-A

C-Node-3 Slot2-A 39 40 -

- 41 42 -

- 43 44 -

- 45 46 -

- 47 48 -

b Distributionof network ports on switch 2

Device Port Switch port Number

Switch port Number Device Port

- 1 2 -

- 3 4 -

- 5 6 -

- 7 8 -

MDS1 Slot0-A 9 10 MDS1 Slot3-A

MDS2 Slot0-A 11 12 MDS2 Slot3-A

OSN1 Slot1-A 13 14 OSN1 Slot2-A

OSN2 Slot1-A 15 16 OSN2 Slot2-A

- 17 18 -

SD-Node-2 IPMI 19 20 C-Node2 IPMI

- 21 22 -

MDS-2 IPMI 23 24 OSN-2 IPMI

SD-Node-1 Slot-3-B 25 26 SD-Node-2 Slot3-B

C-Node-1 Slot3-B 27 28 C-Node-2 Slot-3-B

C-Node-3 Slot3-B 29 30 -

- 31 32 -

- 33 34 -

SD-Node-1 Slot3-A 35 36 SD-Node-2 Slot-3-A

C-Node-1 Slot3-A 37 38 C-Node-2 Slot-3-A

C-Node-3 Slot3-A 39 40 -

- 41 42 -

- 43 44 -

- 45 46 -

- 47 48 -

4 Connecting an SD-Node

5 Connecting a C-Node

Connectcables in the sequence of the ground cables, network cables, then power cables.

Thissection uses SD-Node-2 as an example to describe cable connections of an SD-Node. Connect cables of SD-

Node-1 in the same way.

The SMS modem connects only to SD-Node-2.

Connectcables in the sequence of the ground cables, network cables, then power cables.

Thissection uses C-Node-1 as an example to describe cable connections of a C-Node. Connect cables of

other C-Nodes in the same way.
