Huawei FusionModule800 Manuel utilisateur

FusionModule800 Smart Small Data

Center

Quick Guide

Issue: 04

Date: 2023-10-31

Huawei Digital Power Technologies Co., Ltd.

Item Specifications

Cabinet dimensions

(H x W x

D)/Reference net

weight

•IT cabinet: 2000 mm x 600 mm x 1350 mm/160 kg

•Converged Cabinet: 2000 mm x 600 mm x 1350 mm/410 kg

•Battery cabinet (deployed inside the aisle containment): 2000 mm x

600 mm x 1350 mm/160 kg

•Battery cabinet (deployed outside the aisle containment): 2000 mm

x 600 mm x 1100 mm/1200 mm/140 kg

•Network cabinet: 2000 mm x 800 mm x 1350 mm/160 kg

Indoor unit (with a

control unit)

dimensions (H x W x

D)/Net & gross

weight

•With water pump, heater, and humidifier: NetCol5000-A013: 486

mm x 442 mm x 800 mm/52.6 kg & 70 kg

•With water pump, but without heater and humidifier: NetCol5000-

A013: 486 mm x 442 mm x 800 mm/49.4 kg & 66.8 kg

Outdoor unit

dimensions (H x W x

D)/Net & gross

weight

•NetCol500-A018: 966 mm x 1057 mm x 339 mm/83 kg & 99 kg

•NetCol500-A020: 1327 mm x 966 mm x 320 mm/101 kg & 114 kg

•NetCol500-A021: 1350 mm x 1270 mm x 730 mm/205 kg & 235 kg

Bearing capacity

•Standard live load of the main equipment room: 8-12 kN/m²(If the

battery cabinet is placed inside the smart module, use the standard

live load of the main equipment room as a reference.)

•Suspended load of the main equipment room: 1.2 kN/m²

•Standard live load of the battery room: 16 kN/m²

Levelness Allowed deviation: 3/2000 mm

Equipment room

height ≥ 2.6 m

Equipment room area 8–30 m²

Door size Height > 2.2 m; width > 0.9 m

Elevator

Elevator bearing capacity > 1.5 t

Elevator internal size: height > 2.4 m, depth > 1.4 m

Elevator door size: height > 2.2 m; width > 0.9 m

Power supply 380 V AC/400 V AC/415 V AC, 3 Ph + N, 50 Hz/60 Hz

Floor drain DN50 or larger, made of cast iron or stainless steel

Grounding

A general ground bar is configured in the Converged Cabinet. The

general ground point in each cabinet connects to the general ground

bar in the Converged Cabinet. The general ground bar in the

Converged Cabinet connects to the floor ground bar or collective

ground bar.

Water port

Condensate drain outlet: for draining condensate from the smart

cooling product.

Humidifier water pipe port: Connects to external water pipes to supply

water to the humidifier.

Overview

Camera mounting kit on

the enclosed framework

Side sealing plate

Gas spring

cabinet electronic

clasp lock

Converged cabinet

The component layout illustrates only the positions of components. The actual component

installation positions prevail.

Space requirements for the cold and hot aisle containment

Installation Scenarios

1Smart Module Installation Scenario

•The cabinet layout shown in the figure is for ease of description and does not provide

reference for engineering layout.

•If the site conditions do not meet the space requirements, contact Huawei technical support.

IT cabinet

•If the outdoor unit is placed higher than the indoor unit, the maximum height deviation

between them should be less than or equal to 30 meters. Install an oil trap every 5–6 meters

in the vertical direction along the gas pipe.

•If the indoor unit is placed higher than the outdoor unit, the maximum height deviation

between them should be less than or equal to 8 meters.

2Outdoor Unit Installation Scenario

Layout of upward piping

Layout of downward piping

Hardware Installation

1(Optional) Removing Aisle Containments

1. Remove the PAD cable.

2. Remove the gas springs.

3. Remove the cabinet doors.

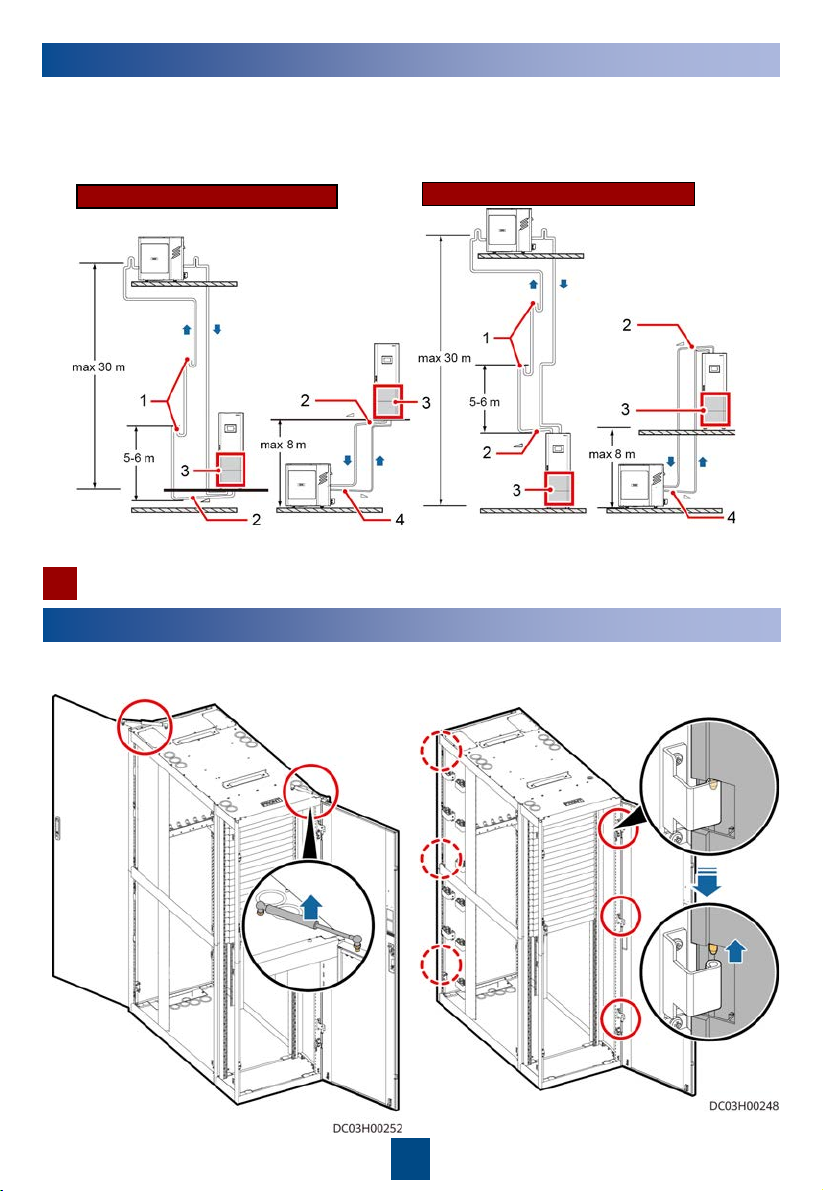

(1) Oil trap (2) Tilted gas pipe (3) Indoor unit (4) Tilted liquid pipe

4. Remove the top plate.

5. Remove the air director.

6. Remove an aisle containment.

7. Reinstall all components.

2Adjusting the Positions of Aisle Side Sealing Plates

1. Remove the aisle side sealing plates

from the Converged Cabinet.

2. Install sealing plate fasteners for an end

cabinet.

3. Install floating nuts for the end cabinet.

4. Install aisle side sealing plates for the end cabinet.

3Installing a Cabinet

•Use a measuring tape to check that the

vertical distance between the top of the

2000 mm high cabinet and the floor is

2000 mm (+3 mm). Then use a level to

check that the cabinet is level.

•Do not remove the anchor bolts.

Otherwise, rework is required if the

cabinet height does not meet

requirements.

1. Determine the cabinet position based

on the engineering layout diagram.

2. Place the end cabinet at the correct

installation position.

3. Level the cabinet using a wrench.

4. Combine cabinets.

5. Install other cabinets in the same way.

4(Optional) Install the eLight

2. Pull the strip and extension cable straight

and interconnect the terminals.

(1)Strip light extension cable

(2) ETH converter

4. Connect cables to the eLight system.

1. Install the strip light.

a. Reserve the end with a wiring terminal on

the top of the IT cabinet at an end of the row.

b. Route the strip light from the top of the

cabinet at one end to the top pf the cabinet at

the other end, and secure the strip light using

the fastener.

3. Install the eLight actuator and power

module.

eLight actuator

eLight power module

a. Open the rear door of the end cabinet.

b. Align one end of the support with the notch

on the rear door side of the top panel, and

hook the other end of the support to the

long strip hole on the top panel, as shown

by (1) in figure.

c. Secure the support using two screws at the

notch on the rear door side of the top panel,

as shown by (2) in figure.

d. Clamp the eLight actuator and power

module onto the mounting kit.

5Installing an Outdoor Unit

The methods for installing the NetCol500-A018,NetCol500-A020,and NetCol500-A021 are the

same.The NetCol500-A018 is used as an example.

(Front view)

(Top view)

Unit: mm

(Front view)

(Top view)

NetCol500-A018 NetCol500-A020

NetCol500-A021

(Front view) (Top view)

Unit: mm

Outdoor Unit Installation Dimensions

5.1

Space Requirements for Installing and Maintaining the Outdoor Unit

5.2

•To avoid fire disaster, install an outdoor unit in a dry and well-ventilated place without

flammable gas leakage.

•Select a place away from direct sunshine and radiation from other heat sources. If the

sunshine or heat radiation cannot be avoided, cover the outdoor unit.

•Do not install an outdoor unit in a place with much salt or corrosive gas.

•When installing the outdoor unit, ensure that the air intake vent and air exhaust vent of the

condenser are not dirty or blocked. Install an outdoor unit in a clean area that is away from

residential areas.

•At a high place with strong winds, install the outdoor unit against a wall to ensure the

normal operating of fans. Install baffle plates when necessary. Take this measure to prevent

wind from blowing down the outdoor unit.

•Try to install an outdoor unit against a wall. If the site conditions cannot meet the

requirements and the local outdoor temperature may be below –10°C (NetCol500-A018),

0°C (NetCol500-A020) or –10°C (NetCol500-A021), prepare and install an air baffle by

referring to the figures on the following slide. The air baffle height and width should be

greater than or equal to the outdoor unit height and width, respectively.

•indicates the wind direction.

•If the site installation environment is complicated and the preceding conditions are not met,

contact Huawei technical support.

Space requirements for a single outdoor unit

It is recommended that a

single outdoor be installed

against a wall.

If the air baffle is needed, place an air baffle at the air intake side of the outdoor unit based on

the following figure.

Space requirements for a single wall-mounted outdoor unit

•The bearing capacity of the support platform is more than 320 kg.

•Reserve no less than 300 mm from the left or right side of the outdoor unit for maintenance

personnel to walk.

•A mesh structure is recommended to avoid the air exhaust and intake of the smart cooling

product being affected by the guardrail structure.

•The picture is only for reference. Adjust based on the on-site situation if necessary.

If an air baffle is needed, place the air baffle at the air intake side of each outdoor unit.

Space requirements for multiple outdoor units

Concrete base requirements

5.4
