Huawei WiFi Cube 2 4G Manuel utilisateur

Quick Start Guide

HUAWEI WiFi Cube 2 4G

31500DJX_01

1Device Overview

SIM Card RESET

MAIN

DIV

LAN1

LAN2/WAN

POWER

STATUS

LAN

WIFI

MODE

Power button

LAN/WAN port

Power input

MODE indicator

Wi-Fi®indicator

LAN indicator

Network status indicator

Power indicator

Hi/WPS button 10 Signal indicators

11 SIM card slot

Reset button

2Device Setup

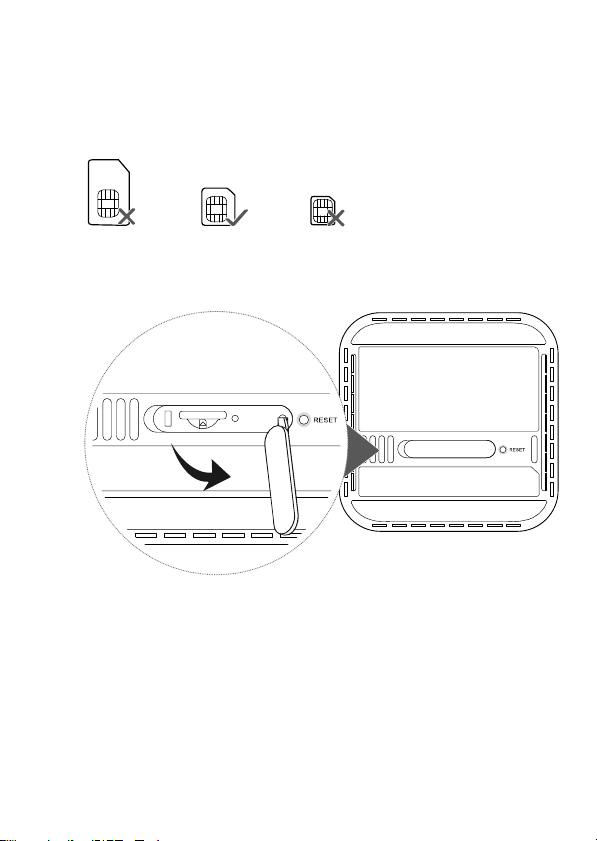

1. Make sure you use the correct size SIM card.

mini-SIM (2FF) micro-SIM (3FF) nano-SIM (4FF)

2. Open the SIM card slot cover located underneath the WiFi Cube 2.

SIM Card

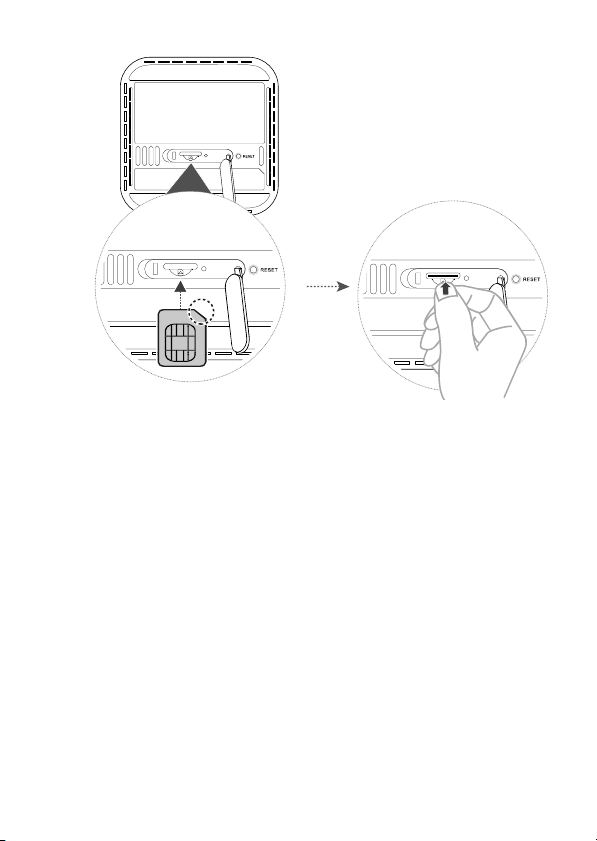

3. Insert the SIM card gently into the SIM card slot in the direction

shown in the figure below until it clicks. Then close the SIM card

slot cover.

SIMCard

Note:

●To remove the SIM card, gently press the SIM card in until it

clicks. The card will automatically pop out.

●Do not insert or remove a SIM card when the WiFi Cube 2 is

running, as this may affect performance or damage the SIM

card.

4. Connect the power adapter to the WiFi Cube 2.

MAIN

DIV

LAN1

LAN2/WAN

The indicators will turn on when the WiFi Cube 2 has successfully

connected to the Vodafone network.

MODE indicator Cyan/blue: Connected to the Vodafone

4G/3G network.

Signal indicators Green: signal reception available (more

indicators mean better reception).

Note:

If the MODE indicator is red, it indicates there is no Vodafone network

connection. Please refer to the FAQs in this guide.

3Connect to your Device WiFi

Wi-Fi Na me

Wi-FiPassword

SIM Card

Wi-Fi Name: XXXXXXX

Wi-Fi Password : YYYYYY

Wi-Fi Password:

Wi-FiPassword:

RESET

XXXXXXXX

abcdefg

XXXXXXX X

YYYYYYY

Once the WiFi Cube 2 has connected to the Vodafone network, you

can connect your smartphone, tablet or computer to the device’s Wi-Fi

network to access the Internet. Please refer to the label on the bottom

of the WiFi Cube 2 for the default wireless network name (Wi-Fi Name)

and password (Wi-Fi Password).

Note:

●When the Wi-Fi indicator is steady on, Wi-Fi is enabled. To

enable or disable Wi-Fi, refer to the device’s web-based

management page.

●Ensure that you promptly change the Wi-Fi network name and

password on the web-based management page to prevent

unauthorized access to your Wi-Fi network. Once you have

changed the password, you will need to reconnect to the device’s

Wi-Fi network.

4Managing your Device

You can manage your WiFi Cube 2 using the web-based management

page. Please refer to the label on the bottom of the device for the

default IP address, password and so on.

More information can be found in the web-based management page.

Note:

●Ensure that you promptly change the default login password

for the web-based management page to prevent

unauthorized users from changing the device’s settings.

●You can also manage your device using the HUAWEI

SmartHome app. Scan the QR code below to download.

5Optional Configurations

The features described in this section are for reference purposes only. Your

WiFi Cube 2 may not support all of these features.

1. Connecting to a Computer via Ethernet

You can connect a computer to the WiFi Cube 2 using an Ethernet cable to

access the Internet.

MAIN

DIV

LAN1

LAN2/WAN

Note:

There is an Ethernet cable provided in the box with your

WiFi Cube 2.

2. Accessing the Internet through an Ethernet Port

You can connect the WiFi Cube 2 to a wall-mounted Ethernet port

using an Ethernet cable to enable connection to the Internet on other

compatible devices.

Configure the relevant settings on the web-based management page

before connecting to the Internet through an Ethernet port.

MAIN

DIV

LAN1

LAN2/WAN

Note:

There is an Ethernet cable provided in the box with your WiFi

Cube 2.

6FAQs

How do I Restore the Device to Factory Settings?

While the WiFi Cube 2 is turned on, press the reset button for

approximately 3 seconds using a pointed object until the power

indicator turns off. Please note restoring factory settings will restore all

the device settings to default. You can reconfigure them after the

device is restored.

What should I do if I forgot the Wi-Fi password or the

Restore the WiFi Cube 2 to its factory settings and then use the default

Wi-Fi password and login password to try again.

What should I do if the MODE indicator is Red or an

Internet Connection cannot be Established?

1. Check if the SIM card is inserted correctly. Refer to the Device Setup

section of this Quick Start Guide for the correct size of SIM card and

the correct way to insert the SIM card into the SIM card slot.

2. If the issue persists, restore the WiFi Cube 2 to factory settings and

try again.

3. Contact Vodafone to check that your SIM card is still active. If it's a

new or replacement SIM card, check if it has been activated.

What should I do if the Internet speed is slow?

1. Check the signal indicators on the WiFi Cube 2. If it shows weak

signal, adjust the device’s angle or move it close to a window to

improve signal reception.

2. If your device e.g. smartphone, tablet or computer is connected to

the WiFi Cube 2 over Wi-Fi, adjust your device's position to receive

a better signal.

3. Switch to the WiFi Cube 2’s 5GHz Wi-Fi band if it is supported by

your smartphone, tablet or computer.

4. Restart both the WiFi Cube 2 and your device, and try again.
