1 Placing the Device
NO TE
● Do not install the ONT outdoors or in an outdoor cabinet.
● The ONT can be mounted onto a wall or placed on a desk. Do not install the ONT in
other modes, such as ceiling.
● Keep 10 cm clearance on all sides to ensure adequate ventilation.
● It is recommended that the computer and ONT be put far away from electric appliances
that generate strong magnetic or electric elds, such as microwave ovens.
Mounting an ONT on the desk

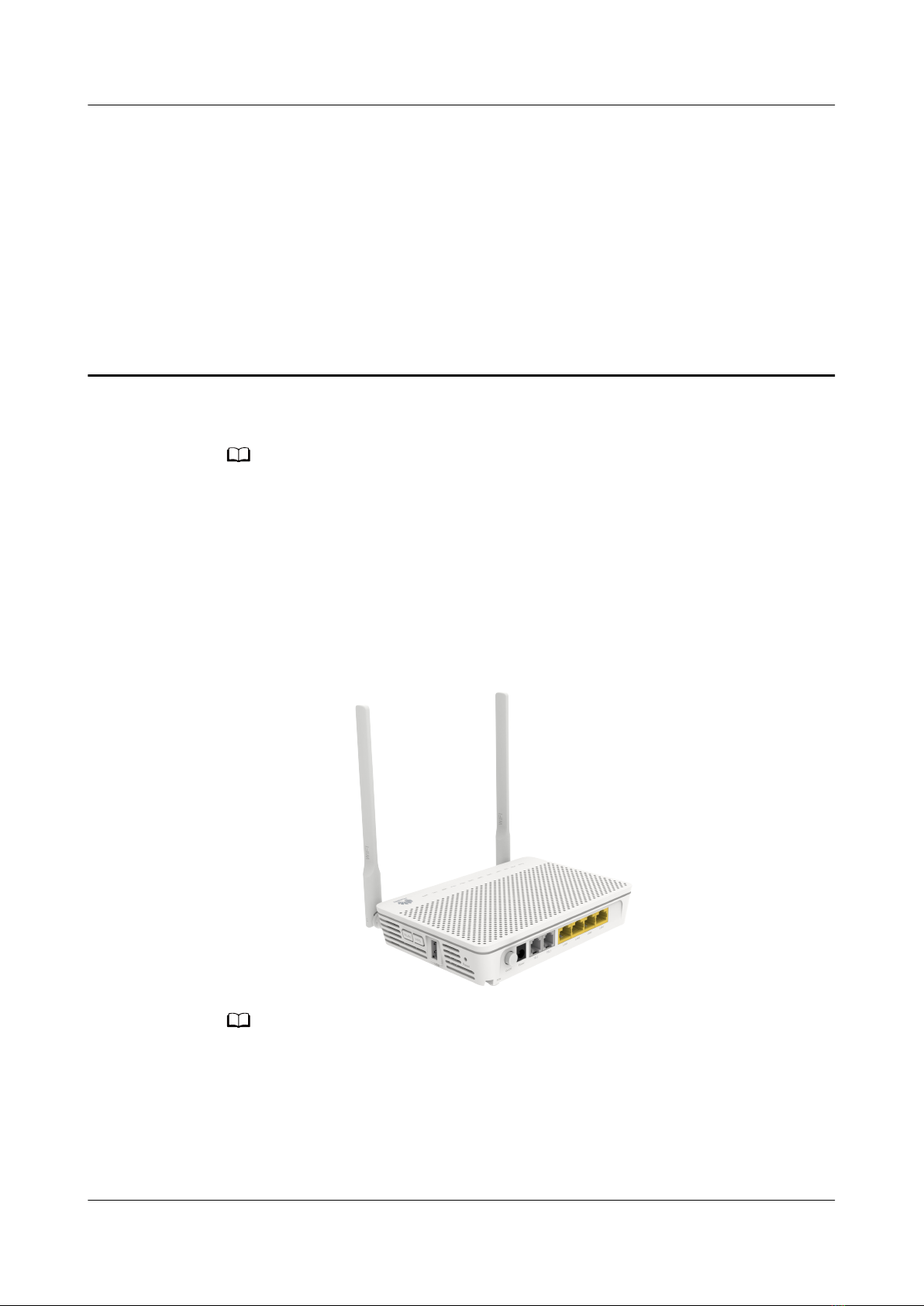

The gure below shows an ONT that is horizontally placed on a desk.
NO TE
The appearance shown in this document may be dierent from the actual appearance of
the product. The actual product prevails.

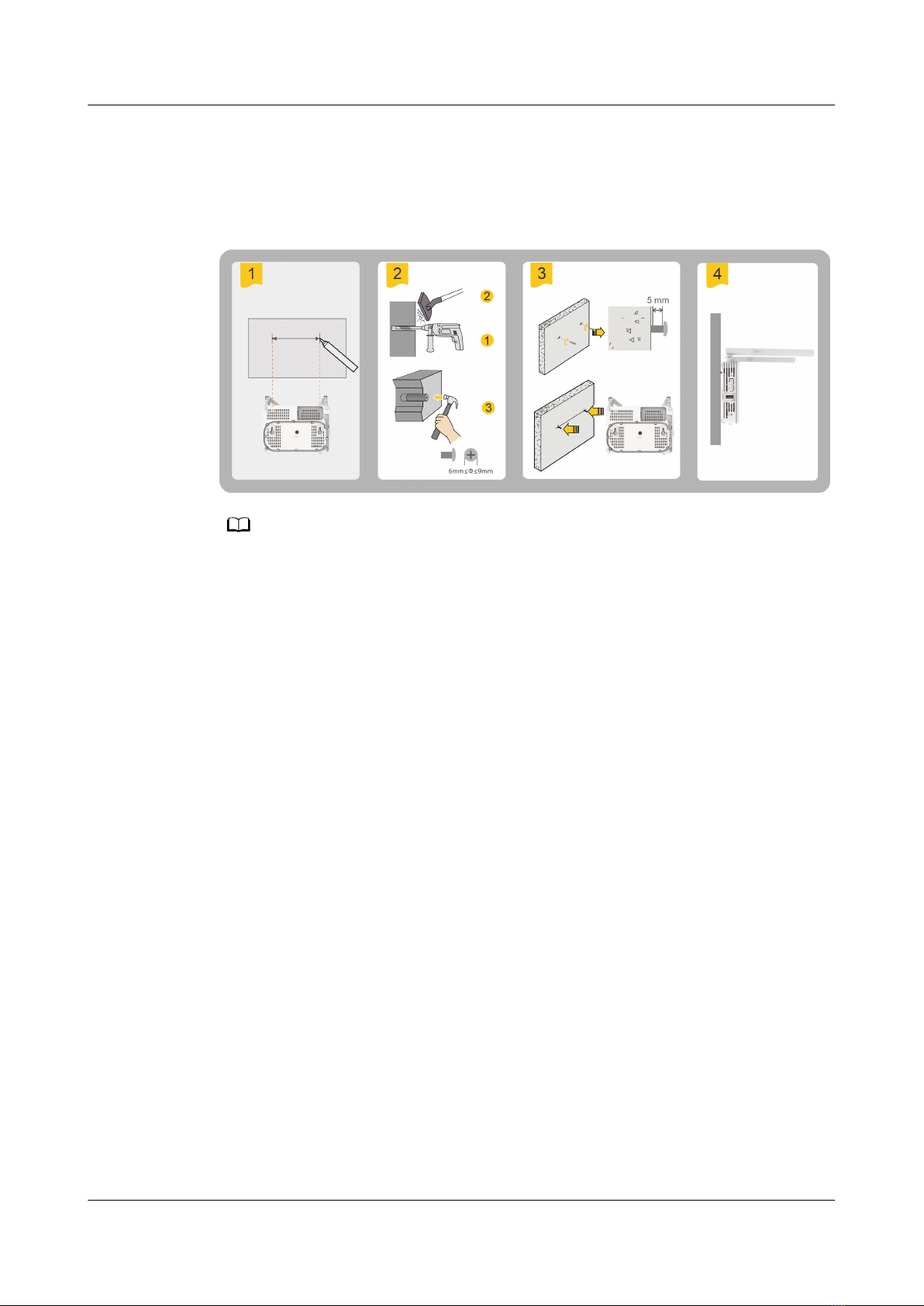

Mounting an ONT onto the wall
1. Mark two positions with the same spacing as that between the two mounting
holes of the ONT using a marker on a wall.
EchoLife EG8245H5
Quick Start for QR code 1 Placing the Device
Issue 05 (2022-11-02) Copyright © Huawei Technologies Co., Ltd. 1
2. Select a proper drill bit according to the outer diameter of the screws. Use a
hammer drill to drill the marked positions on the wall. Then clean the holes
and install two expansion bolts.
3. Use a screwdriver to fasten the screws into the expansion bolts, reserving 5
mm ends out of the wall, and mount the ONT onto the screws.
NO TE
It is recommended that the screw be about 4 mm in diameter and longer than 20 mm.
EchoLife EG8245H5
Quick Start for QR code 1 Placing the Device
Issue 05 (2022-11-02) Copyright © Huawei Technologies Co., Ltd. 2

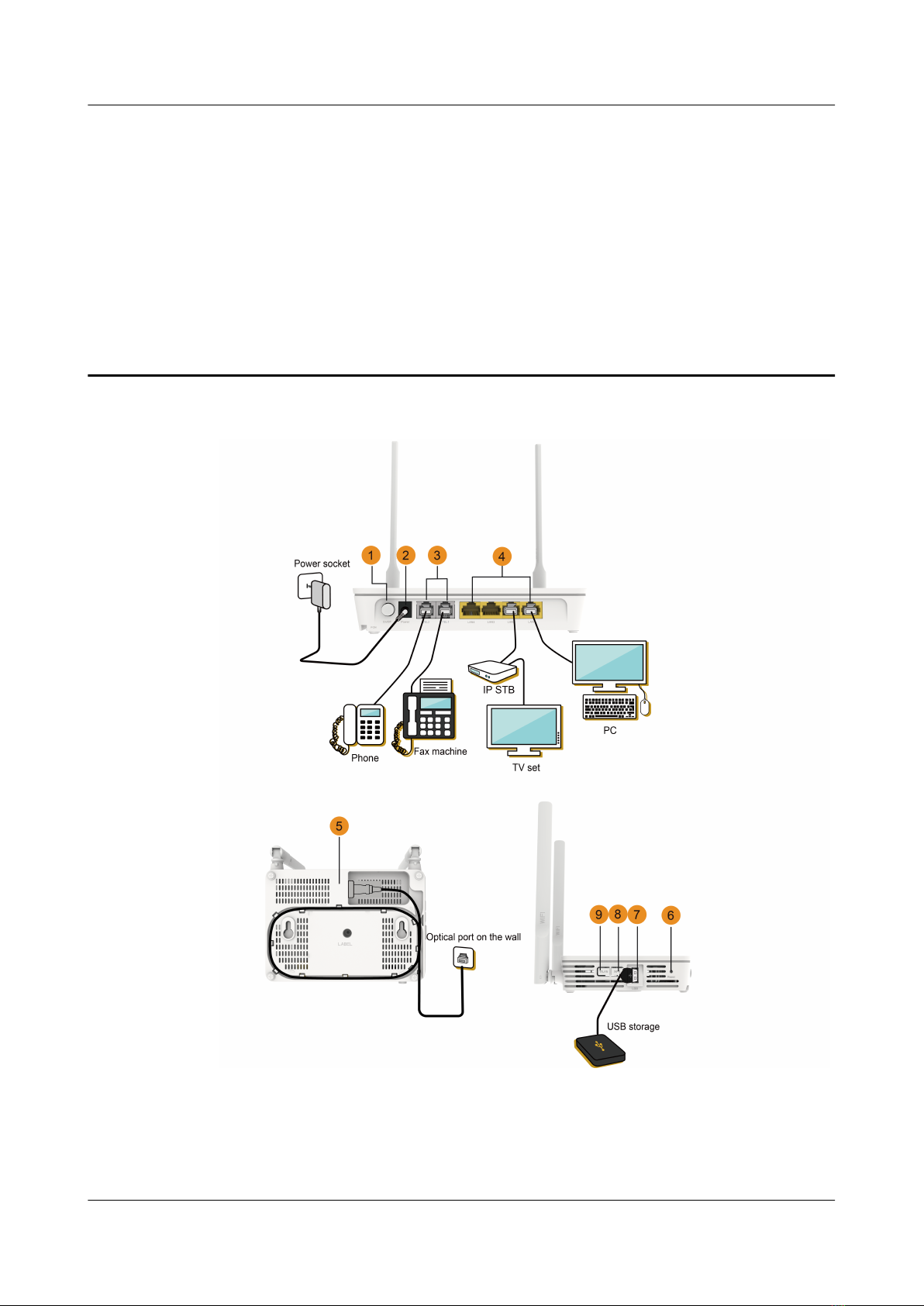

2 Connecting Cables
EchoLife EG8245H5
Quick Start for QR code 2 Connecting Cables
Issue 05 (2022-11-02) Copyright © Huawei Technologies Co., Ltd. 3
NO TE
● The ber connector connected to the optical port on the wall varies depending on
actual conditions.
● To ensure normal use of bers, make sure that the ber bending radius is larger than 30
mm.
No. Item Description
1On/O Powers the ONT on or o.
2 Power Connects to a power adapter.
3 TEL1-
TEL2
Connects to the ports on a telephone or fax machine.
4 LAN1-
LAN4
Connects to PCs or IP set-top boxes (STBs).
5 Optical
port
The optical port is equipped with a rubber plug and
connected to a ber for upstream transmission.
The type of the optical connector connected to the optical
port can be SC/APC.
6 Reset Press the button for a short time to reset the device; or press
the button for a long time (longer than 10s) to restore the
device to the default settings and reset the device.
NOTE
Reset Huawei ONTs with caution. Otherwise, the ONTs may fail to
access the Internet. If an ONT cannot access the Internet after a
reset, contact your Internet service provider.
7 USB Connects to USB storage devices.
8 WPS When the WLAN is on, press the WPS button (> 3s) and
release the button to start Wi-Fi protected setup (WPS)
negotiation.
9 WLAN Used to enable or disable the WLAN function
- When the WLAN is disabled, press the WLAN button (> 3s)
and release the button to enable the WLAN.
- When the WLAN is enabled, press the WLAN button (> 3s)
and release the button to disable the WLAN.
EchoLife EG8245H5
Quick Start for QR code 2 Connecting Cables
Issue 05 (2022-11-02) Copyright © Huawei Technologies Co., Ltd. 4

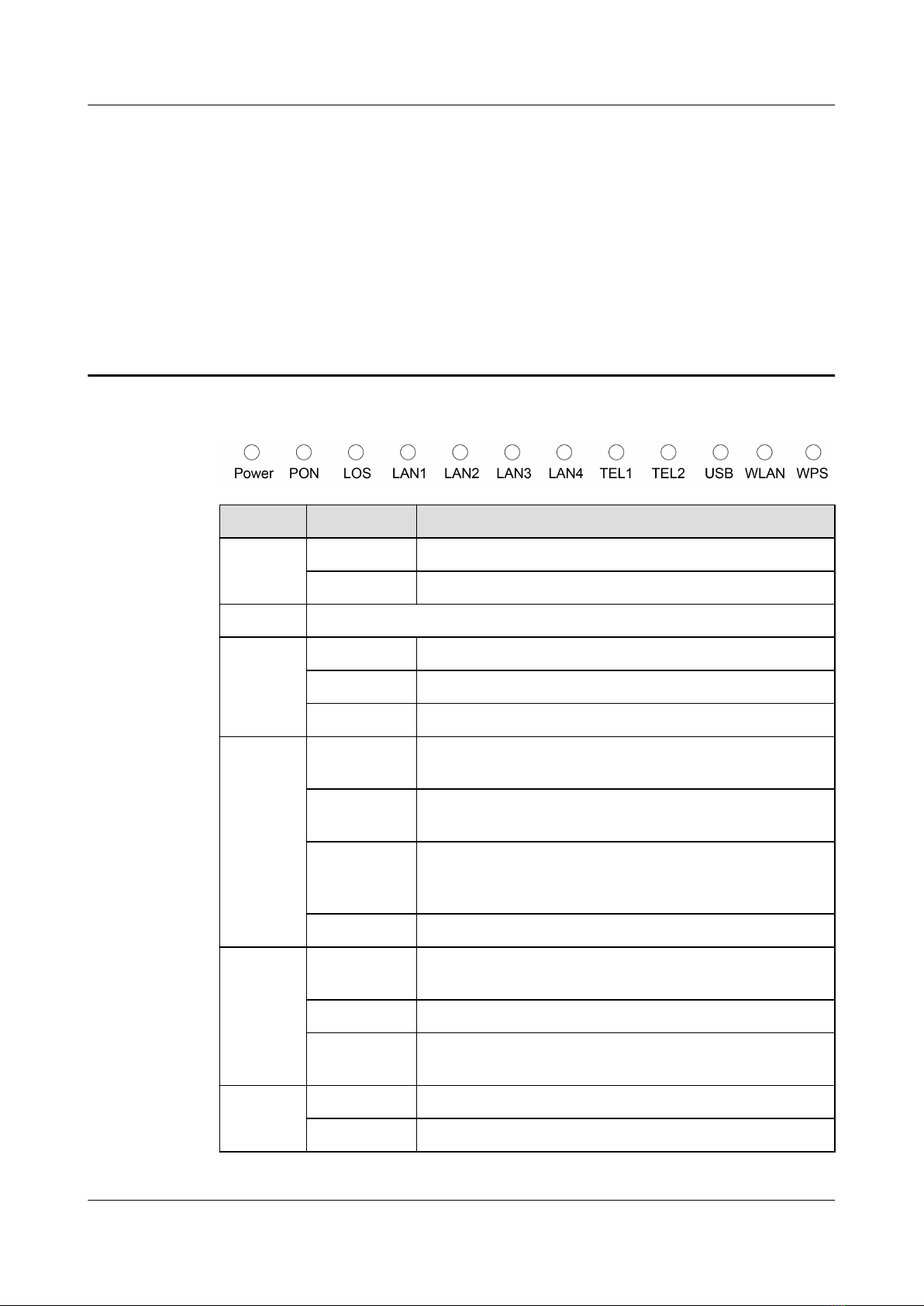

3 Indicator Description
Indicator Status Description
Power Steady on The ONT is powered on.
O The power supply is cut o.
PON/LOS See the following table.
LAN1-
LAN4
Steady on The Ethernet connection is in the normal state.
Blinking Data is being transmitted over the Ethernet port.
O The Ethernet connection is not set up.
TEL1-
TEL2
Steady on The ONT is registered with the softswitch but no
service ows are transmitted.
Blinks twice
a second
The ONT is registered with the softswitch, and data is
being transmitted on the port.
Blinks once
every 2
seconds
The ONT fails to be registered with the softswitch.
O The POTS port is disabled.
USB Steady on The USB port is connected and working in the host
mode, but no data is transmitted.
Blinking Data is being transmitted on the USB port.
O The system is not powered on or the USB port is not
connected.
WLAN Steady on The WLAN function is enabled.
Blinking Data is being transmitted over the WLAN port.
EchoLife EG8245H5
Quick Start for QR code 3 Indicator Description
Issue 05 (2022-11-02) Copyright © Huawei Technologies Co., Ltd. 5
Indicator Status Description
O The WLAN function is disabled.
WPS Steady on The WPS function is enabled.
Blinking A Wi-Fi terminal is accessing the system.
O The WPS function is disabled.
Statu
s No.
PON
Status
LOS
Status
Description
1O O The ONT is prohibited by the upper-layer
device or blinks abnormally. Contact the
service provider for help.
2 Blinks
twice a
second
Blinks
twice a
second
3 Blinks
twice a
second
O The ONT attempts to set up a connection
with its upper-layer device.
4 Steady on O A connection is set up between the ONT and
its upper-layer device.
5O Blinks
once every
2 seconds
The ONT is not connected to bers or does
not receive optical signals.
6 Blinks once
evey 2
seconds
Blinks
once every
2 seconds
The hardware is faulty.
EchoLife EG8245H5
Quick Start for QR code 3 Indicator Description
Issue 05 (2022-11-02) Copyright © Huawei Technologies Co., Ltd. 6
4 Technical Specications
Product Function
EG8245H5 ● 4 Ethernet ports
● 2 POTS ports
● 1 USB port
● 2.4 GHz Wi-Fi
● Power adapter input: See the nameplate on the adapter.
● System power supply: See the nameplate on the device.
● Ambient temperature: 0ºC to +40ºC
● Ambient humidity: 5%–95% (non-condensing)
● Dimensions (H x W x D): 30 mm x 168 mm x 115 mm (without external
antenna and pads)
● Weight: About 230g
● Maximum system power consumption: 12 W
NO TE
The weight and power consumption of dierent versions varies slightly.
EchoLife EG8245H5
Quick Start for QR code 4 Technical Specications
Issue 05 (2022-11-02) Copyright © Huawei Technologies Co., Ltd. 7
