Huawei eSpace EGW1500E Manuel utilisateur
eSpace EGW1500E Enterprise Gateway
V100R001C06
Quick Start
Issue 03
Date 2011-12-20
HUAWEI TECHNOLOGIES CO., LTD.
Issue 03 (2011-12-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
i
Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees or
representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
eSpace EGW1500E Enterprise Gateway
Quick Start Contents
Issue 03 (2011-12-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii
Contents
1 Planning and Preparation............................................................................................................1
1.1 Safety Precautions............................................................................................................................................ 1
1.2 Checking the Installation Environment ............................................................................................................ 2
1.3 Unpacking Check............................................................................................................................................. 2
1.4 Customer Requirement Analysis and Network Planning ................................................................................. 3
2 Hardware Installation ..................................................................................................................5
2.1 Preparing Installation Tools.............................................................................................................................. 5
2.2 Installing EGW1500E ...................................................................................................................................... 5
2.3 Connecting Cables ........................................................................................................................................... 6
2.4 Powering On the EGW1500E .......................................................................................................................... 7
3 Product Function Configuration ................................................................................................8
3.1 Logging In to the Web Management System ................................................................................................... 8
3.2 Configuring Internet Access............................................................................................................................. 9
3.3 Configuring Voice Functions.......................................................................................................................... 12
4 FAQs ..............................................................................................................................................20
5 Qualification Card ......................................................................................................................22
6 Declaration on Hazardous Substances in Electronic Information Products ...................23
eSpace EGW1500E Enterprise Gateway
Quick Start 1 Planning and Preparation
Issue 03 (2011-12-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1
1 Planning and Preparation
1.1 Safety Precautions
For more information about safety precautions, see the eSpace EGW1500E Enterprise
Gateway Product Documentation.
Basic Requirements
zThe installation instructions provided should be followed.
zIn the event of a fault, contact the maintenance personnel. Do not open the device.
zAny company or person cannot change the design of the structure or security without
permission.
zThis device must be used in compliance with the legal and regulatory requirements of the
country in which it is being used. Please respect the legal rights of others when using this
device.
Usage Notice
zKeep the power plug clean and dry to avoid risk of electric shock and other potential
risk.
zUse the power supply adapter provided with this product.
zKeep your hands dry when plugging in or out the device cable.
zWhen the device is not in use, the power should be turned off and the mains power cable
should be disconnected from the mains supply.
zKeep water and other liquids away from the device. In the event of liquid coming into
contact with the device, disconnect from the power immediately. Remove all cables,
including network connections and power cables and contact your maintenance
personnel.
zIn the event of unusual behavior, such as smoke emitting from the device, unusual noises
or smells, disconnect from the mains power supply immediately, remove all the cables
connected to the device and contact an authorized maintenance personnel.
Cleaning Notice
zBefore cleaning, the device should be shut down and disconnected from the mains power
supply, removing all power and network cables.
zClean using a soft, dry cloth. Do not use liquid or aerosol cleaners on this device.
eSpace EGW1500E Enterprise Gateway
Quick Start 1 Planning and Preparation
Issue 03 (2011-12-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2
1.2 Checking the Installation Environment
Before installation, check the installation environment.
Table 1-1 lists the major check items in the installation environment.
Table 1-1 Major check items in the installation environment
Item Requirement
Damppr
oof
Working humidity: 5%–95% relative humidity (RH), no condensing. The
dehumidifier devices such as air conditioners with the dehumidifier function and
special dehumidifiers must be installed in the equipment room where the
relative humidity is higher than 95%. Water seepage, dripping, and dew
producing are forbidden in the room.
Dustpro
of
If the equipment room is close to a dust source, such as a coal mine, a country
road or a farmland, install aluminum alloy windows and fireproofing doors.
Lightpr
oof
Place the device in an environment without direct and strong sunlight.
Interven
tion-pro
of
Prevent the device from other RF devices within 50 meters. Place the device at
the center of the working area by considering the WLAN coverage range. Install
the antennas vertically to get the best WLAN performance.
AC
power
In the equipment room, a stable AC power supply that meets the power
requirements of the equipment must be available.
Heat
dissipati
on
Place the device in an environment with good ventilation and without heat
sources. Leave more than 10 cm space for heat dissipation at the top and all four
sides of the device.
1.3 Unpacking Check
You need to check the received equipment according to the packing list and check whether all
the materials (such as hosts, cables, and CD-ROMs) are complete and undamaged.If any
material is damaged or lost, contact the local merchant.
Table 1-2 Packing list
Item Quantity Remarks
eSpace EGW1500E including
antennas
1 -
Power supply adapter 1 -
Straight-through network cable 1 A straight-through network cable is 2
meters long.
Swell fixtures 2 Swell fixtures are used to install the
EGW1500E on the wall.
eSpace EGW1500E Enterprise Gateway
Quick Start 1 Planning and Preparation
Issue 03 (2011-12-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3
Item Quantity Remarks
Document and CD-ROM 1 Product document and open source code
notice.
eSpace EGW1500E Enterprise
Gateway Quick Start
1 Containing the product certificate and the
Declaration on Hazardous Substances in
Electronic Information Products.
1.4 Customer Requirement Analysis and Network
Planning
This topic describes the customer requirements that you need to obtain and the typical
networking.
Collecting Customer Requirements
You need to obtain customer requirements as listed in Table 1-3 before installing and
configuring the device.
Table 1-3 Customer requirements
Item Description
Internet access Determine the access mode (ADSL or WAN) and whether the
customer requires 3G network backup.
Number of POTS users Determine the number of POTS phones.
Number of SIP users Determine the number of IP phones and soft terminals.
Internal number Learn about the customer's requirements on internal numbers.
FXO ports The EGW1500E connects to the PSTN network by means of
FXO ports. It supports FXO-based switchboard and dedicated
line functions.
... ...
Network Planning
Figure 1-1 shows the typical networking of the EGW1500E.
eSpace EGW1500E Enterprise Gateway
Quick Start 1 Planning and Preparation
Issue 03 (2011-12-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
Figure 1-1 Typical networking
eSpace EGW1500E Enterprise Gateway
Quick Start 2 Hardware Installation
Issue 03 (2011-12-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
2 Hardware Installation

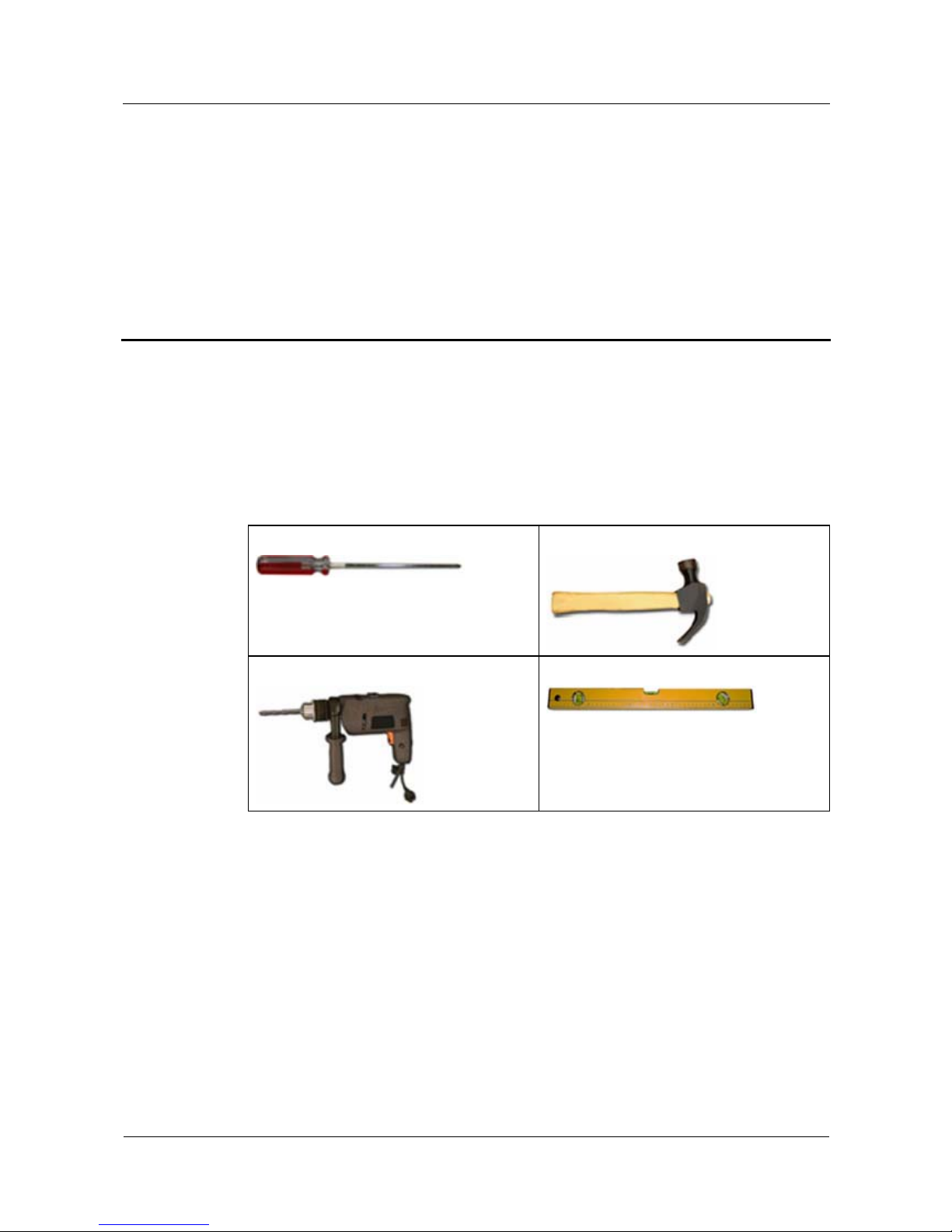

2.1 Preparing Installation Tools
This topic describes the tools for installing the EGW1500E on the wall. If you want to install
the EGW1500E on a horizontal surface, place it on the surface.
Table 2-1 Installation tools
Phillips screwdriver
Claw hammer
Hammer drill
Level ruler
2.2 Installing EGW1500E
Install an EGW1500E on a horizontal surface or on the wall.
Installing EGW1500E on a horizontal surface is easy. You only need to place it on the surface
and leave 10 cm space around for heat dissipation.
To install an EGW1500E on the wall, fix the swell fixtures and ensure that 5 mm of the swell
fixtures is exposed for mounting the EGW1500E, as shown in Figure 2-1.
eSpace EGW1500E Enterprise Gateway
Quick Start 2 Hardware Installation
Issue 03 (2011-12-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
Figure 2-1 Mounting an EGW1500E on the wall
2.3 Connecting Cables
This topic describes how to connect cables for the EGW1500E.
Select a cable connection mode based on the site requirements. Figure 2-2 and Figure 2-3
show the cable connection modes.
Figure 2-2 ADSL access
The ADSL splitter separates voice and data signals. You can connect the splitter to ADSL and FXO ports
of the EGW1500E or connect ADSL ports on user devices to the ADSL port of the EGW1500E.
eSpace EGW1500E Enterprise Gateway
Quick Start 2 Hardware Installation
Issue 03 (2011-12-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7

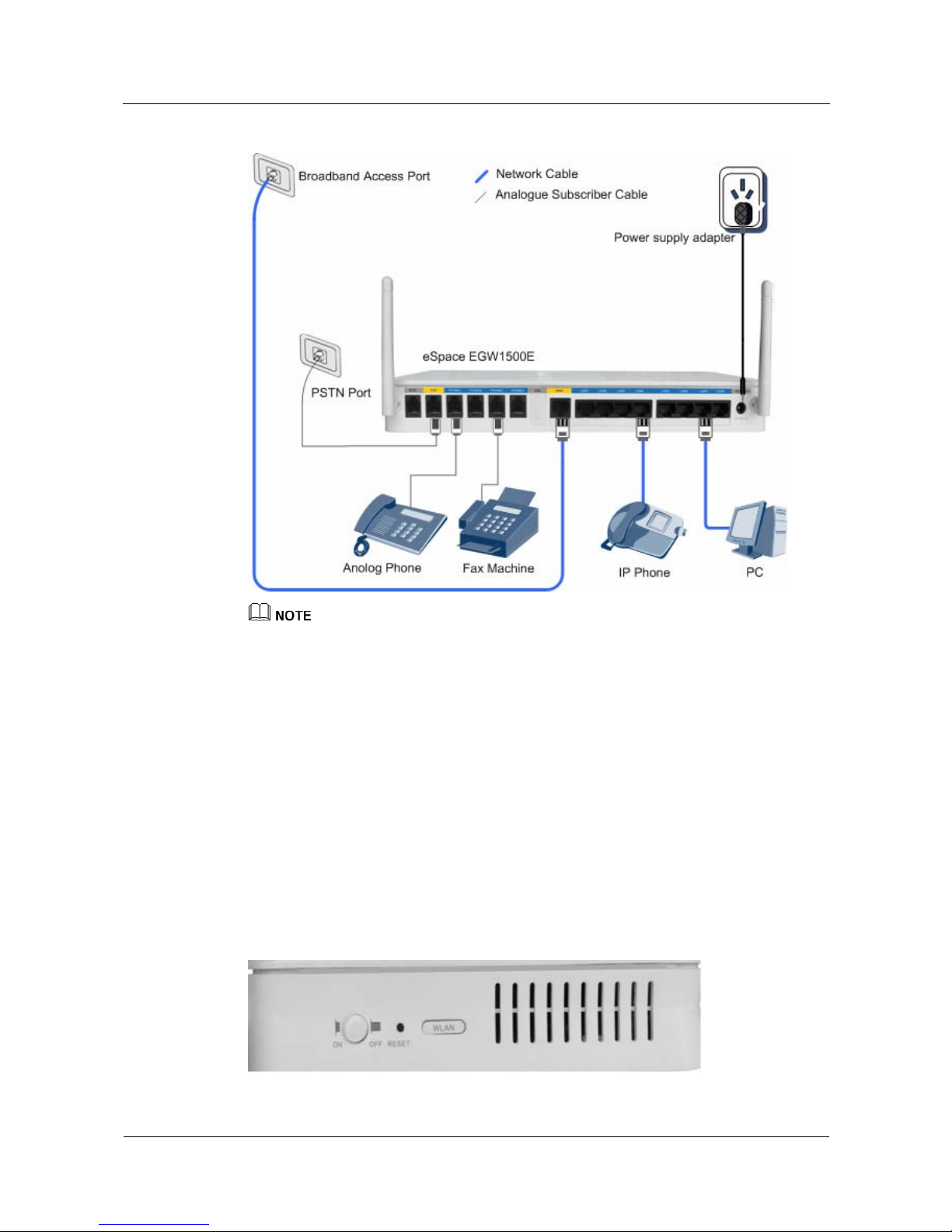

Figure 2-3 Broadband access
zThe EGW1500E provides eight LAN interfaces, which can connect to terminals such as computers
and IP phones. To use more than eight LAN interfaces, connect the EGW1500E to an Ethernet
switch or hub.
zThe EGW1500E provides four POTS interfaces (PHONE1 to PHONE4), which can connect to
common phones or fax machines. To use more than four POTS interfaces, connect the EGW1500E
to an IAD.
2.4 Powering On the EGW1500E
After cables are connected, press the power button to power on the EGW1500E. View the
power supply indicators and verify that the EGW1500E is working properly. Before pressing
the power button, ensure that all cables are connected correctly to the ports.
Figure 2-4 shows the location of the power button. If the POWER indicator is on, the
EGW1500E works properly.
Figure 2-4 Power button
Table des matières
Autres manuels Huawei Porte
Huawei
Huawei B2201H-201 Caractéristiques techniques
Huawei
Huawei E960 HSDPA Manuel utilisateur
Huawei
Huawei HG622 Manuel utilisateur
Huawei
Huawei AR515 Series Manuel utilisateur
Huawei
Huawei HG630a Manuel utilisateur
Huawei
Huawei DAU eA300-8a Manuel utilisateur
Huawei
Huawei HG659 Manuel utilisateur
Huawei
Huawei E960 HSDPA Manuel utilisateur
Huawei
Huawei B882-66 Manuel de l'opérateur
Huawei
Huawei U-SYS IAD101H Manuel utilisateur
Huawei
Huawei EchoLife HG556 Manuel utilisateur
Huawei
Huawei HG523a Manuel utilisateur
Huawei
Huawei HG659 Manuel utilisateur
Huawei
Huawei HG655b Manuel utilisateur
Huawei
Huawei E960 HSDPA Manuel utilisateur
Huawei
Huawei HG630 V2 Manuel utilisateur
Huawei
Huawei B560 Manuel utilisateur
Huawei
Huawei EchoLife HG532 Manuel utilisateur
Huawei
Huawei eA680-950 Manuel utilisateur
Huawei
Huawei EchoLife HG531 Manuel utilisateur
Manuels Porte populaires d'autres marques
LST
LST M500RFE-AS Manuel utilisateur
Kinnex
Kinnex Media Gateway Manuel utilisateur
2N Telekomunikace
2N Telekomunikace 2N StarGate Manuel utilisateur
Mitsubishi Heavy Industries
Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur
ZyXEL Communications
ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur
Telsey
Telsey CPVA 500 - SIP Manuel utilisateur
