Huawei Mobile Phone Manuel utilisateur

Notice

Trademarks and Permissions

, HUAWEI and are trademarks or registered trademarks of Huawei

Technologies Co., Ltd.

Other trademarks, product, service and company names mentioned are

the property of their respective owners.

NO WARRANTY

THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT

AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY

KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED

TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION

TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO

CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR

ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL

DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOOD-

WILL OR ANTICIPATED SAVINGS.

Getting Started

1 Getting Started

About This Guide

This guide describes how to find and use the menu functions on your

phone.

All the pictures in this guide are for your reference only. The actual appear-

ance and display depend on the mobile phone you purchase.

Packing List

Your phone package box contains the following:

• One mobile phone

• One Li-ion battery

• One travel charger

• One USB data cable

• One Quick Start Guide

• One Headset

Getting Started

Installing SIM Card and Memory Card

Insert your SIM card before using your phone. Remove the SIM card and

the battery only after powering off your phone. To use the SIM card

properly, please read the following instructions carefully.

NOTE:

• Keep the SIM card out of the reach of children.

• The SIM card and its metal contacts can be easily damaged by

scratching or bending. Be careful when you carry , insert or remove

the SIM card.

• Always disconnect the charger from the phone before loading or

removing the SIM card.

Your phone supports a memory card (microSD) with a capacity of up to 8

GB.

To load or remove the memory card, remove the battery cover.

Getting Started

The following figures show the installation of the SIM card and memory

card.

Charging the Battery

NOTE:

• The battery discharges even while not being used. If you have not

used it for a long time, please recharge it first.

1 Remove the battery cover.

2 Insert the SIM card.

3 (Optional) Insert the memory card.

4 Insert the battery.

Getting Started

• Do not strike, throw or cause any kind of violent shock to the battery,

otherwise liquid leakage, body damage, overheating, fire or explosion

may occur.

• The battery can be recharged but eventually wears out. If the battery

lasts for a shorter time period than usual after being charged normally,

replace it with a battery of the same type.

• Charge the battery by using the charger connector and the USB cable

supplied with your phone.

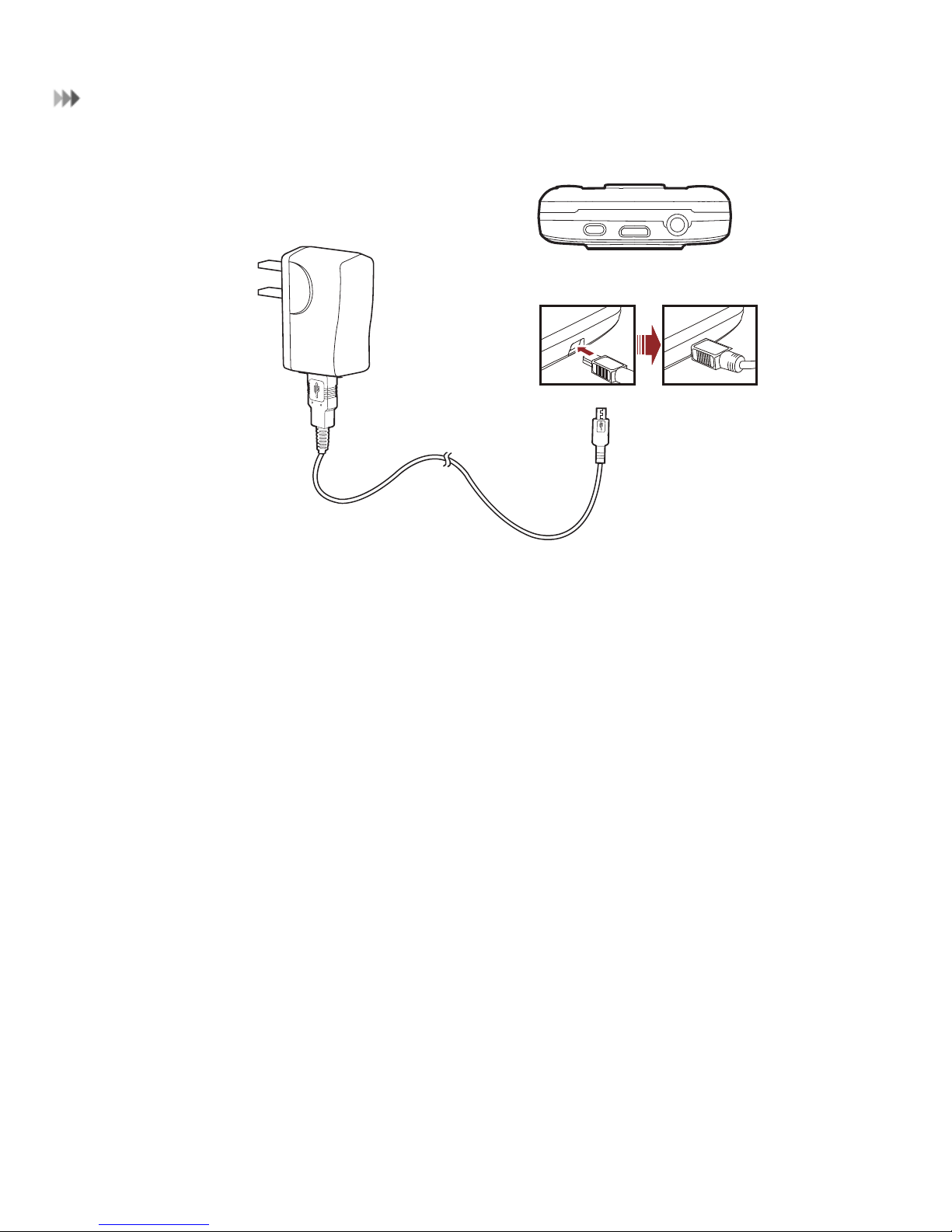

Before charging the battery, ensure that the battery has been properly

loaded into your phone.

1. Connect the USB interface of the USB cable to the travel charger.

2. Plug in the travel charger to a power socket.

3. Connect the mini USB interface of the USB cable to the charger

connector of your phone. When the battery is being charged, the

charging indicator blinks continuously.

4. When the charging indicator stops blinking, it indicates that the battery

is full. Disconnect the charger connector from the power socket.

5. Disconnect the USB cable from the phone.

Getting Started

NOTE: The plug of the cable is in trapezium shape. Reversely

inserting the plug may damage the mobile phone and the charger.

Getting Started

Getting to Know Your Phone

Appearance of Your Phone

1 Left function

key

2 Send key 3 Menu key

4 Scroll key 5 Camera key 6 Clear key

7 Volume key 8 Power/End

key

9 Right function

key

10 OK key 11 Camera

Getting Started

Left function

key/Right

function key

Perform the corresponding functions displayed

above these keys.

Send key Answer a call or view call records in standby

mode.

Menu key Quick access to Menu.

Scroll key Scroll through a menu.

Camera key • Short press to activate the camera.

• Long press to activate the flashlight.

Clear key Delete characters to the left of the cursor in input

mode.

Power/End key • Switch on and off your phone by holding down

this key.

• Return to the standby mode and reject or end

a call.

OK key Perform the corresponding functions displayed

above OK key.

Getting Started

Home Screen

1 Icon bar

2Desktop

3 Prompt bar

Indicates signal

strength.

Alarm clock is

enabled.

Indicates power level

of the battery.

The normal profile

is activated.

Getting Started

The phone is currently

in a GSM network.

The headset is

plugged in.

The phone is currently

in a WCDMA network.

You have new text

messages.

You are using the

roaming service.

You have new

multimedia

messages.

Bluetooth is enabled. You have new

PUSH messages.

Your phone connects

with your PC.

You have a new

voice message

waiting.

Call in progress.
