HP MSA 2040 Quick Start Instructions

Abstract

These instructions provide an overview of planning, installation, and configuration steps. For detailed reference information,

instructions, and cabling examples, see the following documents:

•HP MSA 2040 QuickSpecs

•HP MSA 2040 User Guide

•HP MSA 2040 Cable Configuration Guide

•HP MSA 2040 SMU Reference Guide

HP Part Number: 729690-003

Published: October 2014

Edition: 3

This document is for the person who installs, administers, and troubleshoots servers and storage

systems. HP assumes that you are qualified in servicing and installing computer equipment, and

are trained in recognizing hazards in products and hazardous energy levels.

Feature overview

The HP MSA 2040 is available in two models:

•2.5 inch form factor drive size

•3.5 inch form factor drive size

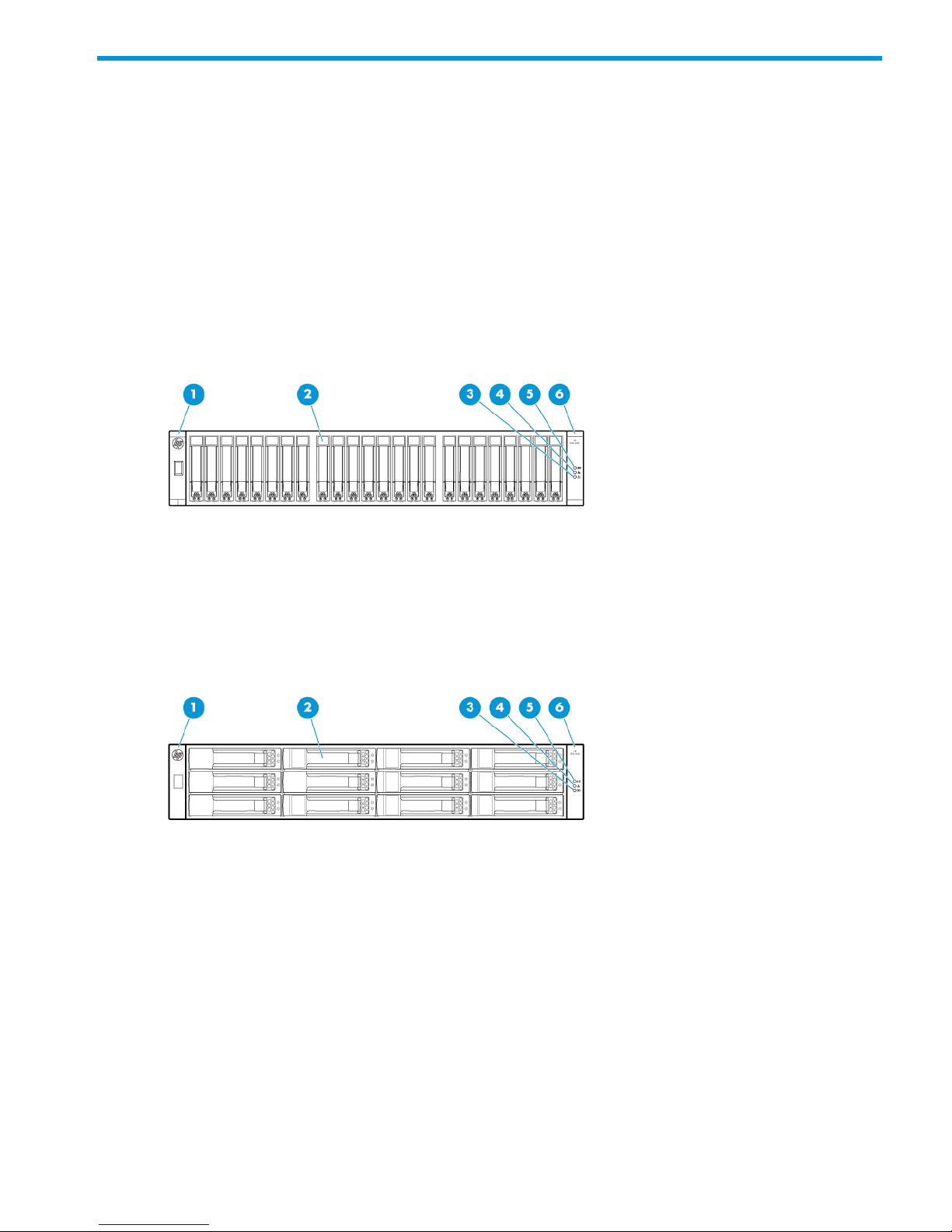

MSA 2040 front features (24, 2.5 inch drive)

2. Drive in slot 91. Left bezel ear

4. Heartbeat LED3. Fault LED

6. Right bezel ear5. Unit Identification LED

MSA 2040 front features (12, 3.5 inch drives)

2. Drive in slot 41. Left bezel ear

4. Heartbeat LED3. Fault LED

6. Right bezel ear5. Unit Identification LED

MSA 2040 rear features

The rear of the MSA 2040 is the same for both MSA 2040 models.

Feature overview 3

2. Controller module A1. Power supply 1

4. Host ports3. Controller module B

6. Network management port5. CLI port

8. SAS expansion port7. Cache Status LED

9. Power supply 2

Prepare for the installation

Locate required items

The following items will be shipped with the MSA 2040:

•HP MSA 2040 chassis. LFF and SFF chassis are supported.

•Drives

•Rack mounting kit

•Mini-USB CLI cable

•PDU power cords

•HP MSA 2040 SW Support and Documentation DVD

Other items you may need:

•Screwdrivers (Phillips)

•Antistatic protection device

•Expansion drive enclosures and cables

•Servers that need access to the MSA 2040

•Switch

•Cables for connecting to the host

•RJ-45 Ethernet cable for connecting to a remote management host

•Access from a workstation on the server to the MSA 2040 (to access the SMU and validate

host connections)

•Access to the Internet (to access HP websites for the latest QuickSpecs, user documents, and

firmware)

Obtain the latest user documents

Locate MSA 2040 user guides to help with the planning, installation, and configuration processes.

User documents are available on the DVD shipped with the MSA 2040, with the most recent

versions on the MSA 2040 website at http://www.hp.com/support/msa2040/Manuals.

Confirm support for your hardware and software components

Confirm that the devices you plan to connect and their installed firmware and software versions

are supported for use with each other. The latest support information is available on the HP Single

Point of Connectivity Knowledge (SPOCK) website at http://www.hp.com/storage/spock.

Verify the operating environment

Review the HP MSA 2040 User Guide and ensure that all environmental requirements are met,

including site wiring and electrical power inputs, ventilation and cooling, and weight considerations.

Install the MSA 2040

Use the following steps to install your MSA 2040. For more information, see the HP MSA 2040

User Guide.

Step 1. Install device into the rack

Use the instructions provided with the rack mounting kits or other devices to rack the MSA 2040,

expansion drive enclosures, switches, and servers.

WARNING! At least two people are needed to lift a fully populated MSA 2040 or expansion

drive enclosure into the rack. If the enclosure is being loaded into the rack above chest level, a

third person must assist with aligning the enclosure with the rails, while the other two people support

the weight of the enclosure.

Step 2. Connect expansion drive enclosures

If expansion drive enclosures are included in your environment, connect SAS cables per their

cabling plan, either straight-through or Fault tolerant. Mini-SAS to Mini-SAS cables are required

for each drive enclosure.

The following drive enclosures are supported:

DescriptionDrive enclosure model

6Gb SAS 3.5” 12-drive enclosureHP MSA 2040 LFF Disk Enclosure

6Gb SAS 3.5” 12-drive enclosureHP P2000 LFF Drive Enclosure

6Gb SAS 2.5” 25-drive enclosureHP D2700 Disk Enclosure

Drive enclosure connection guidelines

•Expansion drive enclosures can be connected to an operational MSA 2040.

•Mini-SAS to Mini-SAS 0.5 m (1.64 ft) cables are provided with MSA 2040, P2000 and

D2700 drive enclosures (one for each I/O module).

•The maximum length cable supported for connecting drive enclosures is 2 m (6.56 ft).

•Cables longer than those supplied with the drive enclosure must be purchased separately. For

a list of cables available from HP, see the HP MSA 2040 QuickSpecs.

•The maximum number of enclosures supported in an MSA 2040 solution is eight (one MSA

2040 and up to seven expansion drive enclosures).

Example MSA 2040 drive enclosure connections

MSA 2040 firmware supports both fault-tolerant and straight-through SAS cabling to cascaded

drive enclosures. For more information about these cabling schemes and for additional cabling

examples, see the HP MSA 2040 Cabling Configuration Guide.

Install the MSA 2040 5

The following image illustrates connecting two D2700 drive enclosures to an MSA 2040 using a

straight-through cabling scheme.

The following image illustrates connecting two D2700 drive enclosures to an MSA 2040 using a

fault-tolerant cabling scheme.

Step 3. Connect the MSA 2040 to data hosts

Direct-connect and switch-connect environments are supported. For direct-connect configurations,

connect cables from the MSA 2040 to the host. For switch-connect configurations, connect cables

from the MSA 2040 to the switch ports and from the switch ports to the hosts.

MSA 2040 connection guidelines

•No host interface cables are shipped with MSA 2040 enclosures. For a list of cables available

from HP, see the HP MSA 2040 QuickSpecs.

•In direct-connect deployments, connect each host to the same port on both of the MSA

controllers.

•In switch-connect deployments, connect an MSA Controller A port and the corresponding

MSA Controller B port to one switch, and connect a second MSA Controller A port and the

corresponding MSA Controller B port to a separate switch.

Example MSA 2040 connections

The following image illustrates connecting an MSA 2040 FC to two switches, and the two switches

connecting to two servers. Eight Fibre Channel cables are required.

For more cabling examples, including connecting directly to a server, see the HP MSA 2040

Cabling Configuration Guide.

Step 4. Connect the MSA 2040 to a remote management host (optional)

A remote management host directly manages systems out-of-band over an Ethernet network.

If a remote management host is included in your environment, connect an RJ-45 Ethernet cable

from the network management port on each MSA 2040 controller to a switch that your management

host can access (preferably on the same subnet).

Step 5. Connect two MSA 2040 systems to replicate volumes (optional)

HP MSA Remote Snap Software is an optional licensed disaster-recovery utility that performs

asynchronous (batch) replication of block-level data from a volume on a primary MSA 2040 to a

secondary volume on the same system or on a separate, independent MSA 2040. These two MSA

2040 systems connect through switches and are on the same fabric or network.

For more information about Remote Snap Software, including cabling requirements and user

information, see the HP MSA 2040 User Guide,HP MSA 2040 SMU Reference Guide, and Remote

Snap online help.

Step 6. Connect power cords and power on devices

IMPORTANT:

•The power cord must be approved for use in your country. The power cord must be rated for

the product and for the voltage and current marked on the electrical ratings label of the product.

•Important safety information about power cords is available in the Safety and Disposal Guide,

found on the Software Support/Documentation DVD shipped with the MSA 2040.

Apply power to the devices in the following order:

1. Connect power cords from the rack to separate external power sources.

2. Power on the SAN/LAN switches (if necessary).

Install the MSA 2040 7

3. Connect each power supply module in all attached expansion drive enclosures to a power

source in the rack. If the drive enclosures have power switches, apply power. If the drive

enclosures do not have power switches, they automatically start.

4. Wait one minute to ensure that all drives in the drive enclosure are powered up and ready.

5. Connect each power supply module in the MSA 2040 to a power source in the rack. The

MSA 2040 automatically starts (it does not have a power switch).

6. Observe the LEDs on the front and the rear of the MSA 2040 and any expansion drive

enclosures, and confirm that no LEDs are amber.

7. Power on the servers (if necessary).

Step 7: Update firmware on all components

After installing hardware and powering on devices for the first time, verify that MSA 2040 controller

modules, expansion drive enclosure I/O modules, and all disk drives are running the latest available

firmware. If updates are necessary, obtain the firmware from the HP website and use the SMU to

install the downloaded firmware. For information, see the HP MSA 2040 SMU Reference Guide.

Step 8: Configure the MSA 2040

Key configuration steps include setting the system date and time, entering system parameters, and

configuring storage volumes. For more information, see the HP MSA 2040 SMU Reference Guide.

Helpful websites

MSA 2040 Manuals page: http://www.hp.com/support/msa2040/Manuals

MSA 2040 product page: http://www.hp.com/support/msa2040

Troubleshooting: http://www.hp.com/support/msa2040/Troubleshooting

Firmware downloads: http://www.hp.com/support/msa2040/downloads

HP SPOCK: http://www.hp.com/storage/spock

Servers: http://www.hp.com/go/servers

Storage Networking: http://www.hp.com/go/san

HP Support Center: http://www.hp.com/go/hpsc

Email notification system

The Subscriber's Choice website includes options to register for and automatically receive, by

email, personalized product tips, update information, driver- and support-related advisories, and

other notices for this and other HP devices. While optional, HP recommends registering all of your

HP products with Subscriber's Choice at http://www.hp.com/go/e-updates.

Warranty statement

Information contained herein is subject to change without notice. The only warranties for HP products

and services are set forth in the express warranty statements accompanying such products and

services. Nothing herein should be construed as constituting an additional warranty. HP shall not

be liable for technical or editorial errors or omissions contained herein.

To obtain a copy of the warranty for this product, see the warranty information website at http://

www.hp.com/go/storagewarranty.

Regulatory information

For important safety, environmental, and regulatory information, see Safety and Compliance

Information for Server, Storage, Power, Networking, and Rack Products, available at http://

www.hp.com/support/Safety-Compliance-EnterpriseProducts.

Documentation feedback

HP is committed to providing documentation that meets your needs. To help us improve the

documentation, send any errors, suggestions, or comments to Documentation Feedback

([email protected]). Include the document title and part number, version number, or the URL

when submitting your feedback.

Documentation feedback 9

Autres manuels pour MSA 2040

Table des matières

Autres manuels HP Stockage

HP AD510A - StorageWorks Modular Smart Array 1500 cs 2U Fibre Channel SAN Attach Controller Shelf Hard... Mode d’emploi

HP NetServer Common Tray Ultra3 Manuel utilisateur

HP StorageWorks 600 - Modular Disk System Manuel utilisateur

HP nimblestorage CS235 Manuel utilisateur

HP StorageWorks 6100 - Enterprise Virtual Array Manuel utilisateur

HP Xw4550 - Workstation - 2 GB RAM Manuel utilisateur

HP StoreAll 8800 Manuel de service

HP 3PAR StoreServ 7000 Manuel utilisateur

HP StorageWorks XP1024 Guide rapide

HP P9000 Manuel utilisateur

HP AU183AA - 2TB Personal Media Drive Manuel d'utilisation et d'entretien

HP Storevirtual 4000 Guide de référence rapide

HP XP20000/XP24000 Manuel utilisateur

HP A5585A - SureStore DLT E Tape Library 4/40 Manuel

HP A2W75-67905 Manuel utilisateur

HP D2D Manuel utilisateur

HP 7957A Manuel utilisateur

HP StorageWorks 6100 - Enterprise Virtual Array Manuel utilisateur

HP StorageWorks 4000/6000/8000 - Enterprise Virtual... Mode d’emploi

HP Surestore 64 - Director Switch Manuel technique

HP High-Performance Secure Hard Disk Manuel utilisateur

HP StorageWorks XP10000 - Disk Array Manuel utilisateur

HP 6100 Guide de démarrage rapide

HP StorageWorks DLT VS 40/80 GB Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur

Dell

Dell PowerVault MD3600f Series Manuel utilisateur

CFI

CFI TERA STOR SATA RAID IV Manuel utilisateur
