HP Power Advisor utility: a tool for estimating

power requirements for HP ProLiant server systems

technology brief

Abstract.............................................................................................................................................. 2

Introduction......................................................................................................................................... 2

Key power parameters ..................................................................................................................... 2

Input line voltage.......................................................................................................................... 2

Device VA rating.......................................................................................................................... 2

Device input power....................................................................................................................... 3

BTUs required for cooling.............................................................................................................. 3

Input/inrush current ...................................................................................................................... 3

Leakage current............................................................................................................................ 3

Determining power needs and achieving power efficiency.................................................................... 3

HP Power Advisor................................................................................................................................5

Calculator development .................................................................................................................... 5

Calculator functionality ..................................................................................................................... 5

Example power calculations................................................................................................................ 10

Rack configuration with HP DL160 G6 servers................................................................................... 10

Rack configuration with HP DL380 G6 servers................................................................................... 13

Rack configuration with the HP c-Class BladeSystem........................................................................... 16

Conclusion........................................................................................................................................ 21

Do use the Power Advisor for:...................................................................................................... 21

Do not use the Power Advisor for: ................................................................................................ 21

For more information.......................................................................................................................... 22

Call to action .................................................................................................................................... 22

Abstract

With power requirements of computing equipment increasing and the cost of energy rising, IT

organizations need accurate estimates of power and cooling requirements for designing and

expanding data centers. HP has created the HP Power Advisor utility to provide more accurate and

meaningful estimates of power needs for HP ProLiant BL, DL, and SL systems so that IT infrastructure

designers can determine the most efficient hardware configuration. This technology brief identifies

factors affecting power requirements, explains how the Power Advisor works, and provides an

example of how it can be used.

Introduction

As information technology evolves and system density increases, systems housed in a single rack can

now consume the amount of power once required for several racks. Effective sizing of a compute

infrastructure while managing IT costs requires realistic estimates of current and future power and

cooling requirements. Accurately estimating the power consumption of a server rack can define power

distribution requirements at the rack level and can be the starting point for estimating the total power

consumption and cooling needs for a data center.

The HP Power Advisor utility is a tool for calculating power use of the major components within a rack

to determine power distribution, power redundancy, and battery backup requirements for computer

facilities.

This document assumes that readers are familiar with basic power concepts and HP ProLiant servers.

Key power parameters

Determining total power needs for a data center requires consideration of the key parameters

described in this section. More details about these parameters are available in the white paper titled

“Power Basics for IT Professionals” downloadable at

http://h20000.www2.hp.com/bc/docs/support/SupportManual/c01234421/c01234421.pdf .

This paper does not discuss other signification parameters such as system serviceability and

scalability.

Input line voltage

Input voltage may be low-line or high-line voltage depending on what is available at the data facility.

Low-line voltage [100 – 120 volts alternating current (VAC)] is the standard for AC wall outlets in

North America. High-line voltage (200 – 240 VAC) is used in other parts of the world but is also

increasingly common in North American data centers. Most HP ProLiant servers accept a line voltage

in the 100- to 240-VAC range.

IT equipment designed to use either low-line or high-line voltage typically consumes less power and

generates less heat when operating off high-line voltage, which reduces the strain on cooling systems.

Some systems may actually require high-line voltage to meet maximum performance specifications.

Facilities may distribute AC power as single- or three-phase. Three-phase high-line power (such as

3-phase 208 VAC) is more efficient and recommended for systems requiring three kilowatts of power

or more.

Device VA rating

Apparent power is the total amount of power a device requires from the facility AC feed and is

measured in volt-amperes (VA). Knowing the total amount of VA for all active components in a system

helps data center planners determine the types and quantities of power distribution units (PDU) and

uninterruptible power supplies (UPS) needed for a given rack configuration.

Device input power

The amount of power a device turns into work and dissipates as heat is known as real (or true) power

and is measured in watts (W). Since any heat created by electrical equipment must be extracted,

knowing the total amount of watts dissipated by systems in a data center helps determine the cooling

capacity needed in the facility.

BTUs required for cooling

The British Thermal Unit (BTU) is the standard for measuring the capacity of cooling systems. The

amount of power (watts) consumed by equipment determines the number of BTUs/hr required for

component cooling, based on this formula:

BTUs/hr = watts x 3.41.

For example: 399 watts x 3.41 = 1360 BTUs/hr

Air conditioning equipment is typically rated in terms of tons of cooling, an old measurement based

on the cooling ability of tons of ice (1 ton of cooling = 12000 BTUs/hr).

Input/inrush current

Input current is the amount of amperes a system draws during normal operation. However, when AC

voltage is first applied (power cord is plugged in and/or a circuit breaker is switched on), power

supplies of electrical components can momentarily draw several times more current than they will

draw while operating. This inrush current is cumulative across devices within a common power circuit,

and it must be considered when building a rack. Power supplies in HP servers include circuitry that

minimizes inrush current. Staggering activation of segmented circuits can further reduce the effects of

inrush current.

Leakage current

Leakage current (typically measured in milliamps) is residual current that originates in power supply

filters and flows from chassis ground to the phase and neutral power conductors. Leakage current is

cumulative across components within a power distribution circuit and can become a hazard if proper

grounding procedures are not used.

Determining power needs and achieving power efficiency

Power supplies for ProLiant servers include a chassis nameplate that typically includes the following

information:

•Input requirement—the AC input voltages (or ranges) and associated maximum current draw

•Output power—the DC voltage, maximum current (amperage), and maximum power (wattage)

Nameplate ratings, therefore, define the input requirements of a power supply operating at full

power. Since power supplies rarely operate at their rated capacity, using nameplate ratings for

estimating system power requirements could yield inflated numbers that result in excessive power

infrastructure costs.

Figure 1 illustrates how the use of nameplate ratings can distort power distribution planning. The

ProLiant DL380 G6 implements the HP Common Slot Power Supply bay. This bay design, used across

several ProLiant platforms, can accommodate 460W, 750W, and 1200W power supplies.

Factory configurations of the DL380 G6 include models equipped with 460W and 750W, and

customers can build or specify custom configurations. Customers building a system with custom-

configured DL380 G6 servers might choose the 750W power supply to ensure headroom for server

needs and use the associated nameplate ratings as a guide for power distribution needs. This

approach yields nameplate ratings-based figures that will likely be unrealistically high. As indicated in

the table of Figure 1, the total amperage and VA figures based on the nameplate ratings of the

750W power supply suggest that substantial power distribution components would be necessary,

particularly if power redundancy is required.

Figure 1. Rack loading with 20 ProLiant DL380 G6 servers using 750W power supplies (PSs)

Nameplate

ratings-based

Actual

operating needs

Wattage per PS unit 750 W 300 W

AC input current per PS unit

(@ 208VAC)

4.5 A 1.38 A

Total rack wattage 15kW 6kW

Total rack current 90 A 27.6 A

Total input VA (estimated) 15 – 17kVA 6 – 7kVA

However, measurements of test configurations reveal that the actual operating needs of a given

DL380 G6 configuration can be less than half the power that nameplate ratings of the 750W power

supply indicate. This means fewer power distribution components are needed, and it reveals the

possibility of a better power supply solution.

The efficiency of a power supply is determined by how much AC input power is needed to produce a

given amount of output power. A power supply requiring 300 watts input to produce 250 watts of

output is operating at approximately 83 percent efficiency (250 / 300 = .83). The 50-watt energy

delta between the input and output is lost as heat, which must be removed by the cooling equipment.

Power supply efficiency is not linear or flat across the output range, and most power supplies achieve

maximum efficiency when they operate in the mid to upper range of their rated capacity. A 750-watt

power supply providing 300 watts (40 percent capacity) is less efficient than a 460-watt power

supply providing the same 300 watts of power (65 percent capacity). In choosing the most efficient

(right-sized) power supply for a server, an accurate power consumption estimate for that server is

important, particularly for a large (enterprise) data center where cumulative energy losses from a

number of servers can be significant.

The most accurate power consumption predictions are those obtained by pre-configuring and

measuring actual systems under load. This method of obtaining data is usually impractical for

customers since it would require purchasing, setting up, configuring, and running of each component

to acquire the measurements. HP has tested server products under various configurations and loads to

determine actual power requirements. The results of these tests are the foundation in creating the HP

Power Advisor.

HP Power Advisor

The HP Power Advisor utility reduces the research and guesswork normally involved in determining

power requirements for ProLiant-based systems. Using the HP Power Advisor, an IT administrator can

build a complete system, component-by-component and rack-by-rack, assembling a complete

infrastructure.

NOTE:

HP Power Advisor is intended to be a conservative estimator of power. No two

applications will consume exactly the same amount of power. Even programs that

report the same CPU utilization will have different power consumption characteristics,

based on the exact mix and sequence of instructions being executed. The programs

used as the measurement reference for the HP Power Advisor are intended to consume

more power than typical user applications.

Calculator development

HP developed the HP Power Advisor using data collected from testing HP ProLiant servers. Each test

starts with a system fully configured with the maximum number of processors, memory, hard drives,

expansion cards, and power supplies. Proprietary software exercises the processors to the highest

possible power level and operates all peripherals while taking voltage and current measurements.

Testing continues for all levels of processor support at all speeds, with different memory amounts and

hard drive sizes. During development cycles, HP retests revised or updated servers to ensure

calculator integrity.

Calculator functionality

The calculator is a simple drag-and-drop tool. Figure 2 shows the main screen of the HP Power

Advisor. A drop-down menu in the center of the screen lists the choices of AC input voltage to be used

by the server systems.

Figure 2. HP Power Advisor main screen

After selecting the line voltage, the user drags and drops the desired type of rack from the left pane

(Figure 2) to the center area of the screen (Figure 3). This simple process is repeated for building a

complete row of the same type of rack or a row of mixed rack types.

Next, the racks are ready to populate with components. After highlighting a rack, the user selects the

Servers or Enclosures tab in the left pane area, selects the desired components, and adds them to the

highlighted rack. HP ProLiant DL, SL, and some ML server chassis mount directly into the racks. For HP

ProLiant BL (BladeSystem) components, the user must select a BladeSystem c-Class enclosure and then

configure each enclosure with the desired components. Figure 3 shows a ProLiant DL160 G6 placed

in the bottom of the first rack. A power calculation begins with selecting (highlighting) a component in

a rack and clicking the Config tab.

Figure 3. HP Power Advisor, component selection

As shown in Figure 4, the HP Power Advisor allows the user to select the following components to

configure each server individually:

•Processor type and number

•Amount of memory

•Drive type and number

•PCI expansion cards and/or RAID controllers (if applicable)

•Power supply type

The Power Advisor also informs the user if the selected server supports power supply redundancy.

Figure 4. HP Power Advisor, component configuration

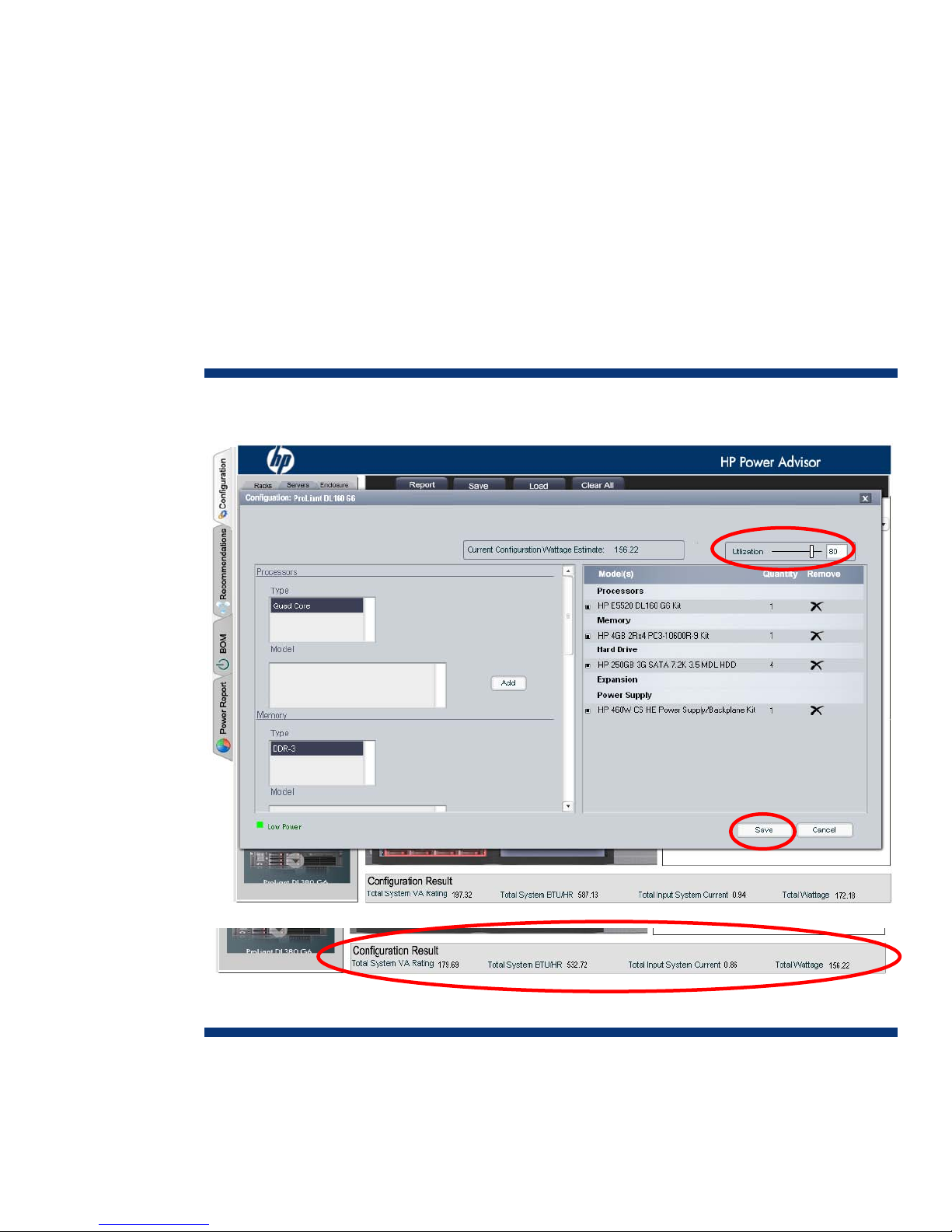

For servers that offer a choice of power supply nameplate ratings, the Power Advisor will

automatically include a power supply capable of supporting 100 percent utilization, which is the

default setting for any given server configuration. As discussed earlier in the “Achieving maximum

efficiency” section, a power supply with less output may be sufficient and provide higher efficiency for

a configuration with an adjusted (lowered) Utilization setting. Once the final wattage has been

determined, the user can re-configure the server for a lower capacity power supply if appropriate.

The calculator maintains a real-time estimate of the power consumption and BTU generation during

the configuration of each server. When the server configuration is complete, the user clicks the Save

button to accept the configuration and return to the rack view.

The user can generate a bill of material (BOM) report (Figure 5) for a server configuration by clicking

on the BOM tab on the left of the screen.

NOTE

The Power Advisor BOM report only includes data for system

components that affect power consumption. Refer to the individual

server QuickSpecs for part numbers of optional components that

may be required but are not included in the Power Advisor BOM

report.

Figure 5. HP Power Advisor, BOM report

The Power Advisor makes it possible to pre-calculate the running costs (cost of ownership) of the

hardware based on the rate paid per kWh. By selecting the Power Report tab, the user can generate

a Power Report (Figure 6) for a single server or a complete rack.

Figure 6. HP Power Advisor, Power report

A Recommendations Report (Figure 7) is also available for each component. Based on the user-

selected configuration for the highlighted server, the Power Advisor offers four types of

recommendations:

•General Purpose—configuration with best balance of performance, cost, and efficiency

•Performance—enhanced configuration for maximum performance

•Low Cost—economical configuration achieving similar performance

•High Efficiency—configuration using less power with possible sacrifice in performance

The user selects a recommended configuration in the top bar of the screen and clicks Update. The tool

then displays the Configuration screen showing the updated power calculations.

Figure 7. HP Power Advisor, Recommendations report

After selecting a unit server, the user can quickly load a rack of identically configured servers by

highlighting the configured server and clicking on the Duplicate button. The Delete button removes

highlighted servers from the configuration.

Example power calculations

The HP Power Advisor utility provides accurate calculations that planners can use to predetermine

power requirements of a populated rack. This section includes three examples of a rack calculation:

one for a standard 42U rack populated with HP ProLiant DL160 G6 servers, one for a standard 42U

rack populated with HP ProLiant DL380 G6 servers, and one for a standard 42U rack populated with

an HP c-Class BladeSystem.

Rack configuration with HP DL160 G6 servers

This example consists of a standard 42U rack configured with 24 HP DL160 G6 servers. For this

calculation, each DL160 G6 server is configured with an Inte®l Xeon® E5520 processor, four

gigabytes of DDR3 memory, four 250-GB SATA hard drives, and one 460-watt power supply set to

run off 208 VAC (Figure 8).

Figure 8. Power calculation for single HP DL160 G6 server

With the Utilization slider control set at 80 percent and the configuration saved, the Power Advisor

indicates that the system input requirement will be 179.69 VA, the system will draw approximately

0.86 amperes of current, and it will dissipate 156.22 watts.

Autres manuels pour ProLiant BL280c G6

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HP Logiciel

HP C7791C - DesignJet 130 Color Inkjet Printer Guide de configuration

HP Compaq Elite 8200 AIO Manuel utilisateur

HP Integrity rx5670 Manuel utilisateur

HP BAAD0010HBK-NHSN Manuel utilisateur

HP SureStore Optical 2600fx Manuel d'installation

HP Media Center m1000 - Desktop PC Guide de démarrage rapide

HP VL400 - Vectra - 64 MB RAM Manuel de service

HP C7791C - DesignJet 130 Color Inkjet Printer Guide de configuration

HP AJ765A - StorageWorks RDX Removable Disk Backup... Mode d’emploi

HP T5720 - Compaq Thin Client Mode d’emploi

HP Integrity BL860c Mode d’emploi

HP BladeSystem bc2000 - Blade PC Manuel de service

HP T1936AA - Digital Sending Software Instructions d'installation

HP StorageWorks All-in-One SB600c - Storage... Manuel utilisateur

HP Surestore Disk Array 12h - And FC60 Manuel de référence

HP 8/20q Manuel utilisateur

HP P Class 450/500/550/600/650/700/750 Manuel utilisateur

HP AK373A - StorageWorks All-in-One Storage System 1200r 5.4TB SAS Model NAS... Comment utiliser

HP HPE XP P9500 Guide de sécurité

HP BladeSystem Dual NC370i - Multifunction Network... Manuel utilisateur

HP ML110 - ProLiant G5 2TB Storage Server NAS Manuel utilisateur

HP Bc1500 - BladeSystem - Blade PC Manuel utilisateur

HP ACC2 Aurora Manuel utilisateur

HP Neoware c50 - Thin Client Manuel utilisateur

Manuels Logiciel populaires d'autres marques

COMPRO

COMPRO COMPROFM Manuel utilisateur

Muratec

Muratec OFFICEBRIDGE ONLINE Manuel utilisateur

Oracle

Oracle Contact Center Anywhere 8.1 Manuel utilisateur

Adobe

Adobe 65007312 - Photoshop Lightroom Manuel

Avaya

Avaya NULL One-X for RIM Blackberry Manuel utilisateur

PS Audio

PS Audio PowerPlay Manuel du propriétaire

Brady

Brady LOCKOUT PRO 3.0 Manuel de service

Avaya

Avaya Interaction Center Manuel utilisateur

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuel

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuel utilisateur

Oracle

Oracle Application 9i Manuel utilisateur

Acer

Acer RDM Manuel utilisateur

Canon

Canon Vixia HF21 Manuel utilisateur

Canon

Canon ZR950 Manuel utilisateur

Samsung

Samsung Auto Backup Manuel utilisateur

Polycom

Polycom Vortex EF2201 Instructions d'installation et d'utilisation

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuel utilisateur

Novell

Novell SP2 - S Mode d’emploi
