HP Cluster Platform Hardware Kits v2010 Manuel utilisateur

HP Cluster Platform

Myrinet Interconnect Rack Kit Installation Guide

Part Number: AA-RW5UA-TE

June 2004

This document describes how to install the Myrinet interconnect rack kit into an HP

Cluster Platform using the HP Model 10642 rack. This kit is designed to support a Myrinet

interconnect with a 3U (5-slot) chassis or a 5U (9-slot) chassis. Larger models of Myrinet

interconnect require a different kit with a ventilating baffle.

Hewlett-Packard Company

Palo Alto, California

The information contained herein is subject to change without notice. The only warranties for HP products and

services are set forth in the express warranty statements accompanying such products and services. Nothing herein

should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors

or omissions contained herein.

Printed in the U.S.A.

Myrinet Interconnect Rack Kit Installation

Guide

1Audience

This guide is intended for HP service representatives and other persons trained

to install hardware mounting options and system components in the HP 10642

rack. Such persons are expected to understand the hazards of working in this

environment and of taking suitable precautions to minimize danger to themselves

and to others.

2Documentation Resources

You can download the documentation for components referenced in this installation

guide from the following locations:

• HP 10642 rack:

http://h18004.www1.hp.com/products/servers/proliantstor-

age/racks

(Select the menu option titled 10000-series rack and open the Documentation

option on the web page menu.)

• HP Cluster documentation:

http://docs.hp.com/linux/onlinedocs/4807/index.html

3Verifying the Kit Contents

The kit contains the following components:

• A pair of rails that you mount on the columns of the rack.

• A pair of left and right retainer brackets that you mount on the Myrinet

chassis. These brackets slide onto the rails.

•The fasteners, as specified in Table 1.

Table 1: Rail Kit Fasteners

Qty Size Type Torque Description

12 M6 x 16 mm Machine

screw 30 in/lb Longer Phillips (Posidrive) pan-head.

Use with cage nuts.

12 M6 Nut N/A Cage nut for rack column square holes. Use

with M6 x 16-mm machine screw.

46-32 x .375 in Machine

screw 30 in/lb Small pan-head screw used to attach the

retainer bracket to the interconnect chassis.

4M6 x 12 mm Machine

screw 30 in/lb Shorter Phillips (Posidrive) pan-head used

to lock the retainer bracket to the rail.

• Packaging and documentation.

Contact your HP sales representative if any parts are missing.

Myrinet Interconnect RackKit Installation Guide 1

4Orienting the Components

The kit hardware consists of a pair of rails and a pair of left and right retainer

brackets, which are described in the following sections.

4.1 Rail

The two rails are identical, and one rail is shown in Figure 1. The rails are

mounted on the rack columns by the four holes in the vertical surface identified by

callout 1. The rail’s horizontal surface (callout 2) supports the interconnect chassis.

Figure 1: Rail

4.2 Retainer Brackets

The retainer brackets are shown in Figure 2.

Figure 2: Retainer Brackets

Right Retainer

Bracket

Left Retainer

Bracket

When attaching the brackets, be aware that their designation of left and right is

in reference to their location on the rear of the switch chassis, not in reference to

the rack columns. Figure 2shows the following details, which are referenced

in the installation procedure:

1. Threaded inserts (callout 1).

2. Holes for the screws that attach the bracket to the interconnect chassis

(callout 2).

2Myrinet Interconnect RackKit Installation Guide

3. Channel that slides on to the rack-mounted rail, and the direction of insertion

(callout 3).

5Preparing for Installation

To install the kit, you require the following resources:

• Tools:

- A 6-inch long #1 (small) Phillips (Posidrive) screwdriver.

- A 6-inch long #2 (medium) Phillips (Posidrive) screwdriver.

- Cage-nut insertion tool (optional).

To prevent screws from becoming loose because of vibration, HP recommends

that you use an adjustable torque driver set to the torque specifications given

in Table 1.

• Environment:

- A work surface adjacent to the installation rack.

- A small work platform or stable stepladder or step stool.

- Personnel – HP recommends that two people are available to lift and install

the interconnect onto its rail.

6Identifying the Installation Location

Each 1U rack location is numbered 01–42 from the bottom to the top and is marked

on the rack columns. At each rack location, there are three square mounting holes,

which are identified as top, middle, and bottom. A fastener location is specified as

10–middle, meaning the middle hole of rack position 10.

The installation location depends on the configuration rules for your cluster. (See

Section 2for information about where you can obtain documentation resources).

Each component occupies a specific rack location so that the cabling is correct, and

the rack locations of each component are defined in the cluster documentation. For

ease of reference, mark the positions for fasteners with tape or a marker pen.

You can use this kit with both 3U and 5U Myrinet interconnects. The most common

location for these interconnects is at rack position 0, at the very bottom of the rack.

(This installation guide shows the interconnect installed at rack position 0, using

the 0–middle and 0–top mounting holes.)

7Installing the Rail

Working from the rear of the rack, install the left rail as shown in Figure 3.

Myrinet Interconnect RackKit Installation Guide 3

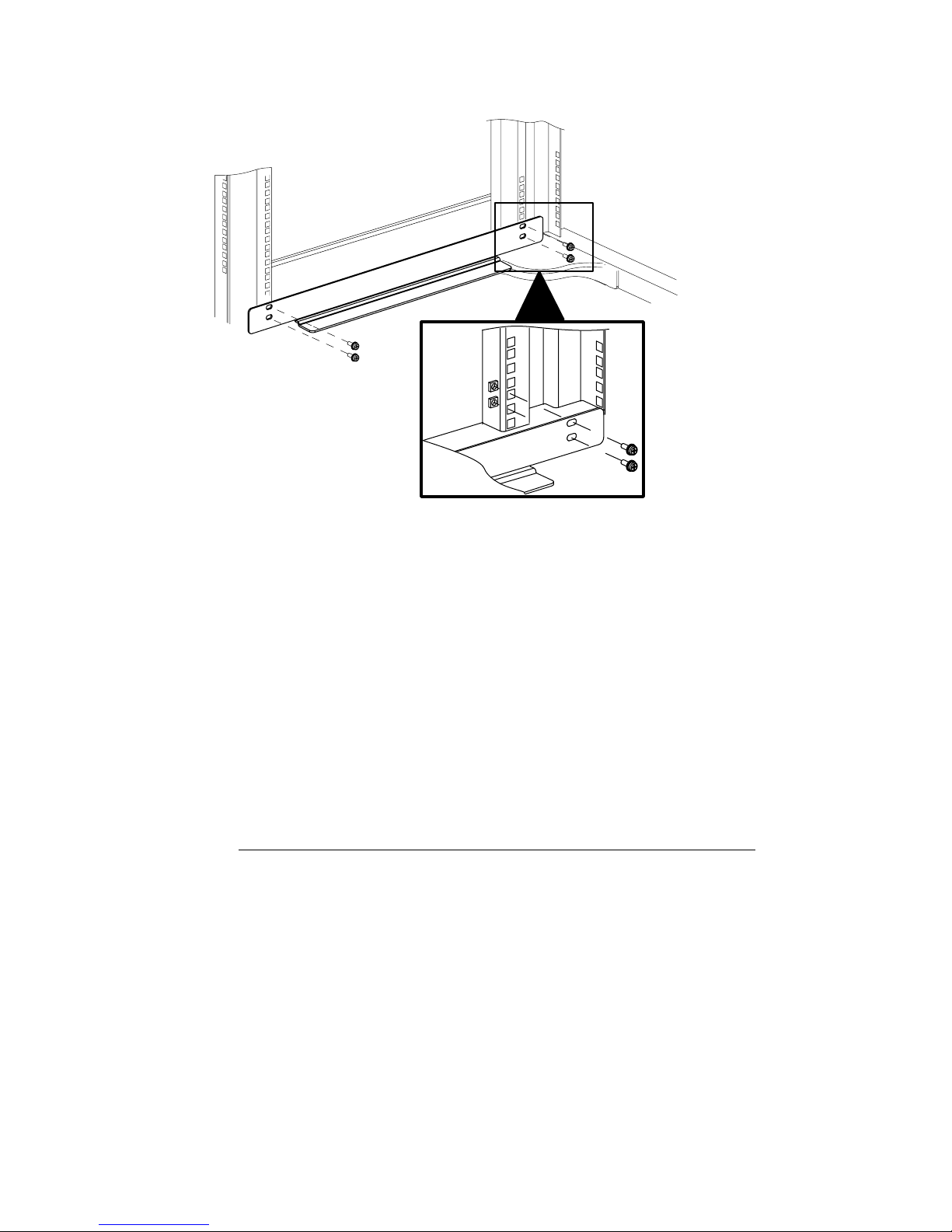

Figure 3: Attaching the Rail to the RackColumns

Front Left

Colum

Rear Left

Column

M6 x 16MM M6 Cage

Nut

1. Locate the marked mount location.

2. Clip a cage nut into the back of the middle and top holes of both the front and

rear columns, using a total of four nuts.

3. Using a #1 Phillips screwdriver, secure the rail to the rack columns with a

M6 x 16-mm pan-head screw.

4. Repeat steps 1–3 for the right rail.

8Installing the Retainer Brackets

Attach the retainer brackets to the interconnect chassis as shown in Figure 4.

_______________________ CAUTION _______________________

Use only the specified screws. Screws that are too long might penetrate

the switch chassis and damage internal components.

4Myrinet Interconnect RackKit Installation Guide

Figure 4: Attaching the Left Retainer Bracket to the Interconnect Chassis

Rear of Interconnect

Chassis

Left Retainer

Bracket

1. Identify the two screw hole locations, as shown in Figure 4. Depending

on which type of interconnect you are installing, use the following mount

locations:

a. To attach the bracket to a 5U (9-slot, 64-port) interconnect, use the screw

location indicated by callout 1. (The top round hole in the bracket.)

b. To attach the bracket to a 3U (5-slot, 32-port) interconnect, use the screw

location indicated by callout 2. (The elongated hole in the middle of the

bracket.)

2. Use a #1 Phillips screwdriver to secure the retainer bracket to the interconnect

chassis with 2 6-32 x .375 in Phillips screws.

3. Repeat steps 1 and 2 for the right retainer bracket.

9Inserting the Chassis Into the Rack

You insert the interconnect chassis from the rear of the rack, with its front panel

(the connection ports) facing the rear of the rack, as shown in Figure 5. (All

cabling is done at the rear of the rack.)

_______________________ WARNING ______________________

The HP 10642 rack is tall. To avoid injury, always use two people

and a stable, elevated work platform to lift any components at a high

position in the rack.

Myrinet Interconnect RackKit Installation Guide 5

Figure 5: Inserting the Interconnect Chassis into the Rack

Rear of Rack

1. Locate and mark the rear column mounting locations as follows:

a. To attach the bracket to a 5U (9-slot, 64-port) interconnect, position the

fasteners at locations 1-middle and position 5-middle.

b. To attach the bracket to a 3U (5-slot, 32-port) interconnect, position the

fasteners at locations 1-middle and position 3-middle.

2. Insert an M6 cage nut into the back of the rack at each fastener location,

using a total of four cage nuts.

3. Lift and align the interconnect so that the retainer brackets are level and

square with the rails, as shown in Figure 6.

Figure 6: Aligning the Retainer Bracket with the Rail

Rear Right Rack

Column

Left Retainer Bracket

4. Slide the interconnect chassis in until its front brackets stop against the rear

rack columns. (Callout 1in Figure 5identifies the left front bracket.)

5. Using a #2 Phillips screwdriver and two M6 x 16-mm pan-head screws per

bracket, secure each front bracket to the cage nuts that are mounted on the

rack columns (see callout 2in Figure 5). Use atotal of four screws and

tighten the screws to their specified torque.

10 Securing the Chassis to the Rail

Working at the front of the rack, secure the interconnect chassis to the rail, as

shown in Figure 7.

6Myrinet Interconnect RackKit Installation Guide

Figure 7: Securing the Chassis to the Rail

M6 x 12mm

Screw

Front Left

Rack Column

Rear of Interconnect

Chassis

1. Using a #2 Phillips screwdriver and two M6 x 12-mm pan-head screws secure

the left retainer bracket to the rail through the threaded inserts in the bracket.

2. Repeat step 1 for the right retainer bracket, using a total of four screws.

Tighten the screws to their specified torque.

11 Removing the Interconnect for Servicing

Bring the cluster to an appropriate state for switch component removal and put the

rack into a safe and stable state for component removal.

_______________________ WARNING ______________________

The HP 10642 rack is tall. To avoid potential injury, always use two

people and a stable, elevated work platform to remove components

from a high rack elevation.

1. At the rack’s power distribution unit (PDU), power off the circuit that supplies

power to the interconnect. Disconnect the power cable at the rear of the

interconnect chassis.

2. If necessary, mark the high-speed network cables to ensure that they can be

reconnected to their respective ports.

3. Disconnect and remove each high-speed network cable bundle until all ports

are unplugged. Secure the cables out of the interconnect’s removal path.

4. Depending on whether you are performing a complete disassembly or only

replacing a defective chassis, perform one of the following steps:

a. Disassemble the installation

Use a #2 Phillips screwdriver to remove the four M6 x 12-mm Phillips

pan-head screws that secure each retainer bracket to the rail. The bracket

remains attached to the interconnect chassis (see Figure 7).

b. Replace a chassis

Use a #1 Phillips screwdriver remove the four 6-32 x .375 in Phillips

pan-head screws that secure each retainer bracket to the chassis. The

bracket remains attached to the rail (see Figure 4).

5. Remove the two M6 x 16-mm pan-head screws from each front bracket (see

Figure 5, callout 1).

6. Slide the interconnect chassis all the way out of the rack.

Myrinet Interconnect RackKit Installation Guide 7

Carefully retain all screws for reuse if the interconnect chassis is to be remounted

or if it is replaced. Use only the 6-32 x .375 in Phillips pan-head screws to attach

the retainer brackets to the chassis. Use of incorrect screws might damage internal

components.

8Myrinet Interconnect RackKit Installation Guide

Autres manuels pour Cluster Platform Hardware Kits v2010

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HP Serveur

HP 124708-001 - ProLiant Cluster - 1850 Manuel utilisateur

HP ProLiant ML115 G5 Instructions d'utilisation

HP ProLiant Smart Array 256MB Instructions d'utilisation

HP 117755-003 - ProSignia - 740 Manuel d'utilisation et d'entretien

HP ProLiant BL495c G6 Manuel utilisateur

HP ProLiant BL660c Manuel utilisateur

HP Integrity rx7620 Manuel utilisateur

HP Integrity BL890c - i2 Server Guide de démarrage rapide

HP ProLiant DL380 G5 DPSS Instructions d'utilisation

HP DL385 - ProLiant - G5 Manuel utilisateur

HP ProLiant DL380 - G2 Server Manuel utilisateur

HP ML530 - ProLiant - 128 MB RAM Instructions d'utilisation et de sécurité

HP Compaq 6720t Instructions d'utilisation

HP Carrier-Grade rx2800 i2 Server DC Manuel utilisateur

HP D7171A - NetServer - LPr Manuel utilisateur

HP HP DL360 G7 Instructions de montage

HP BL685c - ProLiant - 4 GB RAM Manuel utilisateur

HP ProLiant SL250s Gen8 Manuel utilisateur

HP ProLiant BL460c Gen8 Manuel utilisateur

HP ProLiant ML110 Manuel utilisateur

HP T5720 - Compaq Thin Client Manuel d'utilisation et d'entretien

HP ProLiant DL320 Generation 4 Manuel

HP hpe proliant dl20 gen9 Manuel utilisateur

HP ProLiant SL4545 Mode d’emploi

Manuels Serveur populaires d'autres marques

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

Milestone

Milestone Husky IVO 350T Manuel utilisateur

Planet

Planet NAS-7410 Manuel utilisateur

Lenovo

Lenovo ThinkSystem SR635 V3 Manuel utilisateur

Dell

Dell PowerEdge HS5610 Manuel
