HP T310 G2 Instructions d'installation

EL-MF877-00 Page 1

Template Revision A

Product End-of-Life Disassembly Instructions

Product Category: Thin Client

Marketing Name / Model

[List multiple models if applicable.]

HP t310 G2 All-in-One Zero Client

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

PCBA, OSD BOARD

Batteries

All types including standard alkaline and lithium coin

or button style batteries NA

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries. NA

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps LCD

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

External electrical cables and cords

Power code

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations. NA

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

Components, parts and materials containing

radioactive substances

EL-MF877-00 Page 2

Template Revision A

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Description #1: Flat Blade Screwdriver

5mm

Description #2: Phillips Screwdriver

Description #3 3/16” Hex Nut Driver

3/16”

Description #4

Description #5

Description #6

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. Loosen 4 screws from the Rear Cover

2. Dis-assemble the Rear Cover with Tools

3. Loosen these four Screws from the Panel

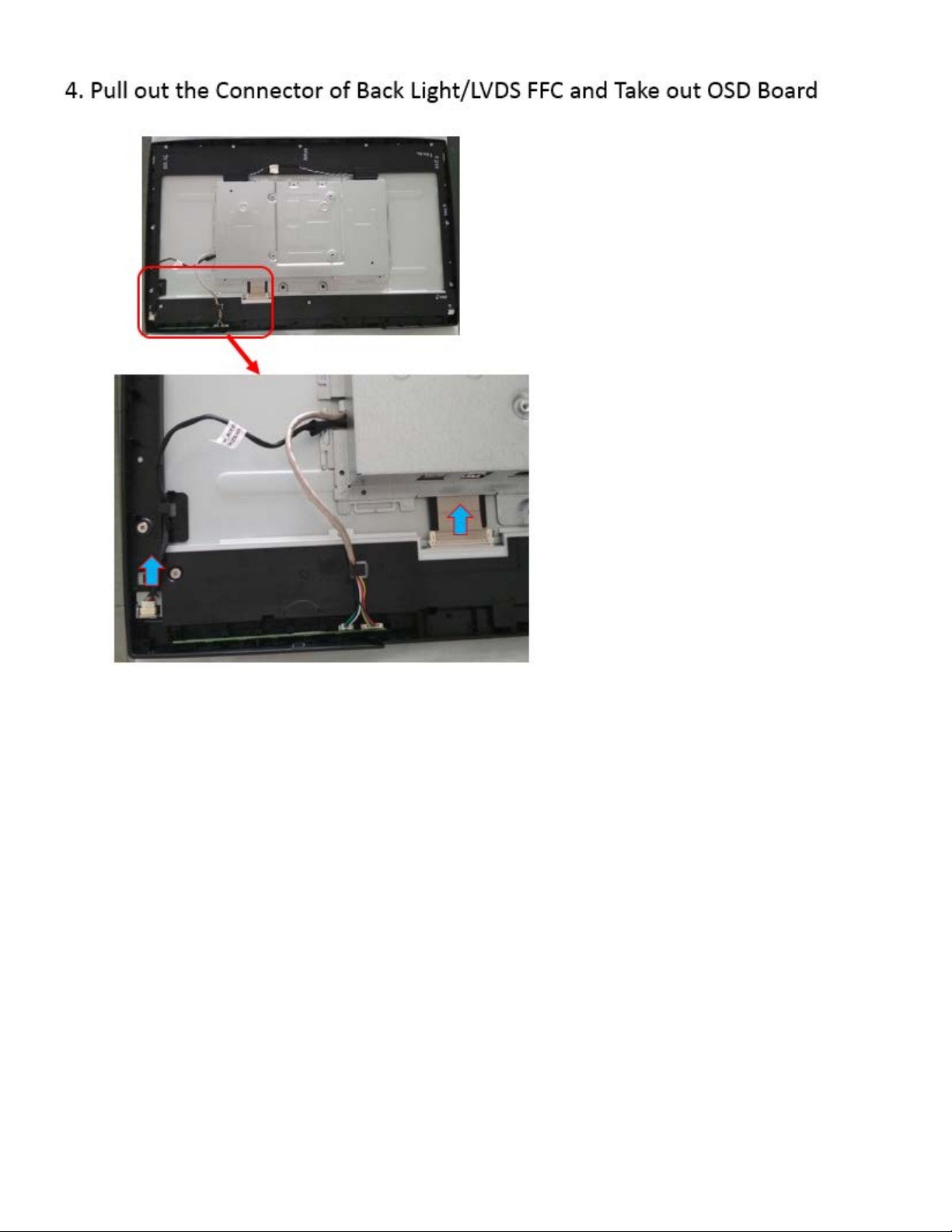

4. Pull out the Connector of Back Light/LVDS FFC and Take out OSD Board

5. Loosen these four Screws from the Middle Frame in order to Dis-Assemble the Front Bezel

6. Loosen these 12 Screws from the Middle Frame in order to Dis-Assemble the Middle-Frame

7. Loosen the 2 Screws from the Bottom side of Metal Frame

8. Pulling out the Cables of the SPK and Loosen the 5 screws in order to take out the assembly of the MB

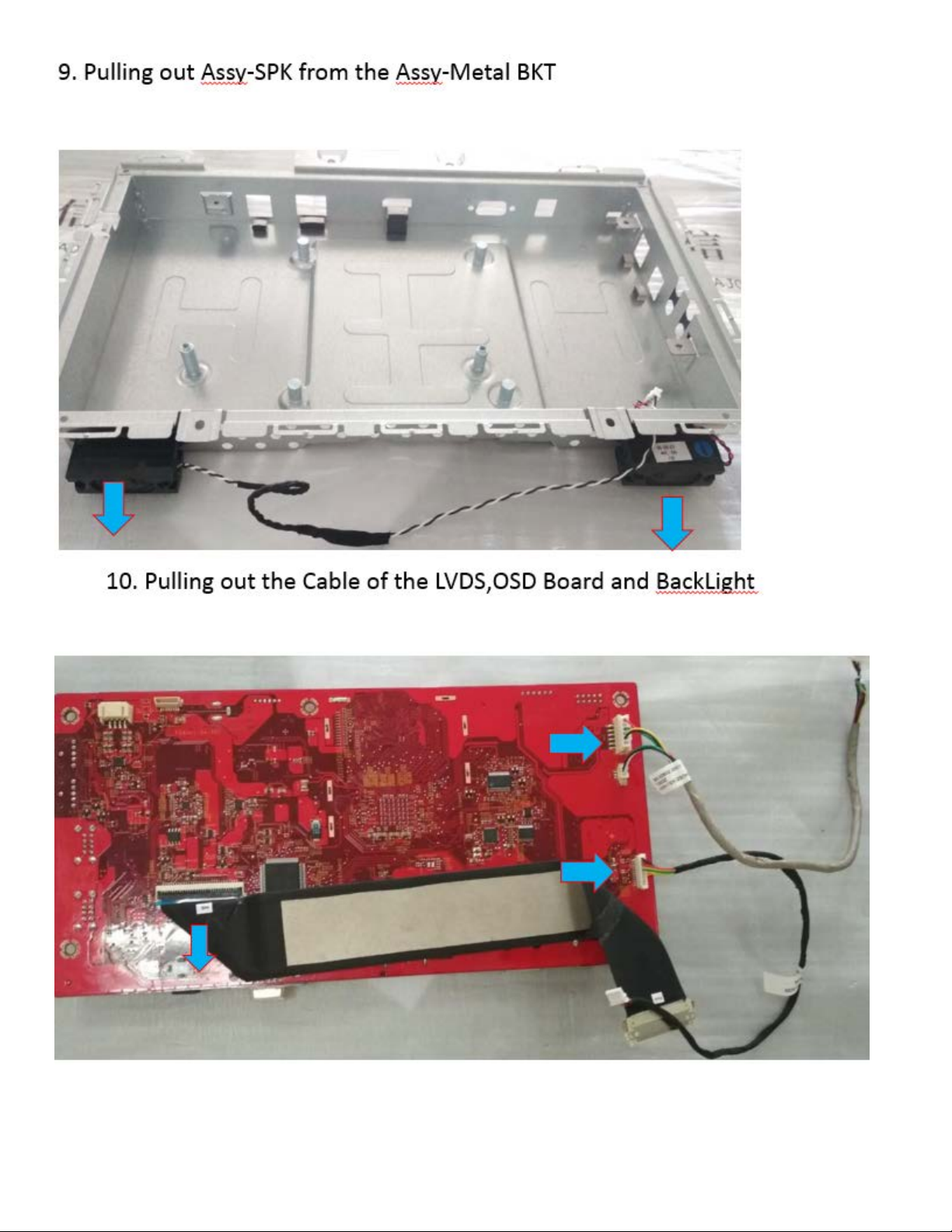

9. Pulling out Assy-SPK from the Assy-Metal Bracket

10. Pulling out the Cable of the LVDS,OSD Board and BackLight

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

EL-MF877-00 Page 3

Template Revision A

EL-MF877-00 Page 4

Template Revision A

EL-MF877-00 Page 5

Template Revision A

EL-MF877-00 Page 6

Template Revision A

EL-MF877-00 Page 7

Template Revision A

EL-MF877-00 Page 8

Template Revision A

EL-MF877-00 Page 9

Template Revision A
