Overview

Network Attached Storage

1-1

Chapter 1

Overview

Network Attached Storage

The HP NetStorage 6000 is a network attached storage (NAS) device used

to store data on your network. NAS devices provide a simpler, more

reliable, and cost-effective way to add storage to your network.

The HP NetStorage 6000:

nRequires minimal setup and is easily maintained

nDoes not impact the productivity of existing general-purpose server

operations

nFrees up the general-purpose server so that applications operate more

efficiently

nContains SCSI hard drives in a pre-configured RAID 5 array

nProvides SNMP notification of critical events

nProvides SMTP/E-mail for critical evens

Getting Started

Before proceeding, make sure that you have installed and configured the

HP NetStorage 6000 device by entering the IP, gateway, subnet, and

broadcast addresses via the front panel of the HP NetStorage 6000. For

more information, refer to Installing the HP NetStorage 6000.

Once the front panel information has been entered, you must use the

HP NetStorage web interface to finish configuring your device:

1Openthe HP NetStorageweb interface. (Oncethe webinterface is open,

you can access help online.) See “The HP NetStorage 6000 Web

Interface” on page 1-9.

Overview

Getting Started

1-2

2Go directly to the Configuration Tab and manually enter:

•System name, see “DNS Settings”on page 3-3

•Administrativepassword,see “Administrative Password Settings”on

page 3-12

•DNS domain name, see “DNS Settings”on page 3-3

•Primary and secondary DNS server IP addresses, see “DNS Settings”

on page 3-3

•NIC parameters, see “TCP/IP Settings”on page 3-2

•Address for event log data, see “System Log”on page 3-9

•UNIX settings, see “UNIX Settings”on page 3-4

•WINS settings, see “Windows Settings”on page 3-6

•SMTP server information, see “SMTP/Email”on page 3-7

•SNMP settings/Traps, see “SNMP/Network Management Settings”

on page 3-8

•Contact and asset information, see “Informational Settings”on

page 3-10

•System time and date, see “Date and Time Settings”on page 3-11

•User mapping information, see “Mapping Strategy”on page 3-14

3Go to the Storage Tab and manually:

•Group your physical drives into logical drives (RAID sets) if

required, see “Create a Logical Drive”on page 4-4

•Create volumes for data storage, see “Create a New File Volume”on

page 4-9

•Create directories and sub-directories beneath your volumes, see

“Create a Directory”on page 4-12

•Make volumes or directories available to users by sharing or

exporting them, see “Create or Edit Windows Shares”on page 4-14

Overview

HP NetStorage 6000 Hardware

1-3

HP NetStorage 6000 Hardware

Physical Drives

The HP NetStorage 6000 contains between four and ten physical hard

drives, depending on your company’s storage needs. Each physical drive

can have up to 73GB of storage capacity.

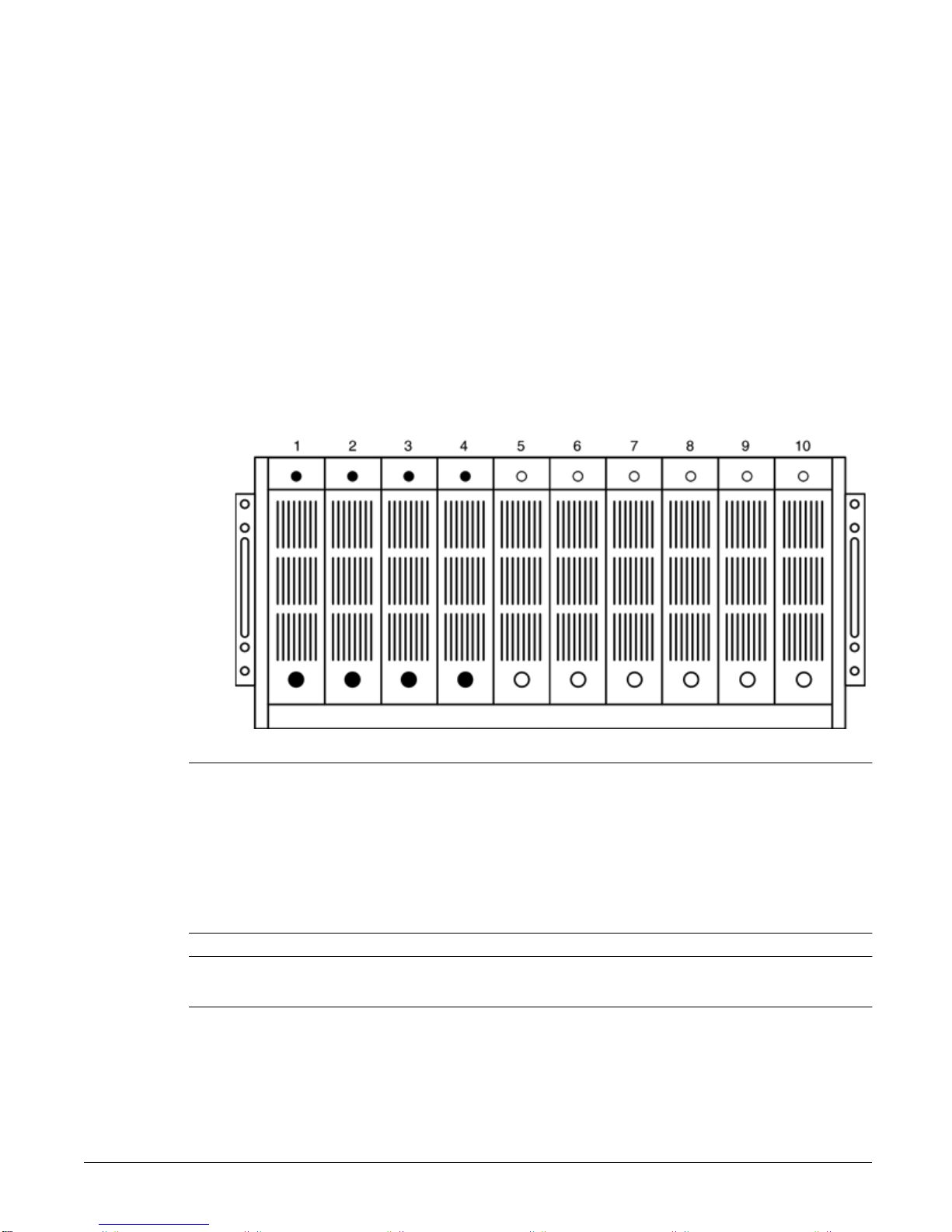

Figure 1.1 Physical Drives

Note Use only HP Hard Drives approved for your NetStorage 6000. For an up-

to-date list of approved hard disk drives, please visit our web site at

www.hp.com/support/ns6000. Drives on the approved list have custom

firmware for use in your NetStorage 6000. Do not attempt to install any

hard disk drives other than the approved drives listed at this web site as

doing so may result in system failure or loss of data. Using non-supported

hard drives may also void your warranty.

Note All drives in the HP NetStorage 6000 must have the same capacity. Any

other configuration is not supported.

Autres manuels pour NetStorage 6000

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HP Serveur de stockage réseau

HP Proliant DL580 Manuel utilisateur

HP DL380 - ProLiant G4 9 TB Data Protection Storage Server... Manuel utilisateur

HP ProLiant DL100 G2 DPSS Mode d’emploi

HP J3278B - SureStore CD-ROM Server/Tower 7 NAS... Manuel utilisateur

HP EX495 - 1.5TB Mediasmart Home Server Instructions d'installation

HP X300 Data Vault Guide d'installation

HP 3PAR StoreServ 7000 Manuel utilisateur

HP DL100 - ProLiant G2 320GB File Print... Mode d’emploi

HP J3278B - SureStore CD-ROM Server/Tower 7 NAS... Manuel utilisateur

HP ML110 - ProLiant G5 2TB Storage Server NAS Manuel utilisateur

HP EX495 - 1.5TB Mediasmart Home Server Manuel utilisateur

HP NetStorage 6000 Manuel d'utilisation et d'entretien

HP P6300 Enterprise Virtual Array Manuel utilisateur

HP StorageWorks E Series Manuel utilisateur

HP NAS 4000s Manuel utilisateur

HP ProLiant DL585 Manuel utilisateur

HP NetStorage 6000 Mode d’emploi

HP DL320s - ProLiant 9TB SATA Storage Server... Manuel utilisateur

HP StorageWorks XP10000 - Disk Array Manuel utilisateur

HP 345646-001 - StorageWorks NAS 2000s External Storage... Mode d’emploi

HP J3278B - SureStore CD-ROM Server/Tower 7 NAS... Manuel utilisateur

HP ProLiant DL100 G2 DPSS Manuel utilisateur

HP ML110 - ProLiant G5 2TB Storage Server NAS Manuel utilisateur

HP NetStorage 6000 Manuel utilisateur

Manuels Serveur de stockage réseau populaires d'autres marques

Seagate

Seagate U10 ST320423A Manuel utilisateur

Synology

Synology RackStation RS816 Manuel

D-Link

D-Link ShareCenter Pro DNS-1200-05 Manuel utilisateur

Avid Technology

Avid Technology VideoRAID ST Guide de sécurité

Western Digital

Western Digital My Cloud Home Duo Manuel utilisateur

PrimeArray

PrimeArray 4xxx Manuel utilisateur

Buffalo

Buffalo TeraStation WSS WSH5010N6 Manuel utilisateur

Planex

Planex MZK-NAS01SG Manuel utilisateur

Intel

Intel SS4000-E - Entry Storage System NAS Server Manuel utilisateur

Synology

Synology RS2212+ Manuel utilisateur

Allnet

Allnet ALL69000 Manuel utilisateur

Adaptec

Adaptec 5325301580 Manuel utilisateur

Motorola

Motorola EXORdisk II Manuel utilisateur

Sony

Sony XDAAI1PK Manuel utilisateur

Cisco

Cisco Linksys NAS200 Instructions d'utilisation d'origine

Sans Digital

Sans Digital MR4UT6G Manuel utilisateur

AIC

AIC FB128-LX Manuel utilisateur

Dell

Dell PowerVault NX3500 Instructions d'utilisation
