HP 205H-MNT2 Manuel utilisateur

205H-MNT2 Wall Mount Kit

Installation Guide

0511763-03 | March 2015 1

Package Contents

Dual Gang Wall Mount

(x4) #6-32 Machine Screws

Plastic Front Cover

(x2) T8H Torx Security Screw

205H-MNT2 Wall Mount Kit Installation Guide

Introduction

The 205H-MNT2 Wall Mount Kit provides a secure and practical solution for mounting the 205H access

point to single and dual gang wall boxes.

Installing the 205H-MNT2 Wall Mount Kit

Use the following instructions to install the 205H-MNT2 Wall Mount Kit.

1. If the wall box is not already exposed, unscrew and remove the existing wall plate, as shown in Figure 1.

Figure 1 Removing Existing Wall Plate

2. Detach any RJ-45 cables by unclipping the connectors from the wall plate, or cutting/removing the UTP

cable(s).

3. Use a short Ethernet cable (sold separately, part number AP-CBL-ETH10) to connect the E0 port to an

RJ-45 connector, or crimp an RJ-45 plug (not supplied) to the cable, and insert into the E0 port. Do the

same for the PT port if used.

2205H-MNT2 Wall Mount Kit | Installation Guide

Installation for Single Gang Wall Box

If mounting the 205H-MNT2 Wall Mount Kit to a single gang wall box, refer to steps 4-5.

4. Align the screw holes on the mounting bracket with the corresponding holes on the single gang wall box,

as indicated in Figure 2.

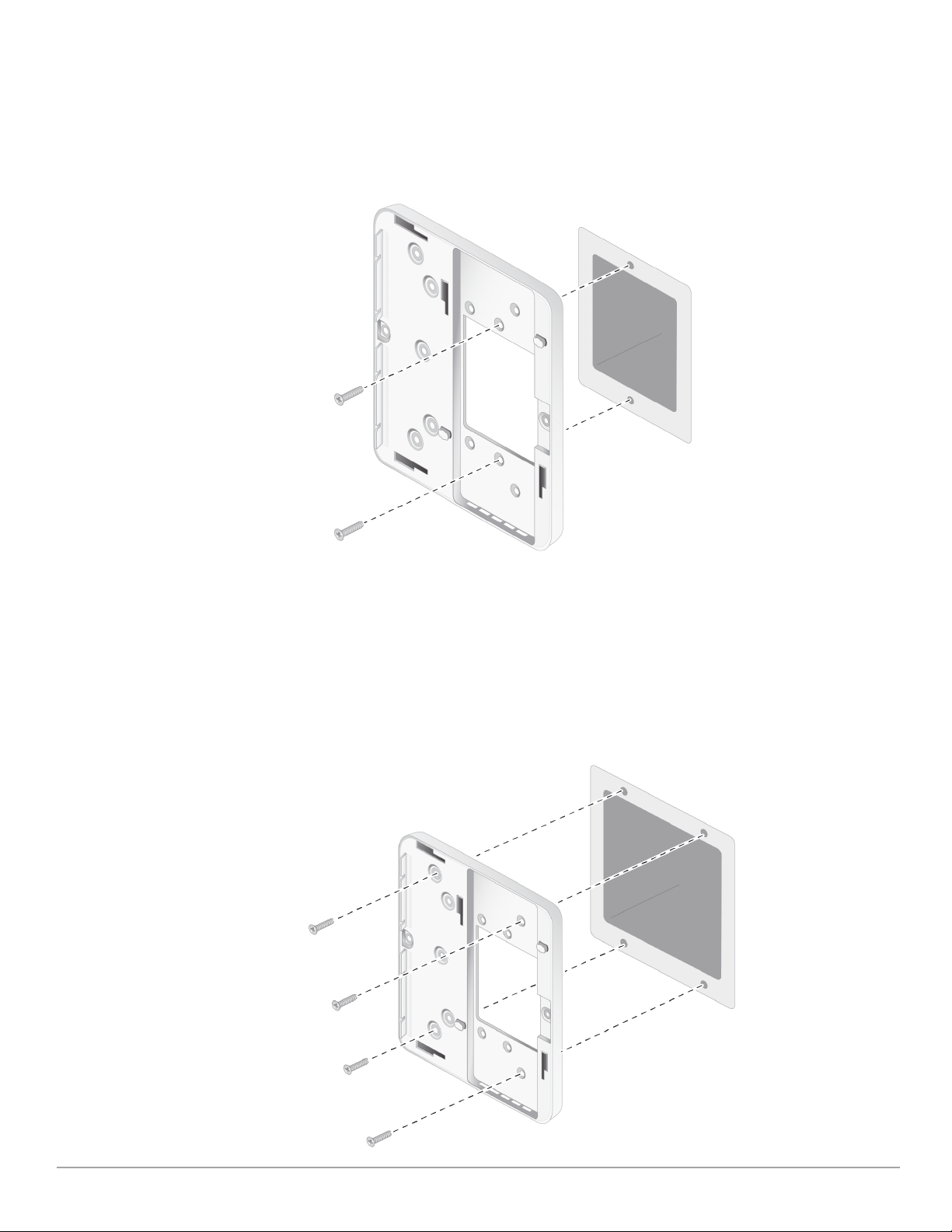

Figure 2 Attaching Wall Mount to Single Gang Wall Box

5. Remove the #6-32 x 1 machine screws from their bag and screw the wall mount onto the wall box.

Installation for Dual Gang Wall

If mounting the 205H-MNT2 Wall Mount Kit to a dual gang wall box, refer to steps 6-7.

6. Align the screw holes on the mounting bracket with the corresponding holes on the dual gang wall box,

as indicated in Figure 3.

Figure 3 Attaching Wall Mount to Dual Gang Wall Box

205H-MNT2 Wall Mount Kit | Installation Guide 3

7. Remove the #6-32 screws from their bag and screw the wall mount onto the wall box, as shown in Figure

8. Connect any required cables to the rear of the access point.

9. Align the mounting slots on the back of your 205H access point with the corresponding posts on the wall

mount as shown in Figure 4.

Figure 4 Securing 205H access point to Wall Mount

10. Push the access point against the holes and then downward until the posts engage the slots at the top of

the mounting holes.

11. (Optional) Using the second T8H Torx security screw provided, insert into the hole on the upper-right

side of the mount and tighten to lock the 205H access point into the mount.

12. Position the prongs on the back of the front cover inside the slots on the front mount housing, as shown

in Figure 5.

Figure 5 Fitting Front Cover onto Wall Mount

0511763-03 205H-MNT2 Wall Mount Kit | Installation Guide

13. Slide the cover into the tracks toward the access point until the left side of the cover is level with the

side of the mount. Refer to Figure 6, demonstrating the cover sliding from open position (left) to locked

position (right).

Figure 6 Plastic Side Cover Sliding into Wall Mount (Rear View)

14. (Optional) Once the front cover is securely attached to the mount, insert one of the T8H Torx Security

Screw into the hole located at the left side of the cover and tighten until secure.

15. (Optional) If not using PoE, connect the AC-DC power adapter (sold separately, part number AP-CBL-

SER) to the DC power socket located on the right of the 205H access point.
