HP IPAQ h6300 Instructions d'installation

HP-00007-01, Appendix 3 13-Oct-2004

Page 1

Appendix 3 Product End-of-Life Disassembly instructions

Product Identification:

Marketing Name / Model Description

HP iPAQ h6300 Series Pocket PC Handheld Device

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the

basic instructions for the disassembly of HP products to remove components and materials requiring

selective treatment.

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in

the right column, as applicable.

Item Description Notes Quantity of

items included

in product.

Printed Circuit Boards (PCB) or Printed

Circuit Assemblies (PCA) With a surface greater than 10

square cm 1

Batteries All types including standard

alkaline and lithium coin or button

style batteries

Mercury containing components For example, mercury in lamps,

display backlights, scanner lamps,

switches, batteries

Liquid Crystal Displays (LCD) with a

surface greater than 100 square cm Includes background illuminated

displays with gas discharge lamps 0

Cathode Ray Tubes (CRT) 0

Capacitors / condensers (Containing

PCB / PCT) 0

Electrolytic Capacitors / Condensers

measuring greater than 2.5 cm in

diameter or height

Gas Discharge Lamps 0

Plastics containing Brominated Flame

Retardants Declaration limited to case

plastics only. 0

Components and parts containing toner

and ink, including liquids, semi-liquids

(gel/paste) and toner

Include the cartridges, print

heads, tubes, vent chambers, and

service stations.

Components and waste containing

asbestos 0

Components, parts and materials

containing refractory ceramic fibers 0

0Components, parts and materials

containing radioactive substances 0

HP-00007-01, Appendix 3 13-Oct-2004

Page 2

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a

point where components and materials requiring selective treatment can be removed.

Item Tool Description Tool Size (if applicable)

1 Philip Screw Driver 000X40

2 Torex Screw Driver T6X40

3 Special Made Plastic Stick

4 Tweezers

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials

requiring selective treatment:

Step Description Time Required

(Second)

1 Remove the stylus, SD card, battery cover, antenna and main battery. 35

2 Remove the 4 screws. 35

3 Separate housing and bezel, remove the vibrator. 30

4 Disconnect all the FPCs and cables from the connectors of M/B. 80

5 Remove the screws on speaker carrier and remove the carrier 30

6 Remove the M/B PCA from the bezel. Remove coin cell battery for

selective treatment. 20

3.2 OPTIONAL: Depending upon the complexity of the disassembly process, a graphic

depicting the locations of items contained within the product which require selective

treatment (with descriptions and arrows identifying locations) can be inserted below:

HP-00007-01, Appendix 3 13-Oct-2004

Page 3

To take out battery for selective treatment, the SD

card and stylus pen

Remove four screws.

Remove antenna cover.

HP-00007-01, Appendix 3 13-Oct-2004

Page 4

Split case into halves.

Remove speaker.

Remove tape

Remove receiver connector.

HP-00007-01, Appendix 3 13-Oct-2004

Page 5

Remove LCM connector.

Remove MIC connector.

Release M/B.

Remove RTC coin cell battery from MB for

selective treatment. (not shown in picture)

Remove LCM.

HP-00007-01, Appendix 3 13-Oct-2004

Page 6

Remove vibrator kapton tape

Remove vibrator connector.

Remove screws.

Remove vibrator bracket.

HP-00007-01, Appendix 3 13-Oct-2004

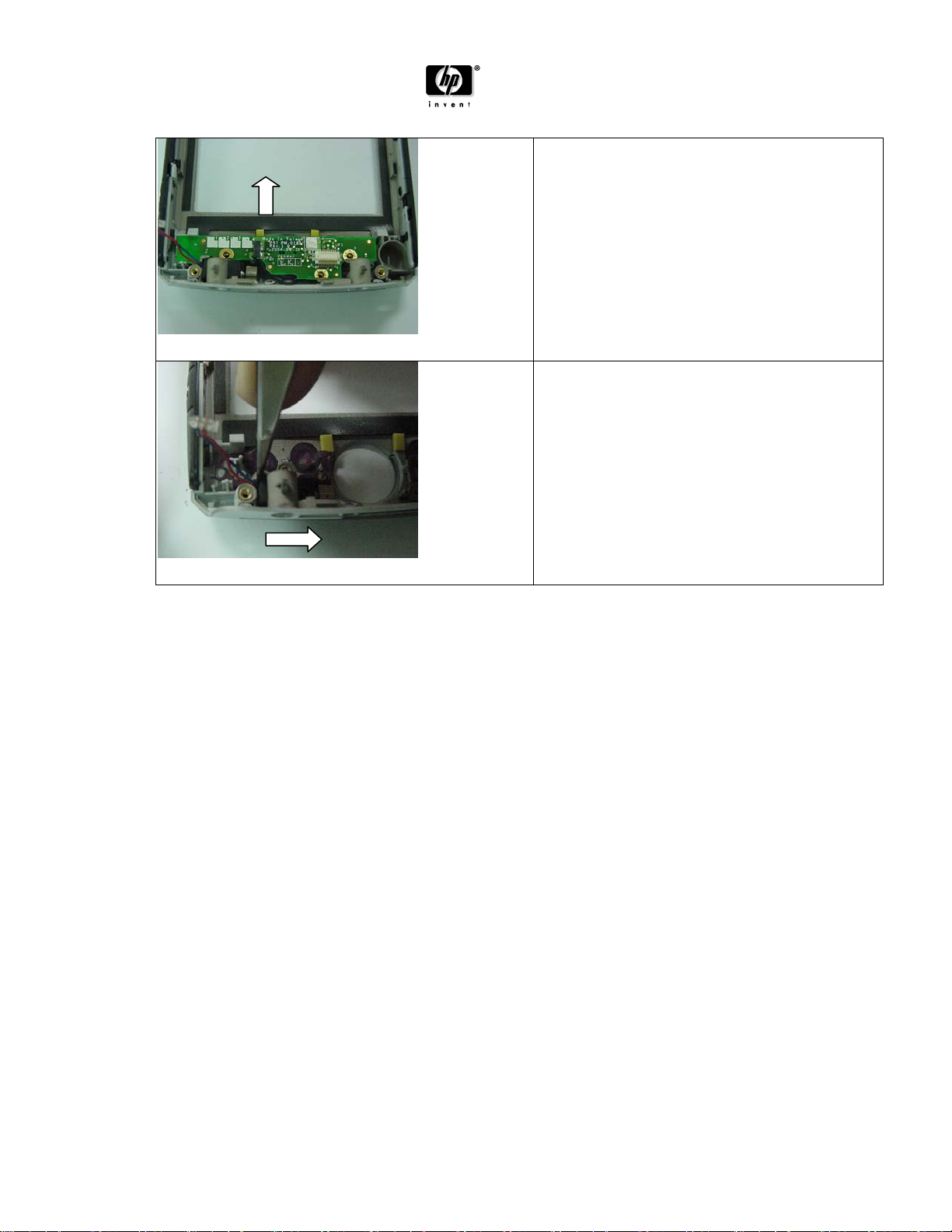

Page 7

Remove Keyboard

Remove the vibrator.
